FLI Audio FA10A-F1

800 Watt 10" Acid Series Bass Reflex Amplified Subwoofer and Ported Enclosure

FLI Audio
Shop all FLI Audio
highlight-star-icon

800 Watt 10" Acid Series Bass Reflex Amplified Subwoofer and Enclosure • Angled-Back Enclosure • Integrated Active ED7 Mono-Block Amplifier • Plastic Copper And Black Colored Trim Ring • Carpeted Finish With "FLI Acid" Logo • Secret Channel To Hide Amplifier Cables

Learn more about the fa10af1

We apologize

This item has been discontinued


Loading...
AOEM-FRD24 main

PAC AOEM-FRD24

Amplifier Integration Interface for select 2003-2014 vehicles from Ford, Lincoln, Mercury with Amplified THX and Sony Sound Systems

26
-55.82%

$56.99

List price $129.00

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
95-5026 main

Metra 95-5026 Dash Kit

Install a new Double-DIN car stereo in select 2002-2006 vehicles from Ford, Lincoln, Mercury (Black)

18
-41.68%

$13.99

List price $23.99

70-1776 main

Metra 70-1776 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2003-2007 vehicles from Ford, Lincoln, Mercury

2
-11.11%

$39.99

List price $44.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

SXE-1751S main

Alpine SXE-1751S

440W Peak (80W RMS) 6.5" SXE-Series 2-way 4-ohm Component Speakers with Mylar-Titanium Tweeters

4
-16.67%

$64.99

List price $77.99

XED525C main

Cerwin-Vega XED525C

500W Peak (60W RMS) 5.25” XED Series 2-Way 4-ohm Component Speaker System

8
-16.67%

$59.99

List price $71.99

DPX395MBT main

Kenwood eXcelon DPX395MBT

Double DIN Shallow Chassis Digital Media Receiver with Bluetooth and Built-in Alexa

6
-19.52%

$169.00

List price $210.00

Description


FLI Audio brand icon

Authorized dealer

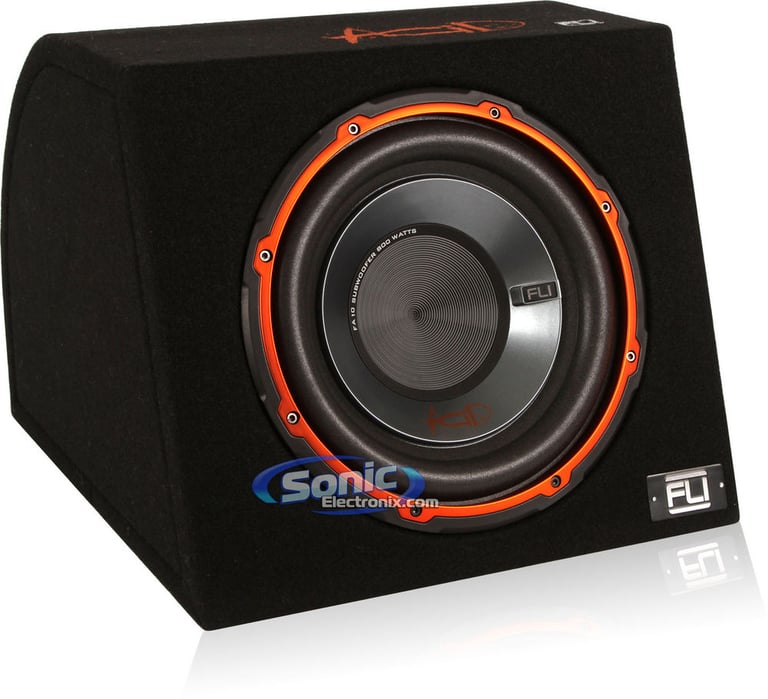

FLI's Acid Series

FLI Audio brings you its new line of Acid Series amplified subwoofer and enclosure. The new FLI FA10A-F1 10" Single 4-Ohm Bass Reflex Amplified Subwoofer and Ported Enclosure puts out some serious power at 800 watts MAX and 265 Watts RMS. To keep all that power under control FLI employed an Electroplated IMPP(Injection Molded Polypropylene) cone with a foam surround and single Nomex spider. These help reduce cone distortion even at the subs maximum excursion limits.

The enclosure features an Integrated Active ED7 Mono-Block Amplifier with a secret channel to hide amplifier cables. FLI also includes a copper and black colored trim ring and black carpeted finish to give your system that nice, clean and uncluttered look.

Subwoofer Features:

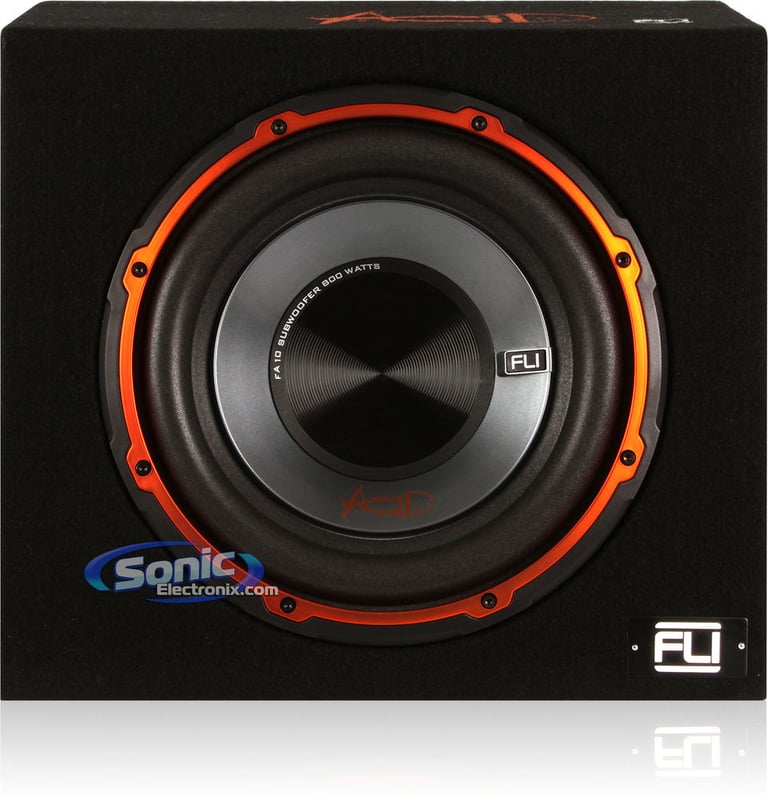

  • 10" Single 4-Ohm Acid Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 265 watts
  • Impedance: 4 Ohm
  • Electroplated IMPP cone
  • Foam surround
  • Single Nomex Spider
  • 2" Voice coil
  • Plastic copper and black colored trim ring
  • Single magnet motor structure
  • Frequency response: 30-1,700 Hz
  • Sensitivity: 90dB
  • 1-year Sonic Electronix Warranty

General Enclosure Features:

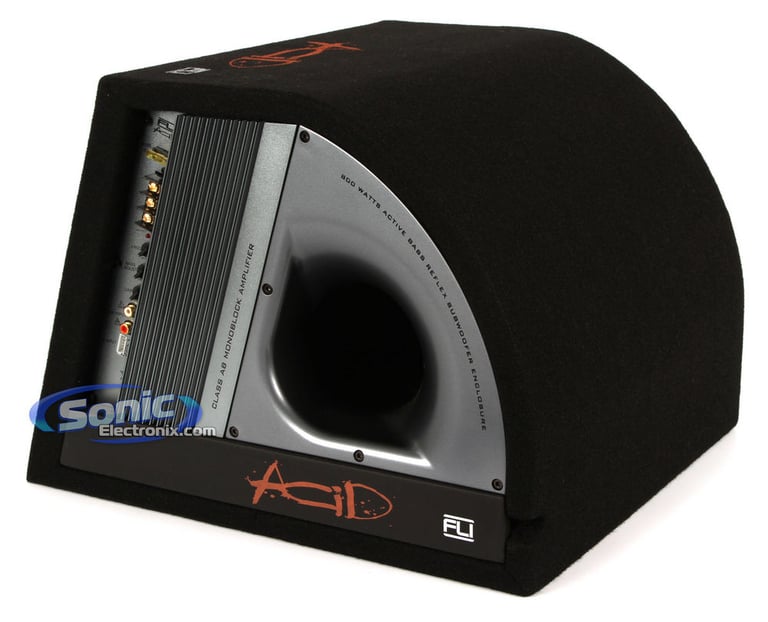

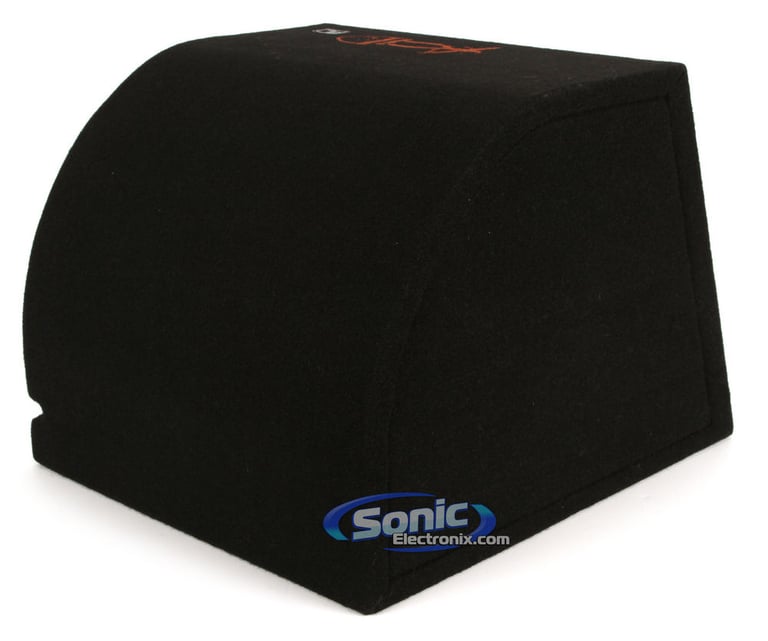

  • 10" Single Angled-back ported enclosure

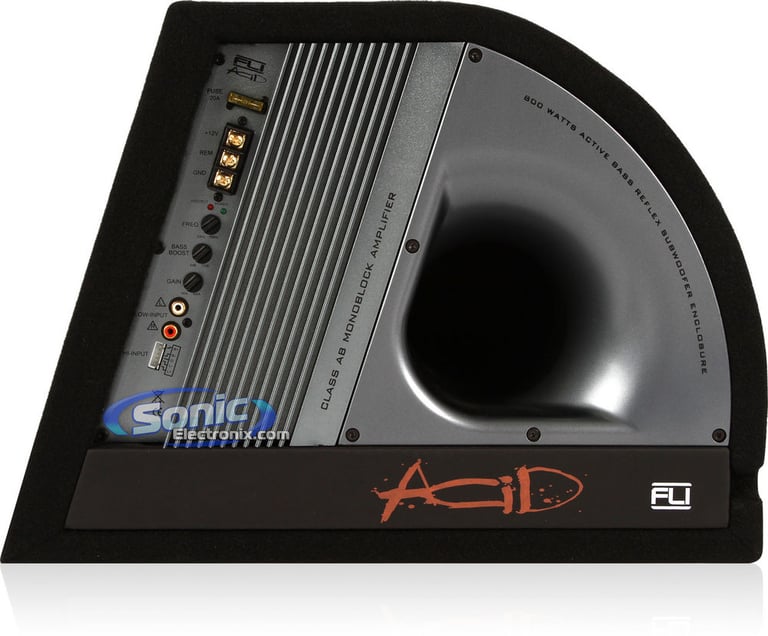

  • Integrated Active ED7 Mono-Block Amplifier
  • Carpeted Finish with "FLI Acid" logo
  • 3" flared Port
  • Subwoofer mounting depth: 4-1/4"
  • Subwoofer cutout diameter (or dimension): 9-8/8"
  • Secret channel to hide amplifier cables
  • Dimensions: 15-3/4"D x 14-7/16"W x 12"H

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

Specifications & Details

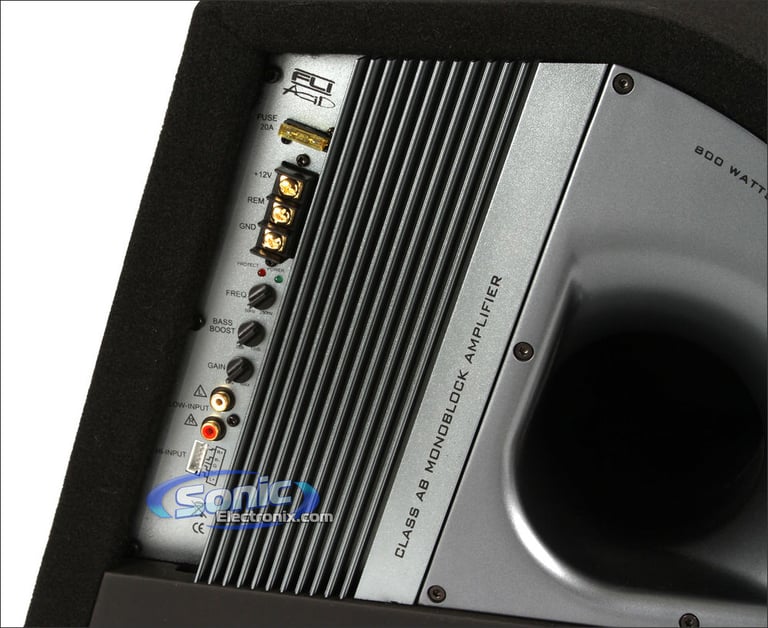

Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
10 AWG
Speaker Level Inputs
Yes
Preamp Outputs
Mono output
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
1A x 20
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
265 watts
Peak Power Handling
800 watts
Woofer Surround
Foam
Woofer Composition
Injection Molded Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
90 dB
Frequency Response
30 - 1700 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
12"
Width
14-7/16"
Depth
15-3/4"
Number of Terminals
2
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

FA10A-F1

Weight:

25.50lbs

Internal SKU:

fa10af1

Internal Product ID:

61439
