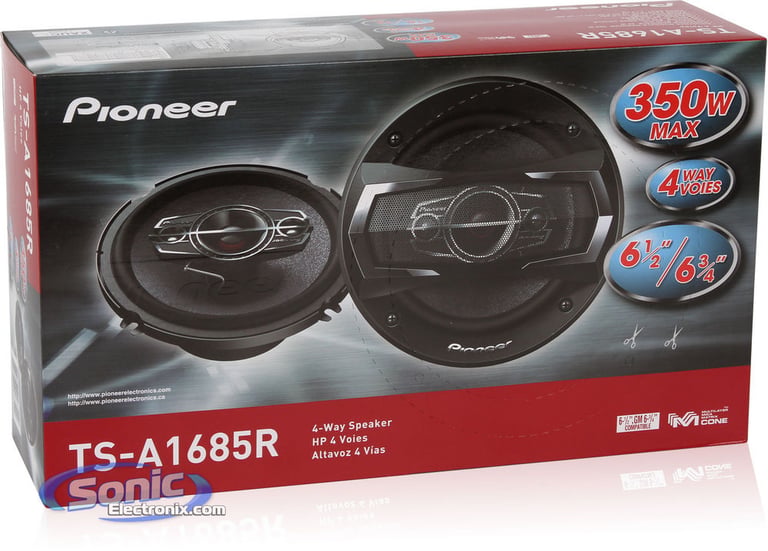

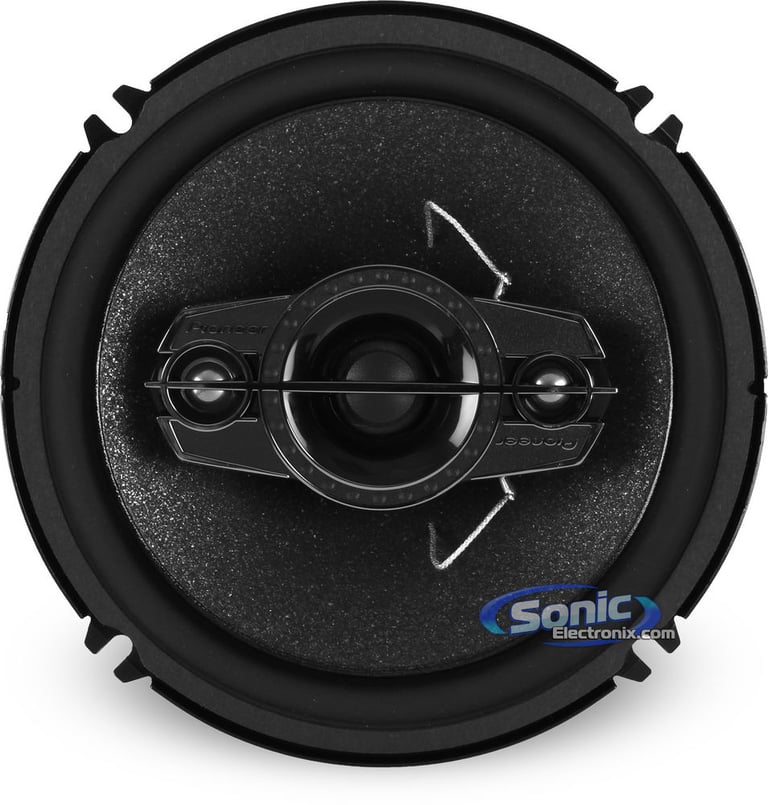

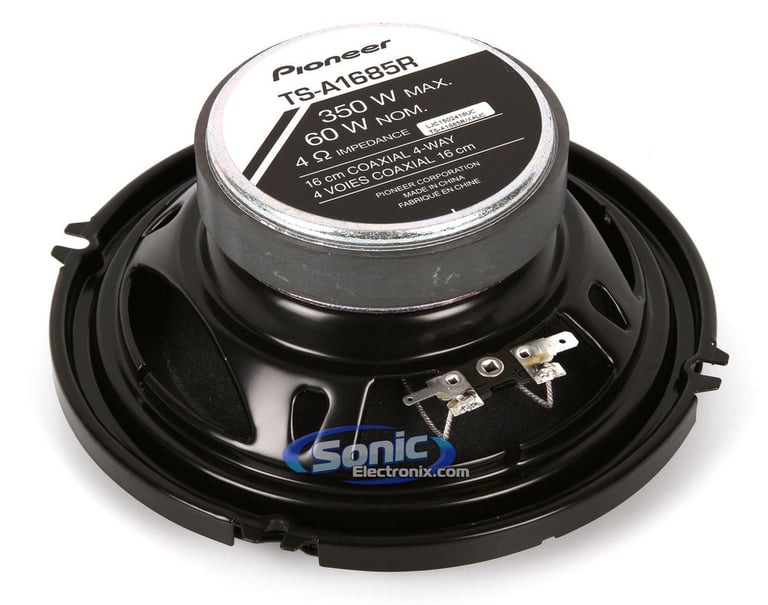

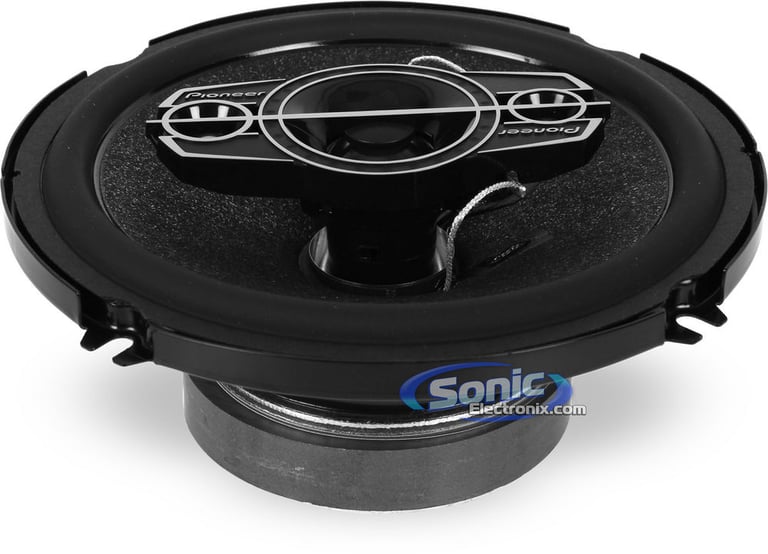

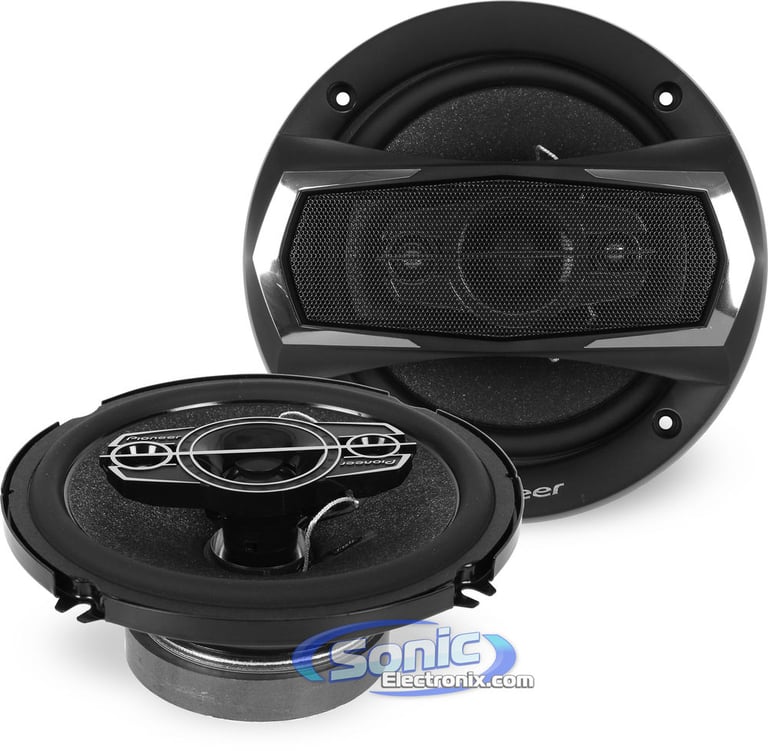

Pioneer TS-A1685 (TS-A1685R)

120W 6.5" / 6.75" 4-Way A-Series Coaxial Speakers w/ Soft Tweeters

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 350W
• RMS Power: 120W
• Soft Dome Tweeters with Wave Guide
• Mounting Depth: 2-1/8"
• Multilayer Mica Matrix Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 91dB

Learn more about the tsa1685

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsa1686r thumbnail

Pioneer TS-A1686R

OUR PRICE: $64.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

Product Highlights


• Peak Power: 350W
• RMS Power: 120W
• Soft Dome Tweeters with Wave Guide
• Mounting Depth: 2-1/8"
• Multilayer Mica Matrix Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 91dB

Description


Pioneer brand icon

Authorized dealer



Quality Sound by Pioneer

The A-Series speakers are your solution to upgrading those worn out factory speakers. The cone is composed of a multilayer mica matrix material that is rigid enough to resist warping during playback, but soft enough to produce smooth and subtle mids. The soft dome tweeter uses Wave Guide technology in order to increase the sensitivity, thus providing great articulation in the high frequency spectrum. The passive crossover network will blend the mid-woofer and tweeter for a perfectly balanced sound all throughout the audible frequency range. These speakers are designed with a wide frequency response to ensure you are hearing every note of your favorite songs. The high temperature voice coil will reduce distortion by dissipating heat quickly, which will protect your investment for years to come. These speakers can be ran off either a head-unit or an amplifier, making them very versatile and applicable for most vehicles. Available in most common sizes, the A-Series speakers make for a great audio upgrade.

General Features:

  • 6-1/2" / 6-3/4" A-Series 4-Way Coaxial Speakers
  • Power Handling:
    • Peak: 350 watts per pair / 175 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Multilayer Mica Matrix cone material
  • Elastic Polymer speaker surround

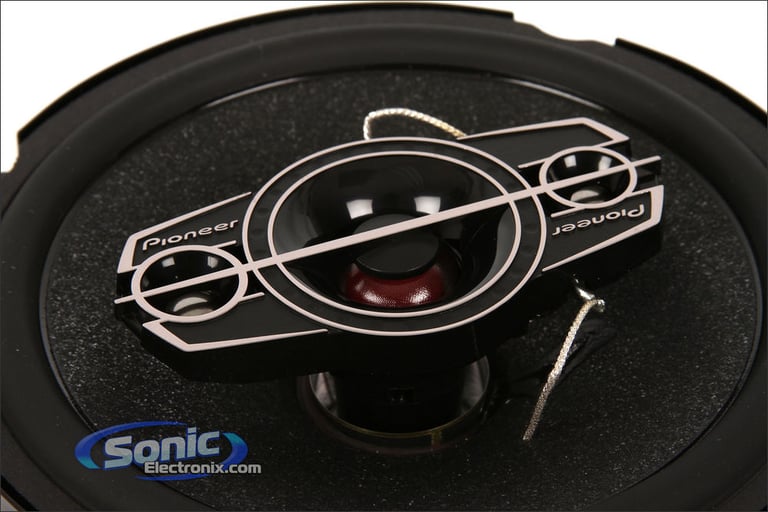

  • Soft Dome tweeters with Wave Guide for increased sensitivity
  • High temperature voice coil
  • 4 ohm impedance

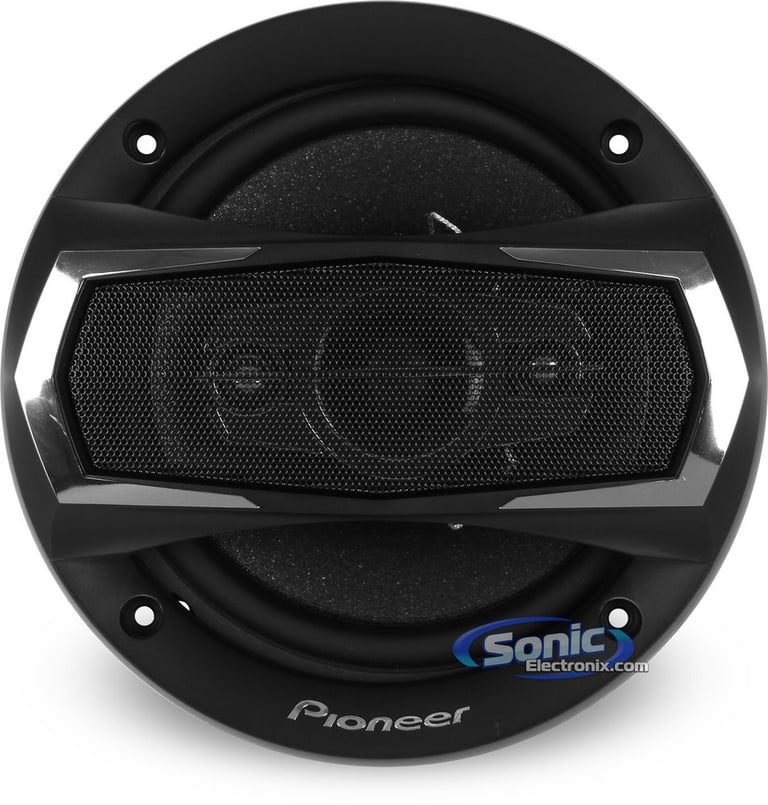

  • Protective speaker grilles
  • Frequency response: 34-30,000 Hz
  • Top-mount depth: 2-1/8"
  • Sensitivity: 91dB
  • 1-year Sonic Electronix Warranty

Priced Per Pair
Also Found As: TSA1685R, TS A1685R, TSA-1685R

Product history:

Pioneer TS-A1686R thumbnail
(newest, current model)
Pioneer TS-A1685R thumbnail
(previous model, replaced by Pioneer TS-A1686R)
Pioneer TS-A1684R thumbnail
(previous model, replaced by Pioneer TS-A1685 (TS-A1685R))
Pioneer TS-A1683R thumbnail
(previous model, replaced by Pioneer TS-A1684R)
Pioneer TS-A1682R thumbnail
(previous model, replaced by Pioneer TS-A1683R)
Pioneer TS-A1681R thumbnail
(previous model, replaced by Pioneer TS-A1682R)
Pioneer TS-A1680R thumbnail
(previous model, replaced by Pioneer TS-A1681R)

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

13
-10.50%

$179.00

List price $200.00


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(124)

$79.96

List price $119.99

Club 622 small

JBL Club 622

• 180 watts Peak Each, 60 watts RMS Each
• Silk Edge Driven Dome tweeters with 0dB or -3dB adjustable output levels
• UV-Resistant Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 93 dB

(5)

$99.95

List price $139.95

43DSC6504 small

Kicker DSC650 (43DSC6504)

• 240 watts Peak Each, 60 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome zero-protrusion tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(28)

$84.99

List price $94.99

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Speaker Size
6-1/2" (also mounts in 6-3/4" w/ included brackets)
Design
4-way Coaxial
Tweeter Design
Dome
Tweeter Size
3/4"
Woofer Composition
Mica Reinforced Cellular Glass-Fiber
Woofer Surround
Elastic Polymer
Peak Power Handling
175 watts
RMS Power Handling
60 watts
Sensitivity
91 dB
Frequency Response
34 - 30000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
5" x 5"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1685R

Weight:

4.90lbs

Internal SKU:

tsa1685

Internal Product ID:

63997
