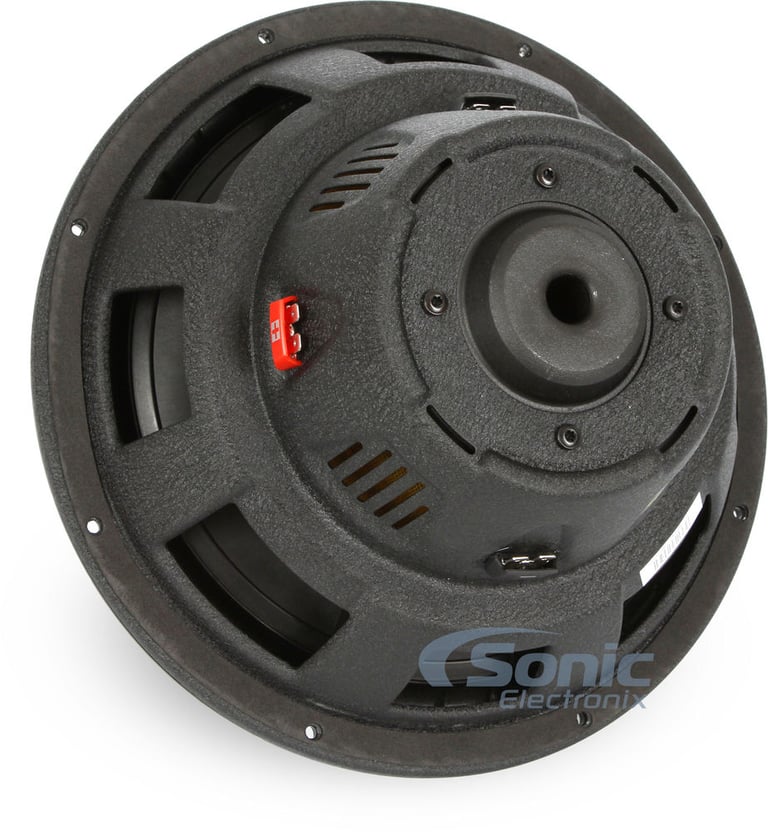

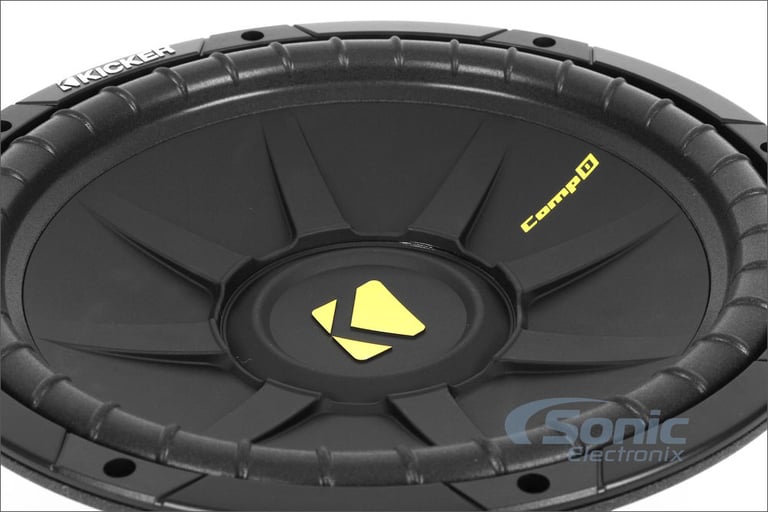

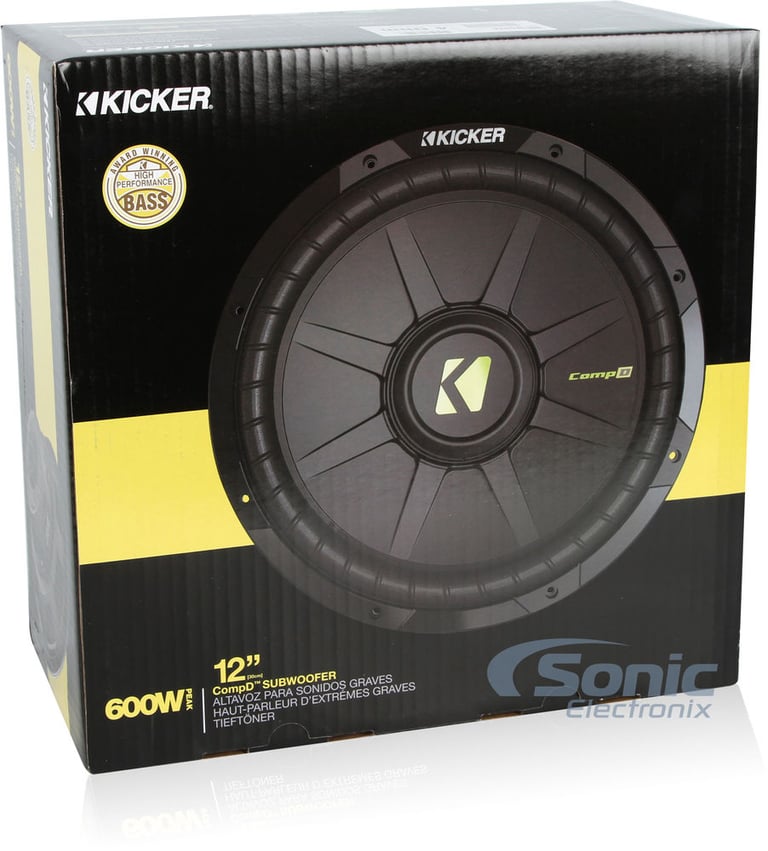

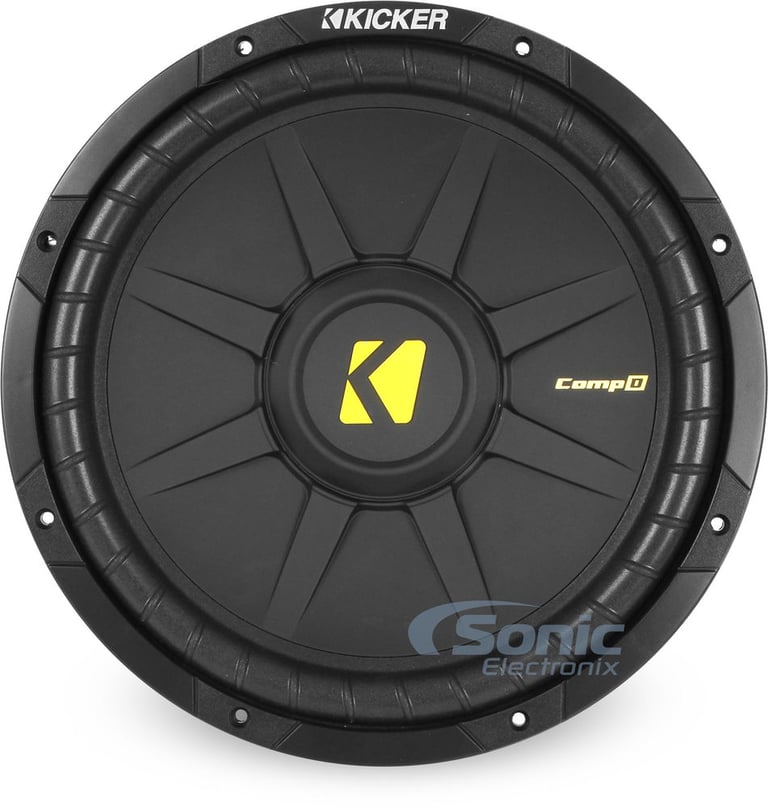

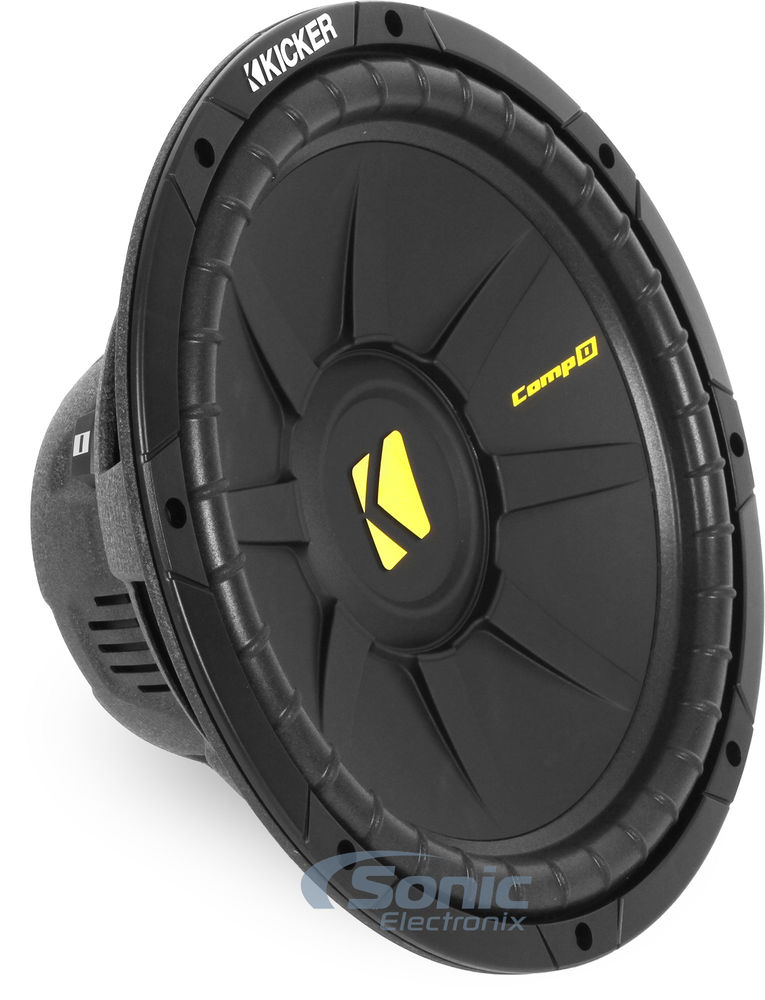

Kicker 12" CompD 4 Ohm (40CWD124)

600W Peak (300W RMS) 12" Comp-D Series Dual 4-Ohm Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 600W Peak
• 300W RMS
• Injection-Molded Polypropylene Cone
• Ribbed Polyurethane Surround
• Large-Diameter Spider
• High-Strength Spiralead Tinsel Leads

Learn more about the 40cwd124

We apologize

This item has been discontinued


Loading...
Limited time!
TS-G1020S main

Pioneer TS-G1020S

420W Peak (60W RMS) 4" G-Series 2-way 4-ohm Coaxial Car Speakers

2
-24.63%

$48.99

List price $65.00

Product Highlights


• 600W Peak
• 300W RMS
• Injection-Molded Polypropylene Cone
• Ribbed Polyurethane Surround
• Large-Diameter Spider
• High-Strength Spiralead Tinsel Leads

Description


Kicker brand icon

Authorized dealer






Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)



Legendary Kicker Bass

CompD Subwoofers are equipped with proven construction, inheriting elite innovations for world-class KICKER power, durability and hard-hitting, high-performance bass.

"Bass is what we are all about… it's our specialty. From the very start, we've been known for rich sound. It's the KICKER heritage, and it's carried out through all we do," said KICKER founder and President Steve Irby.

Available in 2- or 4-Ohm impedances, dual-voice-coil CompD Subwoofers make convenience priority with its wiring flexibility (series/parallel/stereo), leading to easy impedance matching with CX-Series Amplifiers for the biggest bass possible. CompD Subwoofers are founded on legendary engineering that is tried and true, building upon the success of the KICKER's original Competition Series from 1986.

CompD Subwoofers are ideal for vented or sealed enclosures, or even in free-air applications, and handle more power than any previous Comp Series generation. Each is equipped with a lightweight, injection-molded polypropylene cone and tough, ribbed polyurethane surround for eliminating flex and distortion. The heavy-duty motor structure includes a rip-resistant, large-diameter spider that supplies less flex, longer life and better accuracy. High-strength Spiralead tinsel leads weave through the large spider for max signal transfer. High-temp coil wire winding around a vented pole piece and innovative Quad Venting slots contribute to the woofers' efficient cooling attributes and durability.

Its full-coverage, steel basket is shallower than previous Comp baskets, fitting into more applications, and it incorporates 1/4-inch, heavy-duty spade connections.


Save on the Open Box Version:
Available Now - CLICK HERE

Kicker Authorized Dealer

General Features:

  • 12" CompD Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Recommended Power Range: 100 - 300 watts RMS
  • Impedance: Dual 4 ohm
  • Injection-Molded Polypropylene Cone
  • Ribbed polyurethane surround
  • Large-diameter spider
  • High-strength Spiralead tinsel leads
  • Frequency response: 27-500 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Top-mount depth: 5-3/8"
  • Sensitivity: 88.3dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Also Found As: 40-CWD124, CWD12-4, 40CWD12-4, CWD124, 40 CWD124, 40CW124, CWD12, Comp D 124, Comp D124, CompD 124, CompD10, Comp-D124, CompD12-4

Tips for Installing the 40CWD124 Subwoofer


This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker 12" CompD 4 Ohm (40CWD124) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker 12" CompD 4 Ohm (40CWD124) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker 12" CompD 4 Ohm (40CWD124) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker 12" CompD 4 Ohm (40CWD124) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

8
KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

BE12ACP.WXC main

Boss Elite BE12ACP.WXC

12" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto, Backup Camera (SiriusXM and iDataLink Maestro Ready)

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-10.00%

$899.99

List price $999.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
CompD Series
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
27 - 500 Hz
Sensitivity
88.3 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Ribbed Poly-Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
3.5 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
95.18 liters
Total Speaker Q Value (Qts)
.559
Electrical Q Value (Qes)
.591
Electrical Resistance of Voice Coil (Re)
3.36 ohm
Mechanical Q Value (Qms)
10.22
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

40CWD124

Weight:

11.00lbs

Internal SKU:

40cwd124

Internal Product ID:

64265

Product and How-to Videos


  • Kicker Comp S/D Car Subwoofers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box

Customer Ratings & Reviews
