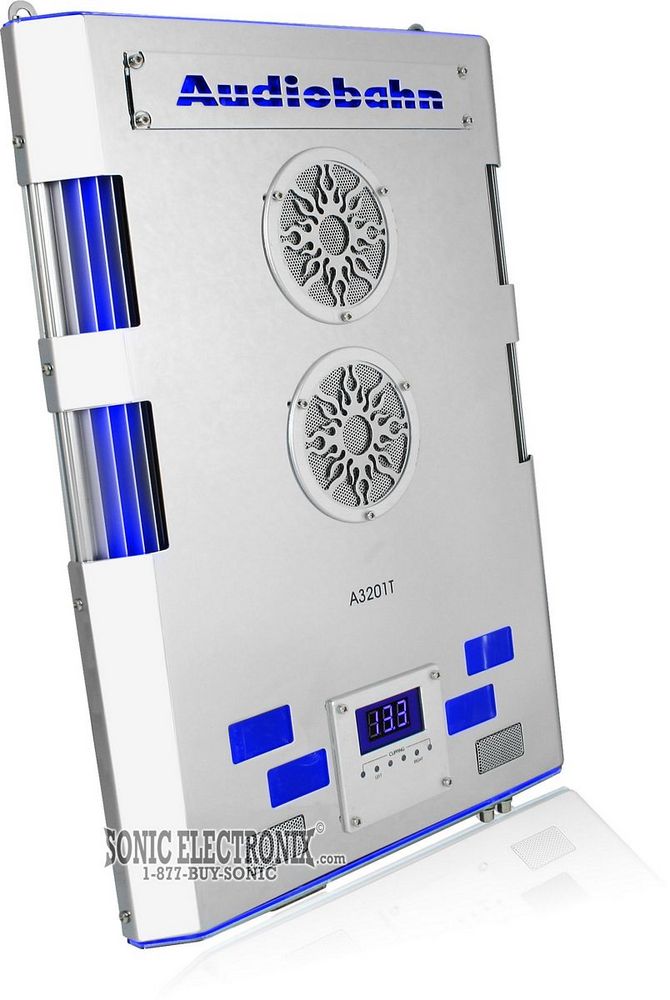

Audiobahn A3201T

1680W Max, Class A/B 2-Channel Amplifier

1
Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

2-Channel Class A/B Amplifier with Cobalt Blue Illumination and chrome finish • 1680W Max Power Output • 840W RMS @ 2 ohms • 600W RMS @ 4 ohms • Digital LCD Voltmeter Display • Cooling Fan • Preamp Outputs

Learn more about the a3201t

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

2-Channel Class A/B Amplifier with Cobalt Blue Illumination and chrome finish • 1680W Max Power Output • 840W RMS @ 2 ohms • 600W RMS @ 4 ohms • Digital LCD Voltmeter Display • Cooling Fan • Preamp Outputs

Description

Audiobahn
  • 1680W Max, Class A/B 2-Channel Car Amplifier
  • RMS Power Rating:
    • 300 watts x 2 chan. @ 4 ohms
    • 420 watts x 2 chan. @ 2 ohms
    • 840 watts x 1 chan. @ 4 ohms Bridged
  • Max Power Output: 1680 watts @ 2 ohms stereo or 4 ohms bridged
  • Full MOSFET Power Supply with Soft Start Class A/B Circuitry
  • Preamp Outputs
  • Cobalt Blue Illumination (on/off switch for your preference)
    • Circuit Board, Heat Sink, Audiobahn Name Plate, Volt-meter and End Caps illuminate
  • Cobalt Blue Digital Volt-meter Display
  • Clipping Blue LED Indicators under the volt-meter display
  • Cooling Fan
  • Chrome Flame Cooling Fan Grill Cover Included (other optional designs available and sold separately)
  • Double Sided Glass Epoxy Circuit Board
  • High Gloss Chrome Plated Finish

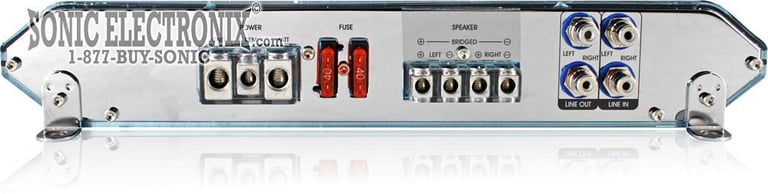

  • Nickel Plated Block Terminals
  • 3-way Protection Circuitry: Thermal, Short Circuit and Overload
  • High quality Bipolar Audio Stage

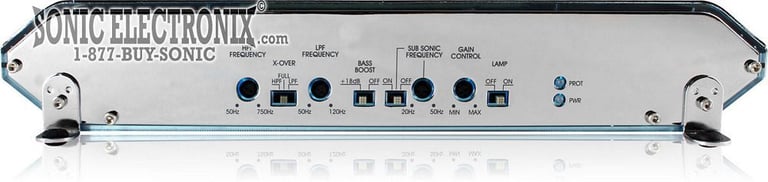

  • On/Off Bass Boost Setting: 0 or +18dB
  • Variable High-Pass Crossover: 50-750Hz
  • Variable Low-Pass Crossover: 50-120Hz
  • Variable Subsonic Filter: 20-50Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • THD: 0.02%
  • Phase Control: 0 or 180°
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 17-1/4" L x 12-3/4" W x 2-1/4" H
  • 1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 2 channel
RMS Power @ 2 ohms
420 watts x 2 channel
Bridged RMS Power
840 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1680 watts
Total RMS Power Output
840 watts
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
On/Off Switch (0 or +18dB)
Remote bass/level controller
No
Fuse Rating
40A x 2
Warranty and Return Policy

Item Details

Manufacturer:

Audiobahn

Model Number:

A3201T

Weight:

18.00lbs

Internal SKU:

a3201t

Internal Product ID:

65
