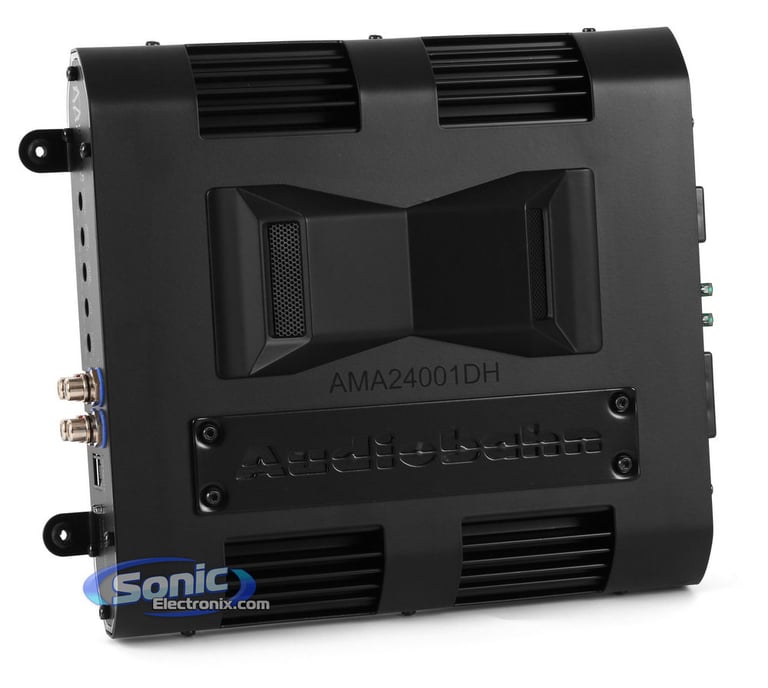

Audiobahn AMA24001DH

1200W RMS, Mono Block Class D Murdered Out Series Car Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

• RMS: 400W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total RMS Power: 1200W
• 1 Pair of Preamp Outputs
• Bass Boost: 0-18 dB
• Low Pass Filter: 50-120 Hz
• Dimensions: 11-9/16"W x 8-1/2"D x 2-11/16"H

Learn more about the ama24001dh

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

82-6600 main

Metra 82-6600

5-1/4" or 6-1/2" Front Door Speaker Adapter for select 1995-2024 vehicles from Dodge, Ram, Jeep

14
-40.02%

$14.99

List price $24.99

CR1277B main

Scosche CR1277B / CR1277 Dash Kit

Install a new Single-DIN car stereo in select 1998-2010 vehicles from Dodge, Chrysler, Jeep (Black)

162
-21.22%

$10.99

List price $13.95

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
95-6547B main

Metra 95-6547B

Double DIN Dash Kit for select 2001-2004 Dakota and Durango

3
-38.81%

$40.99

List price $66.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• RMS: 400W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total RMS Power: 1200W
• 1 Pair of Preamp Outputs
• Bass Boost: 0-18 dB
• Low Pass Filter: 50-120 Hz
• Dimensions: 11-9/16"W x 8-1/2"D x 2-11/16"H

Description


General Features:

  • Murdered Out Series Mono Block Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Max power output: 2400 watts x 1 chan.
  • High Speed Switching MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost)
  • Mono channel operation
  • 4-way protection circuitry (thermal, overload, speaker short protection, and DC offset)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

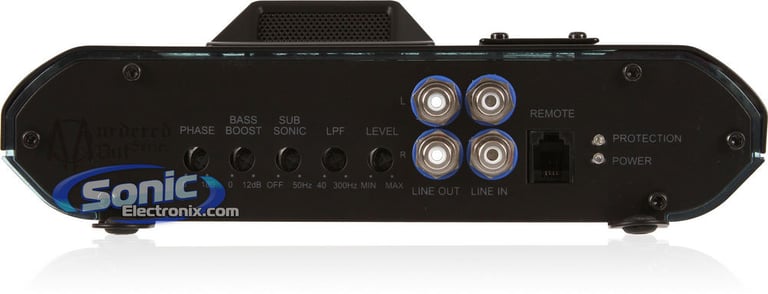

  • Nickel-plated RCA level inputs

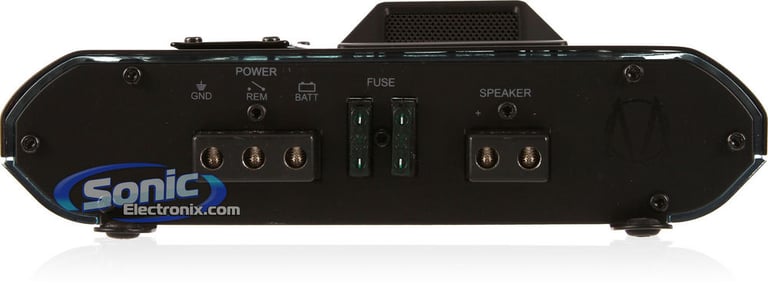

  • Nickel-plated screw terminals
  • Input sensitivity: 200mV - 8V
  • Variable high-pass filter (50-750 Hz)
  • Variable low-pass filter (50-120 Hz)
  • Subsonic filter (20-50 Hz)
  • Phase Shift: 0-180°
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 11-9/16"W x 8-1/2"D x 2-11/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Series
Murdered Out Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AMA24001DH

Weight:

6.00lbs

Internal SKU:

ama24001dh

Internal Product ID:

65009

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn AMA24001DH thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.3
Value
5
Features
4.8
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

audiobahn

Amp works well is what it says it is but didnt come with set screws for remote or power cables.....contacted audiobahn over a month ago still havent got them in the mail.....good thing I had a blown audiobahn amp to pull set screws out of !

By subfreak2003 on January 18, 2014

10 found this helpful


great so far

I got this amp last week so I cant say for durability over time, but as of right now it is running strong I have it running a couple of Rockford power T0s 10s at 1100 rms for the subs wired at 1 ohm amp puts out 1200 at 1ohm. Pretty perfect combo in my opinion I'm sure there's better but suits me fine.

By Happy Customer on December 27, 2012

9 found this helpful


Great Buy

For the price this amp nearly cannot be beat. I bought this to replace an Infinity 1600a. I purchased this amp so I could expand my wattage range as the Infinity was capped out with the Audiobahn AW1200v's I have. I wanted the option of running 1 ohm and the Infinity couldn't handle that. So now the system matches. This amp makes my Audiobahns sound better as the frequency response range is wider. I have had this amp since December of 2013 it is now May of 2014 running two Audiobahn AW1200v's @ 4ohms. Great bang for the buck. Only complaint I have is I didn't get a bass remote with my amp and the Infinity had one, and the amp doesn't light up blue as well as some pictures on the internet make it appear.

By Shawn on May 24, 2014

9 found this helpful


it is good

i have two re audio sex 10s bridged at one ohm and it has had no problem until about three months later the power and ground terminal started to melt and it is cutting out but i think it is because i and pushing them too hard and it is over heating. it would be great for two subs that are less than 600 watt rms overall i would recommend.

By kryztfer on August 28, 2013

7 found this helpful




PMA300HCA small

Alphasonik PMA300HCA

$319.99

List price $399.99

re-Q small

MTX Audio re-Q (REQ)

OEM Bass Restoration & Signal Processor (Get full bass response when adding amps to a factory system)

(7)

$64.99

List price $179.95

SEA10S4 small

Stinger SEA10S4

300W Peak (150W RMS) 10" SEA Series Single 4-ohm Marine Subwoofer

$189.00

List price $259.00

05G15 small

Kicker 05G15 (G15)

15" Subwoofer Grille for Round Kicker Subwoofer

$10.99

List price $39.99

RF-REM small

MB Quart RF-REM

Wireless Remote for Select Source Units

$26.99

List price $26.99

99-5821R small

Metra 99-5821R (Red)

Single or Double DIN Installation Dash Kit for 2010 Ford Fusion & Mercury Milan

$29.99

List price $85.99

72-8108 small

Metra 72-8108

Install New Speakers in select 1992-2013 vehicles from Toyota, Mazda, Dodge

(2)

$8.99

List price $14.99

AVIC-Z1 small

Pioneer AVIC-Z1

Double DIN In-dash DVD player/navigation system with 30GB hard drive and 7" TFT-LCD video screen (Bluetooth, iPod ready)

(1)

$1649.99

List price $2299.99

SPF52125 small

Stinger SPF52125

125 Amp ANL Fuse

(1)

$7.99

List price $9.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Dodge Durango

2016 Mazda CX-5

2003 Ford Focus

2004 Jaguar XKR

2014 Subaru Forester

2015 Chrysler 200

2011 BMW 535i

1986 Buick Skylark

1999 Dodge Ram 2500

1995 Suzuki Sidekick

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
