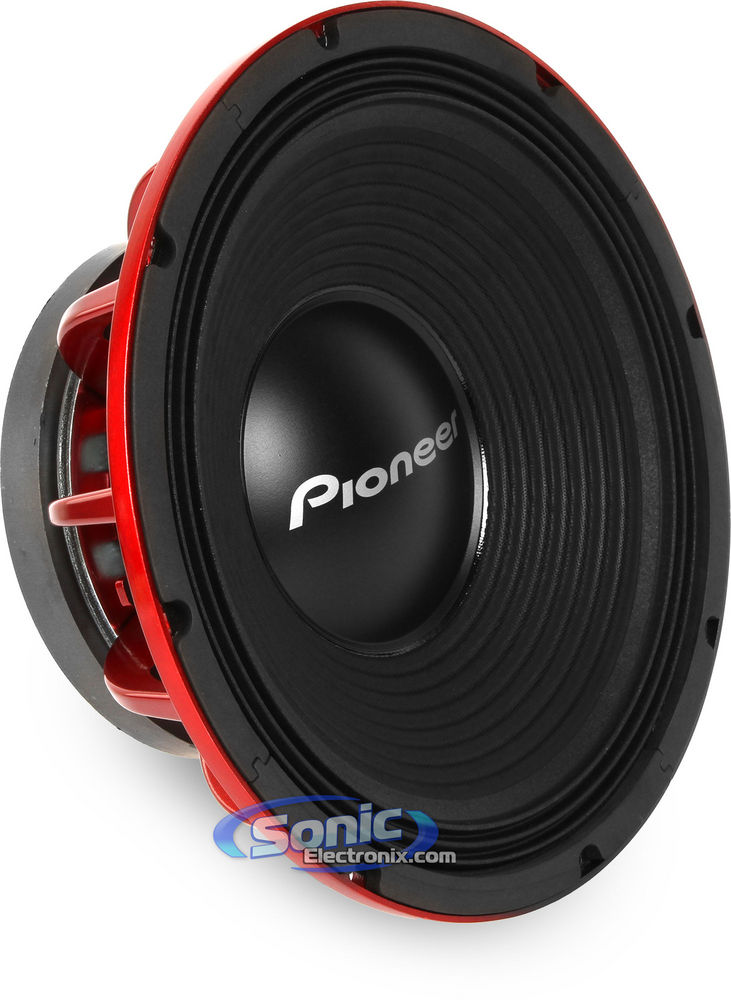

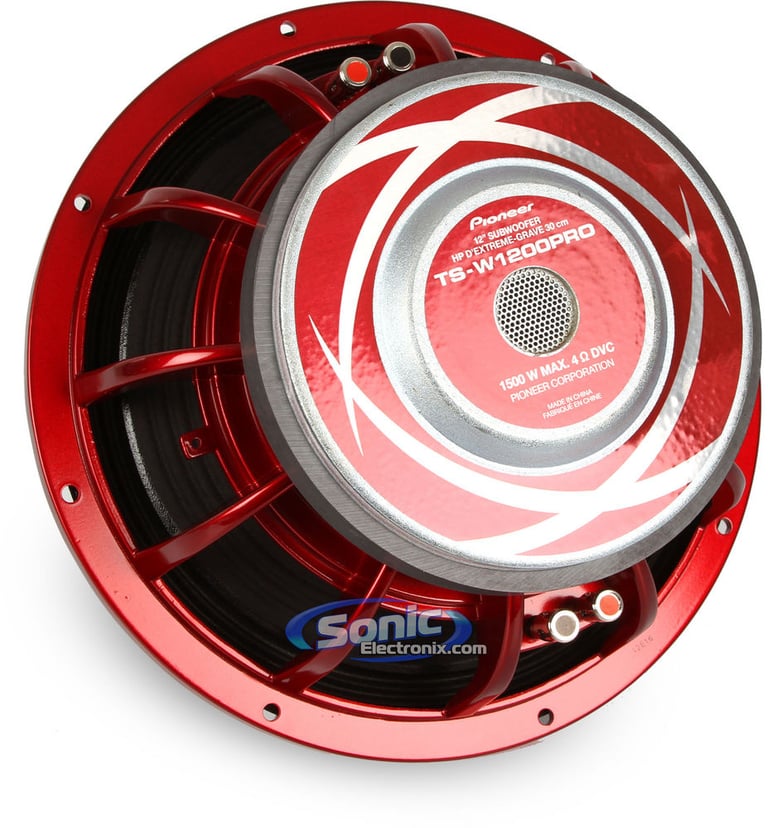

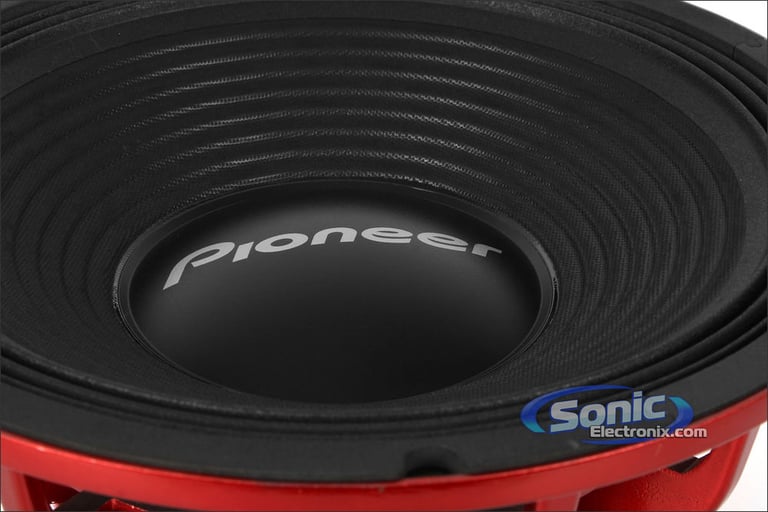

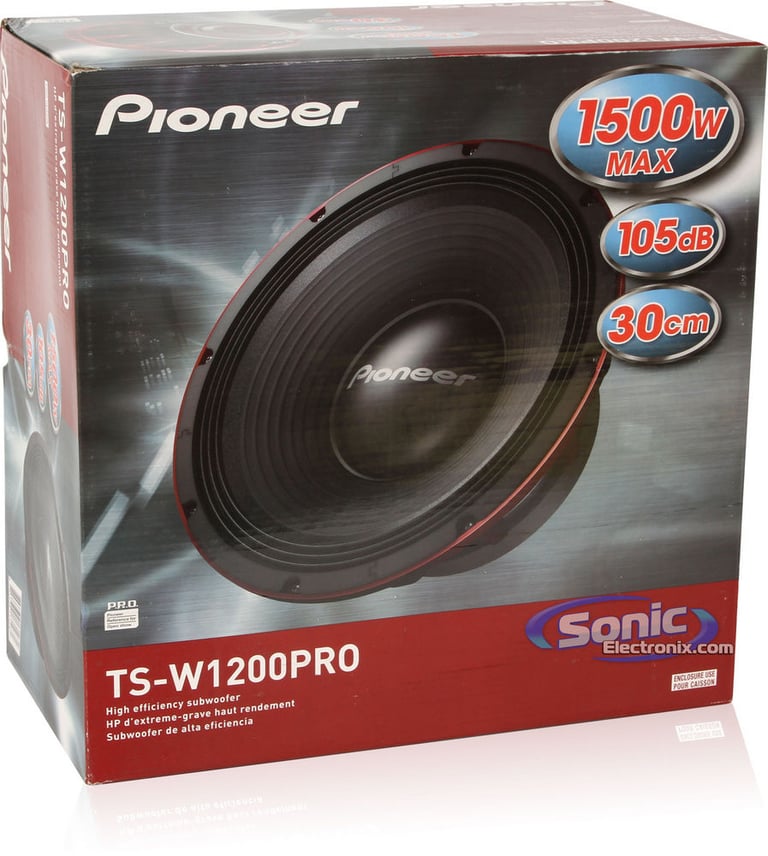

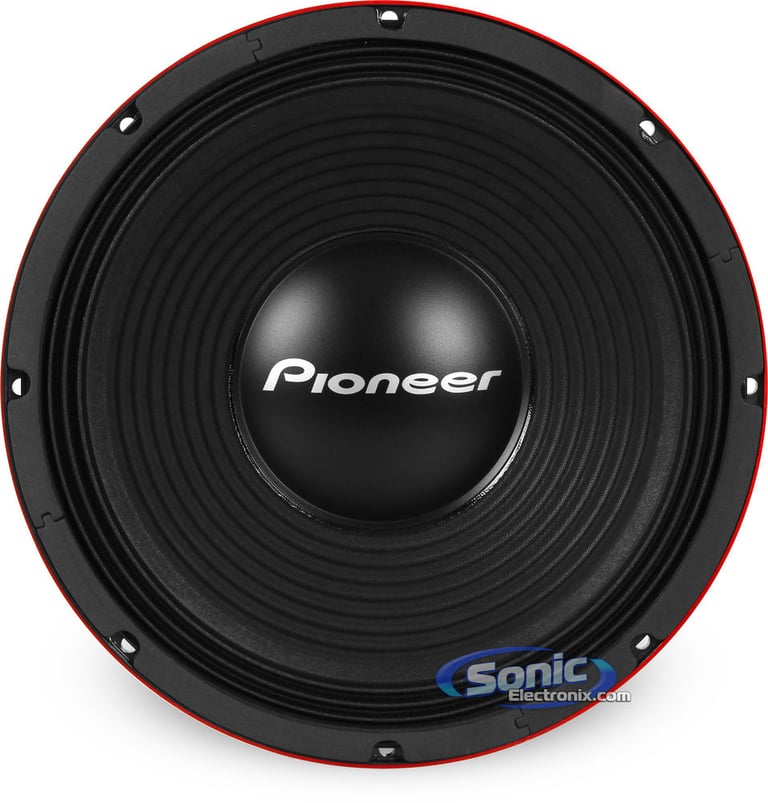

Pioneer TS-W1200PRO

1500W Peak (450W RMS) 12" PRO-Series Dual 4-ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 1500W Peak
• 450W RMS
• Blended Pulp Cone
• Corrugated Surround
• Aluminum Voice Coil Bobbin
• >Large Magnet and High Power Motor Assembly

Learn more about the tsw1200pro

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
H7652 main

Cerwin Vega H7652

640W Peak (120W RMS) 6.5" HED Series 2-Way Coaxial 4-ohm Speakers

31
-16.67%

$69.99

List price $83.99

DMH-341EX main

Pioneer DMH-341EX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Amazon Alexa

14
-31.43%

$240.00

List price $350.00

Product Highlights


• 1500W Peak
• 450W RMS
• Blended Pulp Cone
• Corrugated Surround
• Aluminum Voice Coil Bobbin
• >Large Magnet and High Power Motor Assembly

Description


Pioneer brand icon

Authorized dealer

Pioneer PRO-Series

The Pioneer Reference for Open Show series of speakers is designed specifically for those looking to produce some serious sound pressure levels. Inspired by Pioneer’s history of record-breaking SPL competition, the new P.R.O. series line of speakers is constructed with the street enthusiast in mind. With an emphasis on efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output, without requiring an impressive investment

At the low end of the P.R.O. series lineup, the TS-W1200PRO delivers a unique mix of SPL power and efficiency combined with SQ performance and accuracy. Rated at an impressive 1,500 watts of maximum power handling while simultaneously offering an amazingly efficient sensitivity rating of 105dB, the TS-W1200PRO takes the musical experience to a whole new, louder, level.

General Features:

  • 12" Dual 4-ohm PRO-Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 450 watts
  • Impedance: Dual 4 ohm
  • Blended Pulp Cone
  • Corrugated Surround
  • Aluminum Voice Coil Bobbin
  • Large Magnet and High Power Motor Assembly
  • Frequency response: 20-500 Hz
  • Resonance Frequency (Fs): 40 Hz
  • Top-mount depth: 5"
  • Sensitivity: 105dB
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W1200PRO Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W1200PRO Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W1200PRO Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W1200PRO Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
PRO Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 500 Hz
Sensitivity
105 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Blended Pulp
Woofer Surround
Corrugated
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
40 Hz
Equivalent Compliance (Vas)
45.6 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.39
Electrical Resistance of Voice Coil (Re)
3.5 ohm
Mechanical Q Value (Qms)
10.7
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W1200PRO

Weight:

17.50lbs

Internal SKU:

tsw1200pro

Internal Product ID:

65566
