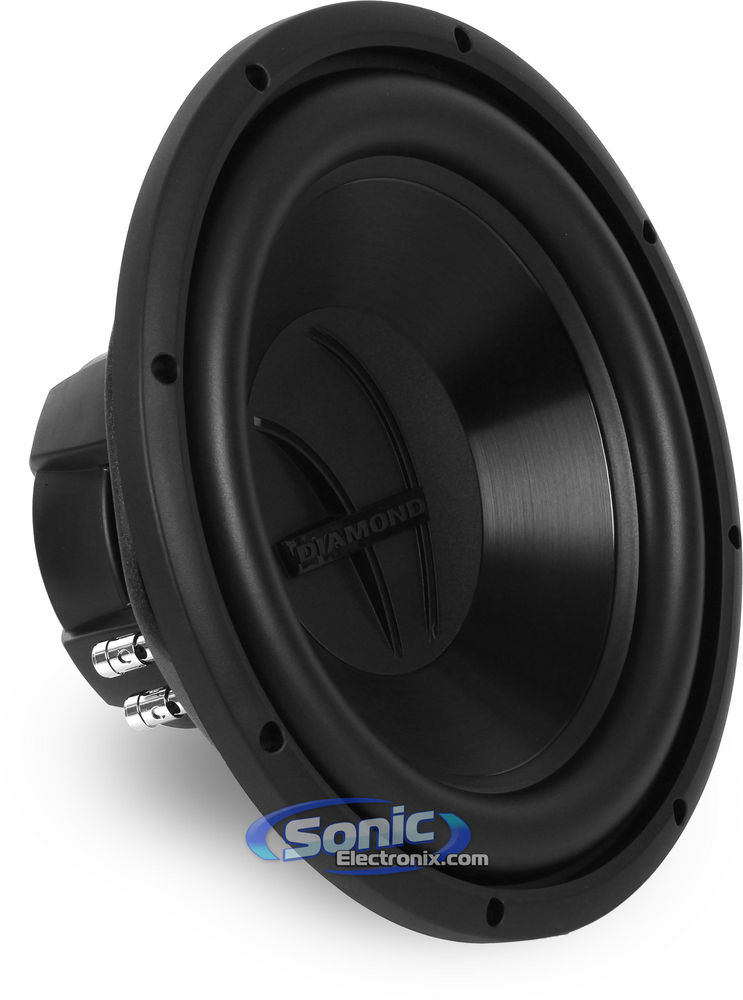

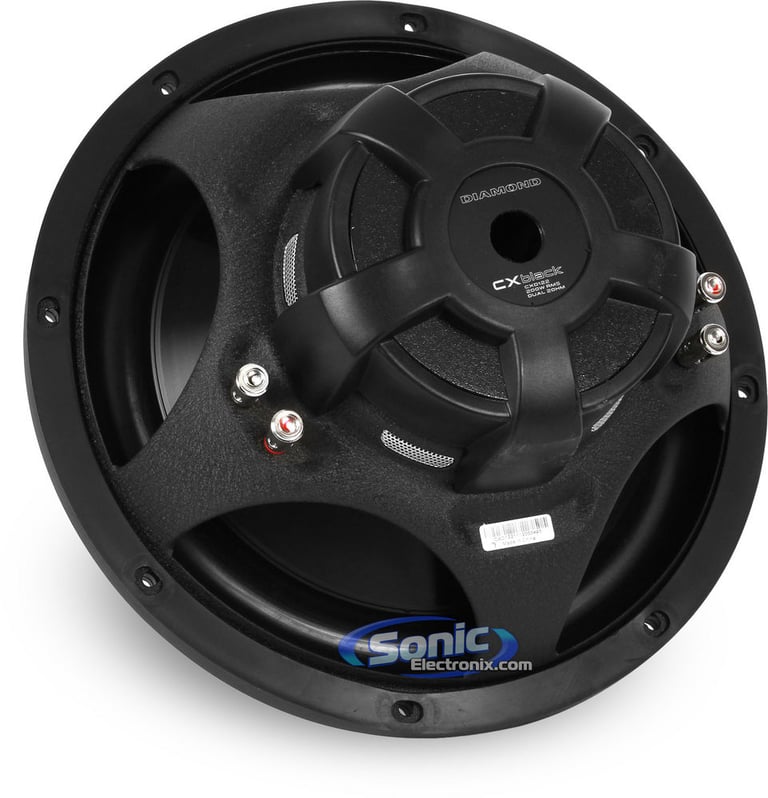

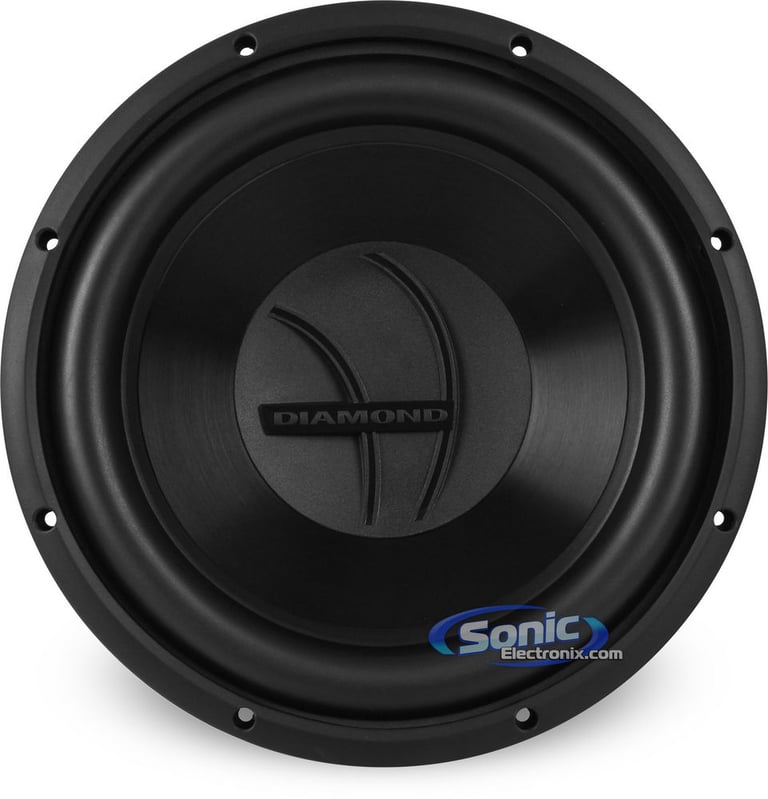

Diamond Audio CXD124

12" Dual 4 Ohm Concert Series Car Subwoofer

Diamond Audio
Shop all Diamond Audio
Product videos
highlight-star-icon

12" Series Subwoofer • Dual 4 Ohm Voice Coil • 400W Max • 200W RMS • Dual 2" Four Layer Voice Coil • Injection Molded Composite Convex Poly Cone • Stitched Lead Wires

Learn more about the cxd124

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

51KSC41004 main

Kicker KSC410 (51KSC41004)

300W Peak (150W RMS) 4x10" KS Series 2 Way Coaxial 4-ohm Speakers

5
-13.33%

$129.99

List price $149.99

Limited time!
50CSC4104 main

Kicker CSC410 (50CSC4104)

450W Peak (150W RMS) 4x10" CS Series 2 Way Coaxial 4-ohm Speakers

1
-33.36%

$79.96

List price $119.99

H7410 main

Cerwin Vega H7410

640W Peak (100W RMS) 4x10" HED Series 2-Way Coaxial 4-ohm Speakers

14
-16.67%

$69.99

List price $83.99

V410 main

Cerwin-Vega V410

540W Peak (180W RMS) 4x10" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

DMDX410 main

Diamond Audio DMDX410

270W Peak (90W RMS) 4x10" DMDX Series 2-Way Coaxial 4-ohm Car Speakers

H7410, SDSK2, SDRLR1, BTK106 main

Cerwin-Vega H7410 with Speaker Installation Kit

Includes: (Pair) 4" x10" Coaxial Speakers, Sound Damping , Roller and Panel Removal Kit

154
-28.22%

$98.13

List price $136.71

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

Product Highlights


12" Series Subwoofer • Dual 4 Ohm Voice Coil • 400W Max • 200W RMS • Dual 2" Four Layer Voice Coil • Injection Molded Composite Convex Poly Cone • Stitched Lead Wires

Description


General Features:

  • 12" Dual 4 Ohm Concert Series Car Subwoofer
  • Power Handling:
    • RMS: 200 watts
    • Peak: 400 watts
  • Impedance: Dual 4 ohm
  • Injection molded composite convex poly cone
  • Woofer surround type
  • Stitched lead wires
  • Heavy Gauge vented stamped cross flow steel frame
  • Dual 2" four layer voice coil
  • Frequency response: 20-250 Hz
  • Resonance Frequency (Fs): 27.7Hz
  • Top-mount depth: 5-1/2"
  • Sensitivity: 86.1dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide



Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Concert Series
Subwoofer Size
12"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Dual
Voice Coil Diameter
2"
Frequency Response
20 - 250 Hz
Sensitivity
86.1 dB
Xmax (millimeters)
11.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene Composite
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.2 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27.7 Hz
Equivalent Compliance (Vas)
79.1 liters
Total Speaker Q Value (Qts)
0.535
Electrical Q Value (Qes)
0.630
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
3.560
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CXD124

Weight:

10.50lbs

Internal SKU:

cxd124

Internal Product ID:

65810
