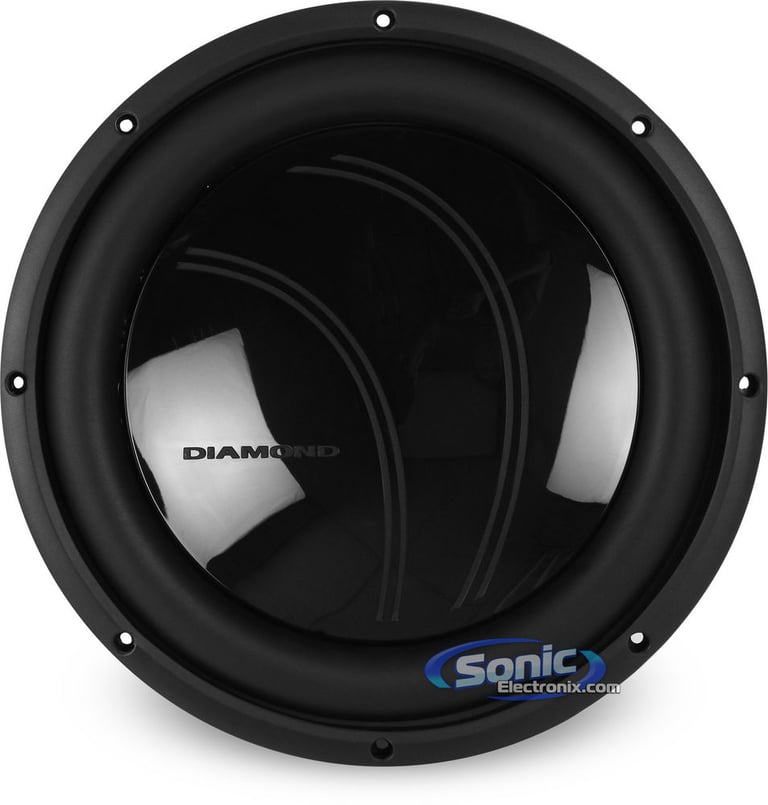

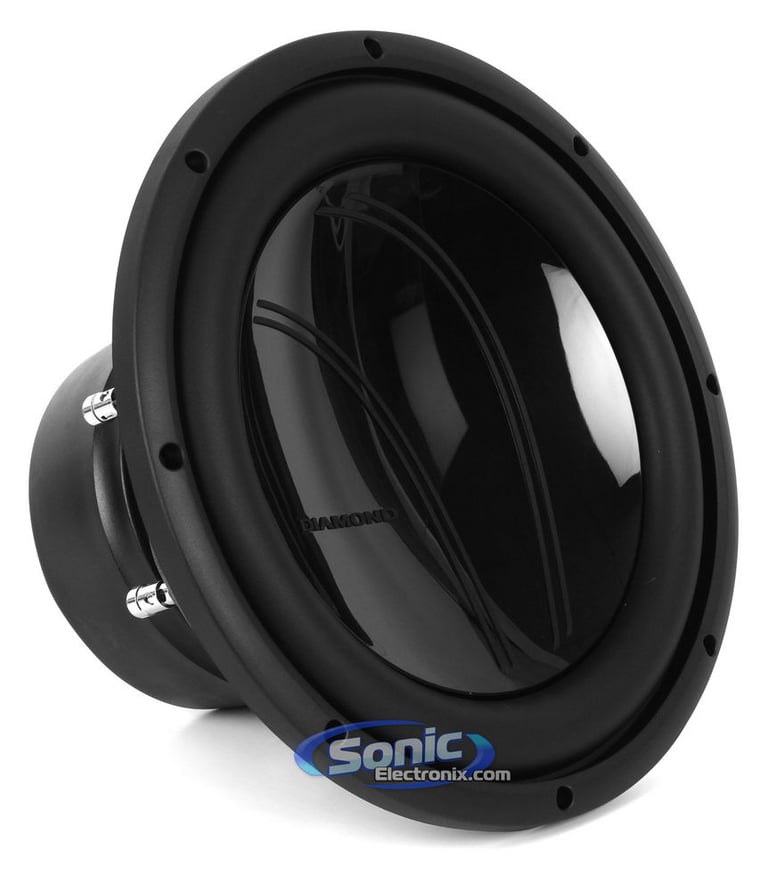

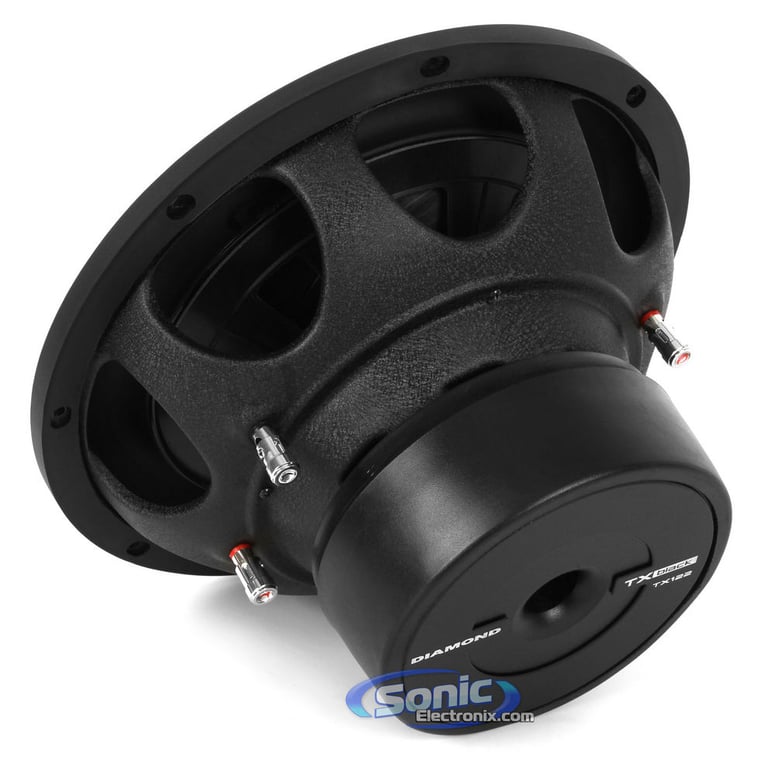

Diamond Audio TX122

12" Dual 2 Ohm Tour Series Car Subwoofer

Product videos
highlight-star-icon

12" Series Subwoofer • Dual 2 Ohm Voice Coil • 800W Max • 400W RMS • Dual 2.5" Four Layer Voice Coil • Injection Molded Poly Cone • Stitched Lead Wires

Learn more about the tx122

We apologize

This item has been discontinued


Loading...
70-1817 main

Metra 70-1817 Wiring Harness

Install a new car stereo in select 1984-2006 vehicles from Dodge, Chrysler, Plymouth

29
-14.31%

$5.99

List price $6.99

95-6551 main

Metra 95-6551 Dash Kit

Install a new Double-DIN car stereo in select 1998-2002 Ram 3500 / 1500 / 2500

3
-47.63%

$21.99

List price $41.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Product Highlights


12" Series Subwoofer • Dual 2 Ohm Voice Coil • 800W Max • 400W RMS • Dual 2.5" Four Layer Voice Coil • Injection Molded Poly Cone • Stitched Lead Wires

Description


General Features:

  • 12" Dual 2 Ohm Black Concert Series Car Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Dual 2 ohm
  • Injection molded poly cone
  • Woofer surround type
  • Stitched lead wires
  • Heavy Gauge vented stamped cross flow steel frame
  • Dual 2.5" four layer voice coil
  • Frequency response: 20-250 Hz
  • Resonance Frequency (Fs): 33.9Hz
  • Top-mount depth: 6-3/4"
  • Sensitivity: 83.9dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Diamond Audio TX122 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Diamond Audio TX122 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Diamond Audio TX122 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Diamond Audio TX122 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Tour Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
20 - 250 Hz
Sensitivity
83.9 dB
Xmax (millimeters)
12.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.2 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33.9 Hz
Equivalent Compliance (Vas)
28.5 liters
Total Speaker Q Value (Qts)
0.590
Electrical Q Value (Qes)
0.701
Electrical Resistance of Voice Coil (Re)
0.9 ohm
Mechanical Q Value (Qms)
3.722
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TX122

Weight:

16.05lbs

Internal SKU:

tx122

Internal Product ID:

65828

Product and How-to Videos


Customer Ratings & Reviews


Diamond Audio TX122 thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4
Features
4
Design
4
Usability
4

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

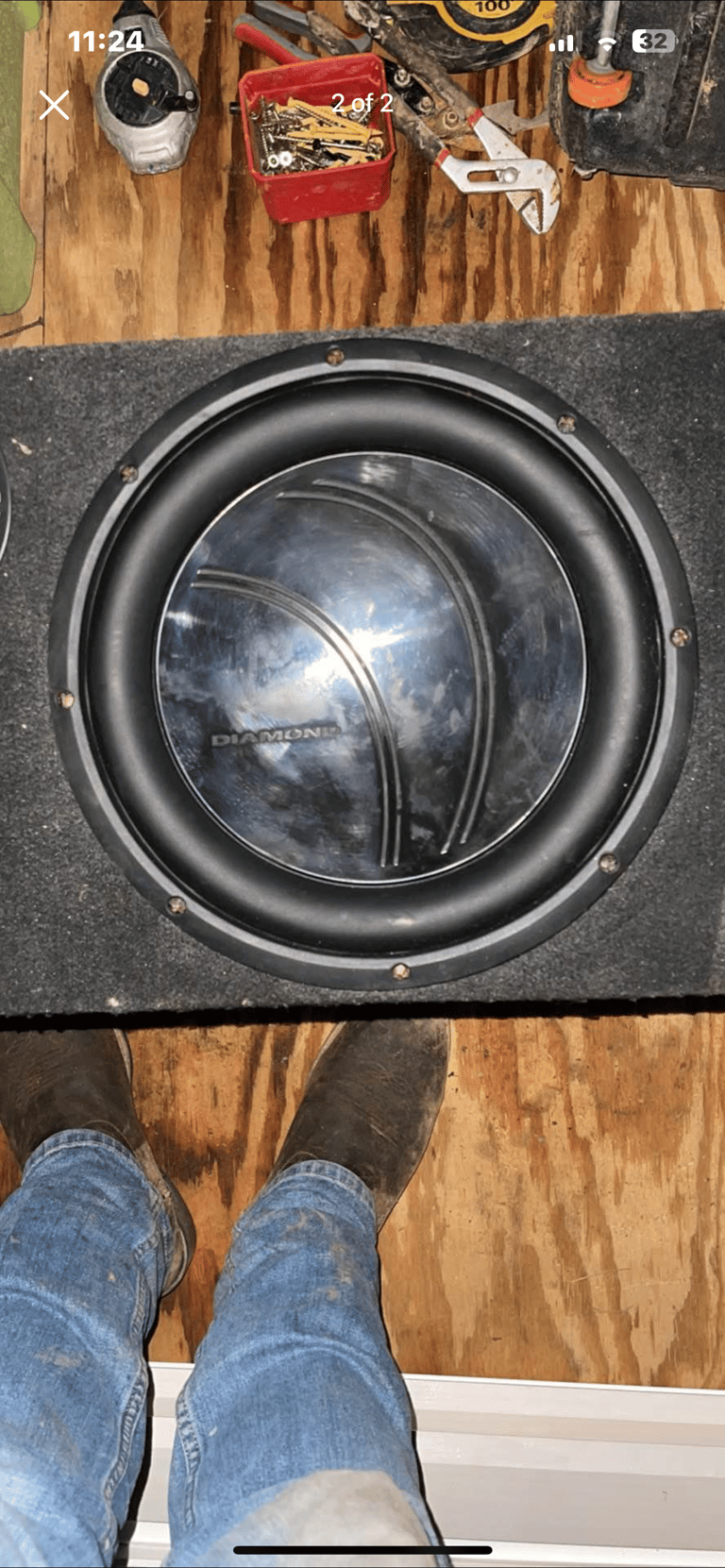

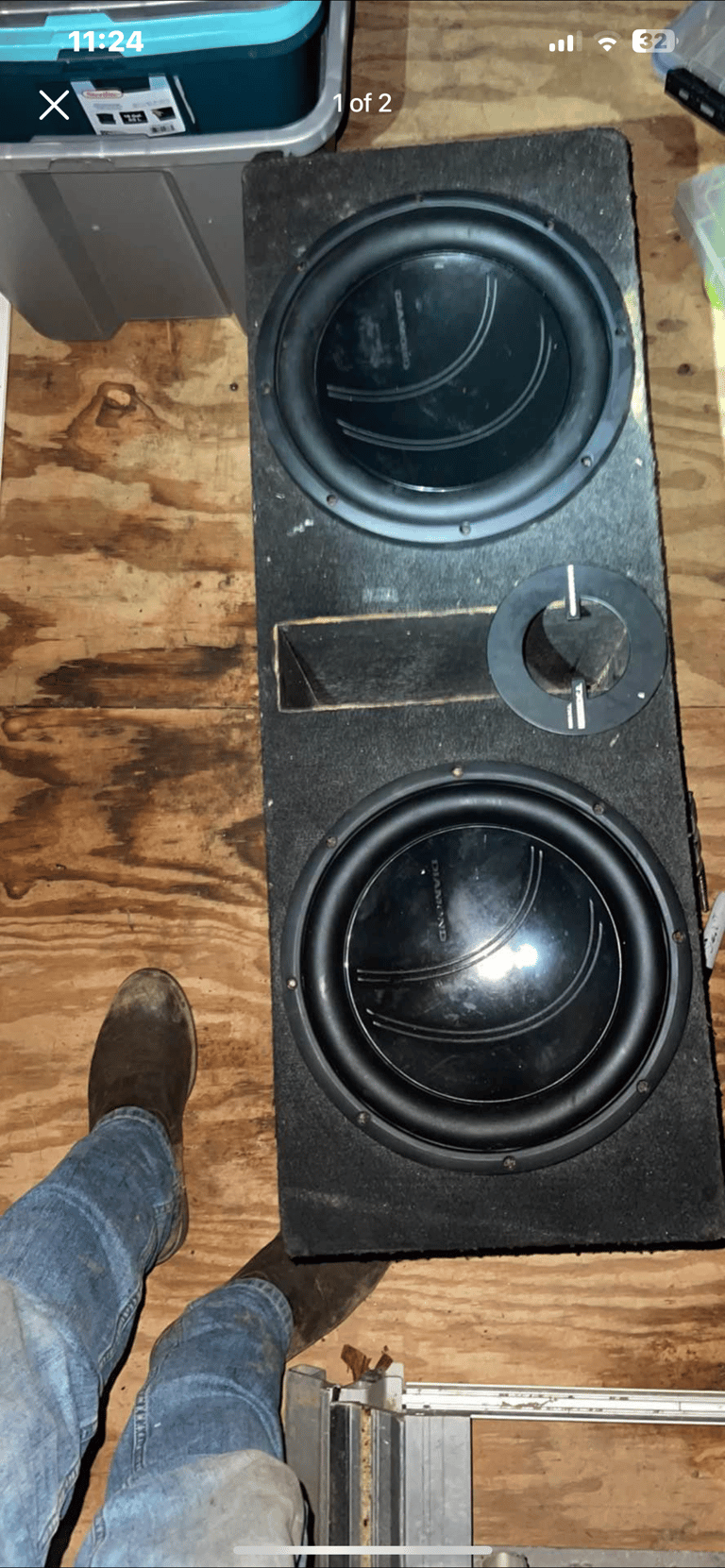

Good subwoofers

I’ve had these for a really long time and they sound really great they are installed in a ported box.

By Nick on April 15, 2023
