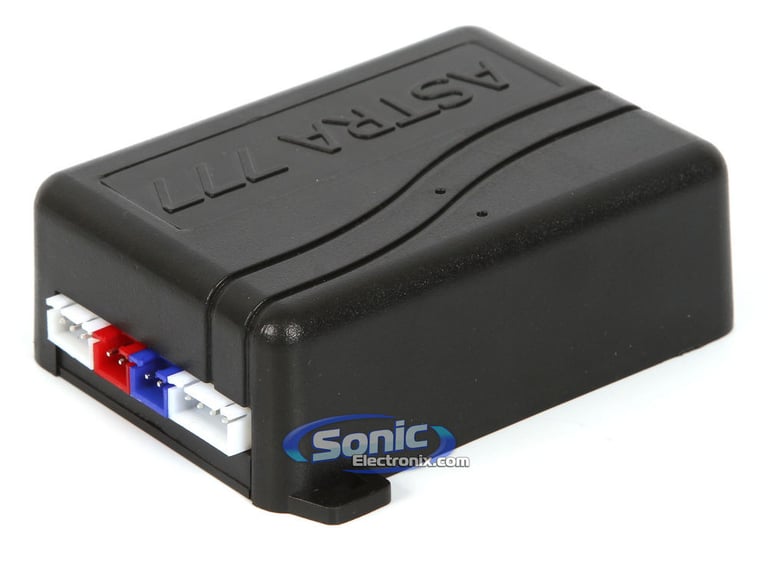

ScyTek MobiLink 777

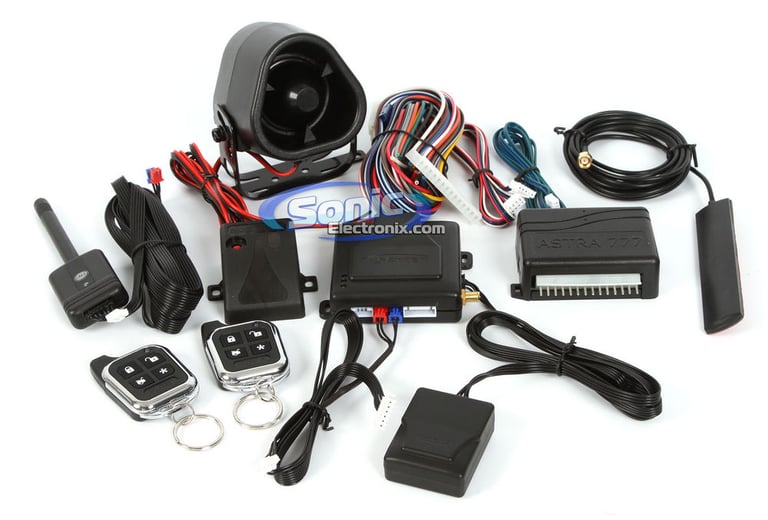

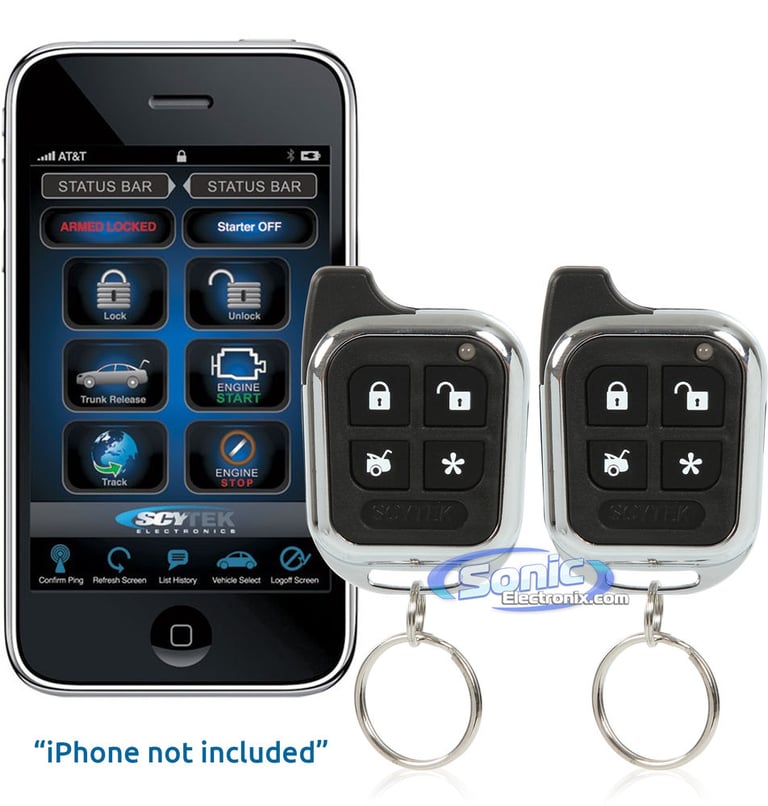

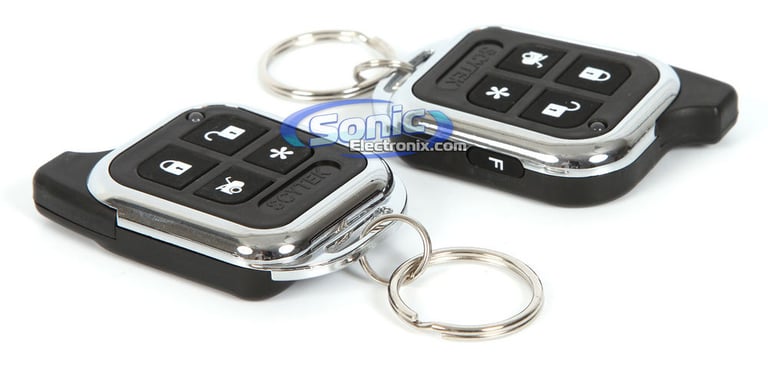

• Two Chrome 2-Way 4 Button remote controls included
• Mobilink allows you to control your alarm functions through your Android, BlackBerry or iPhone Smartphone
• Control Door lock/unlock, trunk release, remote start, start disable/enable
• Receive feedback and notifications through your phone
• Real time GPS tracking available*
• Geo-fence violation alerts
• Time curfew violation alerts
• Points of interest
• Multi vehicle monitoring
• Event log shows past actions and alerts
• Built-In Parking-Light Relay
• Plug-in user programmable Coded Override Switch

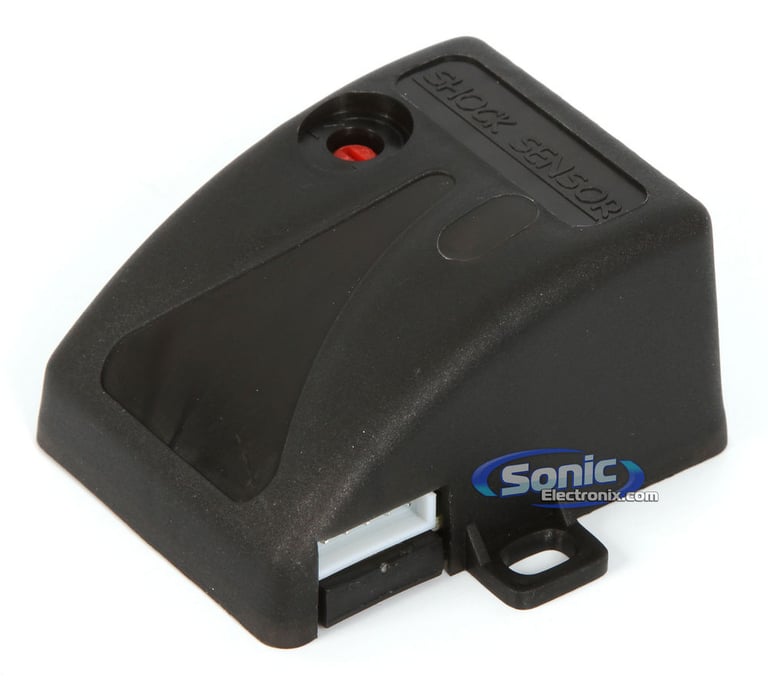

• Plug-in Dual-Zone Dual Adjust Piezo Sensor
• Horn Output
• Remote Door Locking/Unlocking negative outputs
• Passenger Unlock Output
• Two Auxiliary Channels
• User-Selectable Auto-Arming
• User-Selectable Auto-Rearming
• Remote Panic with Smart Locking/Unlocking
• User-Selectable Auto-Lock
• Remote Keyless Entry and Accessory Activation Even in Valet Mode
• Remote-Controlled Courtesy Lighting
• Pre-wired LED, Sensor, and Valet Switch Connectors
• Auto Disarm with Auxiliary 1 Activation (Trunk Release Output)
• Alarm Trigger zone Identification
• Optional plug-in Door Lock Relay Module
• 1-year Manufacturer's Warranty

*Subscription required through manufacturer

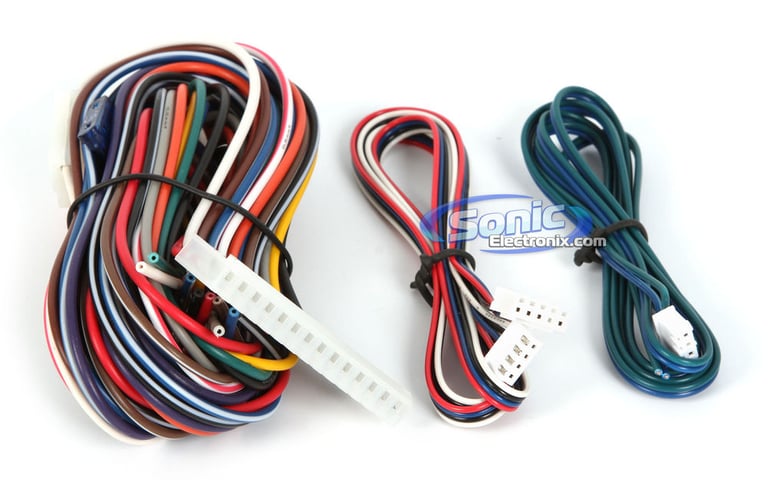

Wiring Diagram:

• Red Wire: +12V Battery Input (15A fuse). Needs to be connected to a clean source of continuous 12V power
• White Wire: Parking Light Output (+/-) relay. Connect to the circuit that shows the +12V or ground only when the parking lights are on and set the internal parking light relay jumper to the proper polarity. For parking light circuits that exceed 10A, a relay is required. For vehicle's with independent left and right parking light circuits, diodes must be installed to keep the circuits separate. NOTE: Do NOT connect the WHITE wire to the vehicle's headlight circuit

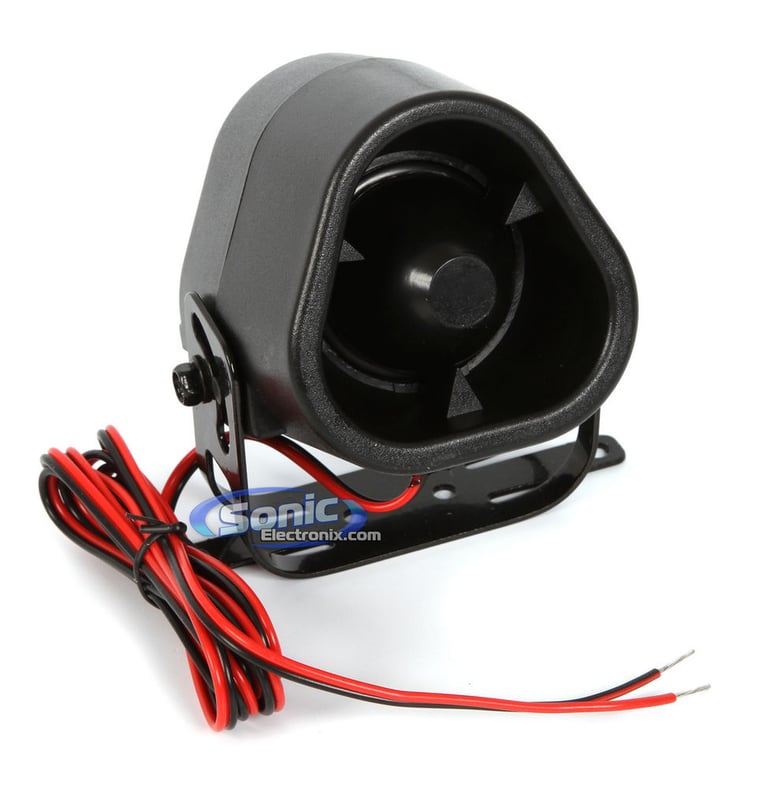

• Brown Wire: Siren Output (+) 3A. The Brown wire must connect to the sire's Red wire. The Black siren wire MUST be grounded
• Blue/White Wire: Passenger Unlock Output (-) 500mA. Connect to optional relay to unlock the passenger doors for two-stage unlock
• White/Red Wire: Auxiliary 2 Output (-) 500mA. Connect to a relay or module for an optional feature such as power window activation or remote start
• Orange Wire: Armed Output (-) 500mA. The Orange wire provides a ground output while armed to activate an optional starter defeat relay or other device such as a power window control module
• Brown/White Wire: Horn Output (-) 500mA. Connect to an optional relay to activate the vehicle's horn when the alarm is triggered
• Black/White Wire: Dome Light Output (-) 500mA. Connect to an optional relay for dome light activation. NOTE: Must use relay
• Blue Wire: Trunk/Hood Trigger Input (-). Connect the Blue wire to the trunk and/or optional hood pin switches. The switch must provide a ground output when opened
• Gray Wire: Auxiliary 1 Output (-) 500mA. Connect to a relay for an optional feature such as trunk release etc.
• Yellow Wire: +12V Ignition Input. The Yellow wire must connect to a main ignition wire at the ignition harness. This wire must show +12V when the ignition is on
• Black Wire: Ground Input (-). The Black wire must connect to a solid chassis ground. Clean any paint or dirt to ensure the best possible ground
• Violet Wire: Positive Door Trigger Input (+). Connect to the door switch circuit wire that shows +12V when the door is open
• Green Wire: Negative Door Trigger Input (-). Connect to the door switch circuit that shows ground when the door is open
