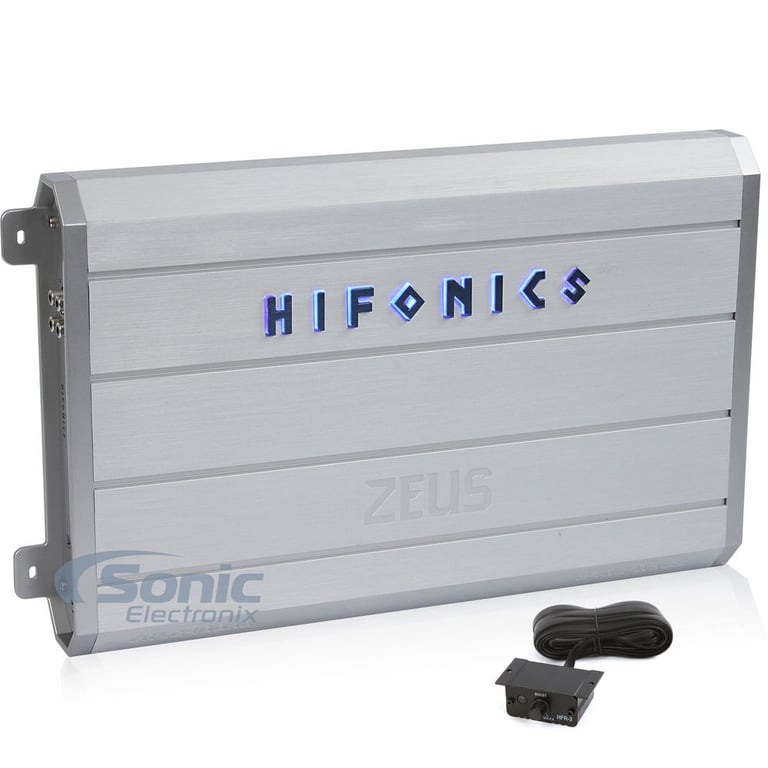

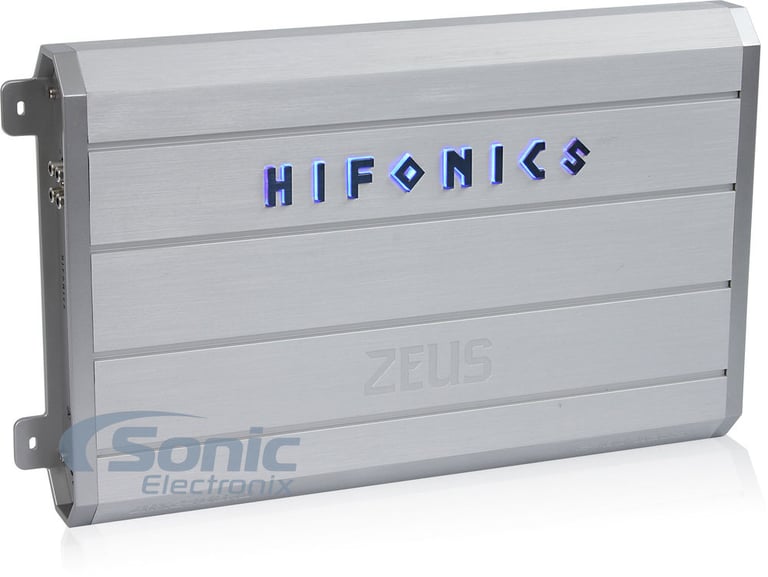

Hifonics Zeus ZRX2400.1D

2400W Max Class D Monoblock Zeus Series Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• Peak: 650W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm, 2400W x 1 @ 1 ohm
• Total Peak Power: 2400W
• Class D Circuitry
• Variable Bass Boost: 0 to +10 dB at 50 Hz
• Wired Bass Remote Included
• Dimensions: 17-3/16"L x 10"W x 2-7/16"H

Learn more about the zrx24001d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

zrx24161d thumbnail

Hifonics Zeus ZRX2416.1D

OUR PRICE: $189.99

View item

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

AOEM-FRD24 main

PAC AOEM-FRD24

Amplifier Integration Interface for select 2003-2014 vehicles from Ford, Lincoln, Mercury with Amplified THX and Sony Sound Systems

26
-55.82%

$56.99

List price $129.00

KIT-MUS1 main

iDatalink Maestro KIT-MUS1 Dash Kit

Double DIN Dash Kit and Aftermarket Stereo Harness for select 2010-2014 Mustang

1
-27.50%

$289.99

List price $399.99

99-5839CH main

Metra 99-5839CH Dash Kit

Single DIN or Double DIN Stereo Dash Kit and Harness for select 2010-2014 Mustang

5
-45.03%

$375.99

List price $683.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

99-5853CH main

Metra 99-5853CH Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2010-2014 Mustang

1
-28.97%

$585.99

List price $824.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Product Highlights


• Peak: 650W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm, 2400W x 1 @ 1 ohm
• Total Peak Power: 2400W
• Class D Circuitry
• Variable Bass Boost: 0 to +10 dB at 50 Hz
• Wired Bass Remote Included
• Dimensions: 17-3/16"L x 10"W x 2-7/16"H

Description


Hifonics brand icon

Authorized dealer

General Features:

  • Zeus Series Single Channel Monoblock Class D Car Amplifier
  • Max Power Rating:
    • 4 ohm: 650 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 2400 watts x 1 chan.
  • Max power output: 2400 watts
  • Simpatico coil design (SPC) Ultra-Fi Pulse Width Modulated MOSFET power supply
  • LED power (blue) and protect (red) indicators

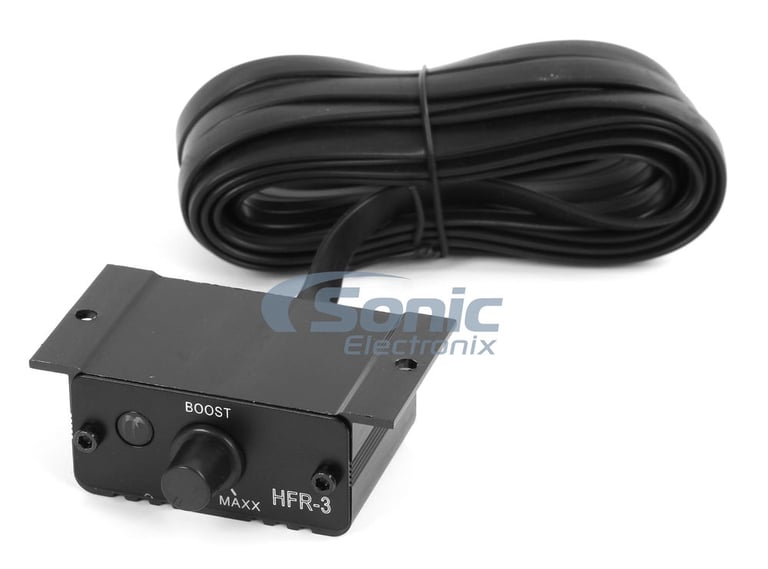

  • Wired HFR-3 remote bass level control included
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • Mono channel operation

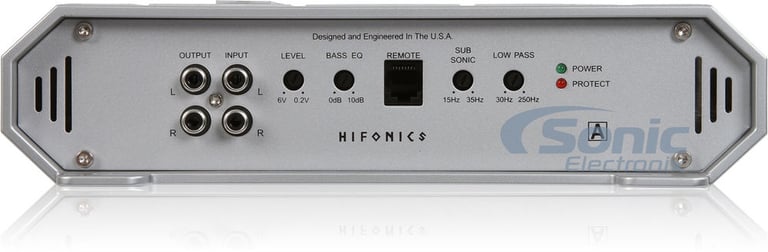

  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)

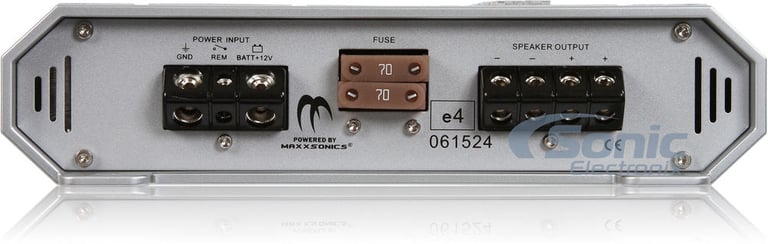

  • Dual 12 gauge speaker terminals simplify hookup
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickel-plated RCA level inputs
  • Silver nickel-plated screw terminals
  • Input sensitivity: 200mV-6V
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Subsonic filter (15-35 Hz)
  • Damping factor: >200
  • Frequency response: 15-250 Hz
  • Dimensions: 17-3/16"L x 10"W x 2-7/16"H
  • 4 - 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
    • For 0 AWG, Requires a proper Gauge Reducer, 1/0 Gauge Input to 4 Gauge Pin. CLICK HERE to view current selection
  • Dimensions: "W x "L x "H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Hifonics ZRX2416.1D thumbnail
(newest, current model)
Hifonics ZRX2400.1D thumbnail
(previous model, replaced by Hifonics Zeus ZRX2416.1D)

Loading...
FMUST05BK12-TN main

MTX Audio Thunderform FMUST05BK12-TN (Black, Loaded)

select 2005-2014 Mustang 12" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

FMUST05BK12A-TN main

MTX Audio Thunderform FMUST05BK12A-TN (Amplified)

Amplified 12" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure select 2005-2014 Mustang

REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
325 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
650 watts x 1 channel
Peak Power @ 2 ohms
1200 watts x 1 channel
Peak Power @ 1 ohm
2400 watts x 1 channel
Amplifier Specifications
Series
Zeus Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2400 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
<0.1 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRX2400.1D

Weight:

12.90lbs

Internal SKU:

zrx24001d

Internal Product ID:

67919

Product and How-to Videos


Customer Ratings & Reviews


Hifonics Zeus ZRX2400.1D thumbnail image

5 star
81%
4 star
19%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
5
Features
4.7
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

awesome

This amp is the boom it is powering my two p3 Rockford Fosgate 12's beautify and I couldn't have put a better amp for just a great low price for someone who can afford it. Thanks to sonic electronix for what a great buy.

By Fed on September 5, 2014

33 found this helpful


amp

Very power efficient doenst suck up alot of power just a great product

By elove1332 on March 16, 2014

30 found this helpful


Hifonics ZRX2400.1D

I been using hifonics for over 7 yrs now. i wouldn't use any other brand. Very happy with my purchase.

By T on July 24, 2014

28 found this helpful


Great Amplifier

It really doesn't state the actual rms it only says its rated at 2400 watts at 1ohm. However it does sound great, i have two 12 inch Boss Phantoms hooked up at 1ohm in a sealed enclosure. The subs are rated 1150 watts each so that makes them a perfect match. Regardless if actually puts out that power i am completely satisfied and my sound sound system is extremely loud for the price.

By Daniel on April 28, 2014

28 found this helpful


Tons of power all day!

I actually work at a local car audio shop that does not sell Hifonics products but have seen them in customers vehicles and was impressed with what I saw and heard. I had a goal in mind to put a "budget system" together in my 98' Tahoe with some RF P315D4's I had from a previous build. This amp is bridged down to the 1ohm load and does NOT get hot. Has been bangin' my 15's since I got the amp. Hits so hard it rattles your teeth no joke. I have demo d' it to some customers that have been looking for a good power alternative thats not too expensive for some really good/clean power. I will buy more Hifonics products from you.

By JAKE THE IRISH RUSSIAN on April 22, 2014

26 found this helpful


Very satisfied!

Paired amp with two 1200w subs in a custom box in trunk of my 2006 mustang convertible and installed amp volume controller on driver's side of interior center console. Subs perform great and let me hear and feel the bass even with the top down. I can easily adjust the amp volume while driving and listening. Amp performs very well, looks good - lighted blue letters on front - and the written instructions on installing and adjusting it were very well done. Very satisfied customer!

By Dale on November 3, 2014

26 found this helpful


Zeus 2400

I would definitely recommend this amplifier. I have it pushing two 12 re Audio sxx subwoofers in a sealed box. And this thing bangs. The box seems like its coming apart. I'm running amp on a 1 ohm load with no extra battery. I'm running true 0/1 gauge wire on both positive and negative. I have this set up in a 2003 Ford mustang gt and its loud actually see the back window doors just everything's flexing. I have amp turn up to about 35 %. Bass boost barely up and bass on radio on -6 .this amp is great like I said I would recommend this amplifier to anybody. Hifonics amplifier for now on

By RAS4250 on July 31, 2014

24 found this helpful


absolutly great

This amp is great. Puts out 2380 watts rms read with a dmm at 60htz. I have this amp pushing 2 alpine 12in type R's and I only have this amp at like 40% it straight slams. So glad I bought this amp. Would recommend to anyone looking for a great 1 ohm stable amp that puts out lots of power. The only this I have to complain about is that the feet used for mounting are plastic while the rest of the amp is pure aluminum. They brake very easy. But other then that no complaints at all.

By Jeremy on May 12, 2014

25 found this helpful


hard to text when my truck is rumbling!

Good amp so far! I use mine on long road trips quite a bit, and listen all day very often. So I needed something reliable and the hifonics amp has been awesome so far. Quick and easy shipping through sonic.

By jake on August 19, 2014

25 found this helpful


Great value, incredible sound

I have 2 jl audio w6's hooked up to this amp and all I can say is wow. This amp delivers tremendous bass without all the flashy lights that other models have. I would reccomend this amp to anybody that wants great power at a great value

By Ron on April 13, 2014

25 found this helpful




KD-HDR30 small

JVC KD-HDR30 R/B

CD/MP3 Car Stereo with Built-in HD Radio Tuner and Remote (Replaces KD-HDR1)

(16)

$74.99

List price $189.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Ford Mustang

2011 Audi A6

1993 Dodge Shadow

2003 Subaru Baja

2018 Mazda CX-9

2002 Ford Windstar

2002 Subaru Outback

2009 Ford Escape

1995 Mercury Sable

2004 Ford Thunderbird

Vehicle
Store
Delete

1997 Honda VFR750F Interceptor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
