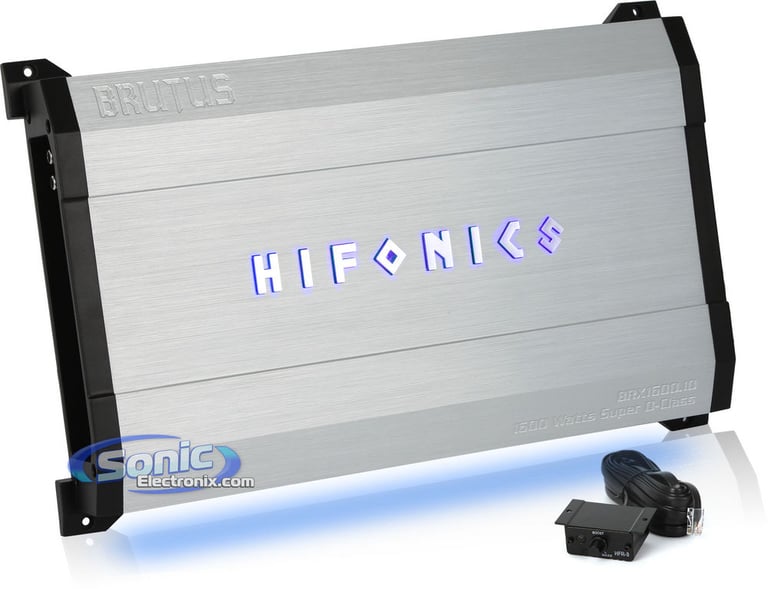

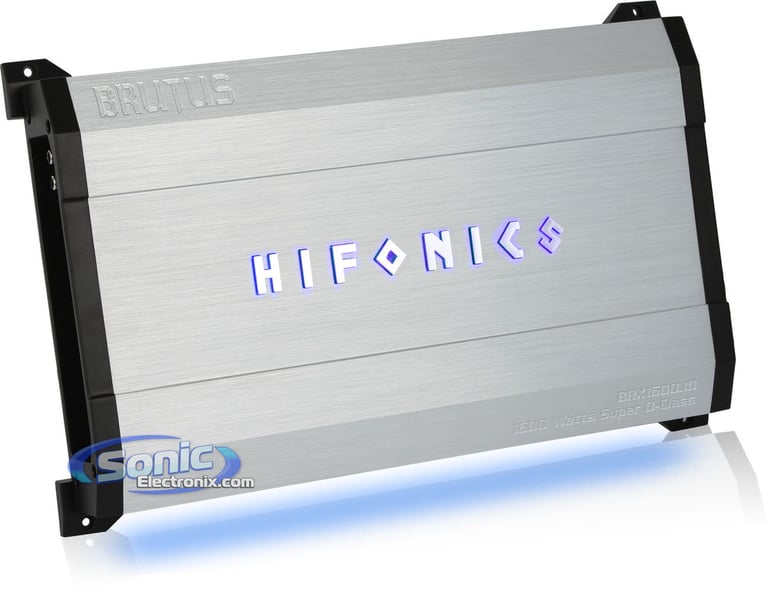

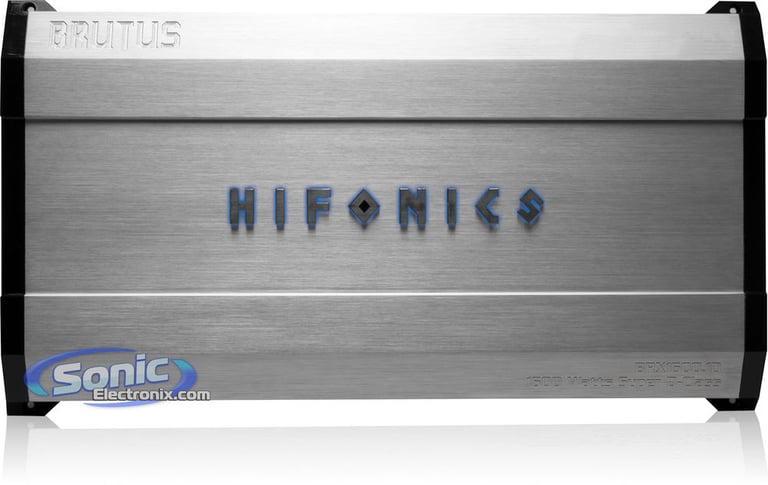

Hifonics BRX1600.1D-OPEN BOX

1600W RMS Class NextGen Super-D Monoblock Brutus Series Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• RMS: 600W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm, 1600W x 1 @ 1 ohm
• Total RMS Power: 1600W
• CEA-2006 Compliant
• Bass Boost: 0-10 dB at 40 Hz
• Aluminum Alloy Heatsink with Illuminated Hifonics Logo
• Dimensions: 15-15/16"L x 10-5/16"W x 2-1/2"H

Learn more about the LS-brx16001d-OB

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights


• RMS: 600W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm, 1600W x 1 @ 1 ohm
• Total RMS Power: 1600W
• CEA-2006 Compliant
• Bass Boost: 0-10 dB at 40 Hz
• Aluminum Alloy Heatsink with Illuminated Hifonics Logo
• Dimensions: 15-15/16"L x 10-5/16"W x 2-1/2"H

Description


Hifonics brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Brutus BRX Amps: Brutal to Competition

Hifonics Brutus Crossovers

Accu-Cross Crossovers for Sound Shaping

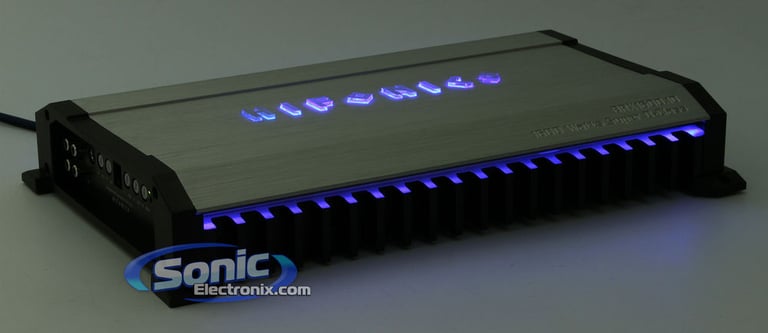

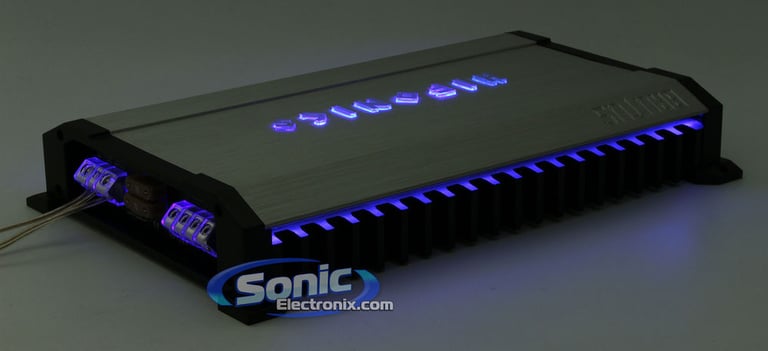

The Gods have struck again from Mt. Olympus. The famous Brutus amplifier has gone through a redesign and now features a new look along with amazing sound. The design for the new Brutus BRX amplifiers has a blue illuminated underglow that gives the amplifier a floating appearance when properly mounted.

The molded and angled illuminated terminals add to the stylish design and also provide stress-free installation access. Accu-Cross crossovers allow for adjustments and sound shaping. The Ultra-Fi MOSFET power supplies ensure the amplifier can maximize its sound capabilities. The new Brutus BRX amplifiers take it to the next level, and are certainly a brutal amplifier.

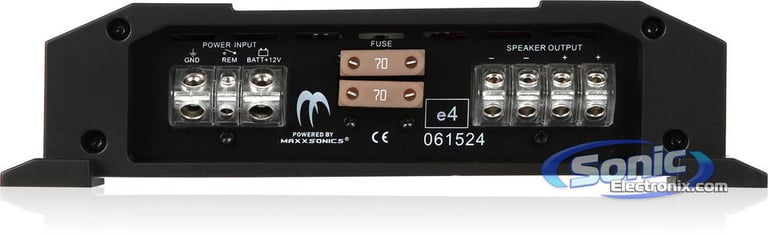

Hifonics Brutus Terminals

Molded and Angled Illuminated Terminals

All single-channel monoblock amplifiers from the Brutus BRX amplifiers feature NGSD Next Generation Super-D Class. This NGSD digital chip design in the amplifiers has been tweaked to provide an extremely efficient, low temperature, high amplification system.

Brutus Monoblock amplifiers are powerful, and extremely popular choices when it comes to choosing a high power output power source for your car audio installation. They're capable of 1 ohm power output, while following CEA Compliance to ensure that the RMS ratings are true. This alongside their stylish designs and efficient heatsinks make them a true competitor in the car audio industry.


General Features:

  • Brutus Series Monoblock Class NextGen Super-D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 1600 watts x 1 chan.
  • Ultra-Fi MOSFETS Circuit maximizing power efficiency while improving sound quality

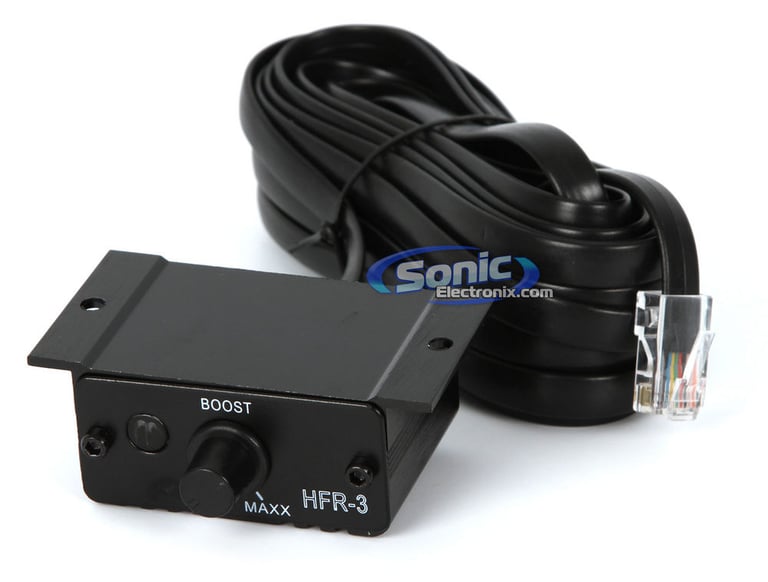

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost)
  • Built-in system diagnostics
  • Mono Channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

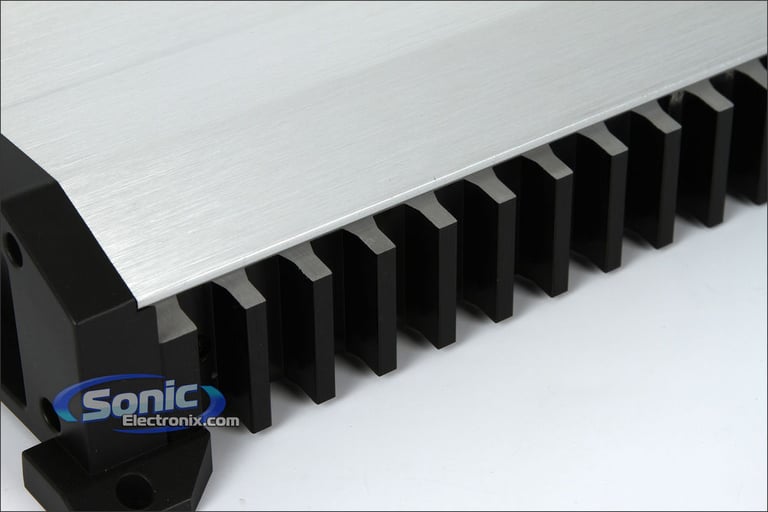

  • Heavy duty aluminum alloy heat-sink with illuminated Hifonics logo
  • Lighted connectors and blue wash of light from the underside of the heatsink

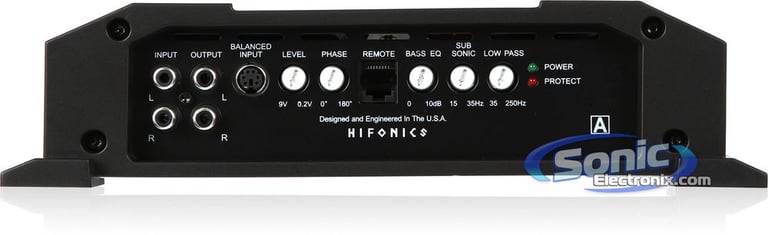

  • Input sensitivity:
    • Level: 200mV-9V
  • Variable low-pass filter (35-250 Hz)
  • Variable sub-sonic filter (15-35 Hz)
  • Frequency response: 10-250 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 15-15/16"L x 10-5/16"W x 2-1/2"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1600 watts x 1 channel
Amplifier Specifications
Series
Brutus Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1600 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BRX1600.1D-2

Weight:

12.50lbs

Internal SKU:

LS-brx16001d-OB

Internal Product ID:

89731
