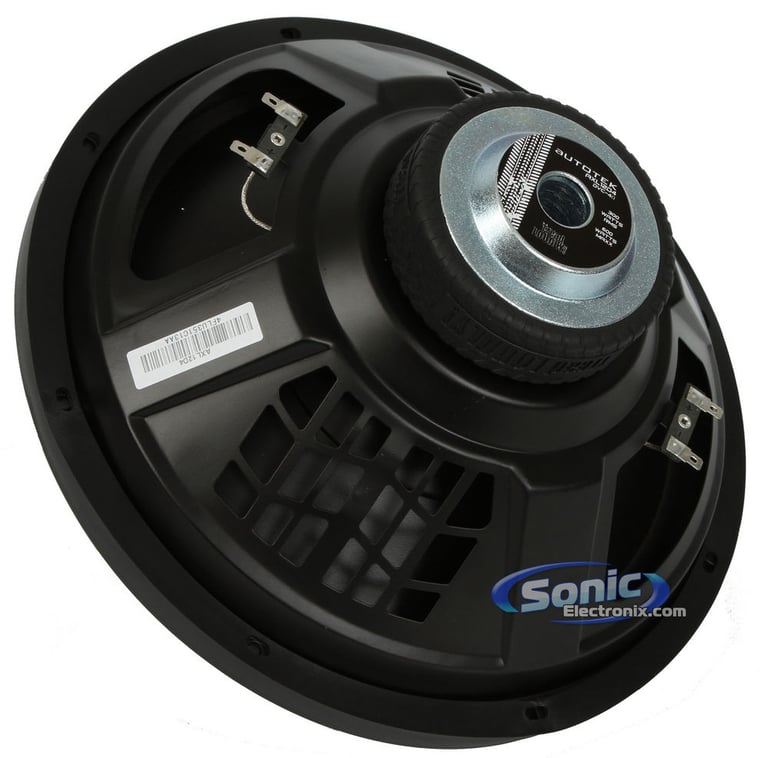

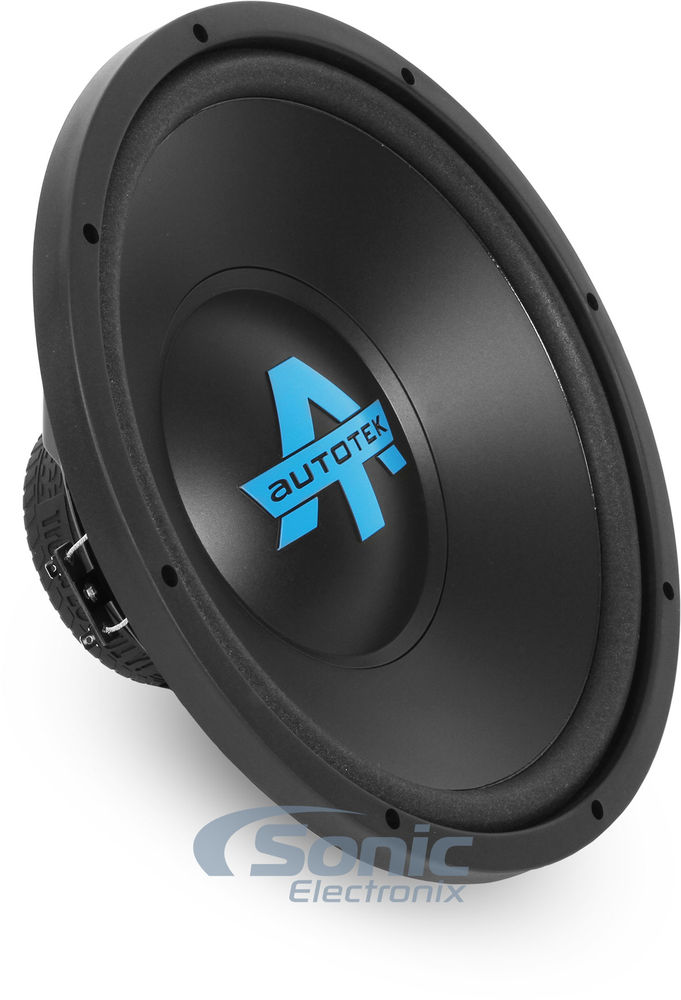

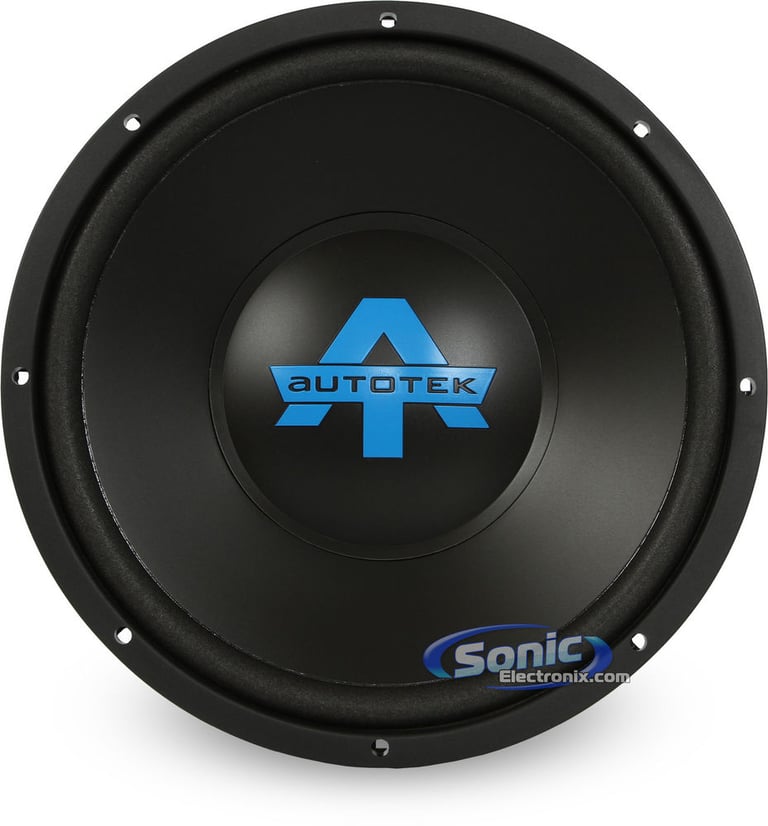

Autotek AXL12D4

300W 12" AXL Series Dual 4 Ohm Subwoofer

Autotek
Shop all Autotek
Product videos
highlight-star-icon

• 600W Peak
• 300W RMS
• Dual 4 ohm Voice Coil
• Rigid Polypropylene Cone
• Black Foam Surround
• Spade Style Speaker Terminals
• High Energy Vented Motor

Learn more about the axl12d4

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• 600W Peak
• 300W RMS
• Dual 4 ohm Voice Coil
• Rigid Polypropylene Cone
• Black Foam Surround
• Spade Style Speaker Terminals
• High Energy Vented Motor

Description


Autotek brand icon

Authorized dealer

General Features:

  • 12" Dual 4 Ohm AXL Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • THERMOPoly Dust cap and rigid polypropylene cone
  • Black foam surround
  • Blue cotton spider
  • Spade style speaker terminals
  • Ultra rigid TREAD stamp steel basket
  • High energy vented motor
  • 1-1/2" High temperature voice coil
  • Protective motor covor
  • Resonance Frequency (Fs): 33 Hz
  • Top-mount depth: 4-15/16"
  • Sensitivity: 87dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Autotek AXL12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Autotek AXL12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Autotek AXL12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Autotek AXL12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
AXL Series
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-1/2"
Sensitivity
87 dB
Xmax (millimeters)
5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
UV Treated Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.3 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-15/16"
Cutout Diameter
12-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
109.35 liters
Total Speaker Q Value (Qts)
0.916
Electrical Q Value (Qes)
1.058
Electrical Resistance of Voice Coil (Re)
6.67 ohm
Mechanical Q Value (Qms)
6.829
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AXL12D4

Weight:

6.50lbs

Internal SKU:

axl12d4

Internal Product ID:

67999

Product and How-to Videos


Customer Ratings & Reviews


Autotek AXL12D4 thumbnail image

5 star
70%
4 star
30%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.5
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Quality!

Purchased this product for a friend. He loves it. Sounds great and gives the BOOM that we were looking for.

By Nay Smith on December 14, 2014

57 found this helpful


great product

I recommend this product because it's a cool sub woofer and it/ bumps real good I didn't expect much but after installing it, it had me thinking that I need to buy another one so if your all about your car system autotek is the way to go!!!!

By beto323 on December 3, 2014

53 found this helpful


Thanks

No problems so far upon arrival of item. Have a good day...

By Cee05 on January 22, 2015

53 found this helpful


Good for adding bass.

Great price for an entry level sub. Good for musical bass and spl. I have it in a sealed box and it's getting about 250 RMS. No issues so far. It does not get low, but sounds good with all music. Great for adding to a factory system.

By Ryan on March 8, 2015

49 found this helpful


The price is right!

I just needed a quick fix for some bass, these replaced some 8s I had. Omg these sound really good for the price Two 12s to my door for less then 50 bucks. The only problem I say about these is the spade connects other then that they pound. police already pulled me over for them being to loud. I never thought these would hit hard and low as they do for the price. If you on tight budget need some bumps grab a pair. You be glad you did.

By Bowsa on November 29, 2014

46 found this helpful


Sound Great

For the price 45 dollars delivered they sound great I put them in a sealed box with some poly fill only have about 195 watts going to each so im barely breaking them in but they do fill the bass end they will not go super low but adds some good bass.

By Jesse on May 16, 2015 Checkmark Icon Verified purchase

30 found this helpful


Bang hard 2

I was unsure at first but when my installer finished and I turned up the volume, wow he said hey I have to order me the same set up. I have the autotek 1200.2 and this is by far a great combo. Get this set up you will not be disappointed. Nice bass and sound.

By kennyg on June 15, 2015

21 found this helpful


Speaker

Very good and reliable purchase I’ll recommend this product to others.

By Angeline on October 22, 2020 Checkmark Icon Verified purchase

5 found this helpful


Sounds is clean

Great budget sub for the money. Fitted in my Honda Civic perfectly

By Anonymous on January 25, 2019 Checkmark Icon Verified purchase

5 found this helpful


Autotek AXL12D4

Excellent Subwoofer if your on a budget , sound really nice and clean .

By Pat on January 12, 2017 Checkmark Icon Verified purchase

5 found this helpful
