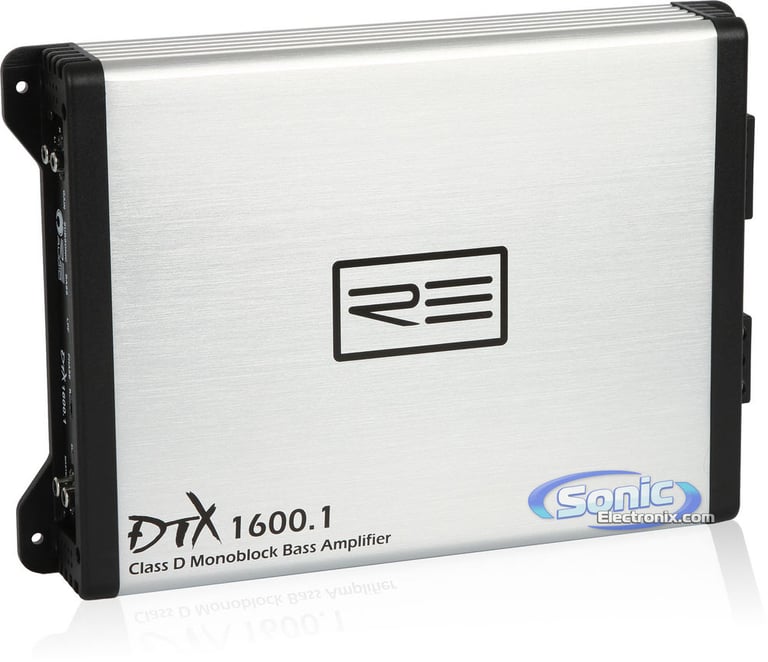

RE Audio DTX-1600.1

750W RMS DTX Series Class D Monoblock Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• DTX Series Single Channel Monoblock Class D Amplifier
• 350W x 1 Chan. @ 4 ohm
• 550W x 1 Chan. @ 2 ohm
• 750W x 1 Chan. @ 1 ohm
• 4-Way System Protection • 1 Channel Operation

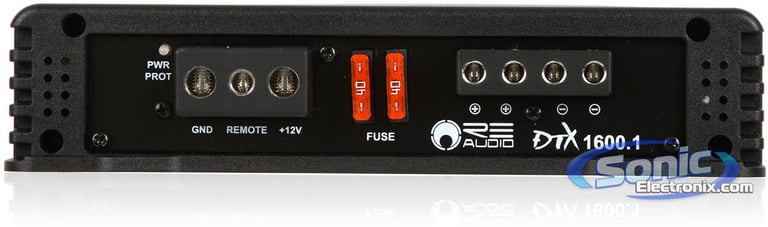

• 4 Gauge Power and Ground Inputs
• Variable Bass Boost (0-18 dB)

Learn more about the dtx16001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

70-7552 main

Metra 70-7552 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Nissan, Subaru, Suzuki

35
-15.40%

$10.99

List price $12.99

40-SB10 main

Metra 40-SB10

Antenna Adapter for select 2005-2025 vehicles from Subaru

7
-26.68%

$10.99

List price $14.99

SBK927 main

American International SBK927

Single DIN or Double DIN Stereo Dash Kit for select 2012-2015 vehicles from Subaru

2
-70.39%

$15.99

List price $54.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-25.50%

$298.00

List price $399.99

Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Product Highlights


• DTX Series Single Channel Monoblock Class D Amplifier
• 350W x 1 Chan. @ 4 ohm
• 550W x 1 Chan. @ 2 ohm
• 750W x 1 Chan. @ 1 ohm
• 4-Way System Protection • 1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Variable Bass Boost (0-18 dB)

Description


RE Audio brand icon

Authorized dealer

General Features:

  • DTX Series Single Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 350 watts x 1 chan.
    • 2 ohm: 550 watts x 1 chan.
    • 1 ohm: 750 watts x 1 chan.
  • Max power output: 1600 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

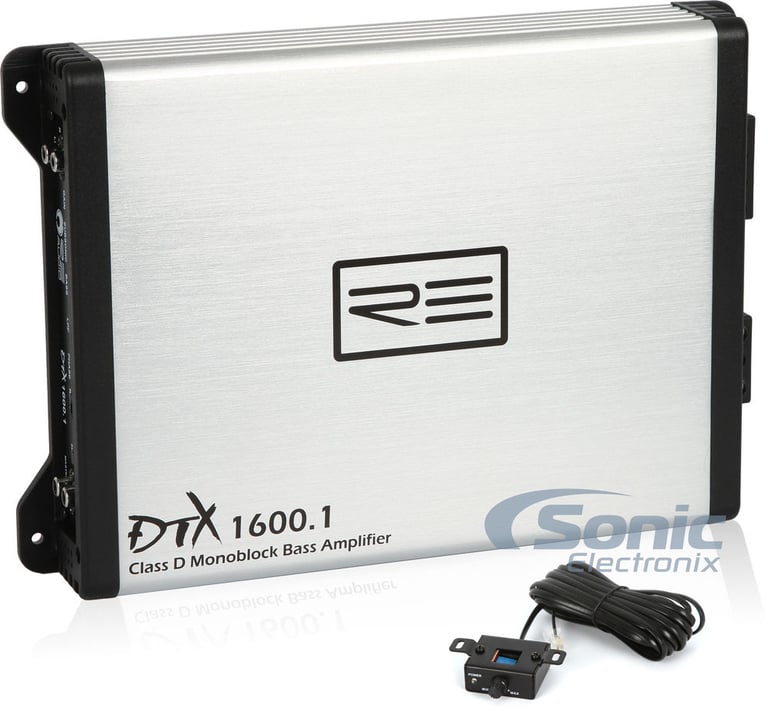

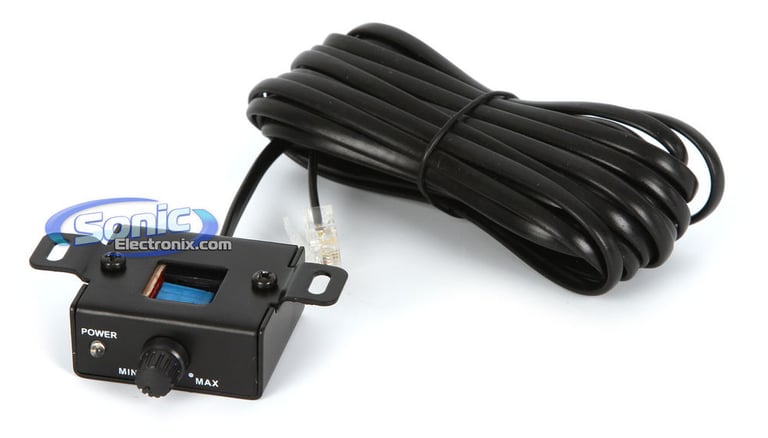

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation

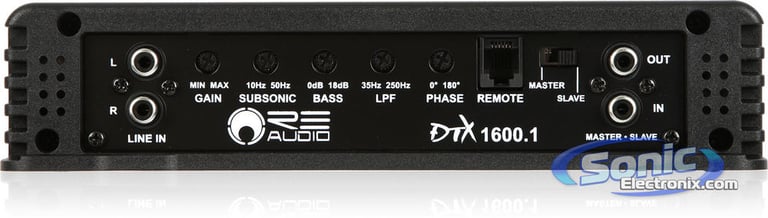

  • Preamp RCA outputs to daisy chain multiple amps
  • 4-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable low-pass filter (35-250 Hz)
  • Variable subsonic filter (10-50 Hz)
  • Phase Shift: 0-180°
  • Damping factor: 180
  • Frequency response: 10-250 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 8-7/8"W x 11-7/16"L x 1-15/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
350 watts x 1 channel
RMS Power @ 2 ohms
550 watts x 1 channel
RMS Power @ 1 ohm
750 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1600 watts
Total RMS Power Output
750 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DTX-1600.1

Weight:

6.50lbs

Internal SKU:

dtx16001

Internal Product ID:

68065

Product and How-to Videos


  • RE Audio DTX Car Amplifier | CES 2013
  • RE Audio New Product Line Overview | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


RE Audio DTX-1600.1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Sleek Solid Amp

Not too experienced, but I can say it functions perfectly, is very powerful, has all the options I needed, PLUS the handy dial remote, and it looks very cool against a dark trunk carpeting. Would like the screw dials for distortion/filters/etc to have a clear way of knowing what setting you're dialed into, but other than that this amp is perfect and a very small size. Wow up to 750 watts RMS in this tiny sleek amp!

By Rich on September 4, 2013

22 found this helpful




40-FD10 small

Metra 40-FD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1996-2007 Taurus and Sable

$8.99

List price $13.99

99-7338S small

Metra 99-7338S (Silver)

Single or Double DIN Dash Kit for 2010-13 Kia Forte/Forte Koup

(1)

$20.99

List price $69.99

SPI2312 small

Stinger SPI2312

12 ft. 2-Channel PRO3 Series Interconnect Cable

$16.99

List price $32.99

SI4217 small

Stinger SI4217

17 ft. of 2-Channel 4000 Series RCA Interconnect Cable

(5)

$19.99

List price $49.00

44-TY205 small

Metra 44-TY205 Antenna

Replacement Antenna for 1984-1992 Toyota Corolla/Camry and 1991-Up Toyota Tercel Vehicles

$25.99

List price $83.99

VX3024 small

Jensen VX3024

Double DIN Bluetooth In-Dash DVD/CD/AM/FM/Digital Media Car Stereo Receiver w/ 6.2" Screen

$199.99

List price $299.99

CWL-3860 small

Lite Glow CWL-3860

Yellow Split Loom Tubing 3/8" 20' Roll

$4.99

List price $29.99

HD3500 small

American Bass HD3500

3500W RMS Class D Monoblock HD Series Car Amplifier

(2)

$289.99

List price $499.99

PCXT352 small

Blaupunkt PCxt352 3-1/2"

$17.99

List price $59.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Subaru Forester

2008 Mazda RX-8

2009 Jeep Commander

1989 Mazda B2600

2017 Buick LaCrosse

2013 Subaru Forester

2018 Ram 1500

1981 Toyota Tercel

2000 Acura Integra

2003 Ford Taurus

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
