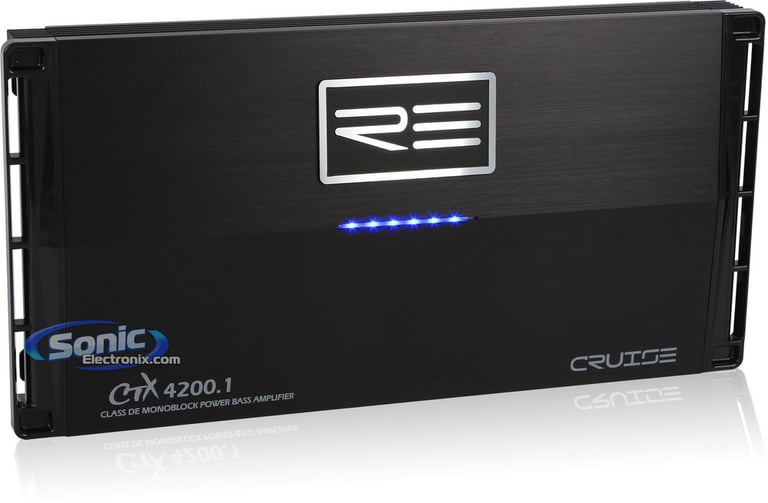

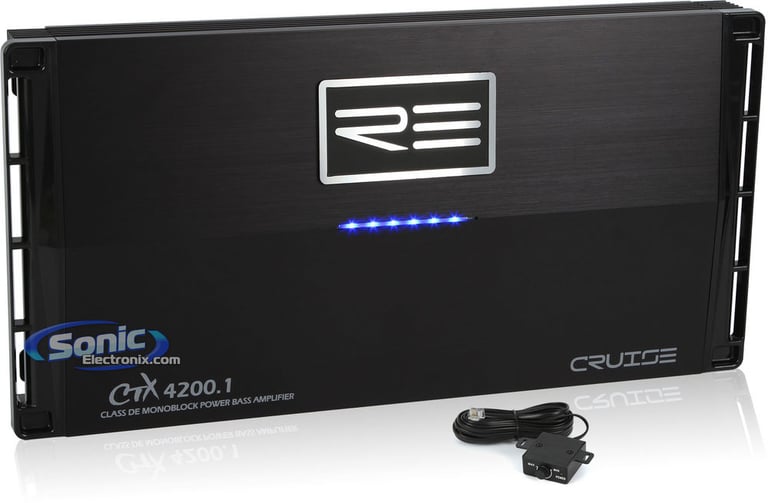

1500W RMS CTX Series Class DE Monoblock Car Amplifier

Item highlights

• RMS: 550W x 1 @ 4 ohms, 1000W x 1 @ 2 ohms, 1500W x 1 @ 1 ohm
• Total Peak Power: 4200W
• 1 Pair of Preamp Outputs
• Bass Boost: 0-18 dB
• Class DE Circuitry
• Dimensions: 9-1/2"W x 18-15/16"D x 2-1/4"H

DESCRIPTION

Authorized dealer

General Features:

CTX Series Monoblock Class DE Car Amplifier
RMS Power Rating (14.4 V):

4 ohms: 550 watts x 1 chan.
2 ohms: 1000 watts x 1 chan.
1 ohm: 1500 watts x 1 chan.

Dynamic power output: 4200 watts x 1 chan.
High-current Matched MOSFET power supply

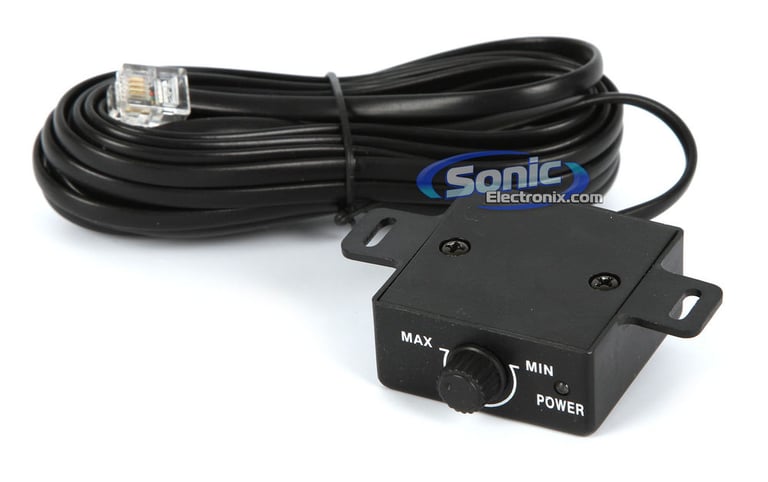

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
Turn on delay for quiet start-up
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)

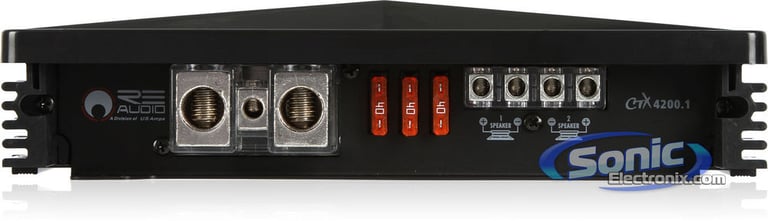

Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Platinum-plated RCA level inputs
Platinum-plated screw terminals

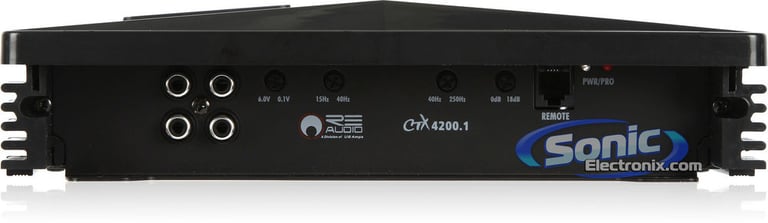

Input sensitivity:

Low level: 100mV-6V
High level: 250mV-6V

Variable low-pass filter (40-250 Hz)
Subsonic filter (24 dB, 15-40 Hz)
Frequency response: 10-300 Hz
2 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 9-1/2"W x 18-15/16"D x 2-1/4"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Model	CTX-1000.4	CTX-1600.2	CTX-3200.1	CTX-4200.1*
Class	AB	AB	D	D
# of Channels	4	2	1	1
Dynamic Power	1000W	1600W	3200W	4200W
RMS Power[4O]	100W x 4	200W x 2	400W x 1	550W x 1
RMS Power[2O]	150W x 4	350W x 2	750W x 1	1000W x 1
RMS Power[1O]	-	-	1200W x 1	1500W x 1
Bridged Power[4O, RMS]	300W x 2	700W x1	-	-

FEATURES & SPECS

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

550 watts x 1 channels

RMS Power @ 2 ohms

1000 watts x 1 channels

RMS Power @ 1 ohm

1500 watts x 1 channels

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

Peak Power @ 2 ohms

Peak Power @ 1 ohm

Bridged Peak/Max Power

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

Peak Power @ 2 ohms

Peak Power @ 1 ohm

Amplifier Specifications

Amplifier Series

CTX (RE Audio)

Marine Certified

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

4200 watts

Total RMS Power Output

1500 watts

Maximum Input Gauge Size

2 AWG

Minimum Impedance Unbridged

1 ohms

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 250 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 18 dB

Bass/Gain Remote

Yes

Fan Cooled

Fuse Rating

40A x 3

Total Fuse Rating

Strappable

CEA-2006 Compliant

Hi-Res Certified

Authorized Dealer

What is in the box?

WITB: Amplifiers

Other Accessory #1

Other Accessory #2

Other Accessory #3

Other Accessory #4

Other Accessory #5

Paperwork

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider
