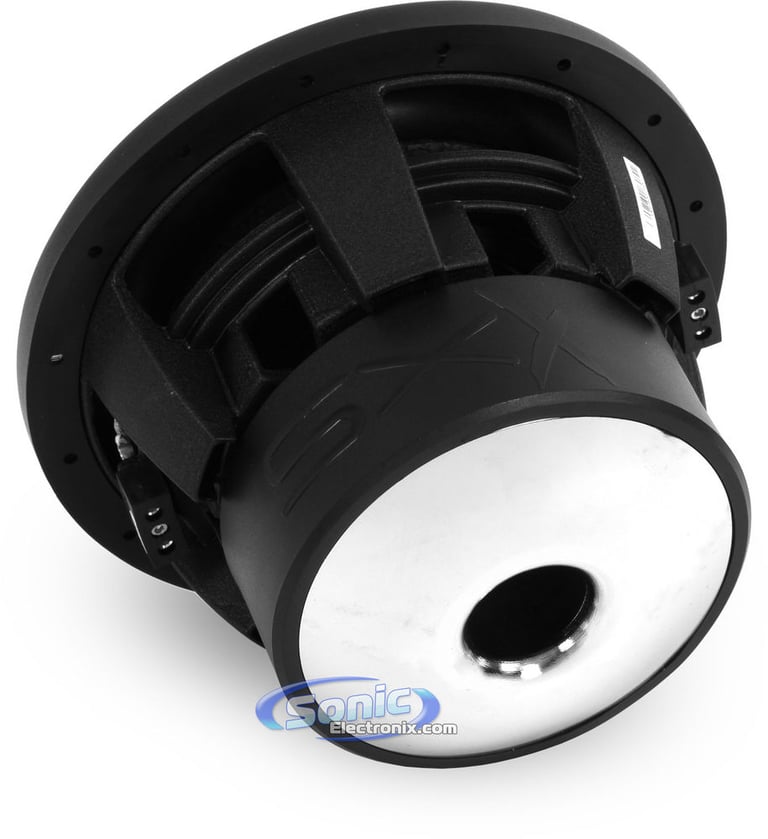

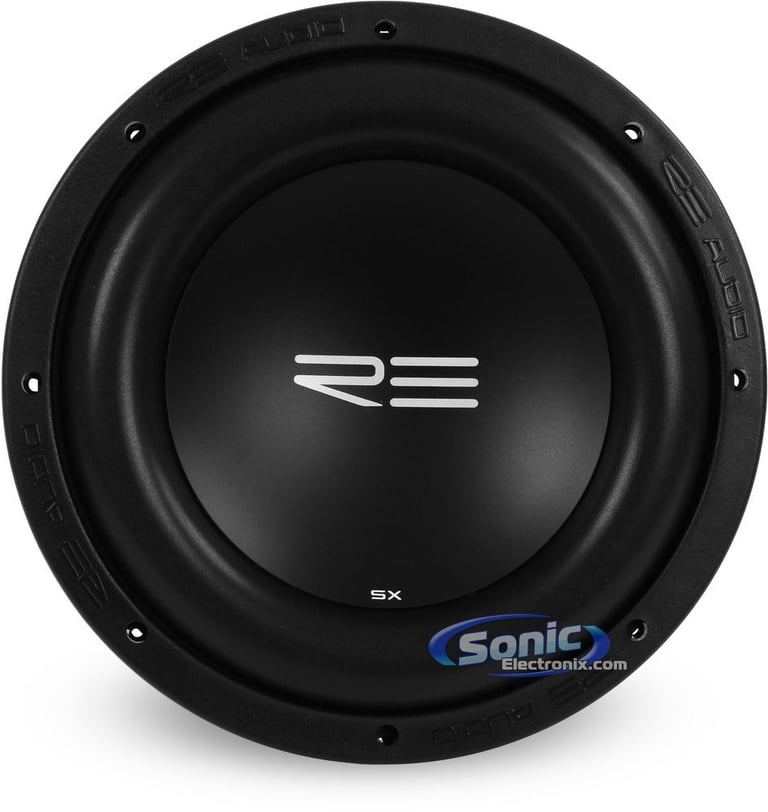

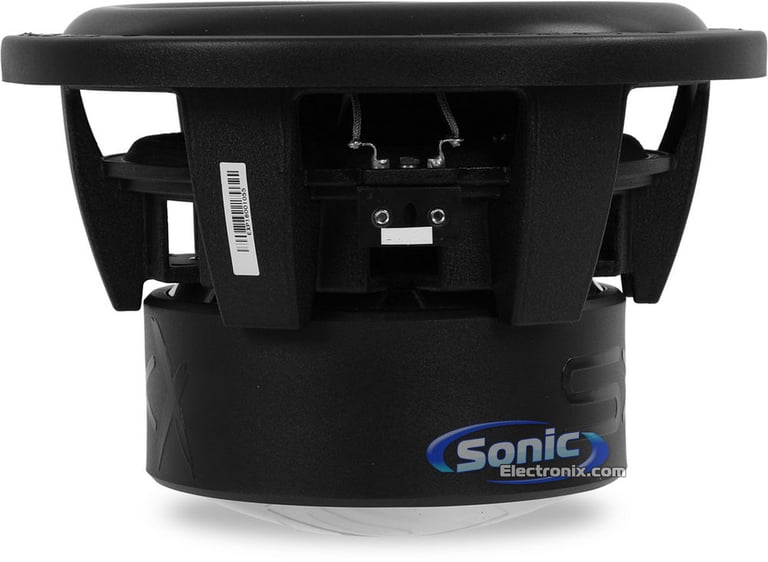

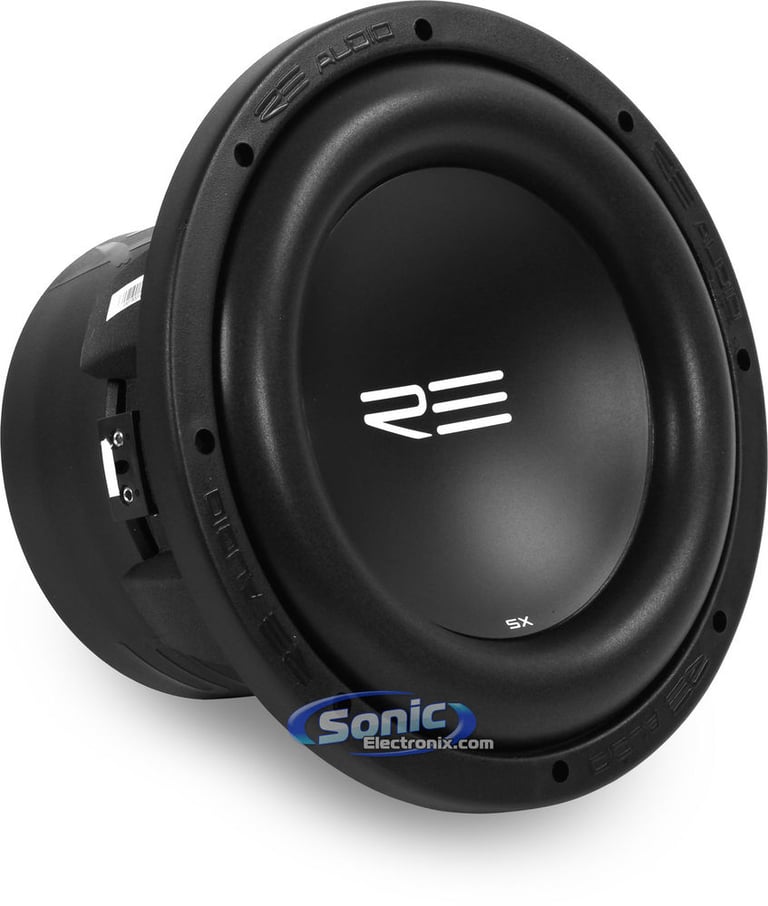

RE Audio SXXv2-10D2 (SXX v2 10D2)

1200W 10" SXXv2 Series Dual 2 Ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 1200W
• Dual 2 ohm Voice Coil
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Cast Aluminum Basket
• 3" 4-Layer Aluminum Voice Coil

Learn more about the sxxv210d2

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
GM1483B main

Scosche GM1483B / GM1483 Dash Kit

Install a new Single-DIN car stereo in select 1995-2023 vehicles from GMC, Chevrolet, Cadillac trucks (Black)

119
-54.55%

$6.34

List price $13.95

70-1858 main

Metra 70-1858 Wiring Harness

Install a new car stereo in select 1986-2006 vehicles from Chevrolet, GMC, Pontiac

63
A151-10CP main

Atrend A151-10CP

Empty Single 10" Sealed Rear Underseat Enclosure for select 1999-2007 vehicles from GMC, Chevrolet

3
GMK343 main

PAC GMK343

Double DIN Stereo Dash Kit for select 1995-2002 vehicles from GMC, Chevrolet, Cadillac

-35.92%

$24.99

List price $39.00

DP-3002B main

Metra DP-3002B Dash Kit

Install a new Double-DIN car stereo in select 1999-2002 vehicles from GMC, Chevrolet trucks (Black)

51
-10.03%

$286.99

List price $318.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Product Highlights


• RMS Power: 1200W
• Dual 2 ohm Voice Coil
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Cast Aluminum Basket
• 3" 4-Layer Aluminum Voice Coil

Description


RE Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 2 Ohm SXXv2 Series Subwoofer
  • Power Handling:
    • RMS: 1200 watts
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • Tork-tite terminals
  • Cast aluminum basket
  • 3" 4-Layer aluminum voice coil
  • FEA-optimized Motor Structure
  • Triple-stack magnet
  • Progressive Spiders
  • Wrap-arround Rubber Gasket
  • Top-mount depth: 6.5"
  • Overall Diameter: 11"
  • Weight: 24.5lbs
  • Sensitivity: 86.1dB (1W/1m)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Need the Perfect Subwoofer Enclosure?


Check out the RE Audio SXXv2-10D2 Subwoofer Enclosure Guide


Check out the RE Audio SXXv2 Series Owner's Manual



Product history:

RE Audio SXXv2-10D2 thumbnail
(newest, current model)
RE Audio SXX10D2 thumbnail
(previous model, replaced by RE Audio SXXv2-10D2 (SXX v2 10D2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SXXv2-10D2 (SXX v2 10D2) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SXXv2-10D2 (SXX v2 10D2) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SXXv2-10D2 (SXX v2 10D2) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SXXv2-10D2 (SXX v2 10D2) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
SB-GM-SLVCRW/10TW3 main

JL Audio Stealthbox® SB-GM-SLVCRW/10TW3

Custom fit subwoofer enclosure for select 2001-2006 Silverado 1500 HD / 3500 / 2500 HD / 1500 and Sierra 3500 / 2500 HD / 1500 / 1500 HD and Sierra Denali

1

$1,699.99

LVE-GM-SLVECG1-D12S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D12S

For select 1999-2006 vehicles from GMC, Chevrolet Extended Cab - Dual 12" 800W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.86%

$369.99

List price $455.99

LVE-GM-SLVECG1-D10S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D10S

For select 1999-2006 Silverado 2500 HD / 1500 / 3500 / 2500 and Sierra 2500 HD / 2500 / 1500 / 3500 and SIerra 2500 HD Extended Cab - Dual 10" 700W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.98%

$349.99

List price $431.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
SXX v2 Series
Subwoofer Size
10"
RMS Power Handling
1100 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
86 dB
Xmax (millimeters)
24 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6.-11/16"
Cutout Diameter
9.3"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SXXv2-10D2

Weight:

25.50lbs

Internal SKU:

sxxv210d2

Internal Product ID:

68089
