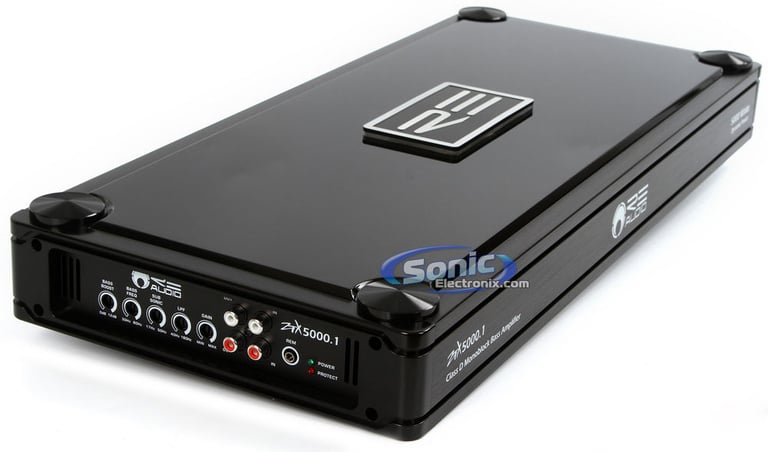

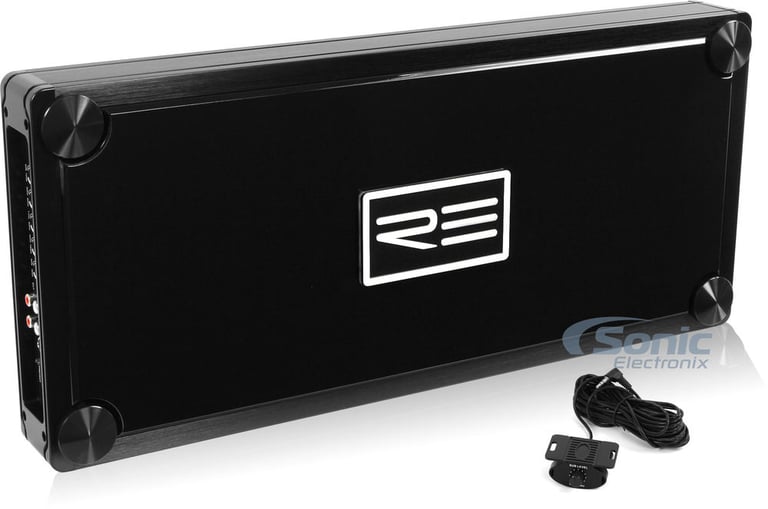

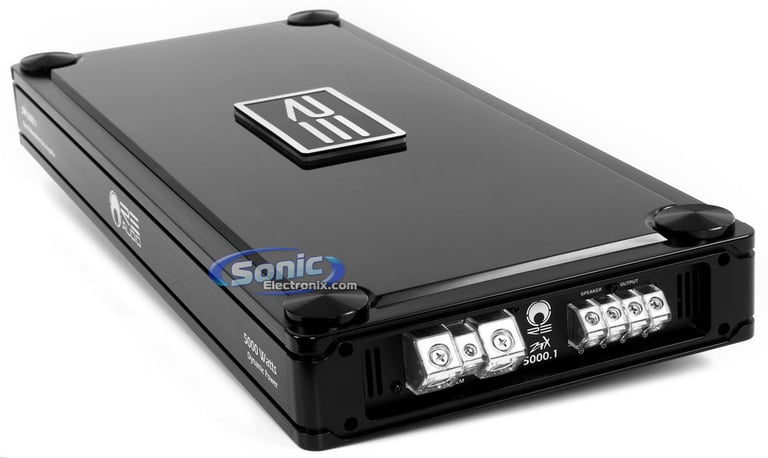

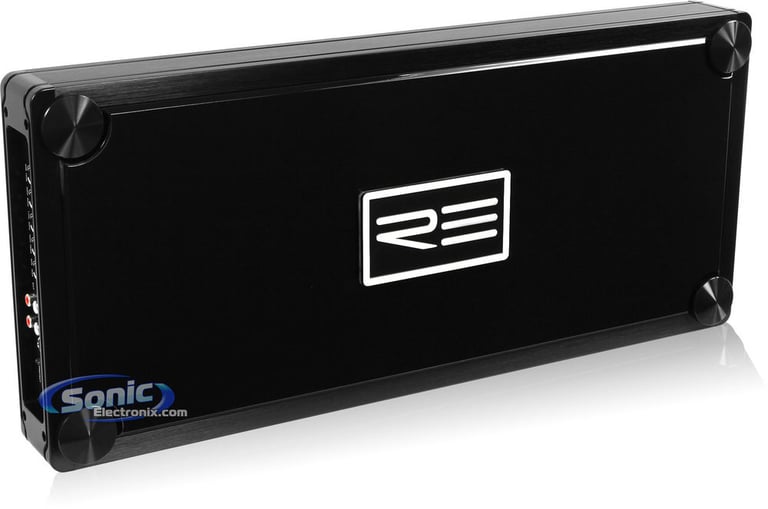

RE Audio ZTX-5000.1

2500W RMS Monoblock Class D ZTX Series Car Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• ZTX Series Monoblock Class D Amplifier
• 1000W x 1 Chan. @ 4 ohm • 1700W x 1 Chan. @ 2 ohm
• 2500W x 1 Chan. @ 1 ohm
• 3-Way System Protection
• 1 Channel Operation • 4 Gauge Power and Ground Inputs
• Variable Bass Boost 0-12 dB

Learn more about the ztx50001

We apologize

This item has been discontinued


Loading...
40-EU10 main

Metra 40-EU10 Antenna Adapter

Install a New Car Stereo and Retain Factory Antenna in select 2000-2017 vehicles from BMW, Mercedes-Benz, Ford

44
-14.30%

$11.99

List price $13.99

99-9303 main

Metra 99-9303 Dash Kit

Install a new Single-DIN car stereo in select 2003-2008 vehicles from BMW

-50.02%

$13.99

List price $27.99

70-9003 main

Metra 70-9003 Wiring Harness

Install a new car stereo in select 2000-2018 vehicles from BMW, Mercedes-Benz, Pontiac

5
FRING4 main

NVX FRING4

Universal 4" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

4
-36.91%

$11.98

List price $18.99

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Product Highlights


• ZTX Series Monoblock Class D Amplifier
• 1000W x 1 Chan. @ 4 ohm • 1700W x 1 Chan. @ 2 ohm
• 2500W x 1 Chan. @ 1 ohm
• 3-Way System Protection
• 1 Channel Operation • 4 Gauge Power and Ground Inputs
• Variable Bass Boost 0-12 dB

Description


RE Audio brand icon

Authorized dealer


Beyond the Limit – Again!

That’s where RE AUdio has taken their new ZTX v2 amplifier line. They didn’t just pick up where the XTX series left off – The USAmps/RE Audio Engineering Team did so by coming up with a radical new cosmetic design incorporating a wooden top plate with a piano “Black Lacquer” finish and a “Back-lit” RE logo badge. And the rest – The sound and power classes that match perfectly with all their speaker systems and subwoofers.

RE Audio ZTX-3000.1 (ZTX3000.1)

General Features:

  • ZTX Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 chan.
    • 2 ohm: 1700 watts x 1 chan.
    • 1 ohm: 2500 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

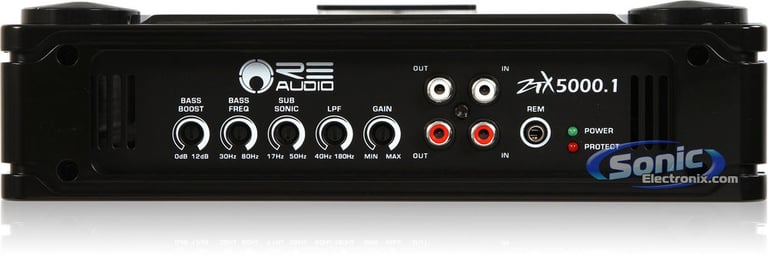

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Piano black lacquer finish
  • Black-lit RE logo badge

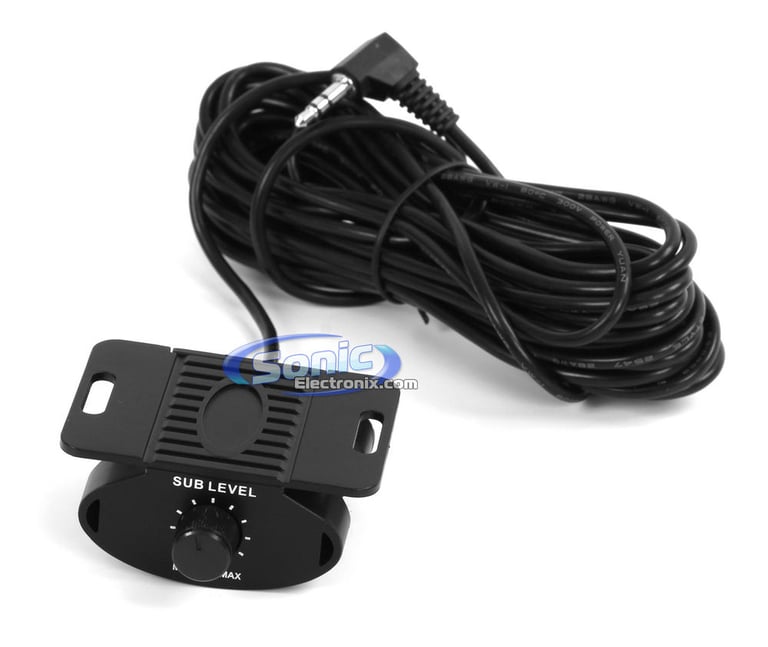

  • Wired remote control bass knob included
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

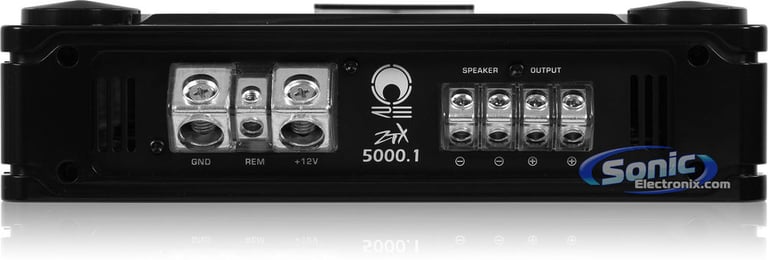

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 24 dB/octave)
  • Variable subsonic filter (17-50 Hz, 24 dB/octave)
  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/2"W x 21-3/4"L x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1000 watts x 1 channel
RMS Power @ 2 ohms
1700 watts x 1 channel
RMS Power @ 1 ohm
2500 watts x 1 channel
Amplifier Specifications
Series
ZTX Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
2500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
17 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
External 250A Fuse Required
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZTX-5000.1

Weight:

14.00lbs

Internal SKU:

ztx50001

Internal Product ID:

68119
