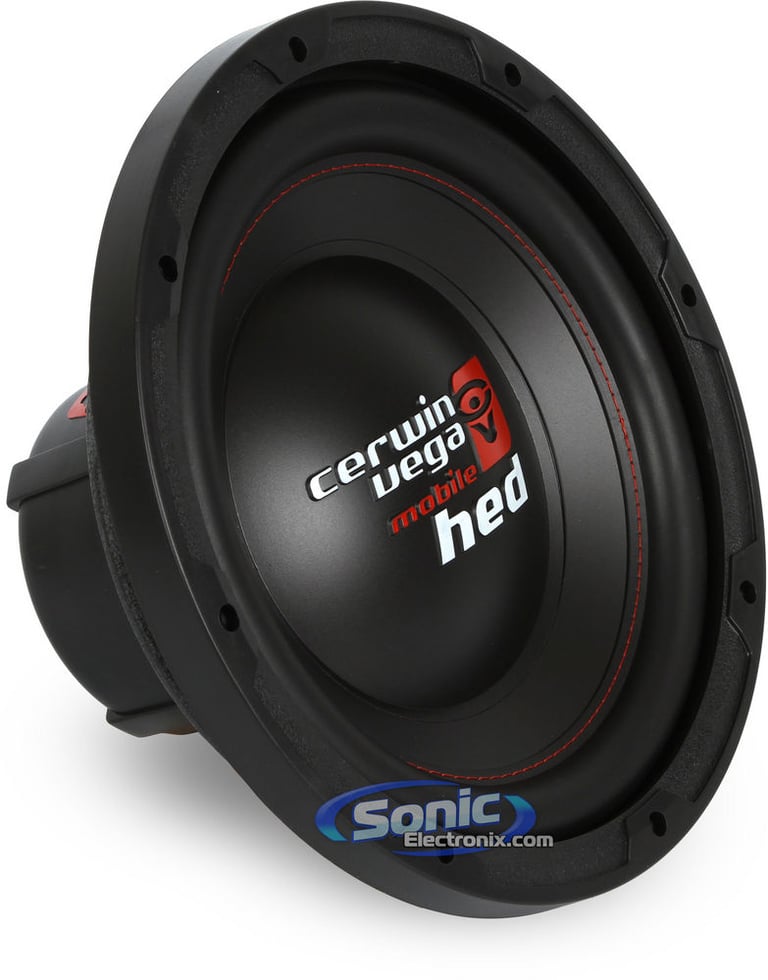

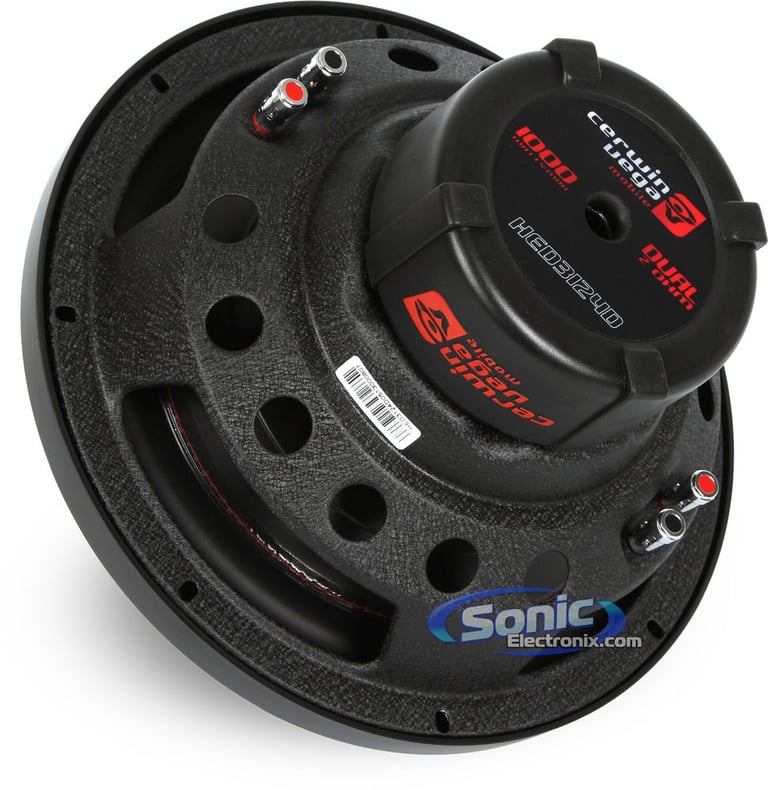

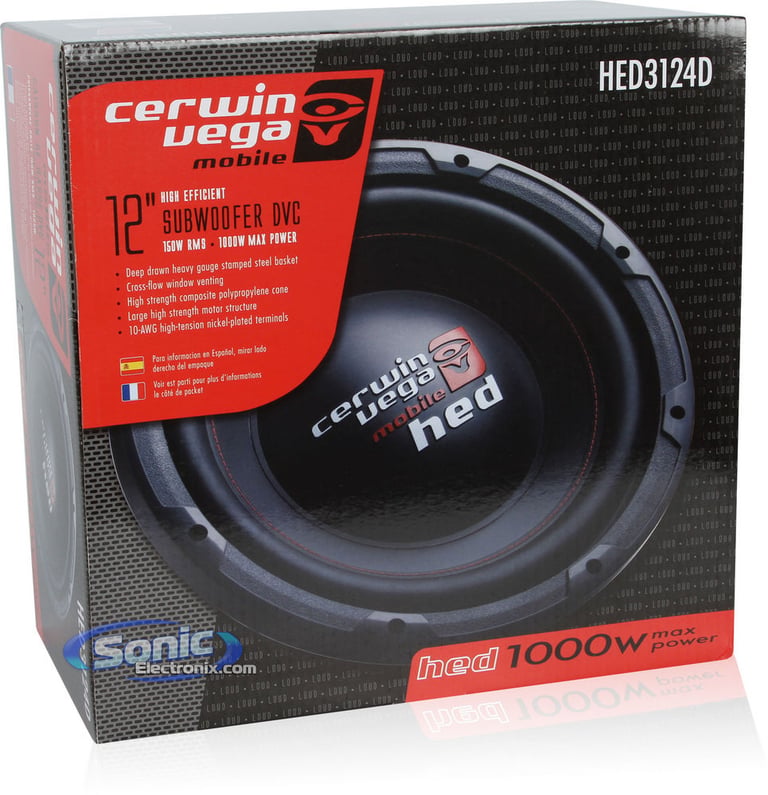

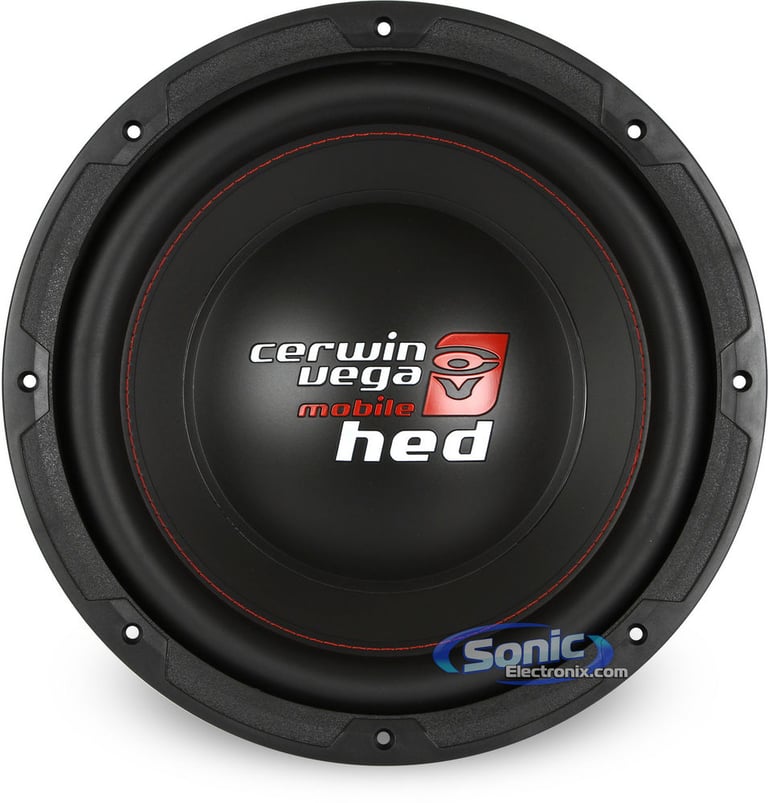

Cerwin-Vega HED3124D

150W 12" HED3 Series Dual 4 Ohm Subwoofer

Cerwin-Vega
Shop all Cerwin-Vega
Product videos
highlight-star-icon

• 1000W Peak
• 150W RMS
• Composite Polypropylene Cone
• Butyl Rubber Surround
• Rolled Aluminum Former
• XFV Cross-Flow Window Venting for Massive Heat Dissipation

Learn more about the hed3124d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

h4124d thumbnail

Cerwin-Vega H4124D

OUR PRICE: $64.99

View item

Loading...
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

Product Highlights


• 1000W Peak
• 150W RMS
• Composite Polypropylene Cone
• Butyl Rubber Surround
• Rolled Aluminum Former
• XFV Cross-Flow Window Venting for Massive Heat Dissipation

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 12" Dual 4 Ohm HED3 Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 150 watts
  • Impedance: 4 ohm
  • Composite Polypropylene cone (CPPC)
  • Butyl rubber surround
  • Radial contact convex dome design (RCCD)
  • Rolled aluminum former
  • XFV Cross-flow window venting allows for massive heat dissipation from the voice coil
  • Resonance Frequency (Fs): 25 Hz
  • Top-mount depth: 5-15/16"
  • Sensitivity: 86 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega H4124D thumbnail
(newest, current model)
Cerwin-Vega HED3124D thumbnail
(previous model, replaced by Cerwin-Vega H4124D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega HED3124D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega HED3124D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega HED3124D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega HED3124D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

Specifications & Details


Subwoofer Specifications
Series
HED3 Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
150 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86 dB
Xmax (millimeters)
7.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-15/16"
Cutout Diameter
11-11/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26 Hz
Equivalent Compliance (Vas)
84.73 liters
Total Speaker Q Value (Qts)
0.494
Electrical Q Value (Qes)
0.567
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
4.4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED3124D

Weight:

11.00lbs

Internal SKU:

hed3124d

Internal Product ID:

68569
