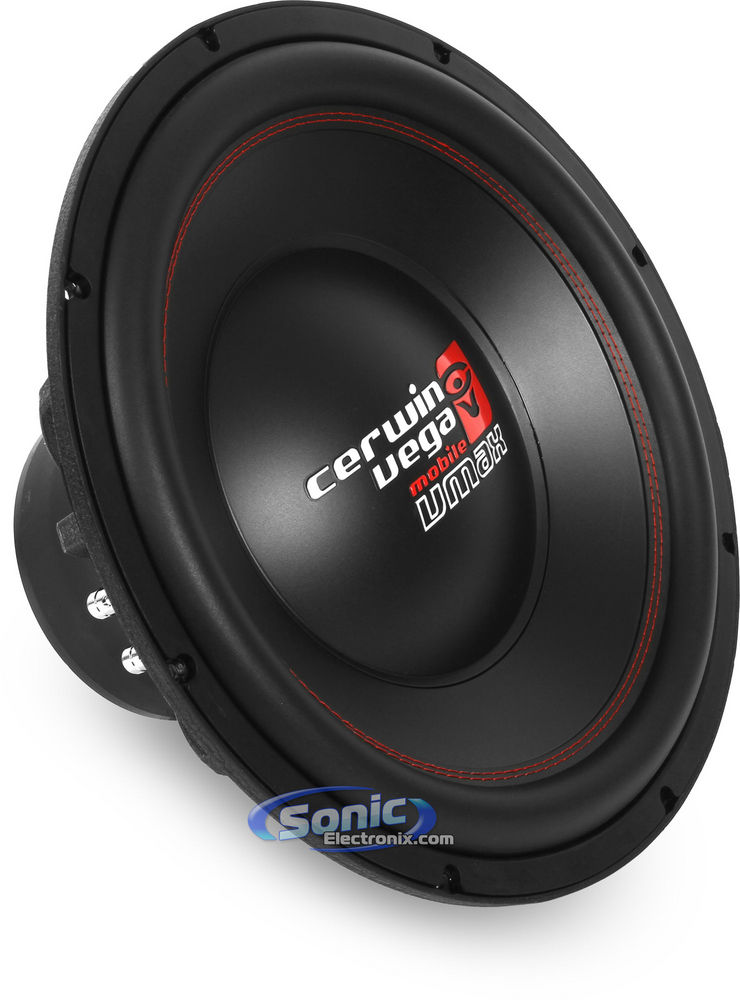

Cerwin-Vega VMAX3154

15" Dual 4 Ohm VMAX3 Series Car Subwoofer

Product videos
highlight-star-icon

• 2400W Max
• 1400W RMS
• Dual 4 ohm Voice Coil
• High Strength Composite Polypropylene Cone
• Butyl Rubber Surround
• O2 Cast Heavy Duty Aluminum Basket
• 2-1/2" High Power Dual Voice Coil

Learn more about the vmax3154

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

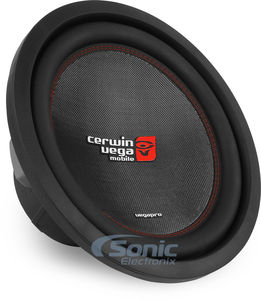

vpro154d thumbnail

Cerwin-Vega VPRO154D

OUR PRICE: $199.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-8602 main

Metra 82-8602 Speaker Adapter Plates

Install 6.5” or 6.75” aftermarket speakers in select 2012-2022 Model S and Model X

-46.68%

$15.99

List price $29.99

NVX Loaded BOOST Box - 2012-2020 Tesla Model S - BE-TSLAS-VCW104

For select 2012-2020 Model S - Single 10" 1000W RMS Loaded BOOST Sealed Enclosure

3
-16.67%

$469.99

List price $563.99

Product Highlights


• 2400W Max
• 1400W RMS
• Dual 4 ohm Voice Coil
• High Strength Composite Polypropylene Cone
• Butyl Rubber Surround
• O2 Cast Heavy Duty Aluminum Basket
• 2-1/2" High Power Dual Voice Coil

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 15" Dual 4 Ohm VMAX3 Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1400 watts
  • Impedance: 4 ohm
  • High strength composite polypropylene cone
  • Butyl rubber surround
  • O2 Cast heavy duty aluminum basket
  • XFV Cross-flow window venting allows for massive heat dissipation from the voice coil
  • Pushpin terminals
  • Linear rolled spider with over-under weave design
  • 2-1/2" High power dual voice coil with rolled aluminum former
  • Resonance Frequency (Fs): 29 Hz
  • Top-mount depth: 7-1/4"
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega VPRO154D thumbnail
(newest, current model)
Cerwin-Vega VMAX3154 thumbnail
(previous model, replaced by Cerwin-Vega VPRO154D)
Cerwin-Vega VMAX154.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX3154)
Cerwin-Vega VMAX154 thumbnail
(previous model, replaced by Cerwin-Vega VMAX154.2)
Cerwin-Vega VMX-15.4 thumbnail
(previous model, replaced by Cerwin-Vega VMAX154)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VMAX3154 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VMAX3154 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VMAX3154 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VMAX3154 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(27)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

Specifications & Details


Subwoofer Specifications
Series
Vmax3 Series
Subwoofer Size
15"
Peak Power Handling
2400 watts
RMS Power Handling
1400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
87 dB
Xmax (millimeters)
13.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Butyl Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.0 cubic feet
Optimum Ported Box Volume
3.5 cubic feet
Top-Mount Depth (Mounting Depth)
7-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
76 liters
Total Speaker Q Value (Qts)
0.693
Electrical Q Value (Qes)
0.796
Electrical Resistance of Voice Coil (Re)
7.20 ohm
Mechanical Q Value (Qms)
5.323
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VMAX3154

Weight:

22.50lbs

Internal SKU:

vmax3154

Internal Product ID:

68603
