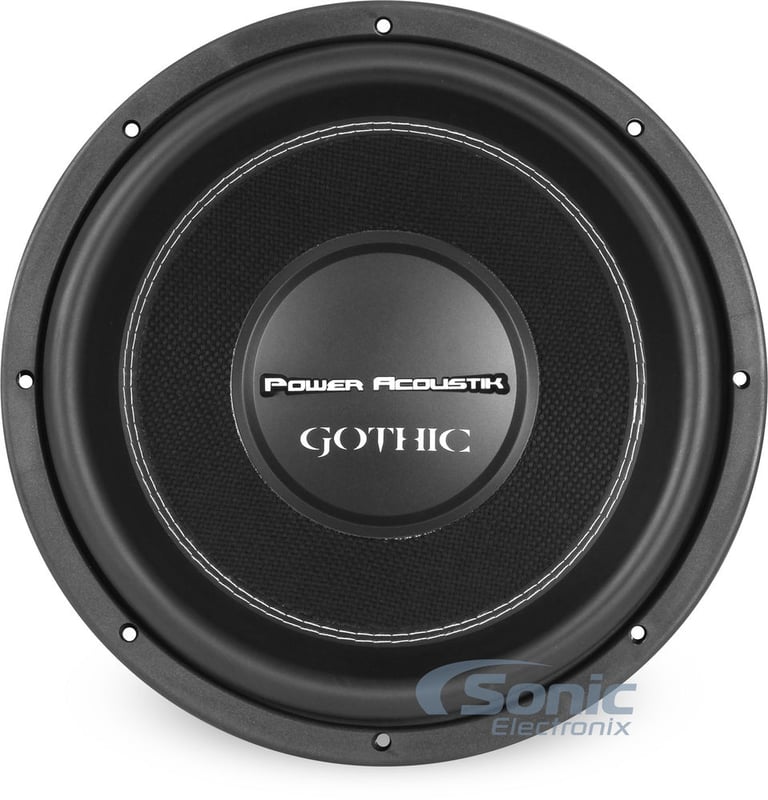

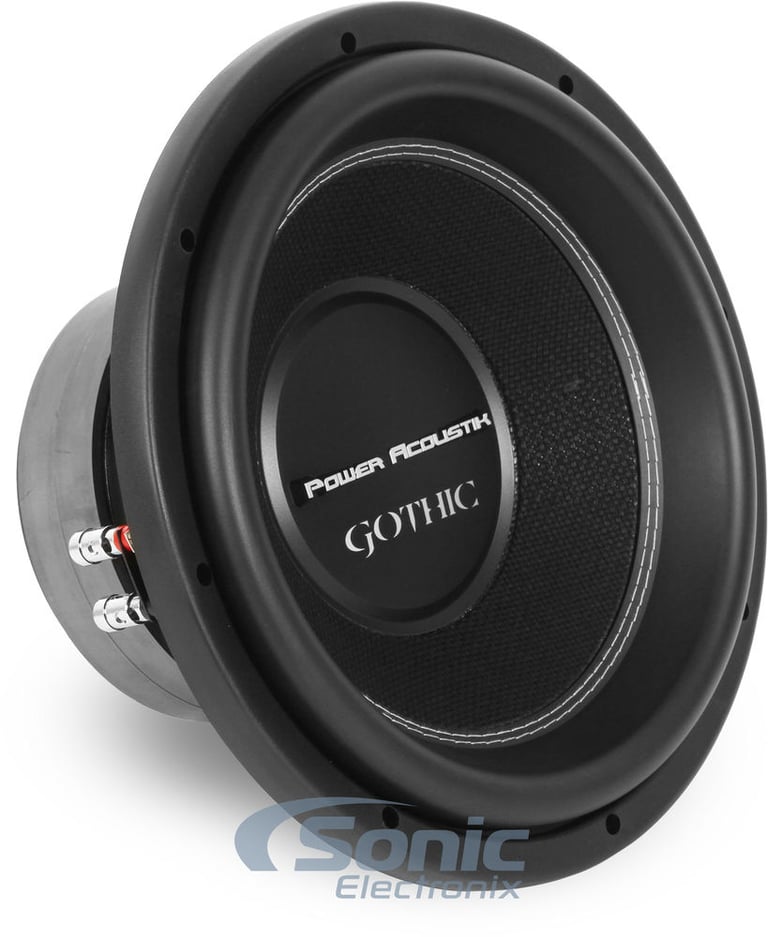

Power Acoustik GW3-12

1200W 12" Gothic Series Dual 2 Ohm Subwoofer

Product videos
highlight-star-icon

• 2500W Peak
• 1200W RMS
• Twisted & Woven Flax Fiber Cone for Ultima Strength
• Extended Excursion NBR Surround
• Overcast Stitched Cone Assembly
• Back Plate & T-Yoke Venting Helps Dissipate Heat from Voice Coil

Learn more about the gw312

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
99-6504 main

Metra 99-6504 Dash Kit

Install a new Single-DIN car stereo in select 1998-2007 vehicles from Dodge, Chrysler, Jeep

4
-10.35%

$25.99

List price $28.99

82-CH1 main

Metra 82-CH1

Speaker Harness and Adapter Kit for select 1995-2005 vehicles from Chrysler, Dodge (Front Speakers)

-53.14%

$14.99

List price $31.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

CS693 main

Crunch CS693

800W Peak (150W RMS) 6x9" CS Series 3-Way Coaxial 4-ohm Car Speakers

25
-32.01%

$33.99

List price $49.99

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

Crunch CS653

600W Peak (120W RMS) 6.5" CS Series 3-Way Coaxial 4-ohm Car Speakers

21
-9.09%

$29.99

List price $32.99

Product Highlights


• 2500W Peak
• 1200W RMS
• Twisted & Woven Flax Fiber Cone for Ultima Strength
• Extended Excursion NBR Surround
• Overcast Stitched Cone Assembly
• Back Plate & T-Yoke Venting Helps Dissipate Heat from Voice Coil

Description


Power Acoustik brand icon

Authorized dealer



General Features:

  • 12" Dual 2 Ohm Gothic Series Subwoofer
  • Power Handling:
    • Peak: 2500 watts
    • RMS: 1200 watts
  • Impedance: 2 ohm

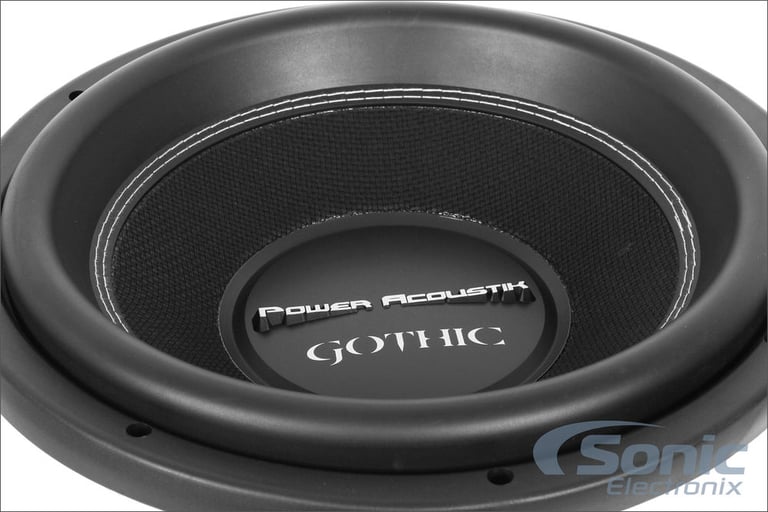

  • Twisted & woven flax fiber cone for ultimate strength and less elasticity
  • Extended excursion NBR surround with strong and flexible properties
  • Back plate & t-yoke venting which helps dissipate heat from the voice coil
  • Overcast stitched cone assembly allowing for superior adhesives and conventional bond between the surround and cone

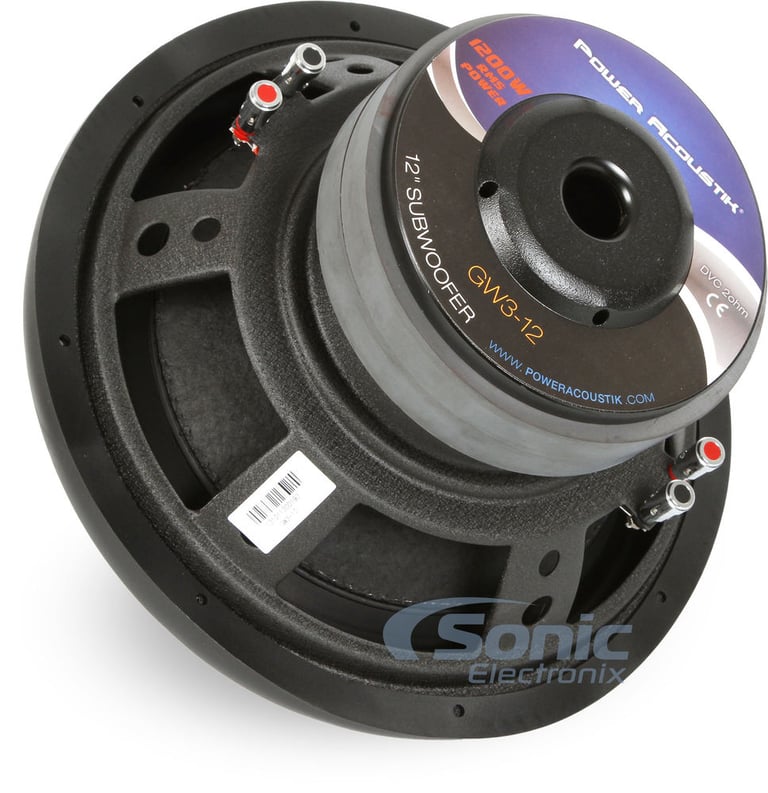

  • 1-1/2" Long 2-1/2" Diameter 100% Oxygen Free Copper voice coil
  • 204 oz. magnet motor structure
  • Resonance Frequency (Fs): 34.29 Hz
  • Top-mount depth: 6-1/2"
  • Sensitivity: 83.6dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Power Acoustik GW3-12 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Power Acoustik GW3-12 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Power Acoustik GW3-12 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Power Acoustik GW3-12 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Series
Gothic Series
Subwoofer Size
12"
Peak Power Handling
2500 watts
RMS Power Handling
1200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2-1/2"
Sensitivity
83.6 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Optimum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/2"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.29 Hz
Equivalent Compliance (Vas)
60.8651 liters
Total Speaker Q Value (Qts)
1.2150
Electrical Q Value (Qes)
1.5772
Electrical Resistance of Voice Coil (Re)
2.11444 ohm
Mechanical Q Value (Qms)
5.2909
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GW3-12

Weight:

21.00lbs

Internal SKU:

gw312

Internal Product ID:

68809

Product and How-to Videos


  • Power Acoustik Gothic Series Car Subwoofers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Power Acoustik GW3-12 thumbnail image

5 star
63%
4 star
28%
3 star
3%
2 star
6%
1 star
0%



Durability
4.4
Value
4.8
Features
4.5
Design
4.5
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great subs

I have 2 of these subs in my 98 dodge ram 2500 v8 and man it pounds hard and load I love them I've had them for almost 1 year now and they sound like new still . Friends & family say they can hear me 2 blocks away . When I'm in at of my house my livingroom windows shake .

By Brad on April 22, 2014

45 found this helpful


good

I had these for three months now on a Lanzar OPTI2001D and still going strong they are in a sealed probox with upgraded alternator and one kinetics battery so they are getting the full 2000 RMS at 0 .5 ohm

By john on September 15, 2013

45 found this helpful


UnC of Virginias Finest Auto Club

For every day play and bass yes!! you can comp them but I wouldn't advise not really great SPL speakers even tough they are built like them Get the MOFO's if that's the case.

By UnC Larry VP of Virginias Finest Auto Club on July 11, 2014

43 found this helpful


not bad

after only three days both dust caps came off but other than that its a good speaker. It also is free air capable so if that's something you are looking for then give them a try.

By michael on September 2, 2013

44 found this helpful


Great subs, great value.

Matched them with the 2700 watt Power Acoustik mono block. Solid, clean bass. No complaints.

By BigMacThaStoryTella on December 26, 2014

41 found this helpful


excellent

Been using two of these for a month now on a kicker 750.1 at 2 ohm and they get pretty deep I have them in a ported box. Was a little unsure about buying them but when I seen they were a little cheaper than than power acoustic MOFO twelves I figured I would give them a try the only down side is I always take my box in and out of my trunk for the room and they are pretty heavy speakers but other than that very much worth the price for the power they can take.

By nathan on September 15, 2013

41 found this helpful


great value

this brand is a great brand. ill order MOFO's next. these are some good bass carryin speakers.

By Keith on April 10, 2014

37 found this helpful


Great Deal

Power Acoustik GW3-12 gives u the bang for your buck!!! I love this sub, I would recommend this sub to anyone who wants to beat down the block and hit really good. Thanks Sonic for the hook up

By Big Homie on July 9, 2014

36 found this helpful


not yet wired

I have not hooked these bad boyz up. But cant wait to see what there hittin like. Stay tuned.

By ced. on April 30, 2015

27 found this helpful


great value

Sonic is fast, accurate and affordable. I will continue to do business in the future.
Gw3-12 . Are as described. I purchased planet audio 5000watt mono block and they thump . great deal . Check them out

By ted on March 9, 2015

28 found this helpful




FHXS20 small

StreetWires FHXS20

1/0 Gauge AFS Fuse Holder

$34.99

List price $59.99

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

for select 2011-2023 vehicles from Ford Includes Receiver, RR2 Interface Module, Mount Brackets, Harness, iDataLink Maestro ACC-HU-KEN1 (Non Premium Audio) Plug and Play Upgrade Kit

(7)

$1601.87

List price $2348.97

09SS12C4 small

Kicker 09SS12C4 (SS12C4)

Single 12" Sealed Sub Enclosure Loaded w/ a Solo Classic 12" 09S12C Subwoofer, Final Impedance of 4 ohms (09SS12C, SS12C)

$349.95

List price $399.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Chrysler Concorde

2019 Dodge Charger

1976 Mercury Monarch

1994 Mercedes-Benz E-Class

1982 GMC C3500 Pickup

2011 Land Rover LR4

1982 Jaguar XJ6

2006 Nissan Maxima

1988 BMW 528e

2019 Genesis G90

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
