Product videos

Product highlights

12" Single 4 Ohms db Series Subwoofer • 360W RMS • 720W Max • Kapton Voice Voil • Single 4 Ohm Voice Coil • Suitable for Marine Use • Santoprene Rubber Surround

Learn more about the db124

Product Highlights

12" Single 4 Ohms db Series Subwoofer • 360W RMS • 720W Max • Kapton Voice Voil • Single 4 Ohm Voice Coil • Suitable for Marine Use • Santoprene Rubber Surround

Description

Authorized dealer

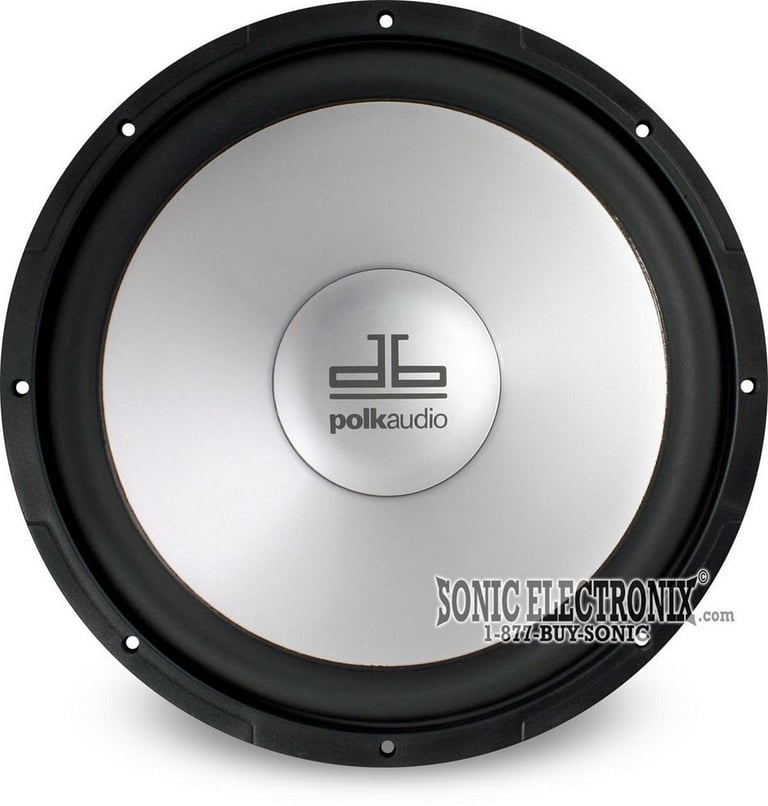

12" Single 4 ohm db Subwoofer
Power Handling:
- Peak: 720 watts
- RMS: 360 watts
Impedance: 4 ohm
Polypropylene cone
Rigid ABS dust cap to prevent distortion
Santoprene rubber surround optimizes durability to withstand high temperatures and moisture
Flat fire-retardant NOMEX spider increases stability against high temperatures and provides lengthened linear motion
Klippel laser analyzer used to enhance the subs motor, suspension, and voice coil alignment
4-layer Kapton voice coil former, cone/coil coupler and pole piece increases reliability, durability, and power handling of the subwoofer
Marine certified to withstand the toughest marine environments
2" Single voice coil
Designed for sealed, ported, and bandpass enclosures
Frequency response: 27-200 Hz
Sensitivity: 88 dB
Dual voice coil version also available: Polk Audio db124DVC
1-year SonicElectronix.com warranty

Product history:

	Polk Audio DB 1242 SVC (DB1242SVC) (newest, current model)
	Polk Audio db1240 (previous model, replaced by Polk Audio DB 1242 SVC (DB1242SVC))
	Polk Audio db124 (previous model, replaced by Polk Audio db1240)

Subwoofer Wiring Guide

Wiring Guide to Wire 1 Polk Audio db124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Polk Audio db124 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Polk Audio db124 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Polk Audio db124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Subwoofer Size

12"

Peak Power Handling

720 watts

RMS Power Handling

360 watts

Voice Coil(s)

Single

Impedance (Per Voice Coil)

4 ohms

Frequency Response

27 - 200 Hz

Sensitivity

88 dB

Xmax (millimeters)

7.5 mm

Subwoofer Design

Round / Circle

Main Cone Color

Silver

Woofer Composition

Polypropylene

Woofer Surround

Santoprene Rubber

Subwoofer Grille

Re-Cone Kit Available

Recommended Enclosure Specifications

Recommended Enclosure Type

Bandpass
Ported / Vented
Sealed

Minimum Sealed Box Volume

0.88 cubic feet

Maximum Sealed Box Volume

0.88 cubic feet

Top-Mount Depth (Mounting Depth)

Cutout Diameter

11"

Shallow Mount Installation

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Rate or review product

Overall rating distribution

5 star		50%
4 star		50%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.5
Value		4.5
Features		4
Design		4.5
Usability		5

Customer Reviews

Sort by:

Workhorse

I've had one of these in three different boxes with two different amps, and it just keeps thumping.

Polk 12s, in my experience, aren't the loudest, but they are TIGHT, reliable and durable. If you want sloppy fuzzy boooffooommppplt sounds, Polks ain't for you. But if you want to feel your bass moving you around in your seat year after year after year, Polks are the way to go.

By Michael on July 12, 2011

found this helpful.

Helpful? Report abuse

Had two of these in a vented box with a 300 watt amp and they sound great. Deep bass.

By Justin on December 8, 2007

found this helpful.

Helpful? Report abuse
