Product videos

Product highlights

Class D 5-Channel Amplifier with Bass Remote • 4 ohm: 70 watts x 4 chan. + 210 x 1 chan. • 2 ohm: 105 watts x 4 chan. + 380 x 1 chan. • Bridged, 4 ohm: 210 watts x 2 chan. + 380 x 1 chan. • 5/4/3 Channel Operation

Learn more about the error101

Product Highlights

Description

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

NVX JAD Series Amplifiers

NVX's new line of Justice series amplifiers are perfect for those looking for a small footprint, high output amplifier. They boast an abundance of features such as variable high and low pass filters, pre-amp outputs, and gain level control. The sleek design of the chassis combined with the illuminated badge makes these amplifiers eye-catchers. The JAD900.5 5-channel includes a wired remote bass knob in order to manage bass levels from a user-defined location. The 5th mono channel is able to push 380W at 2 ohms to deliver a ton of power to one or more subwoofers.

General Features:

Class D 5-Channel Amplifier with Bass Remote
Product is Open Box

Previously Installed

RMS Power Rating:

4 ohm: 70 watts x 4 chan. + 210 x 1 chan.
2 ohm: 105 watts x 4 chan. + 380 x 1 chan.
Bridged, 4 ohm: 210 watts x 2 chan. + 380 x 1 chan. @ 2 ohm

Non-regulated efficient S.M.P.S power supply design
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
High speed rectifying diodes
Soft start turn-on
5/4/3 channel operation
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable high-pass filter (40-400 Hz, 24 dB/octave)
Variable low-pass filter (80-4000 Hz, 24 dB/octave)
Variable subsonic filter (20-38 Hz, 24 dB/octave)
Input Sensitivity: 200mV-6V
Frequency response: 20-20,000 Hz
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
Authorized Internet Dealer
90-Day Manufacturer Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT44, or NVX XAPK4

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

70 watts x 4 channel

RMS Power @ 2 ohms

105 watts x 4 channel

Bridged RMS Power

210 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

210 watts x 1 channel

RMS Power @ 2 ohms

380 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

5-Channel

Total RMS Power Output

800 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

40 - 400 Hz

Low-Pass Crossover Frequency

80 - 4000 Hz

Subsonic Filter

20 - 38 Hz

Signal-to-Noise Ratio

105 dB

Bass Boost

0 - 12 dB

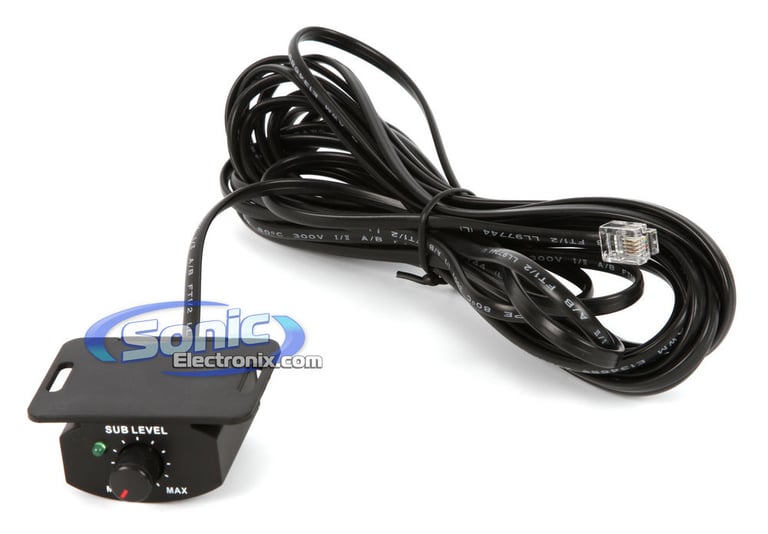

Remote bass/level controller

Yes

Fuse Rating

40A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
