DB Drive K5F 10D4

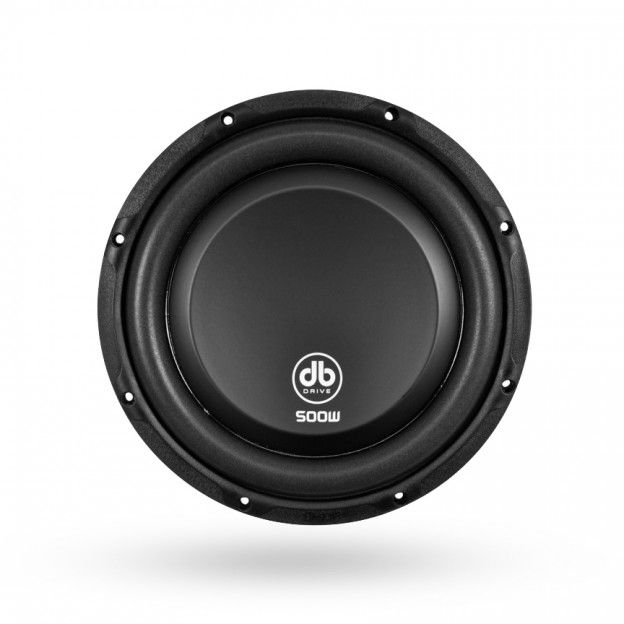

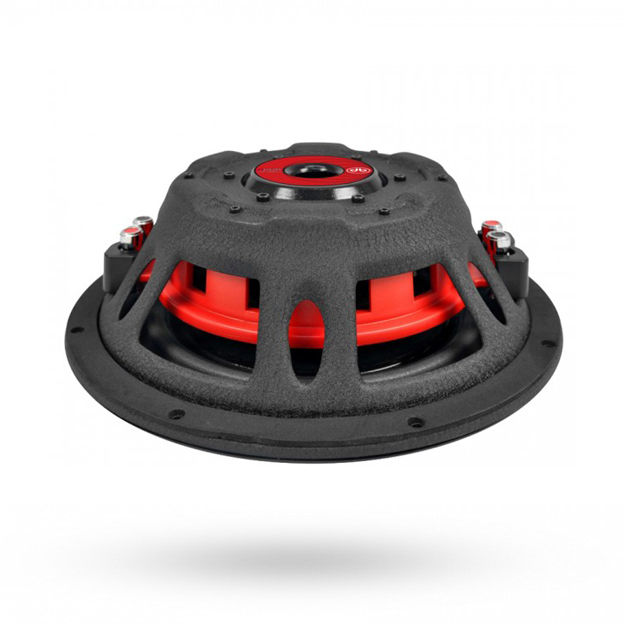

10" Dual 4 Ohm K5F Series Slim Car Subwoofer Shallow-Mount

db Drive
Shop all db Drive
Product videos
highlight-star-icon

• 10" K5F Series Subwoofer Shallow Mount
• Dual 4 ohm Voice Coil
• 500W Max
• 250W RMS
• Polypropylene Cone
• Butyl Rubber Surround
• Spring Terminals
• Stamped Steel Basket

Learn more about the k5f10d4

We apologize

This item has been discontinued


Loading...
iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• 10" K5F Series Subwoofer Shallow Mount
• Dual 4 ohm Voice Coil
• 500W Max
• 250W RMS
• Polypropylene Cone
• Butyl Rubber Surround
• Spring Terminals
• Stamped Steel Basket

Description


db Drive brand icon

Authorized dealer

General Features:

  • 10" Dual 4 Ohm K5F Series Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Paper subcone structure
  • Foam surround
  • Ultra thin stamped steel frame design
  • Blue zinc finished top and bottom plates
  • Mixed c fiber spider
  • PVC Trim ring and gasket
  • Heavy gauge spring terminals
  • 3" 4-Layer voice coil with aluminum former
  • 60 oz. Ferrite magnet
  • Resonance Frequency (Fs): 29 Hz
  • Top-mount depth: 3-1/2"
  • Sensitivity: 82 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DB Drive K5F 10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DB Drive K5F 10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DB Drive K5F 10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DB Drive K5F 10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
K5F Series
Subwoofer Size
10"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
82 dB
Xmax (millimeters)
11.938 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
0.45 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/2"
Cutout Diameter
9"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.37 Hz
Equivalent Compliance (Vas)
37.47 liters
Total Speaker Q Value (Qts)
0.74
Electrical Q Value (Qes)
0.84
Electrical Resistance of Voice Coil (Re)
6.43 ohm
Mechanical Q Value (Qms)
6.08
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

K5F 10D4

Weight:

0.00lbs

Internal SKU:

k5f10d4

Internal Product ID:

72084
