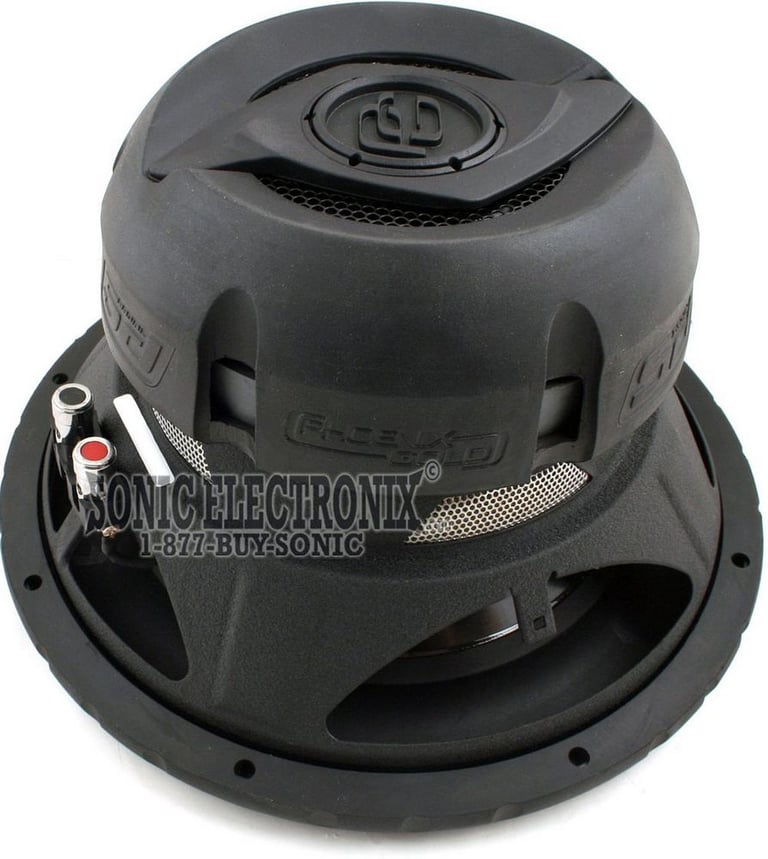

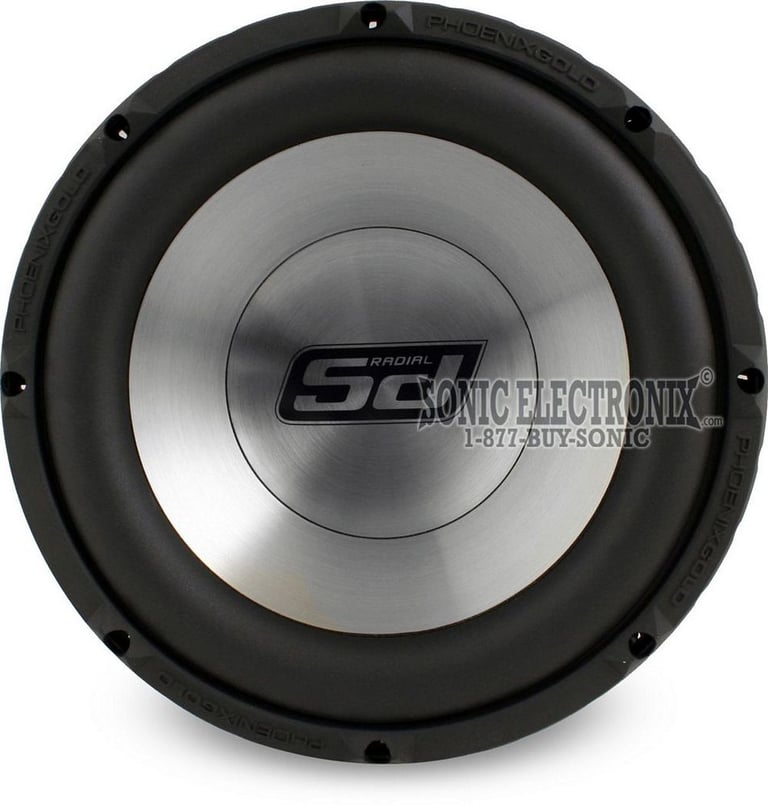

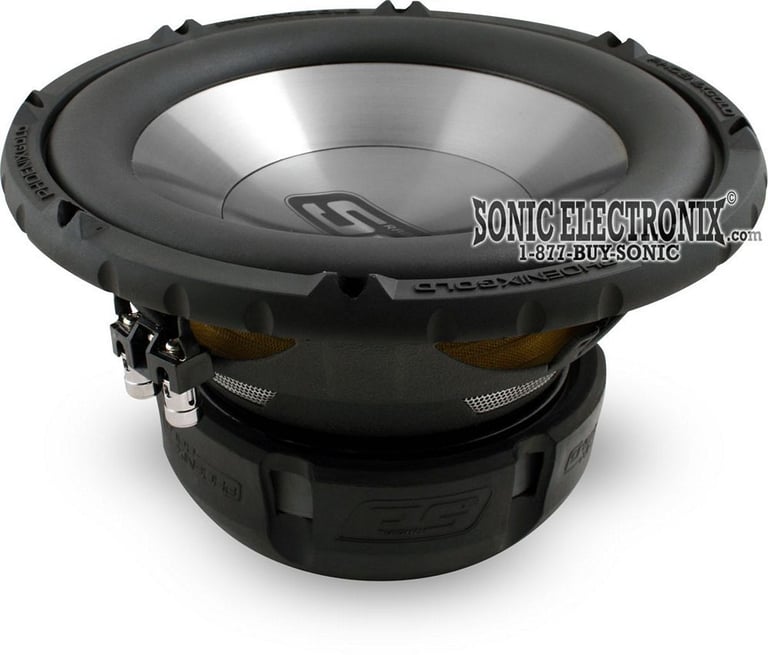

Phoenix Gold RSd 10d

Dual 4 ohms 10" Radial Sd Series Subwoofer RSd10d

Phoenix Gold
Shop all Phoenix Gold
Product videos
highlight-star-icon

RSd Dual 4 ohm 10" Subwoofer • 350W RMS • polypropylene cone • butyl rubber surround • rigid powder coated steel frame • optimized magnet/motor structure • reversible rubber mounting gasket

Learn more about the rsd10d

We apologize

This item has been discontinued


Loading...
LEX5VL2 main

GROM Audio LEX5VL2 VLine Lexus Infotainment Video Interface

For select 2006-2009 vehicles from Lexus, Toyota. Upgrade your factory radio to an Android infotainment display with music streaming, navigation and more

4
-16.67%

$679.95

List price $815.99

BE7ACP.WX main

Boss Elite BE7ACP.WX

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

Product Highlights


RSd Dual 4 ohm 10" Subwoofer • 350W RMS • polypropylene cone • butyl rubber surround • rigid powder coated steel frame • optimized magnet/motor structure • reversible rubber mounting gasket

Description


Phoenix Gold brand icon

Authorized dealer

  • RSd Dual 4 ohm 10" Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Injection Molded, Aluminum Plated Polypropylene Cone
  • Butyl Rubber Surround
  • Rigid Powder Coated Steel Frame
  • Flat, Linear Roll Spider
  • Optimized Magnet/Motor Structure
  • Reversible Rubber Mounting Gasket
  • Sensitivity: 91 dB
  • Frequency Response: 25 Hz - 200 Hz
  • Exclusive Authorized Internet Dealer
  • 2-year* Manufacturer's warranty

*Extended to a 3-year warranty when purchased with Phoenix Gold accessories, such as a Phoenix Gold Amplifier Kit or other Phoenix Gold installation accessory. Accessories/kits must be purchased on the same invoice number.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Phoenix Gold RSd 10d Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Phoenix Gold RSd 10d Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Phoenix Gold RSd 10d Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Phoenix Gold RSd 10d Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BE-LEX-IS0613-VCW104 main

NVX Loaded BOOST Box - 2006-2013 Lexus IS250/IS350/ISF - BE-LEX-IS0613-VCW104

For select 2006-2013 vehicles from Lexus - Single 10" 1000W RMS Loaded BOOST Sealed Enclosure

4
-20.00%

$499.99

List price $624.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 200 Hz
Sensitivity
91 dB
Xmax (millimeters)
13.5 mm
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
9-1/8"

Item Details


Manufacturer:

Model Number:

RSd10d

Weight:

12.00lbs

Internal SKU:

rsd10d

Internal Product ID:

7289
