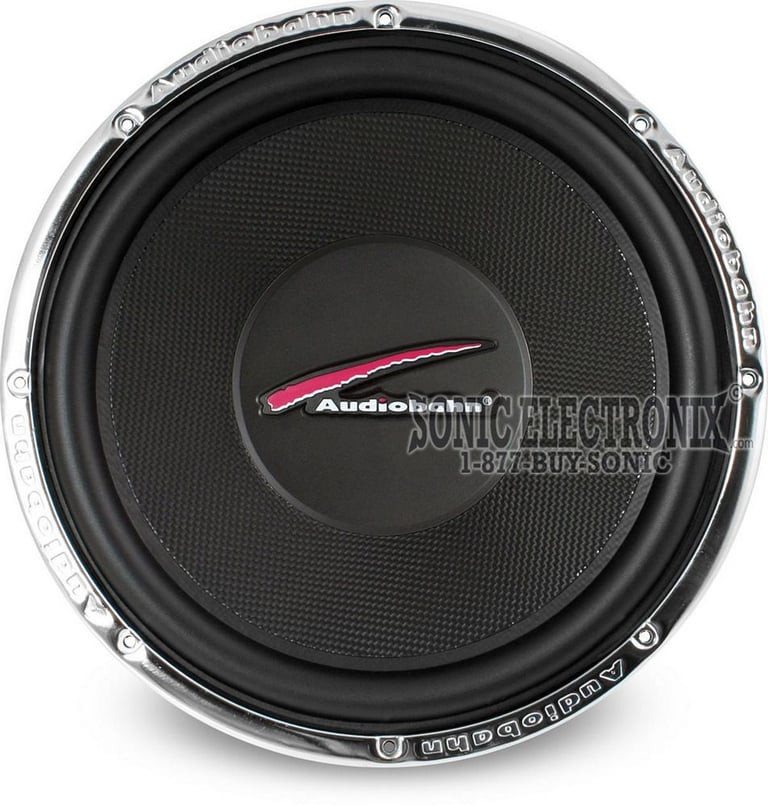

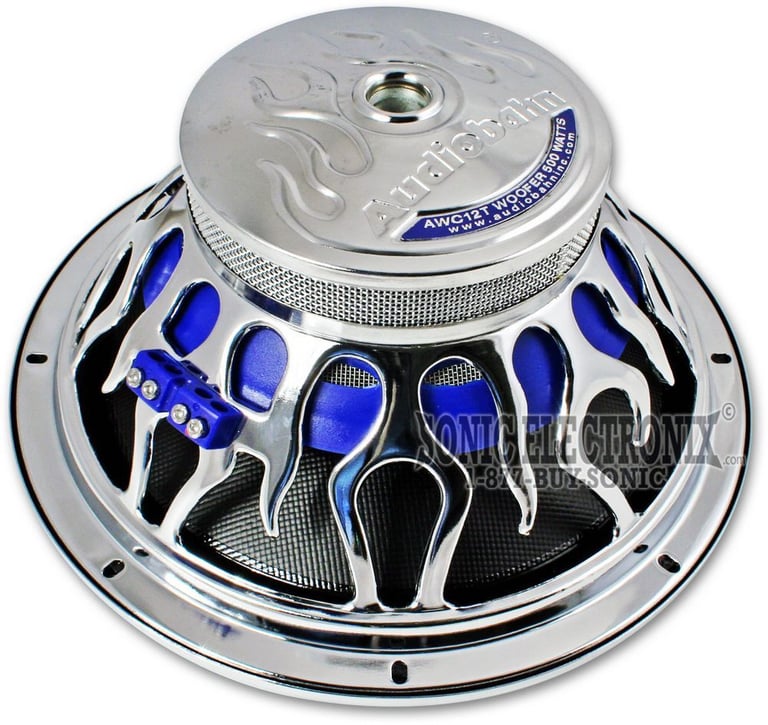

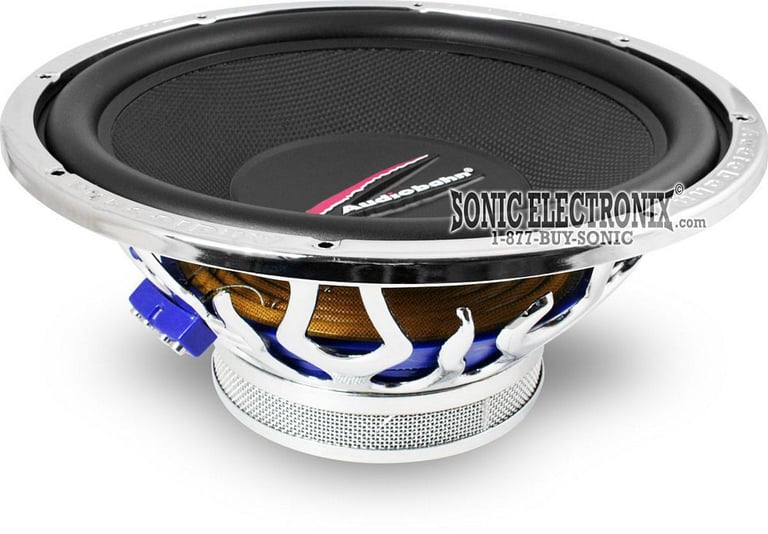

Audiobahn AWC12T

12" Dual 4 ohms Performer Series Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

12” Performer Subwoofer • 500W RMS • 1000W Peak • texture injected poly cone • EPDM rubber surround • multi-connect lug lock terminals • 60 oz. strontium magnet • sensitivity: 92.9dB

Learn more about the awc12t

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

48
-42.51%

$22.99

List price $39.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
SA69CXV2 main

Sundown Audio SA-69CX v.2 (SA69CX)

250W RMS 6x9" SA Series 2 Way Coaxial 4-ohm Speakers (S-SA69CXV2)

-50.00%

$155.99

List price $311.99

Product Highlights


12” Performer Subwoofer • 500W RMS • 1000W Peak • texture injected poly cone • EPDM rubber surround • multi-connect lug lock terminals • 60 oz. strontium magnet • sensitivity: 92.9dB

Description


  • 12” Performer Subwoofer
  • Molded, Texture Injected Poly Cone
  • 2" 4-Layer ASV Voice Coil
  • EPDM Rubber Surround
  • 60 Oz. Strontium Magnet
  • Multi-Connect Lug Lock Terminals
  • Optimized for SPL/Sound Quality
  • 2 or 8 Ohm Operation
  • Power Handling:
    • 500 watts RMS
    • 1000 watts Peak
  • Sensitivity: 92.9 dB
  • Frequency Response: 25 - 800 Hz
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AWC12T Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AWC12T Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AWC12T Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AWC12T Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 800 Hz
Sensitivity
92.9 dB
Xmax (millimeters)
14 mm
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
11"

Item Details


Manufacturer:

Model Number:

AWC12T

Weight:

12.00lbs

Internal SKU:

awc12t

Internal Product ID:

7376

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn AWC12T thumbnail image

5 star
40%
4 star
40%
3 star
20%
2 star
0%
1 star
0%



Durability
4
Value
4.2
Features
4
Design
3.6
Usability
5

Customer Reviews

Sort by:

Loading...

nice

i put one of these at two ohms on a kenwood kac 9102d at 850 rms and it slammed i mean it was also in a sealed box it got very loud especially for a sealed box i mean it banged for some reason unknown i had it in a 2.0 cubic ft. q logic box and the excursion was alright

By Susan on July 3, 2008

15 found this helpful


AWC12T Not SO Good!

First off, I had one of the 2 subs smoke 15 to 20 minutes after installing them during the sound check and tuning. I triple checked all my wiring and it wasn't my fault. The tech I talked to said that Audiobahn doesn't have a very good quality assurance process! Then, about 3 months after getting the replacement installed, the cone on one of the subs started separating from the surround. After going through the return process once, I decided to do the repair myself. I had to glue over 3/4 of the surround back to the cone. I will not be purchasing any Audiobahn products anymore.

By Christopher on August 8, 2007

15 found this helpful


sick bass

alright i'm only 15 and i got this sub for free from my neighbor cuz he was moving. i tested it on a little amp i've had for a long time. it's only 150 watts but after 10 min. of bass tests some cops showed up at my house and told me to turn it down. i had it in a bass cannon but i recently upgraded to a vented enclosure and it's even louder now. this sub is great if you want loud bass.

By dorian on January 11, 2007

15 found this helpful


Get these

I bought 3 of these subs and wow!! they are loud i highly recommend getting these there loud look good and well priced. I also had then in a sealed custom box with magnet out powered by a 1800 watt kenwood d class amp these subs hit deep and hard they blew away my buddy's L5 kickers in bass quality and loudness.

By TJ on January 4, 2009

14 found this helpful


Great Sub

These subs are very versatile, they handle lows perfectly and will hit as tight as you need them to. Invest in a good box and be sure to give em' plenty of power, they can take it....these subs can do it all!
