NuForce Icon uDAC-3 Red

High-Resolution USB Desktop Headphone Amplifier and Digital Audio Converter (DAC)

NuForce
Shop all NuForce
highlight-star-icon

• Mobile DAC and desktop headphone amplifier
• Ideal for audiophiles, DJs, musicians and gamers
• Input: USB Digital (1.1 and 2.0 compatible)
• Output: Analog RCA output
• Convenient rotary volume control

Learn more about the udac3-red

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Lowest price in 30 days
KIT-MFT1 main

iDataLink Maestro KIT-MFT1 Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2012-2025 vehicles from Ford, Lincoln (Requires MRR or MRR2 module)

4
-24.14%

$219.99

List price $289.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Description


NuForce brand icon

Authorized dealer

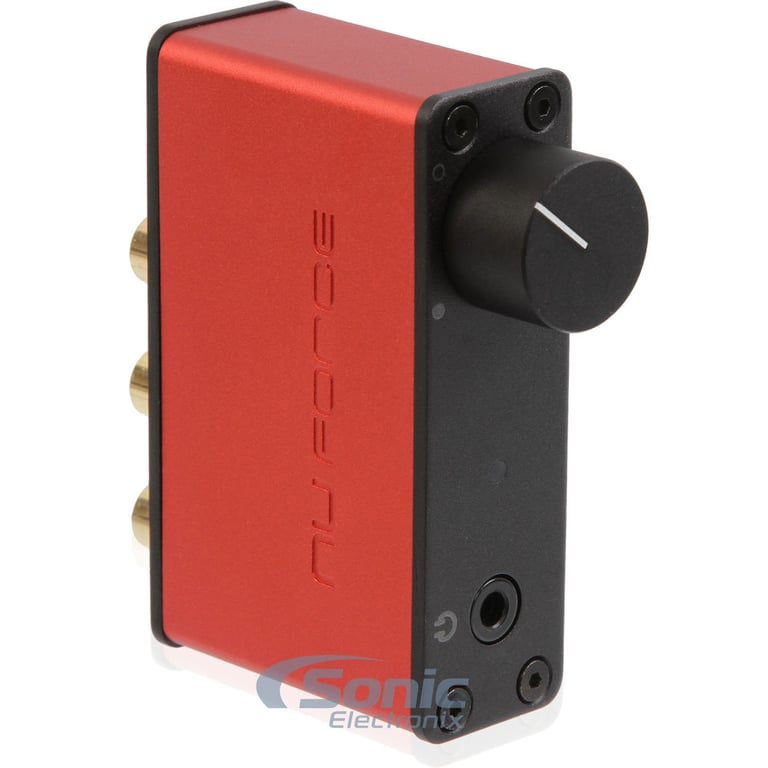

NuForce Icon uDAC-3 (Red)

The NuForce uDAC-3 is the answer to all Audiophile hopes and dreams. If you consider yourself to be an Audiophile, Headphone Guru, Music Enthusiast, or Audio Guru, then this is the item for you. Designed as an upgraded replacement to the best selling predecessor uDAC-2, the NuForce uDAC-3 will blow your mind. This 3rd generation uDAC series amplifier has no capacitors within the audio signal path, eliminating any potential distortion. The NuForce uDAC-3 delivers truly superior sound via a high-performance, 24bit/96kHz USB Digital Audio Converter (DAC) and allows you to connect digital audio from your computer to your home stereo, desktop sound system, powered speakers or headphones.

Engineered to maximize the performance of any headphone 16 to 300 Ohm, you can now efficiently power your favorite Beyerdynamic, Sennheiser, Grado, Westone, Shure, Audio Technica, Denon, Ultimate Ears, AKG or Sony headphones, and hear what they are truly made of. The NuForce uDAC 3 is guaranteed to impress, and will impress anyone who has the chance to test one for themselves. Built with a compact profile, and an affordable price, everyone deserves that chance! Now Available In Black, Red, and this sleek Silver color tone. Get yours today, and listen to your headphones again, for the first time.


Product Details

  • Mobile DAC and desktop headphone amplifier
  • Ideal for audiophiles, DJs, musicians and gamers
  • All-analog circuitry with no capacitors on the signal path
  • Asynchronous USB connection
  • Convenient rotary volume control

Technical Specifications:

  • Input: USB Digital (1.1 and 2.0 compatible)
  • Native Bit Rate: 32, 44.1, 48, 88.2, 96 kHz, 24-bit
  • Output: Analog RCA output = 2Vrms
  • Dynamic Range: 90 dB
  • Signal-to-Noise Ratio (SNR): 98 dB
  • Total Harmonic Distortion (THD): 0.05%

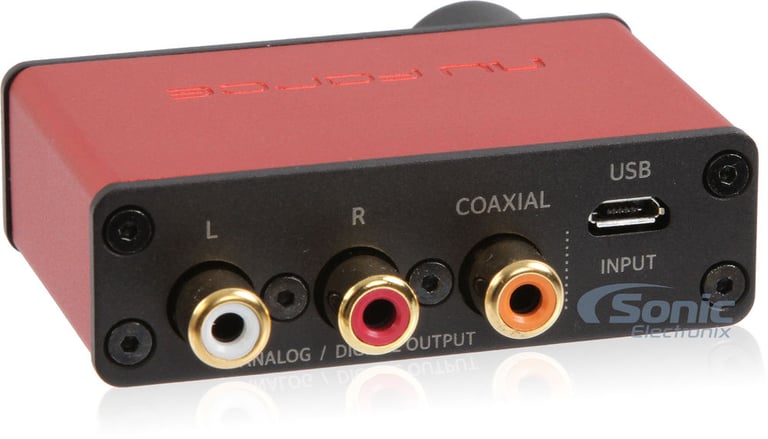

  • Digital Output: coaxial RCA 75-ohm
  • 3.5mm Output Power: 80mW x 2 @ 16-Ohm
  • Frequency Response: 20 - 20,000 Hz
  • USB Bus Powered, 80 mA/5V
  • Maximum Power Consumption: 500mW
  • Dimensions: 2-11/16"W x 1-1/2"D x 53/64"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

NuForce uDAC-3 Red-2 thumbnail
(newest, current model)
NuForce ICON-UDAC2-RED thumbnail
(previous model, replaced by NuForce Icon uDAC-3 Red)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Specifications & Details


Headphone Amplifier Specifications
Amplifier Style
Desktop
Digital-to-Analog Converter (DAC)
Built-in
Frequency Response
20 - 20000 Hz
THD (Total Harmonic Distortion)
0.05%
Input Connection
USB
Output Connection
3.5mm Mini-Jack
Number of Outputs
3
Output Power
80 mW
Power Requirement
USB
Width
2.7"
Height
1.5"
Depth
0.8"
DAC Specifications
THD (Total Harmonic Distortion)
0.05%
Frequency Response
20 - 20000 Hz
Signal-to-Noise Ratio
98 dB
Digital Inputs
USB Type-A
Line Level Outputs
3.5mm Headphone Jack
Sample Rate
24-bit at 96 kHz
Power Requirement
USB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

uDAC-3 Red-2

Weight:

0.48lbs

Internal SKU:

udac3-red

Internal Product ID:

74004
