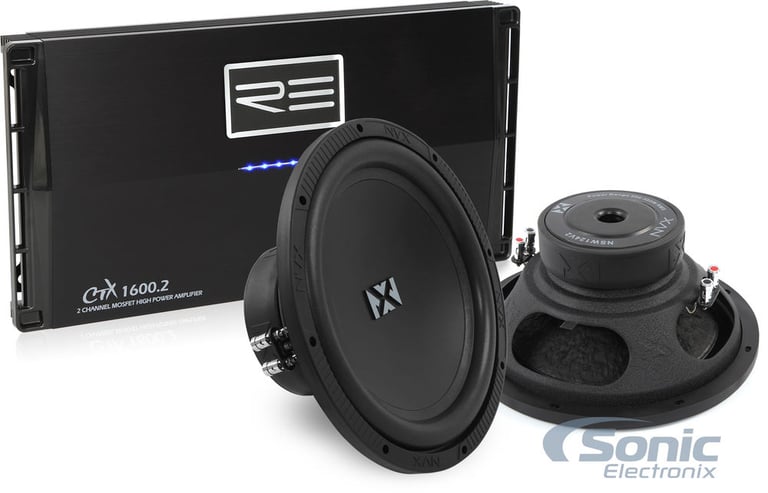

RE Audio CTX-1600.2 Amplifier with Two 12" NVX NSW124v2 Subwoofers

Two 12" NVX N-Series Car Subwoofers w/ RE Audio 700W RMS Car Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• Buy Together & Save!
• 2 Dual 4-Ohm Subwoofers
• 700W 2 Channel Amplifier

Learn more about the ctx16002_2_nsw124v2

We apologize

This item has been discontinued


Loading...
KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17

Product Highlights


• Buy Together & Save!
• 2 Dual 4-Ohm Subwoofers
• 700W 2 Channel Amplifier

Description


RE Audio brand icon

Authorized dealer

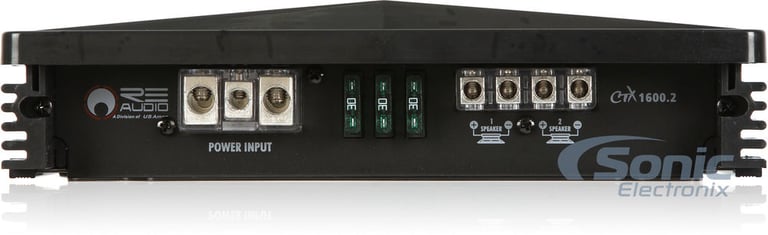

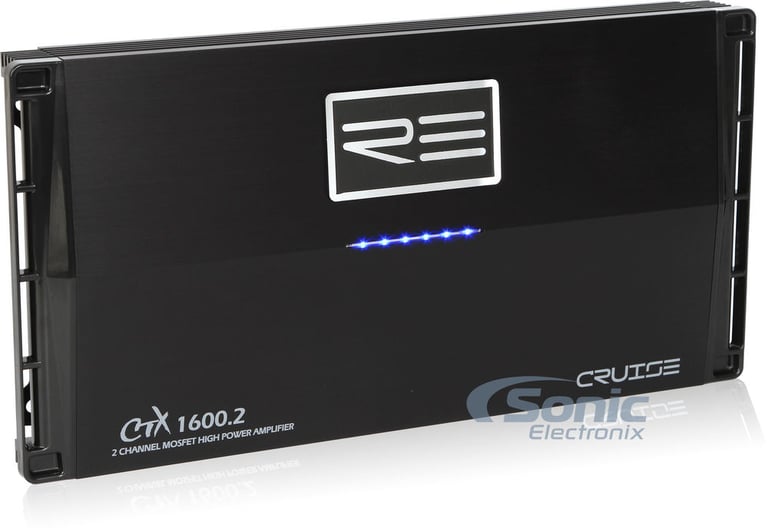

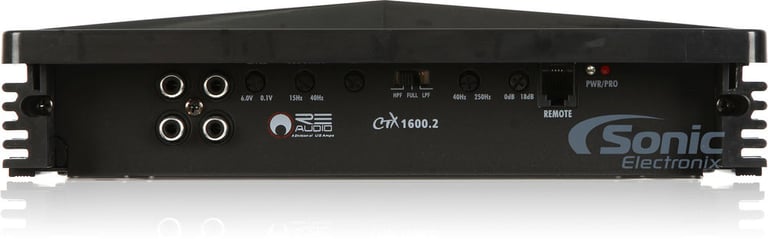

RE Audio CTX-1600.2

700W RMS 2-Channel Stereo CTX Series Class A/B Car Amplifier (CTX-1600.2)
Quantity: 1

General Features:

  • CTX Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 2 chan.
    • 2 ohm: 350 watts x 2 chan.
    • Bridged, 4 ohm: 800 watts x 1 chan.
  • Max power output: 1600 watts x 1 chan.
  • Variable Bass Boost (0 to +12 dB bass boost)
  • Preamp RCA outputs to daisy chain multiple amps
  • Turn on delay for quiet start-up
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Level: 100mV-6V
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-7/16"W x 18-15/16"L x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Model CTX-1000.4 CTX-1600.2* CTX-3200.1 CTX-4200.1
Class AB AB D D
# of Channels 4 2 1 1
Dynamic Power 1000W 1600W 3200W 4200W
RMS Power[4O] 100W x 4 200W x 2 400W x 1 550W x 1
RMS Power[2O] 150W x 4 350W x 2 750W x 1 1000W x 1
RMS Power[1O] - - 1200W x 1 1500W x 1
Bridged Power[4O, RMS] 300W x 2 700W x1 - -

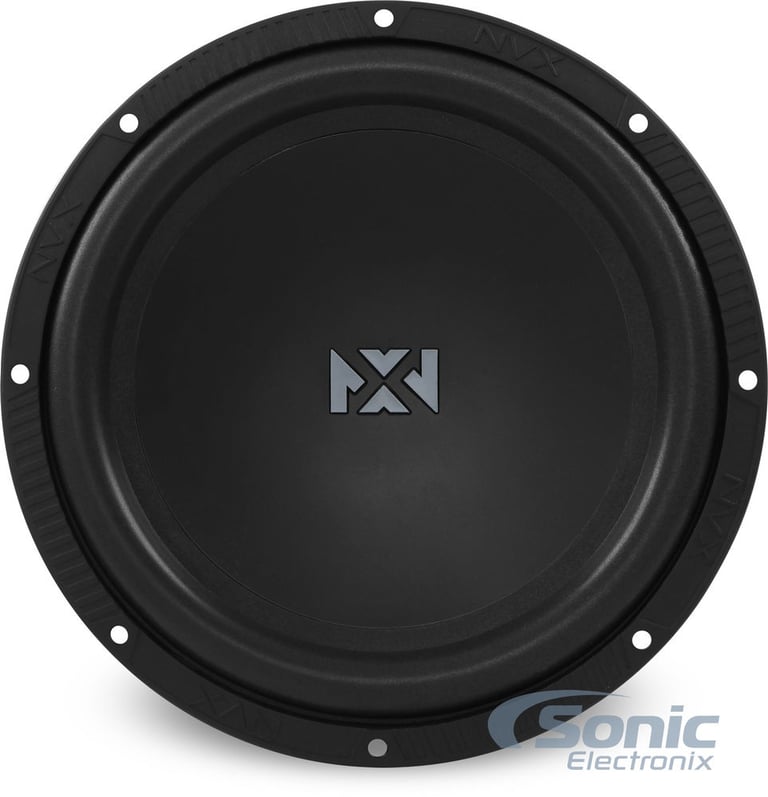

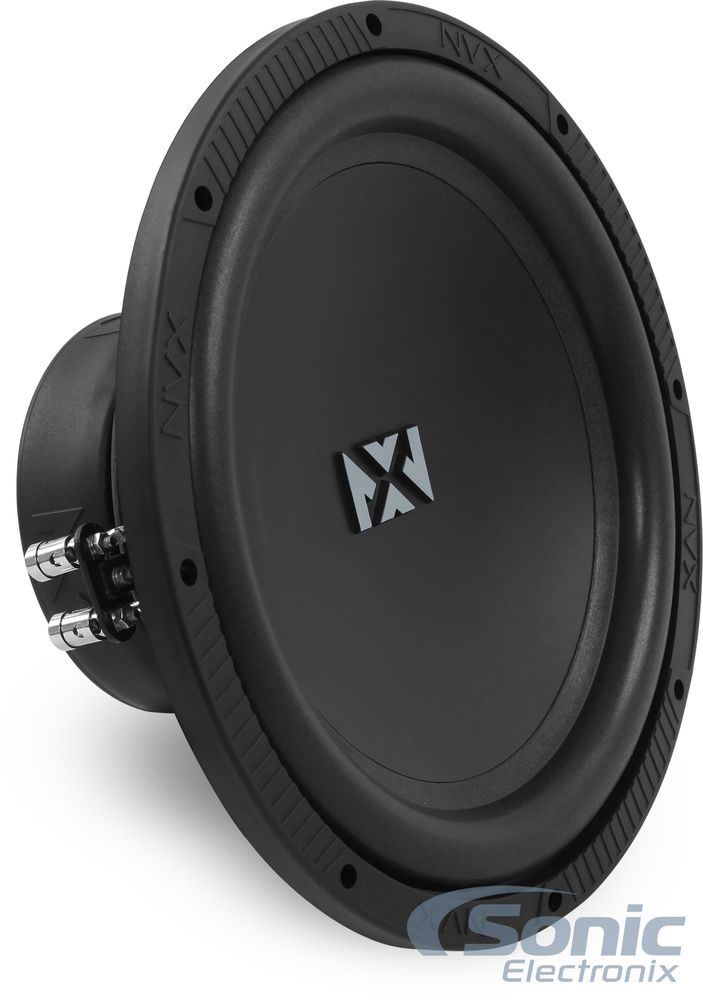

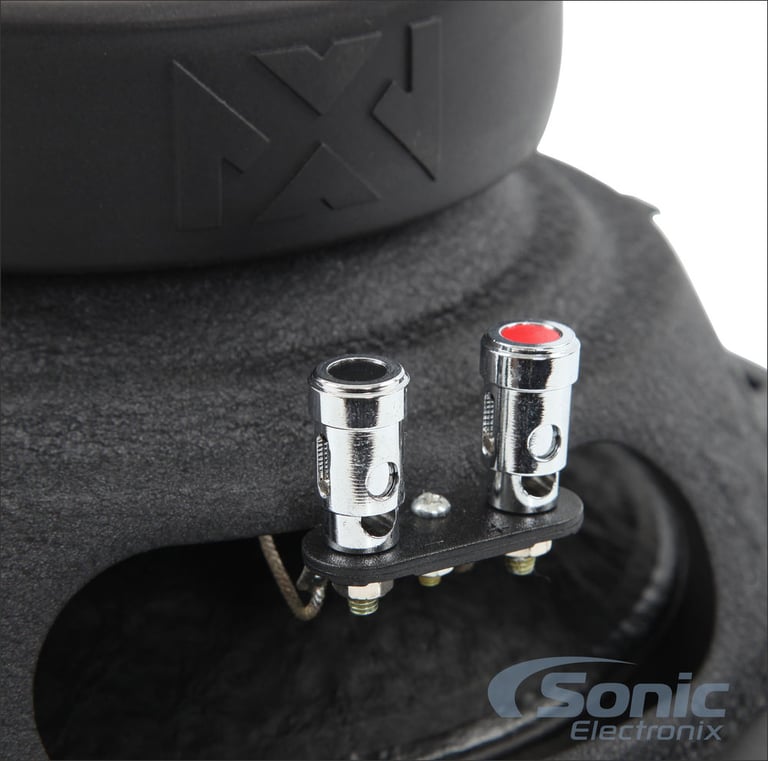

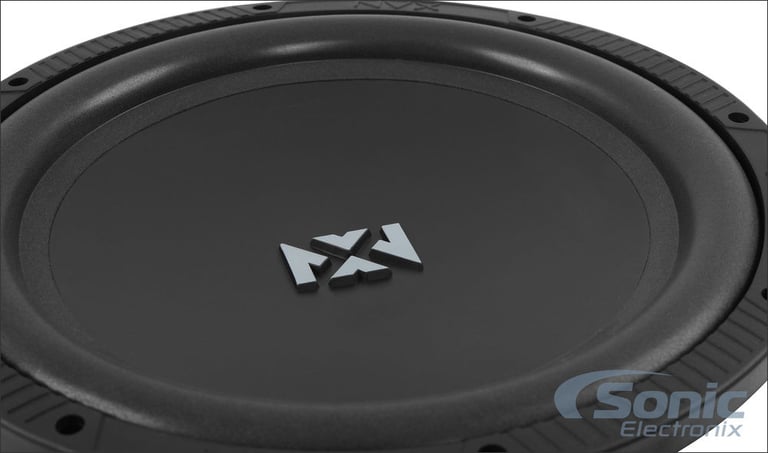

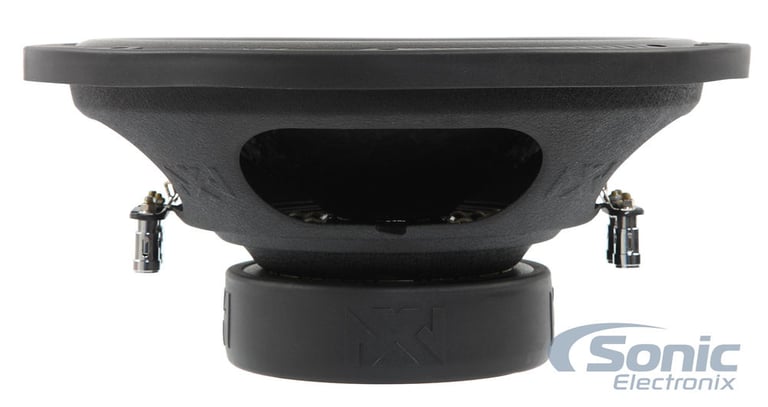

NVX NSW124 Version 3 (NSW124v3)

1000W Peak (500W RMS) N-Series v3 12" Dual 4-Ohm Car Subwoofer
Quantity: 2

Product Details:

  • 12" Dual 4 ohm N-Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • 12.5 mm Xmax
  • Enhanced Pressed Paper Cone
  • High-Roll Foam Surround
  • Stamped Steel Vented Basket with NVX Punched Logo
  • 2.0" High Temperature Copper Voice coil with Aluminum Former
  • Progressive Roll Single-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 36.92 Hz
  • Sensitivity: 87 dB
  • Recommended sealed box volume: 1.25 cubic feet
  • Recommended ported box volume: 2.0 cubic feet
  • Top-mount depth: 6.0"
  • Cutout diameter: 10.86"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconNVX NSW124V3 owner’s manual
