Name: Pioneer GM-A6604 Open Box Complete (Very Good, Used)
Brand: Pioneer
SKU: ls-gma6604-obc6
Price: 83.99 USD
Availability: Discontinued

by Pioneer

About
Specs & Details
Reviews
Add-ons
Related Searches

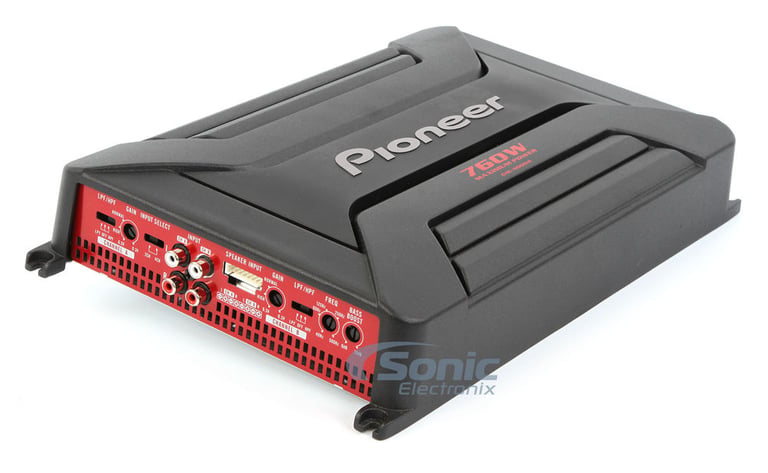

Pioneer GM-A6604 Open Box Complete (Very Good, Used) Image 1 — Pioneer GM-A6604 Open Box Complete (Very Good, Used)

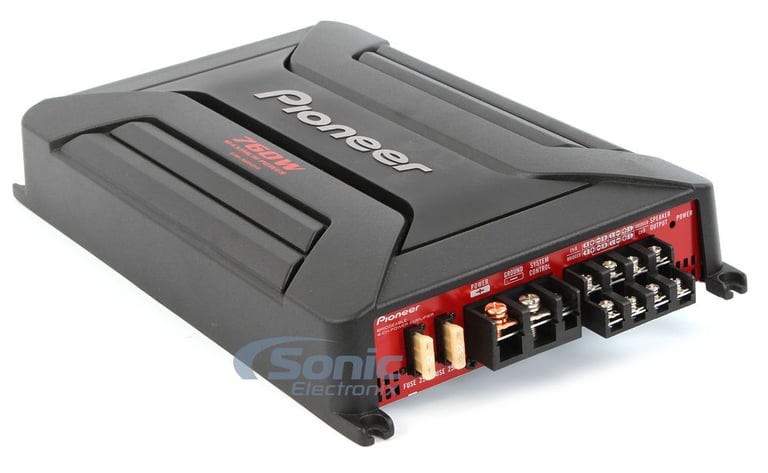

Pioneer GM-A6604 Open Box Complete (Very Good, Used) Image 2 — Pioneer GM-A6604 Open Box Complete (Very Good, Used)

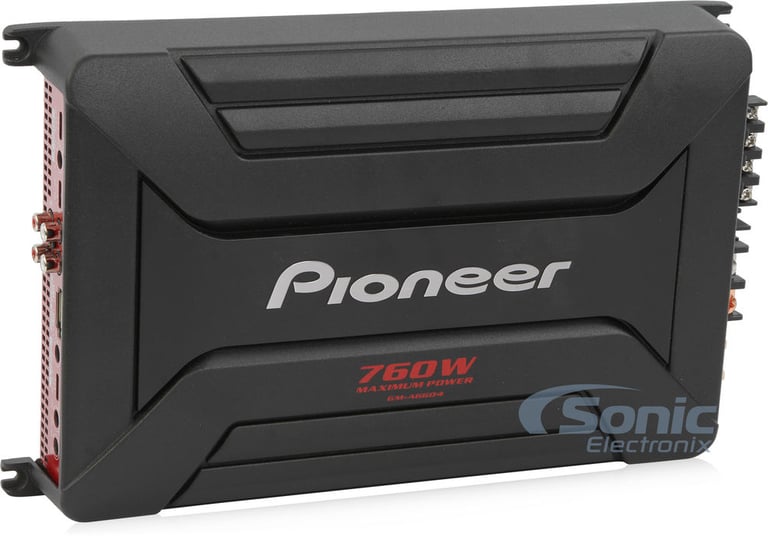

Pioneer GM-A6604 Open Box Complete (Very Good, Used) Image 3 — Pioneer GM-A6604 Open Box Complete (Very Good, Used)

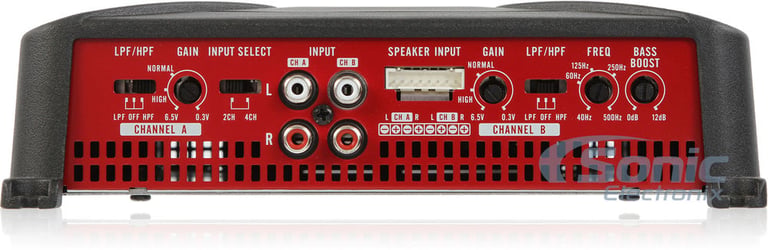

Pioneer GM-A6604 Open Box Complete (Very Good, Used) Image 4 — Pioneer GM-A6604 Open Box Complete (Very Good, Used)

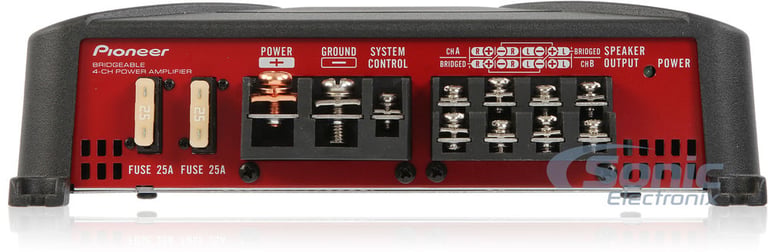

Pioneer GM-A6604 Open Box Complete (Very Good, Used) Image 5 — Pioneer GM-A6604 Open Box Complete (Very Good, Used)

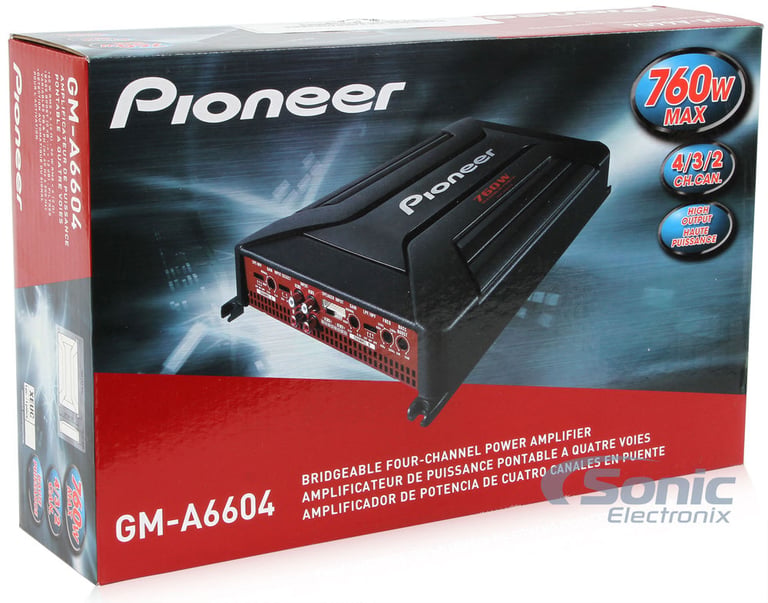

Pioneer GM-A6604 Open Box Complete (Very Good, Used) Image 6 — Pioneer GM-A6604 Open Box Complete (Very Good, Used)

Product highlights

• Item Condition: Open Box
• RMS: 60W x 4 @ 4 ohm, 90W x 4 @ 2 ohm, 180W x 2 @ 4 ohm
• Total Peak Power: 760W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H

Learn more about the ls-gma6604-obc6

NVX - Worth the Envy - Direct to Consumer Car Audio

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Open Box (Complete): Item was previously installed and used. Item is in good condition and has been tested to be fully functional. Nonessential accessories (screws, etc) may have been replaced with generic parts.

General Features:

Pioneer A-Series GM-A6604
Class-AB FullRange 2-Ohm Stable 4-Channel Amplifier
RMS Power Rating:

4 ohm: 60 watts x 4 chan.
2 ohm: 90 watts x 4 chan.
Bridged, 4 ohm: 180 watts x 2 chan.

Max power output: 760 watts.
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply
Balanced Isolator Input Circuit
LED power (on) and protect (off) indicators
Soft start turn-on
4, 3 or 2 channel operation
Speaker-level (high-level) inputs with Signal Sensing Turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity:

Low level: 300mV - 6.5V
High level: 3V - 26V

Frequency Response: 10 - 70,000 Hz
Total Harmonic Distortion (THD): <0.05%
Signal to Noise Ration: >95 dB
Selectable crossover modes (Ch A&B): LPF / OFF / HPF
Crossover frequency Ch A: 80hz, 12 dB/octave
Variable crossover frequency (Ch B): 40 - 500 Hz, 12 dB/octave
Variable Bass Boost (Ch B): 0 to +12 dB bass boost at 50 Hz
Fuse Rating: 25A x 2
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 13-3/4"W x 8-1/2"L x 2-3/8"H
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channel

RMS Power @ 2 ohms

90 watts x 4 channel

Bridged RMS Power

180 watts x 2 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

120 watts x 4 channel

Peak Power @ 2 ohms

190 watts x 4 channel

Bridged Peak/Max Power

380 watts x 2 channel

Amplifier Specifications

Series

GM Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

760 watts

Total RMS Power Output

360 watts

Maximum Input Gauge Size

Any Gauge with use of Spade Terminal AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

40 - 500 Hz

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

25A x 2

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
