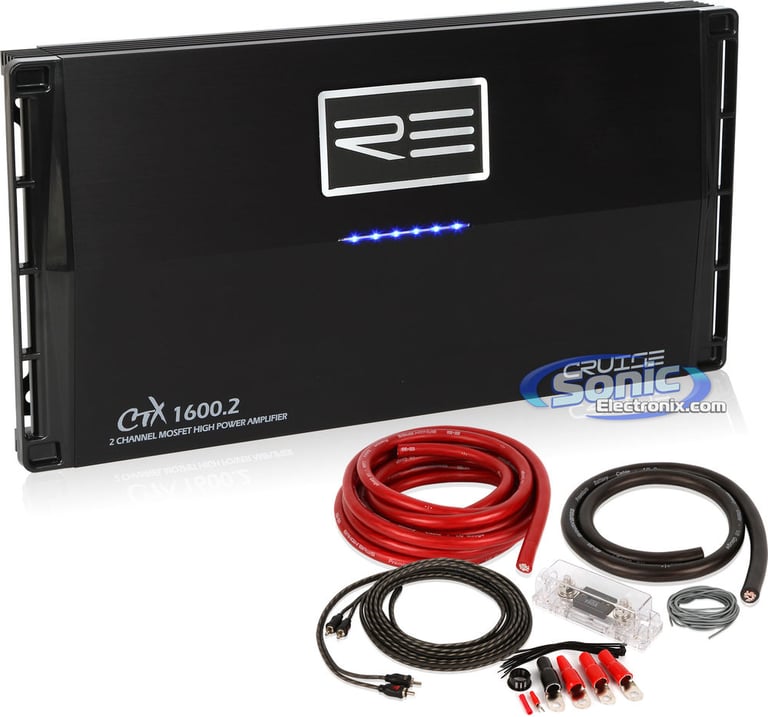

RE Audio CTX-1600.2 + 0 Gauge Amplifier Wiring Kit

700W RMS 2-Channel Stereo CTX Series Class AB Car Amplifier w/ 0 Gauge Amp Kit

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• CTX Series 2-Channel Class AB Amplifier
• 200W x 2 Chan. @ 4 ohms
• 400W x 2 Chan. @ 2 ohms
• Bridged 700W x 2 Chan. @ 4 ohms
• 3-Way System Protection
• 2/1 Channel Operation
• 1/0 Gauge Complete 2-Channel Amplifier Installation Kit
• ANL Fuse Holder With A 150 Amp ANL Fuse

Learn more about the ctx16002_bak02

We apologize

This item has been discontinued

Product Highlights


• CTX Series 2-Channel Class AB Amplifier
• 200W x 2 Chan. @ 4 ohms
• 400W x 2 Chan. @ 2 ohms
• Bridged 700W x 2 Chan. @ 4 ohms
• 3-Way System Protection
• 2/1 Channel Operation
• 1/0 Gauge Complete 2-Channel Amplifier Installation Kit
• ANL Fuse Holder With A 150 Amp ANL Fuse

Description


RE Audio brand icon

Authorized dealer

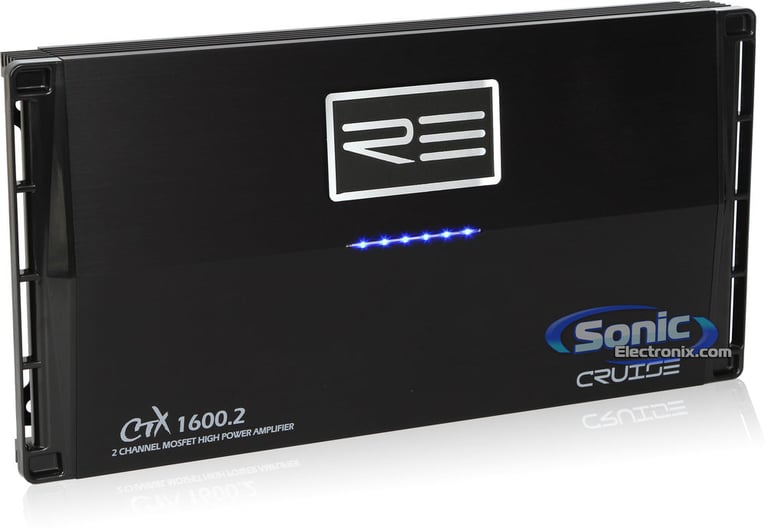

RE Audio CTX-1600.2

700W RMS 2-Channel Stereo CTX Series Class A/B Car Amplifier (CTX-1600.2)
Quantity: 1

General Features:

  • CTX Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 200 watts x 2 chan.
    • 2 ohms: 350 watts x 2 chan.
    • Bridged, 4 ohms: 800 watts x 1 chan.
  • Max power output: 1600 watts x 1 chan.
  • Variable Bass Boost (0 to +12 dB bass boost)
  • Preamp RCA outputs to daisy chain multiple amps
  • Turn on delay for quiet start-up
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Level: 100mV-6V
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-7/16"W x 18-15/16"L x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Model CTX-1000.4 CTX-1600.2* CTX-3200.1 CTX-4200.1
Class AB AB D D
# of Channels 4 2 1 1
Dynamic Power 1000W 1600W 3200W 4200W
RMS Power[4O] 100W x 4 200W x 2 400W x 1 550W x 1
RMS Power[2O] 150W x 4 350W x 2 750W x 1 1000W x 1
RMS Power[1O] - - 1200W x 1 1500W x 1
Bridged Power[4O, RMS] 300W x 2 700W x1 - -

Belva BAK02

1/0 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 2000 Watts - RED
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 2000 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

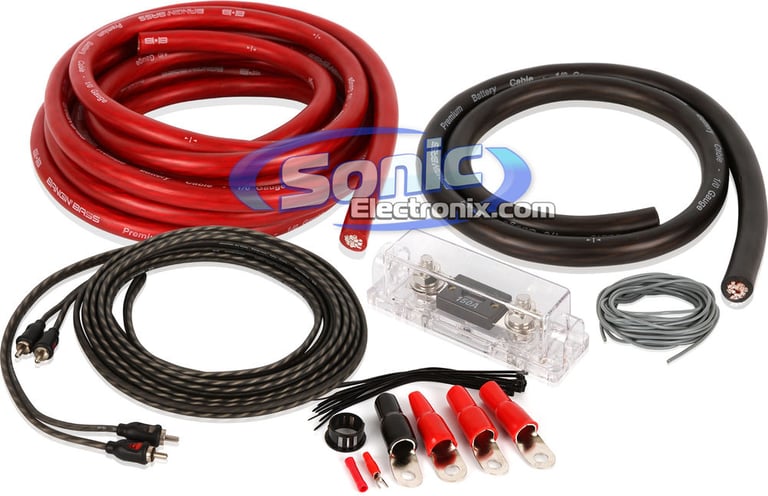

Kit includes:

  1. 17 ft. (5.2 meters) Red 1/0 gauge power wire
  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. One ANL Fuse Holder with a 150 amp ANL fuse
  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge red chrome plated ring terminals
  8. One 1/0 Gauge chrome plated ring terminal
  9. One 18 Gauge red Spade terminal
  10. One 18 Gauge red butt connector
  11. Eight 6" Black zip ties

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 2 channel
RMS Power @ 2 ohms
400 watts x 2 channel
Bridged RMS Power
800 watts x 1 channel
Peak Power Output
1600 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 1000 Hz
Low-Pass Crossover Frequency
15 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
25A x 3
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
1/0 gauge
Power Wire Length
17 feet
Ground Wire Length
17 feet
Speaker Wire Included
No
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL
Fuse Size
150A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CTX-1600.2_BAK02

Weight:

17.10lbs

Internal SKU:

ctx16002_bak02

Internal Product ID:

75407

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews



5 star
71%
4 star
20%
3 star
3%
2 star
6%
1 star
0%



Durability
4.7
Value
4.8
Features
4.5
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Good

The following review is for BAK02, which is a part of the bundle you are viewing.

This wire is very flexible and fit nicely in my 2000 nissan maxima. ring terminals were a little fussy, but that was operator error. very nice 150 amp fuse. Lots of wire crammed into it. Very inexpensive for the quality. I would recommend this to anyone looking for an upgrade.

By Blane on February 24, 2014

117

found this helpful.

Decent Amp Kit

The following review is for BAK02, which is a part of the bundle you are viewing.

I am a professional installer first of and my father is an electrician. Following the AWG- American Wire Gauge standards this is not 1/0 wire it's closer to 2AWG, please understand that true 1/0AWG copper wire will cost around $5-8 a foot.

That being said for the price it is an amazing kit but should be marketed as 2AWG.

When compare to Kicker and Memphis true to spec 1/0AWG wire there is a major difference in size and weigh over all. 5 feet of Memphis 1/0 Wire weigh the same as 17 feet of Belva 1/0AWG.

By josh on October 3, 2014

103

found this helpful.

Great

The following review is for BAK02, which is a part of the bundle you are viewing.

It is what it says it is.. no problems with install.

By PJ on September 17, 2013

100

found this helpful.

Great Wire

The following review is for BAK02, which is a part of the bundle you are viewing.

It's the size it says it is, and powers my 1400 watt system with no problems. For the price and ease of install, I couldn't be happier!

By Bay on May 18, 2014

100

found this helpful.

top quality

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit on a deal with a amplifier I purchased thought it looked good turned out to be one of the best amp kits I have ever owned would of paid full price for it

By Drew on March 28, 2014

96

found this helpful.

a great kit for the price

The following review is for BAK02, which is a part of the bundle you are viewing.

these are great for the money and would definitely buy again

By Joseph on February 6, 2014

97

found this helpful.

Huge

The following review is for BAK02, which is a part of the bundle you are viewing.

I have never ran 0 gauge before and when I got it and took it out I was surprised but the big wire didn't really hurt the install it is still hidden under the carpet and it's thick and flexible so it was easy to run through the firewall. Now I'm gonna get the Belva big 3

By Brennen on June 9, 2014

93

found this helpful.

Great deal

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit because I got a deal on it with my amp...great starting kit...didn't have any problem with it when I installed it...The ground cable was to short for me but that is due to my custom box..All in all good 1/0 Guage kit

By Robert on August 8, 2014

91

found this helpful.

True 0 AWG!

The following review is for BAK02, which is a part of the bundle you are viewing.

Pros:
This kit comes with everything you need for a 0 AWG amp install with RCA inputs.

Cons:
NONE

I would definitely recommend purchasing this kit if you need a quality 0 AWG kit at a fair price with super fast shipping!

By Michael on October 10, 2013

88

found this helpful.

good product

The following review is for BAK02, which is a part of the bundle you are viewing.

Good product, they give you plenty of length. Only complaint is that the o connectors are really hard to clamp down and the rcas are kinda cheesey but work

By Zach on September 12, 2013

88

found this helpful.
