Name: Rockford Fosgate Punch P212D2
Brand: Rockford Fosgate
SKU: p212d2
Price: 89.99 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all Rockford Fosgate

by Rockford Fosgate

About
Wiring Guide
Specs & Details
Product Videos
Reviews
Add-ons
Similar Products
Related Searches

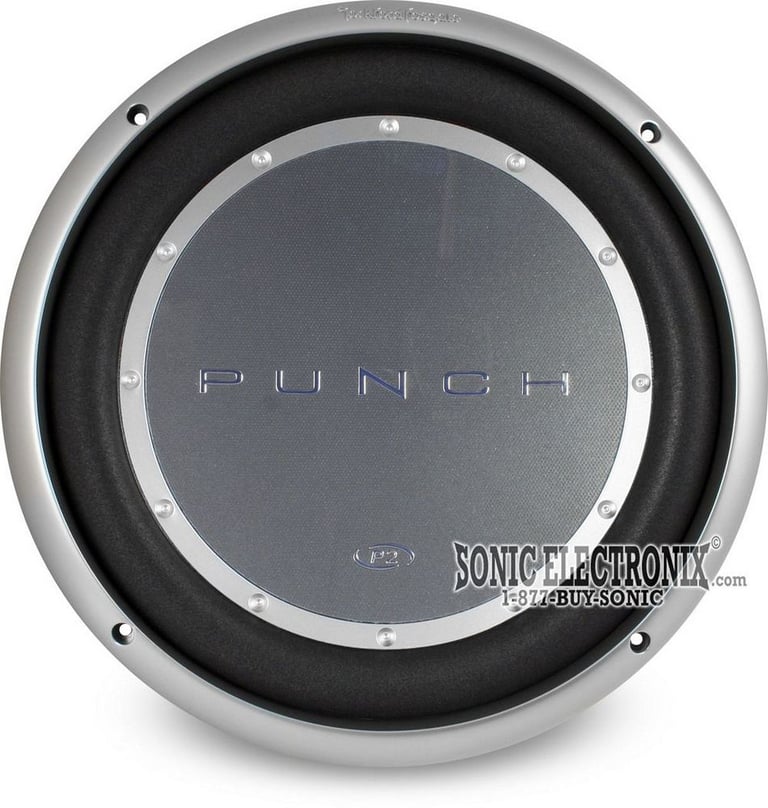

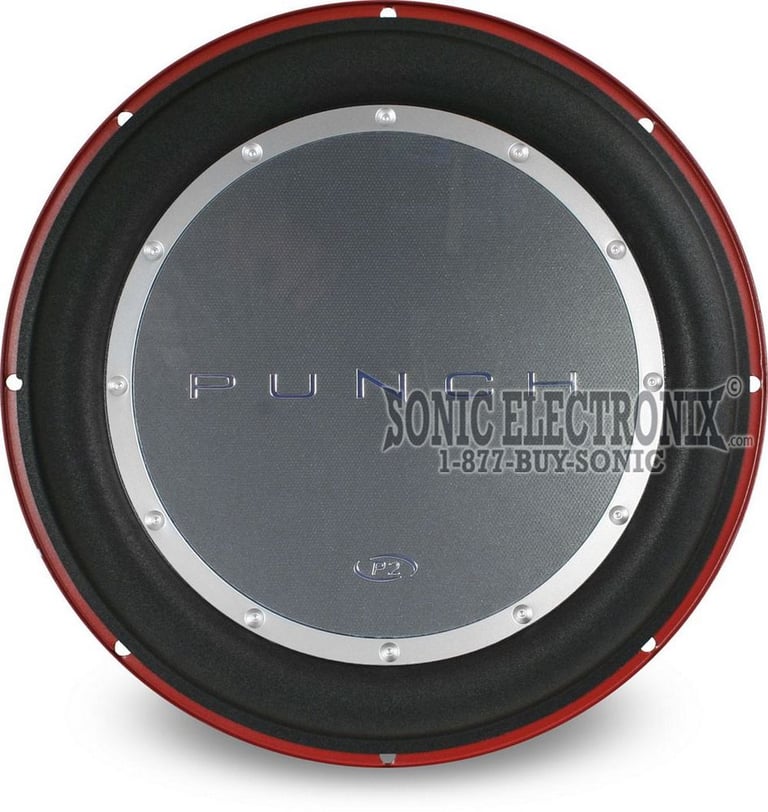

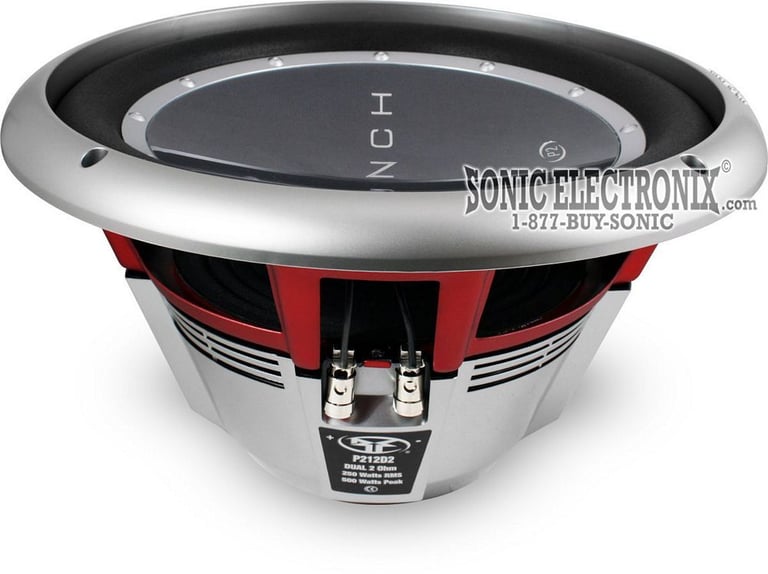

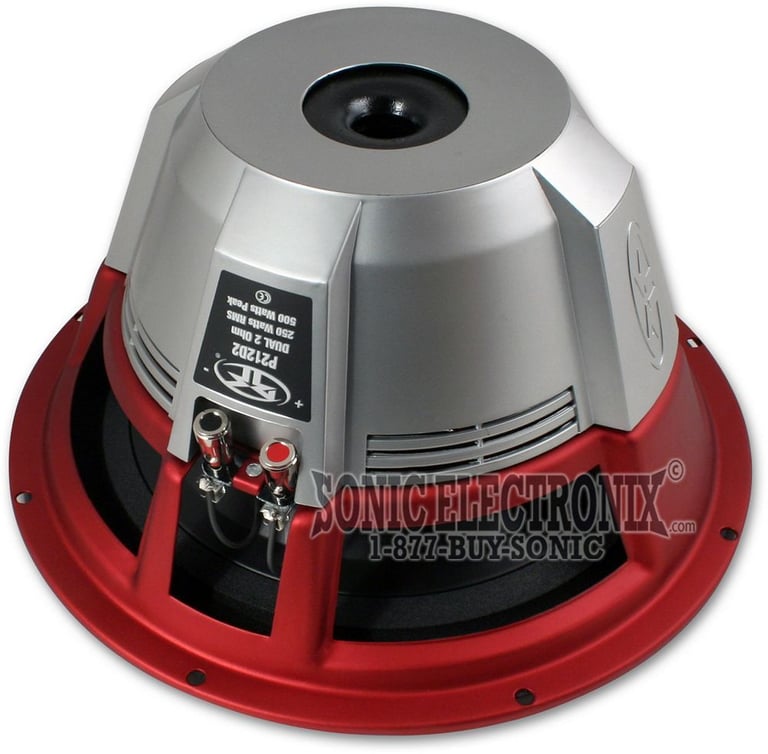

Image description — Rockford Fosgate Punch P212D2

Product videos

Product highlights

12" Punch Stage 2 Dual 2 ohms Subwoofer • 250W RMS • 500W Peak • aluminum voice coil former • large roll surround • stamped CRS basket • linear spider • double stacked magnet motor assembly • sensitivity: 86dB

Learn more about the p212d2

Product Highlights

Description

Authorized dealer

12" Punch Stage 2 Dual 2 ohms Subwoofer
Anodized aluminum voice coil former
High excursion large roll surround
Linear spider
Precision stamped CRS basket w/ removable motor cover
Parabolic triangular cone geometry support system
Massive double stacked magnet motor assembly
Removable and reversible screw concealing ring
Power Handling:

250 watts RMS
500 watts Peak

Sensitivity: 86 dB
Mounting Depth: 6.125"
Motor Size: 60 oz. double stacked
1-year SonicElectronix.com warranty

Product history:

	Rockford Fosgate Punch P2D2-12 (newest, current model)
	Rockford Fosgate Punch P2D212 (09P2D212) (previous model, replaced by Rockford Fosgate Punch P2D2-12)
	Rockford Fosgate Punch P212D2 (previous model, replaced by Rockford Fosgate Punch P2D212 (09P2D212))
	Rockford Fosgate Punch P212S4 (previous model, replaced by Rockford Fosgate Punch P212D2)

Subwoofer Wiring Guide

Wiring Guide to Wire 1 Rockford Fosgate Punch P212D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P212D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P212D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P212D2 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Series

Subwoofer Size

12"

Peak Power Handling

500 watts

RMS Power Handling

250 watts

Voice Coil(s)

Dual

Impedance (Per Voice Coil)

2 ohms

Voice Coil Material

Voice Coil Diameter

Sensitivity

86 dB

Subwoofer Design

Main Cone Color

Woofer Composition

Polypropylene

Woofer Surround

Foam

Magnet Structure

Magnet weight

Magnet Type

Subwoofer Grille

Re-Cone Kit Available

CTA-2031 Compliant

Recommended Enclosure Specifications

Recommended Enclosure Type

Minimum Sealed Box Volume

Optimum Sealed Box Volume

Maximum Sealed Box Volume

Minimum Ported Box Volume

Optimum Ported Box Volume

Maximum Ported Box Volume

Top-Mount Depth (Mounting Depth)

6.125"

Shallow Mount Installation

Electromechanical Parameters

Free-Air Resonance (Fs)

Equivalent Compliance (Vas)

Total Speaker Q Value (Qts)

Electrical Q Value (Qes)

Electrical Resistance of Voice Coil (Re)

Mechanical Q Value (Qms)

Efficiency Bandwidth Product (EBP)

What is in the box?

Paperwork

WITB: Subwoofers

Other Accessory #1

Other Accessory #2

Other Accessory #3

Other Accessory #4

Other Accessory #5

Other Accessory #6
