See all parts that fit your 2013 LS460

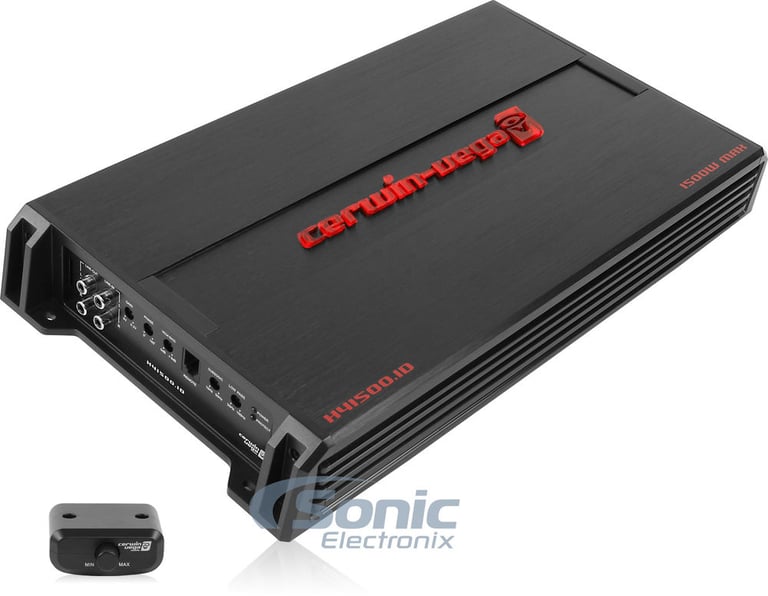

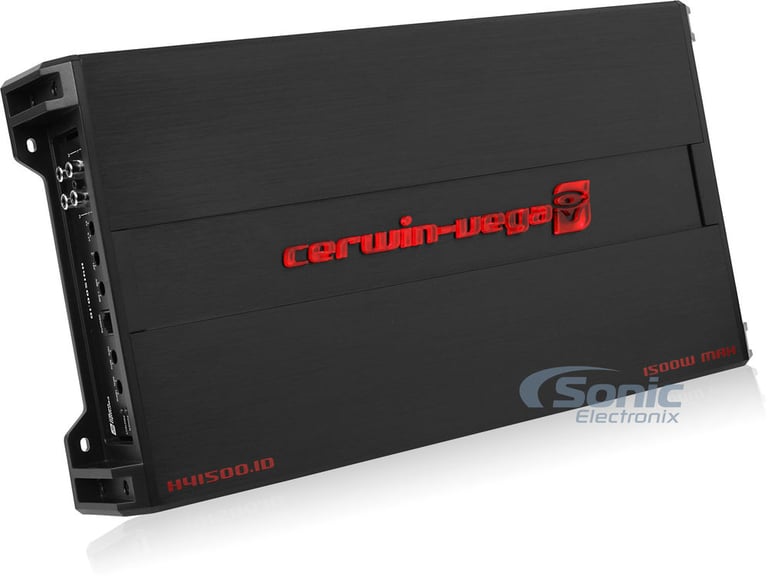

Cerwin-Vega H41500.1D

1500W HED Monoblock Series Class D Amplifier

Product videos
highlight-star-icon

• RMS Power: 750W x 1 @ 1 ohm
• Total Peak Power: 1500W
• Variable Low-Pass Filter
• Pulse Width Modulated MOSFET Power Supply
• Heavy-Grade Aluminum Alloy Extruded Heatsink

Learn more about the h415001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-8146 main

Metra 82-8146

6x9" Speaker Bracket for select 2002-2024 vehicles from Toyota, Subaru, Lexus

31
-46.07%

$19.95

List price $36.99

LEX78VL2 main

GROM Audio LEX78VL2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2012-2020 vehicles from Lexus

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP4 main

NVX NSP4

300W Peak (100W RMS) 4" N-Series 2-Way Coaxial Car Speakers

25
-25.00%

$44.99

List price $59.99

Product Highlights


• RMS Power: 750W x 1 @ 1 ohm
• Total Peak Power: 1500W
• Variable Low-Pass Filter
• Pulse Width Modulated MOSFET Power Supply
• Heavy-Grade Aluminum Alloy Extruded Heatsink

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • HED Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 750 watts x 1 chan.
  • Max Power Output: 1500W
  • Heavy-Grade Aluminum Alloy Extruded Heatsink
  • Illuminated Ambient Lit Cerwin-Vega Logo

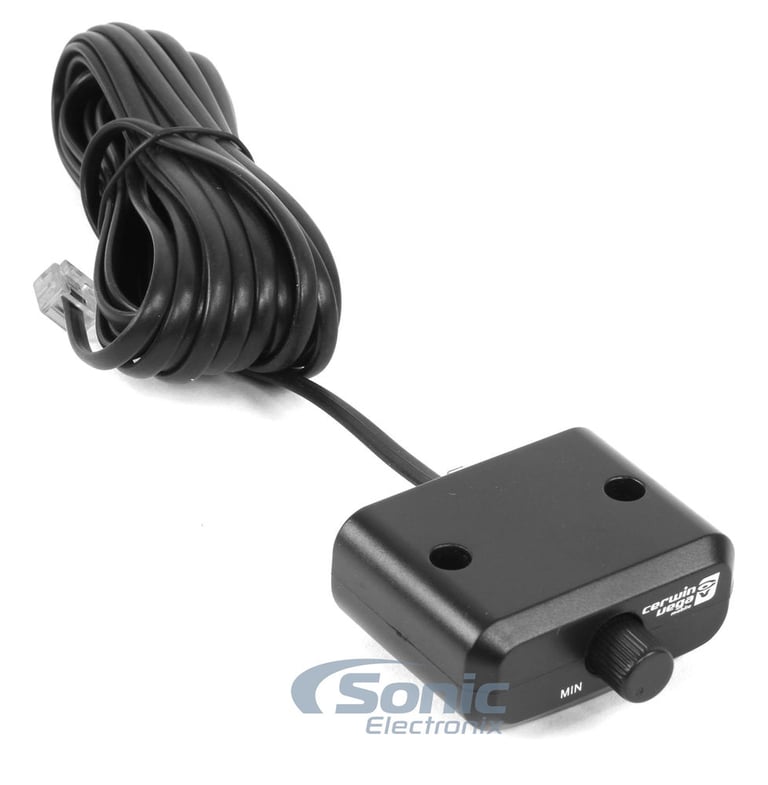

  • Wired Level Control Knob Included
  • LED power (green) and protect (red) indicators

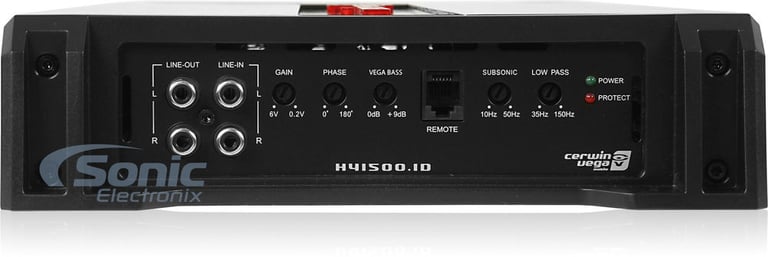

  • Preamp RCA outputs to daisy chain multiple amps

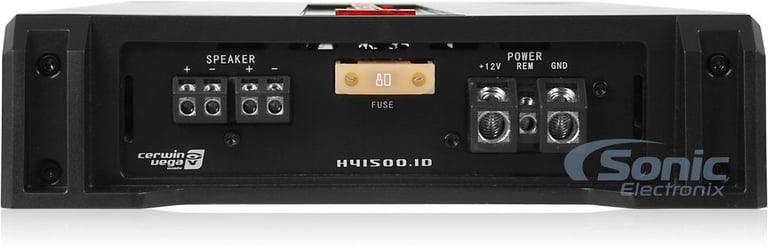

  • Dual Speaker outputs for easier installation of multiple drivers
  • Power Supply Threshold: 10.0 VDC - 17.0 VDC
  • Total Harmonic Distortion: 0.1%
  • Signal to Noise Ratio (@1w): 90 dBa
  • Input Sensitivity: 0.2 mV - 6.0 V
  • Damping Factory: >150
  • Frequency Response: 10 - 250 Hz
  • Variable low-pass filter: 35 - 150 Hz
  • Variable subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 9 dB
  • Variable phase: 0 - 180°
  • Fuse Rating: 80A x 1
  • 4 gauge power and ground wiring is recommended for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 8.875"W x 16.85"L x 2.187H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Cerwin-Vega H41500.1D Owner's Manual

Product history:

Cerwin-Vega H41500.1D thumbnail
(newest, current model)
Cerwin-Vega HED31500.1D thumbnail
(previous model, replaced by Cerwin-Vega H41500.1D)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
750 watts x 1 channel
Amplifier Specifications
Series
HED Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
750 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
35 - 150 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

H41500.1D

Weight:

10.20lbs

Internal SKU:

h415001d

Internal Product ID:

76865

Product and How-to Videos


Customer Ratings & Reviews


Cerwin-Vega H41500.1D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

Great amp

i bought this amp to push to 12 inch kicker CVR. I had to lower the gain due to having too much power I recommend this amp never gets hot and it works great.

By John on May 15, 2014

22 found this helpful
