Pioneer DEQ-9200

3-Band Parametric Equalizer and Universal Audio Processor

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

3-Band Parametric EQ & Universal Audio Processor

Learn more about the deq9200

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


3-Band Parametric EQ & Universal Audio Processor

Description


Pioneer brand icon

Authorized dealer

  • 3-Band Parametric Equalizer
    • 6 Factory Presets (Flat/Rock/Pop/Vocal/Jazz/Soft)
    • 4 User Presets
    • Nuance Control
  • Auto-EQ - Auto Frequency Response Calibration System
    • 3 Curves Available (Dynamic/Natural/Mild)

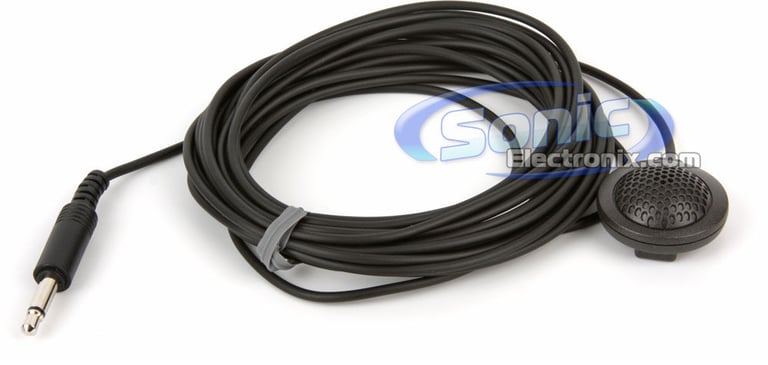

    • Omni-Directional Microphone (Included)
  • DSP Mode (Sound Field Priority)
    • 5-Mode Digital Sound Field Control (SFC) (Studio, Jazz Club, Concert, Club, Stadium)
    • Listening Position Selector (4 Mode: Front Left/Front Right/Front/All)
    • Front & Rear HPF: 50/80/125/200Hz, Level -24 to 0dB, Slope -12/-6/0dB
    • Subwoofer LPF: 50/63/80/100/125/160/200Hz, Level -24 to +6dB, Slope -18/-12/-6dB
    • Phase Switch for Subwoofer
  • Pro Mode (Digital Network Priority)
    • Time Alignment (0 ~ 160", 0.5" Steps)
    • Listening Position Selector (4 Mode: Front Left/Front Right/Front/All)
    • High HPF: 2.5k/3.15k/4k/5k/6.3k/8k/10kHz, Level -24 to 0dB, Slope -18/-12/-6dB
    • Mid LPF: 2.5k/3.15k/4k/5k/6.3k/8k/10kHz
    • Mid HPF: 40/50/63/80/125/160Hz, Level -24 to +0dB, Slope -18/-12/-6dB
    • Low LPF: 40/50/63/80/125/160Hz, Level -24 to +6dB, Slope -24/-18/-12dB
    • Phase Switch for High/Mid/Low

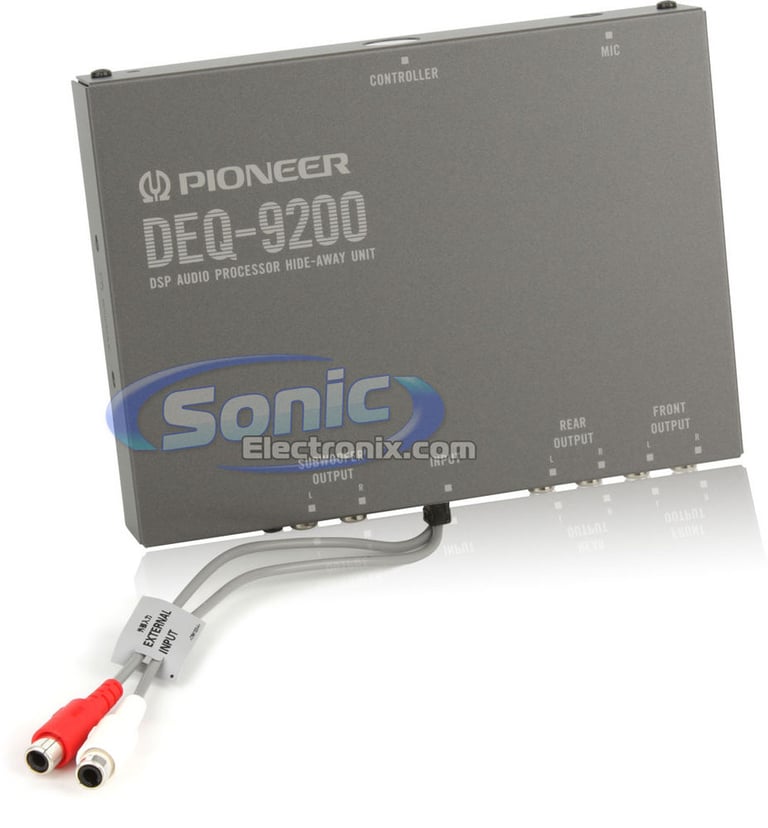

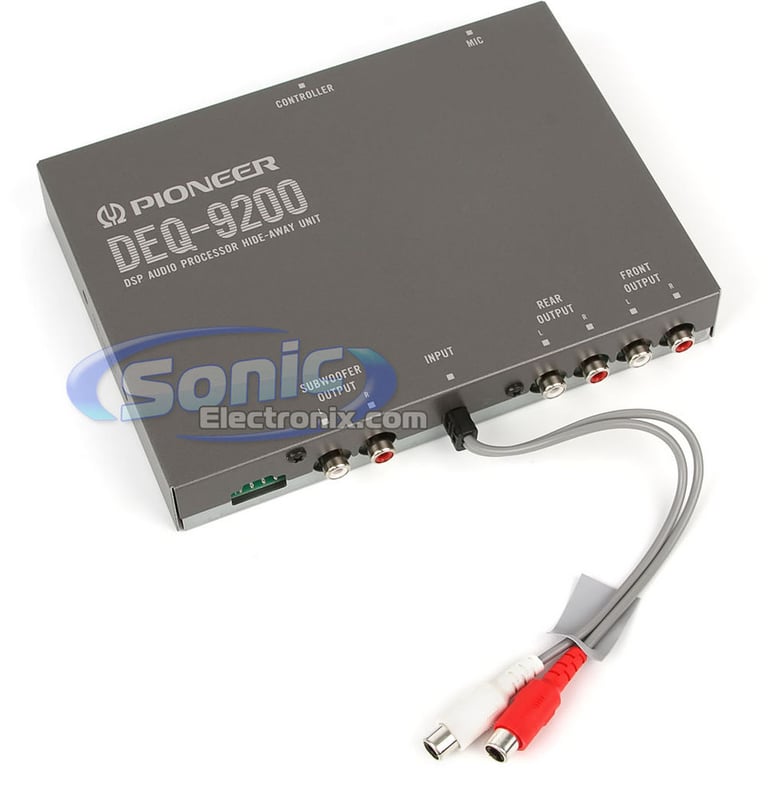

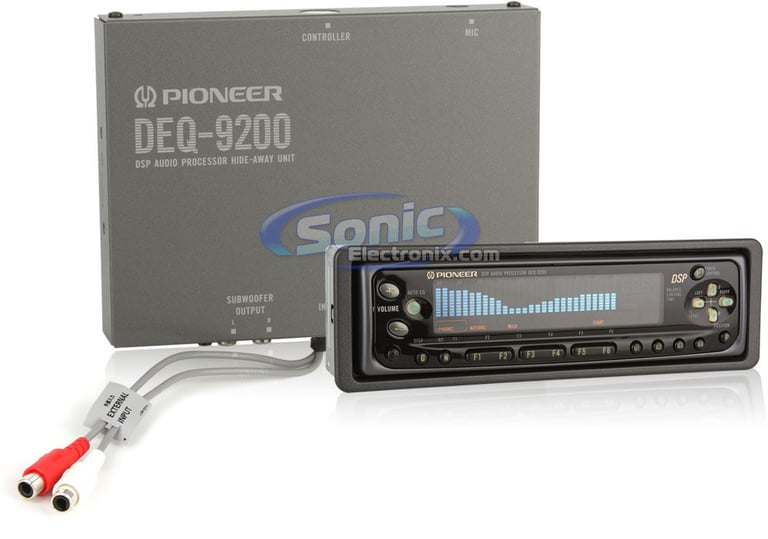

  • Free-Space Controller/Display with Compact Hide-Away Sub-Chassis for Easy Installation
  • 8fs 1-Bit Legato Link™ D/A Converter

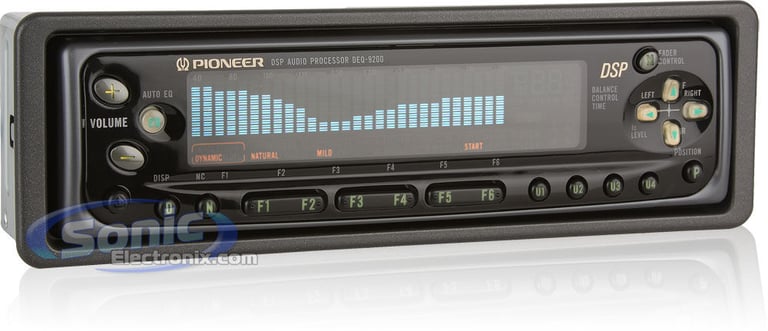

  • Multicolor Display with EL Backlighting

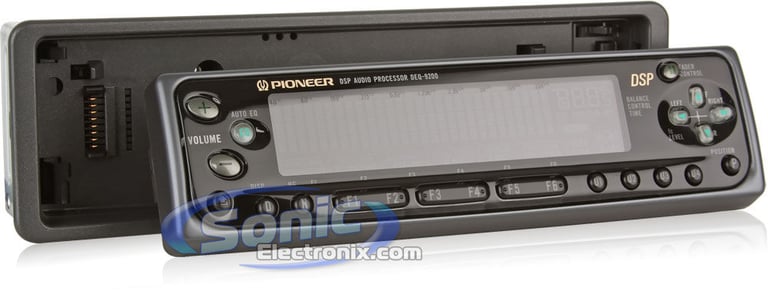

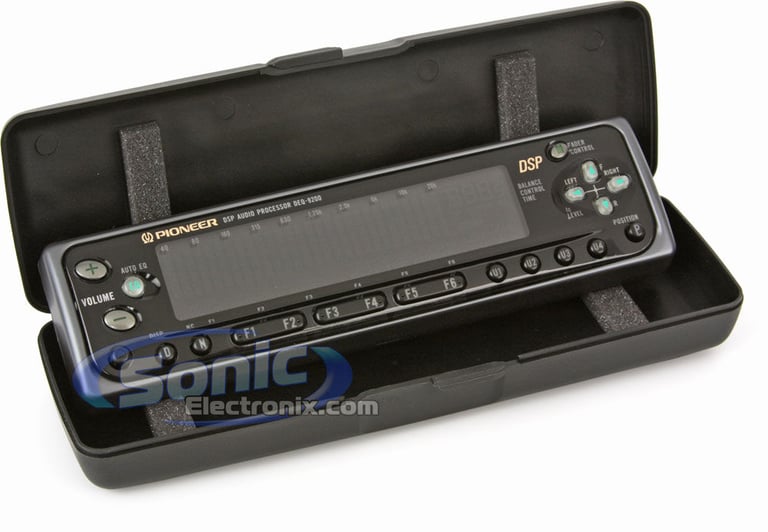

  • Detachable Face Security™ (with Carry Case)
  • RCA Input

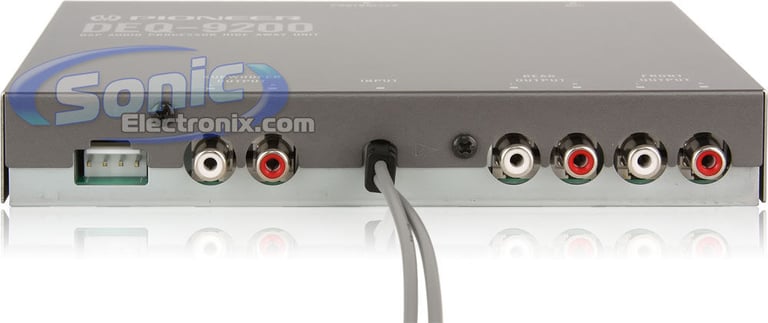

  • RCA Outputs (x3 Pair) (Front/Rear + Subwoofer or High/Mid/Low)
  • Remote Control Sensor for Optional Remote
  • Super Capacity 3-Day Backup for DSP Memory
  • Dimensions (WxHxD): 7-3/8" x 2-1/4" x 1-1/4"
  • 1-Year SonicElectronix.com warranty

Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

HFEQ-2 small

Hifonics HFEQ-2

• 4 band-Band Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$59.99

List price $99.99

EQL7 small

Memphis EQL7

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 8 volts max preamp outputs
• Subwoofer frequency and level control

(1)

$99.99

List price $159.95

EQP850 small

Cerwin-Vega EQP850

• 5-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Nickel-plated RCA level inputs

$139.99

List price $139.99

EQ-4000BT v2 small

Earthquake Sound EQ-4000BT v2

• 4 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$179.99

List price $199.99

EQ-770 small

Cerwin-Vega EQ-770

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 7 volts max preamp outputs
• Subwoofer frequency and level control

(2)

$99.99

List price $115.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

EQX7 small

DS18 EQX7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$95.95

List price $95.95

eqx5 small

DS18 EQX5

• 5 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$65.95

List price $65.95

Specifications & Details


Equalizer Specifications
Equalizer Bands
3 band
Equalizer Frequencies
40 - 10,000 Hz
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Built-in Bass Reconstruction
No
Line Driver
No
Display Color
Multiple Colors
Width
7-3/8"
Height
2-1/4"
Depth
1-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

DEQ-9200

Weight:

5.00lbs

Internal SKU:

deq9200

Internal Product ID:

772

Product and How-to Videos


Customer Ratings & Reviews


Pioneer DEQ-9200 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.4
Features
5
Design
4.7
Usability
4

Customer Reviews

Sort by:

Loading...

the best

Pioneer deq9200 it make my car look awesome at night. All my friends like it.

By Tou on October 7, 2012

13 found this helpful


One of the best purchases I've ever made

I can't believe they still make these. I bought mine back in 1995. It's been an excellent unit the entire time. If set up properly, you'll be amazed at how good your stereo sounds. I've even seen IASCA finalists using them. It can make an average set-up sound very good & a great set-up sound incredible. This is one of the few things that I haven't felt the need to change in my system in over 17 years. What's kind of funny is that these days, this could be considered your head unit & you could just run this to your mp3 player.

Pros:
-1 day memory back-up (if you disconnect battery you don't have to reset everything)
-Time alignment
-Variable & Steep crossover slopes
-31 Band crossover
-Auto EQ

Cons:
-Minimal number of custom presets allowed (4)
-Rather poor menu implementation & naviagation (still feels like a '90s menu)
-The display is a bit weak as the other reviewer noted.
-Low volt outputs (pretty sure it's 500mv from memory)

By normalicy on September 26, 2012

9 found this helpful


pioneer deq9200

I love my pioneer deq 9200 the only thing i dont like is the illumination is not bright enough for sunny days but at night you can see it just fine. This is the best EQ/Sound Processor you can buy for the price. Pioneer still sells this item for $500 but i found it at sonicelectronix for way cheaper so Big Ups To SONICELETRONIX

By Shawn on August 5, 2009

7 found this helpful
