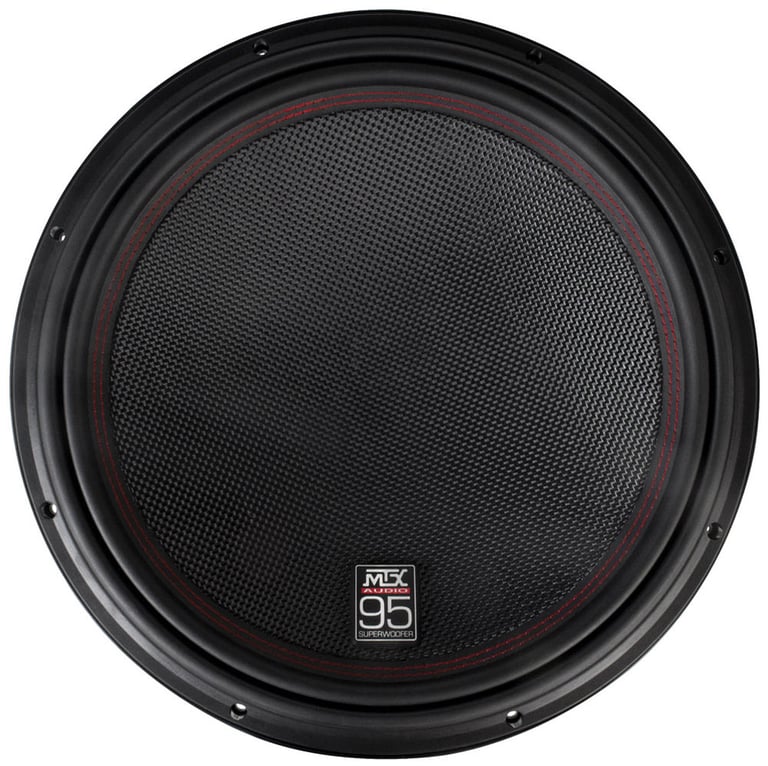

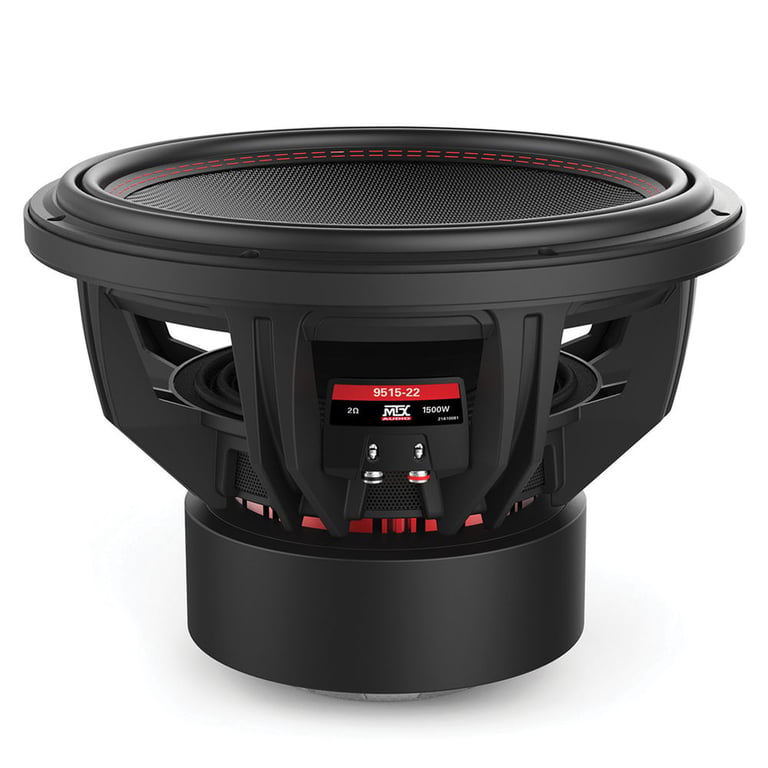

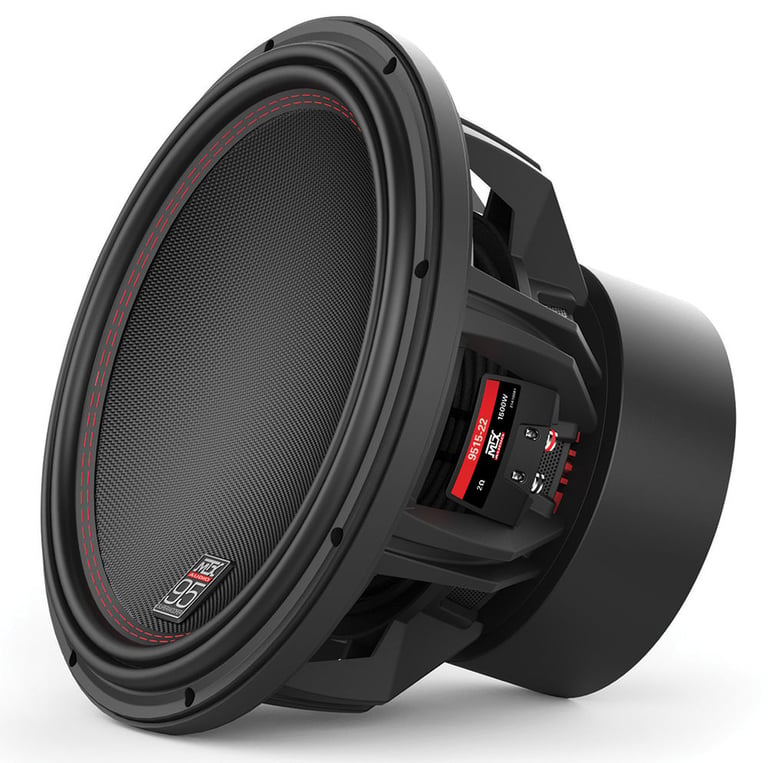

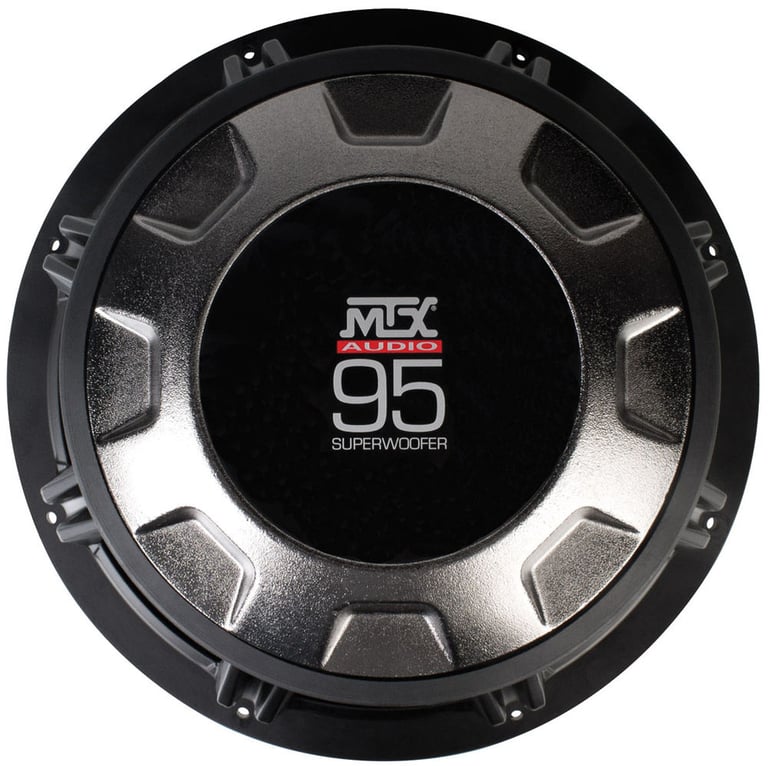

MTX 9515-22

1500W RMS 15" 95 Series Dual 2-Ohm Car Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

• 1500 Watts RMS
• 3000 Watts Max
• High Efficiency Glass Fiber Cone
• Inverted Apex Surround
• Cast Aluminum Basket
• Three layer thermal management design
• Internal Voice Coil Heatsink

Learn more about the mtx951522

We apologize

This item has been discontinued


Loading...
70-8113 main

Metra 70-8113 Wiring Harness

Install a New Car Stereo and Retain Factory Amplifier in select 1999-2007 vehicles from Toyota, Lexus

26
-28.59%

$9.99

List price $13.99

95-8211 main

Metra 95-8211 Dash Kit

Install a new Double-DIN car stereo in select 2000-2004 Avalon

4
-12.51%

$20.99

List price $23.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Club 64 main

JBL Club 64 (JBLSPKCB64)

360W Peak (120W RMS) 6.5" Club Series 2 Way Coaxial 3-ohms Speakers

2
-21.44%

$109.95

List price $139.95

MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

4

$158.00

List price $159.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
TS-G1320S main

Pioneer TS-G1320S

500W Peak (70W RMS) 5.25" G-Series 2-way 4-ohm Coaxial Car Speakers

7
-30.78%

$44.99

List price $65.00

ZS653 main

Hifonics ZS653

600W Peak (100W RMS) 6.5" Zeus Series 3-way 4-ohm Coaxial Car Speakers

14
MPR2121 main

Jensen MPR2121

Single DIN Digital Multimedia Receiver with Bluetooth

2

Product Highlights


• 1500 Watts RMS
• 3000 Watts Max
• High Efficiency Glass Fiber Cone
• Inverted Apex Surround
• Cast Aluminum Basket
• Three layer thermal management design
• Internal Voice Coil Heatsink

Description


MTX brand icon

Authorized dealer

MTX 5510-22 55 Series Subwoofer


The MTX Audio Super woofer might just be the best sounding, next level out right now. The 95 Series name has been known for the last 10 years to have an unmatched SPL output and legendary performance. The Superwoofer's features are meant to make it loud and efficient. With over 40 years of audio experience, MTX Audio makes sure and knows how to create quality audio with their products, and the 55 Series is no exception! Now let's dive into some of the features.

Designed for Accurate SPL


MTX Inverted Apex Surround

MTX Inverted Apex Surround

The MTX Inverted Apex Surround increases the surface area of the sub to allow for more air movement, accurate bass reproduction and higher SPL. Traditional Half-Roll Surrounds have an inherent wrinkling when reproducing bass due to the physics of its motion, which causes distortion. The Inverted Apex Surround moves symmetrically through both positive and negative cycles which eliminates this type of distortion. With an Xmax of 1.25" and the increased surface diameter, the design of this sub creates an increased SPL output.


Glass Fiber Cone

MTX Audio 95 Series Subwoofer

The glass fiber cone provides this subwoofer with a stiffnes to weight ratio that allows it to have a lower weight and increased sensitivity. With this design, the subwoofer creates a higher SPL while using lower power. Couple that with the Inverted Surround and you have efficient movement and power.







Triple Thermal Management

MTX Audio 95 Series Subwoofer

Three features really make sure the superwoofer stay cool: the Spider Plateau Venting, Internal Voice Coil Heatsink and the Radial Ribbed T-Yoke. The Spider Plateau Venting is a mechanical cooling process that targets cool air at the voice coil. This means the subwoofer cools itself as it is playing. The second feature, the internal voice coil heatsink, is a mechanical cooling process. As the subwoofer continuously cycles, it circulates hot air for cool air at the voice coil. Finally, the integrated Radial Ribbed T-Yoke. This is where the backplate absorbs heat from the voice coil and radiates it to the back of the subwoofer away from the voice coil. This acts as a heat sink that dissipates heat and decreases distortion. These three features ensure this subwoofer will play for a long time and at high levels!


General Features:

  • 15" Dual 2 ohm 95 Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1500 watts
  • Recommended power range: 750 - 1700 RMS
  • High Efficiency Glass Fiber Cone
  • Inverted Apex Surround
  • Three layer thermal management design
  • Internal Voice Coil Heatsink
  • Cast Aluminum Basket
  • 8 AWG Compression Terminals
  • 4" Aluminum Voice Coil
  • MAGNET
  • Top-mount depth: 10-1/4"
  • Cutout diameter: 13-7/8"
  • Frequency Response: 17 - 100Hz
  • Sensitivity: 84.9 dB
  • Resonance Frequency (Fs): 24
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the 9515-22 Specs and Enclosure Sheet
