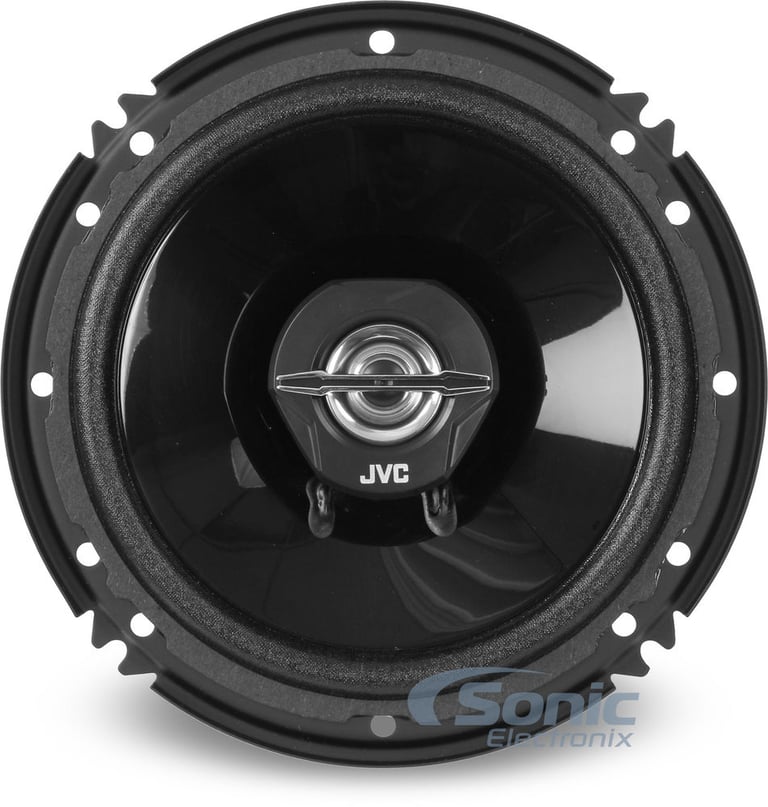

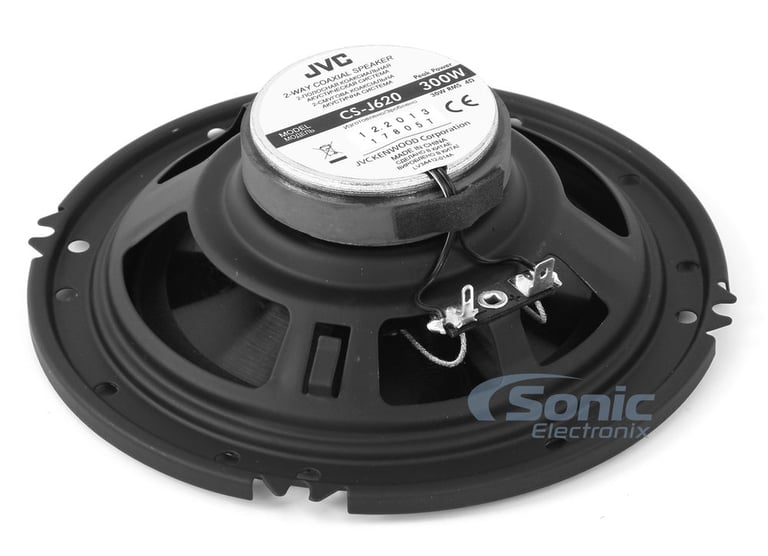

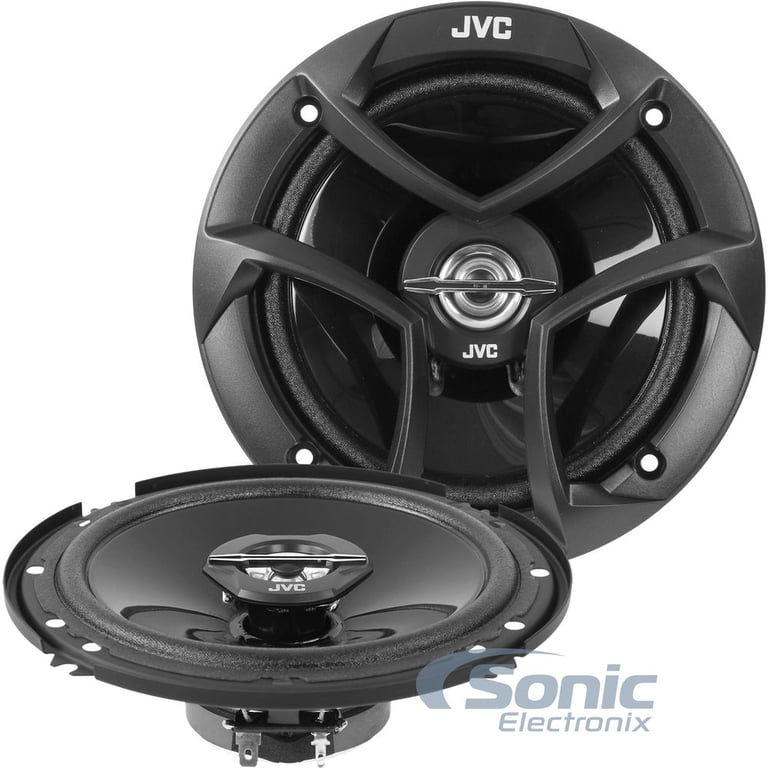

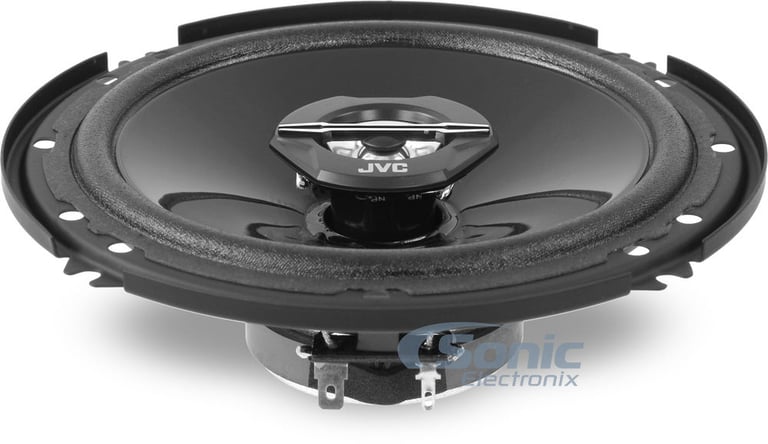

JVC CS-J620 300W 6-1/2" CS Series 2-Way Coaxial Car Speakers

JVC CS-J620

300W 6-1/2" CS Series 2-Way Coaxial Car Speakers

• 300W Max / 30W RMS
• 1" Poly-Ether Imide Balanced Dome Tweeter
• Mounting Depth: 1-23/32"
• Mica Cone and Rubber/Cloth Hybrid Surround

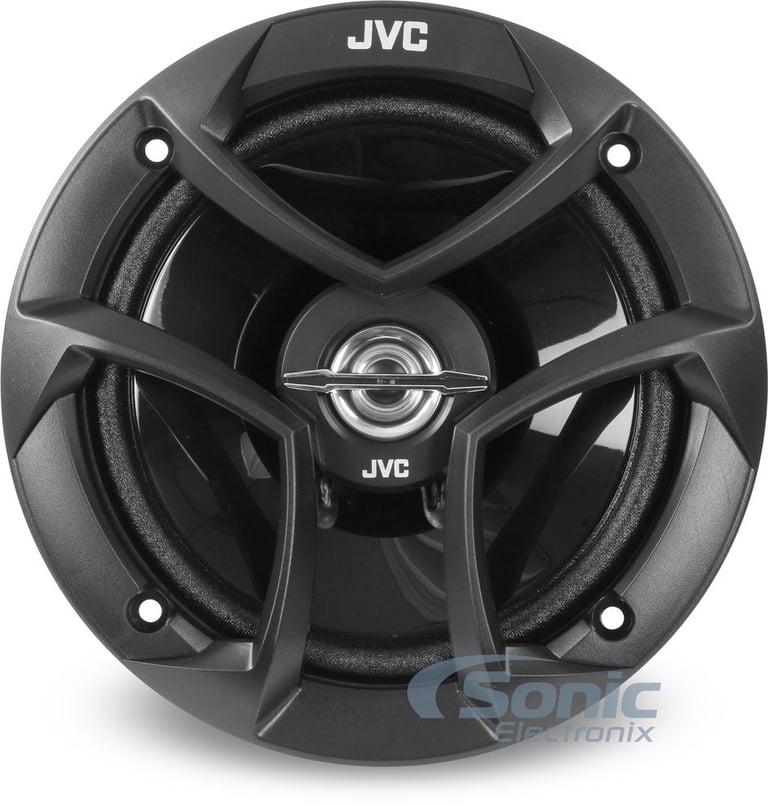

• Black ABS Composite Grills

We apologize

This item has been discontinued

DESCRIPTION
JVC

Authorized dealer

Will fit most 6x9" and 5x7"/6x8" locations,
with appropriate speaker adapter. Click "Related Items" Tab.



JVC CS-J620 - 2-Way Coaxial Car Speakers

The JVC CS-J620 feature a Mica Cone and Hybrid Surround, built onto a steel stamped frame, to bring you an affordable set of speakers intended to meet or exceed the performance of traditional OEM 6-1/2" speaker. The 30 watts RMS power handling of each speaker allows for user to add a modest amplifier - unlike an OEM speaker - to really bring out the life of his or her audio system and properly reach the full performance of the CS-J620.




2 Volt Preamp Outputs

Built Better Than OEM Drivers

The JVC CS-J620 uses a 1" Poly-Ether Imide balanced dome tweeter to handle the highs that typical speakers cannot reach, instantly making it a superb upgrade. The Poly-Ether Imide material allows for the driver to reach its 22,000 Hz frequency peak. To handle the mid-range and low end that can reach down to 35 Hz, the CS-J620 utilizes a Hybrid, Rubber and Cloth surround with a Mica Cone; The combination of these materials, along with the tweeter, presents a proper full-range sound that is an instant upgrade from OEM drivers.


SiriusXM Satellite Radio Ready

Engineered for Easy Install

The JVC CS-J620 is engineered with a shallow 1-26/32 inch frame, intended to make installation as painless as possible. The shallow frame removes the worry of hitting a window track, glass or other obstructions within the door panel. In addition, the JVC CS-J620 has a pre-arranged hole pattern to further ease the worry of having to modify the speaker to fit a particular vehicle mount pattern. For installs that require a bit of modification, JVC is kind enough to provide screws and mounting tabs, so that you get your speakers in and rocking as quick as possible.



Product Details:

  • JVC CS-J620
  • 6.5" CS Series 2-Way Car Speakers
  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 60 watts per pair / 30 watts each
  • Recommended power range: 5 - 40 watts RMS per channel
  • Mica cone
  • Hybrid, Rubber and Cloth surround
  • 1" Poly-Ether Imide balanced dome tweeter
  • Shallow mount design
  • Shallow Tweeter design
  • Pre-arranged holes for flexible mounting options
  • 4 ohms impedance
  • Frequency Response: 35 - 22,000 Hz
  • Black ABS Composite Grills
  • Top-mount Depth: 1-23/32"
  • Sensitivity: 92 dB

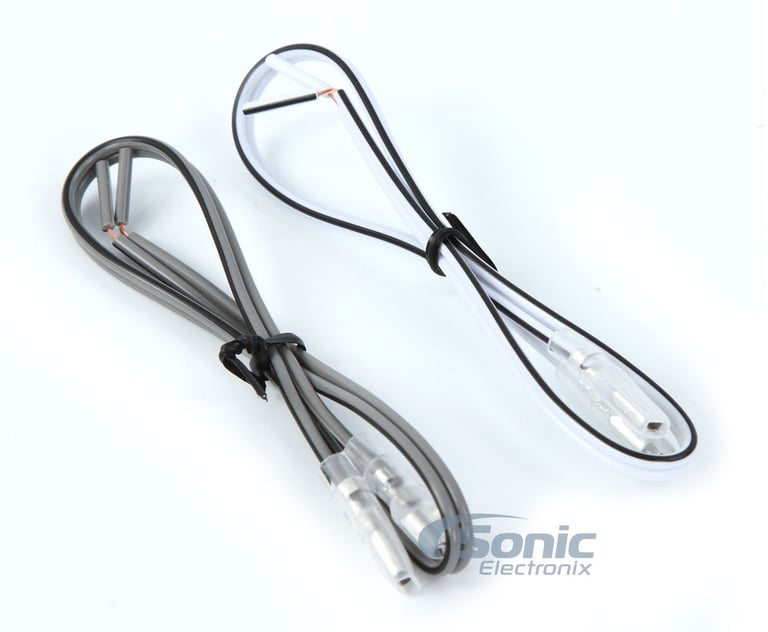

  • Speaker wire extension cables, w/ quick disconnects included
  • Mounting screws and tabs included
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair

FEATURES & SPECS
Speaker Specifications
Series
Priced Per
Pair
Speaker Size
6-1/2"
Design
2-way
Tweeter Design
Balanced Dome
Tweeter Size
1"
Tweeter Composition
Poly-Ether Imide
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Peak Power Handling
300 watts
RMS Power Handling
30 watts
Sensitivity
92 dB
Frequency Response
35 - 22000 Hz
Impedance (Per Voice Coil)
4 ohms
Shallow Mount Installation
No
Top-Mount Depth
1-23/32"
Number of Speakers
2
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
What is in the box?
WITB: Speakers
Speakers (2)

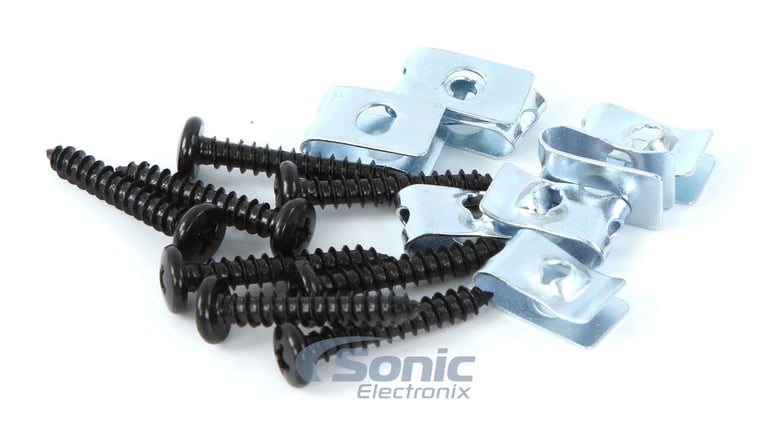

Mounting screws (8)
Mounting clips (8)
Paperwork
User manual
Authorized Dealer
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
  • JVC CS-J620 2-Way Coaxial Car Speakers | Product Overview
  • How To Test Speaker Polarity | Tips & Demo | Car Audio 101
  • Replace your Car Speakers and Upgrade to Better Sound | Sonic Electronix
  • JVC Bluetooth Stereo Control Receivers | CES 2014
REVIEWS
JVC CS-J620

JVC CS-J620

4.6

(65)

Write a review

Overall rating distribution

5 star
77%
4 star
15%
3 star
3%
2 star
3%
1 star
2%

By feature average rating

Durability
4.8
Value
4.9
Features
4.7
Design
4.9
Usability
4.9

Mark

February 10, 2015

Great speakers, excellent price!

I looked around at other shallow mount speakers and this was the best price. More like "best bang for the buck" sort of thing. The build quality is excellent. The speaker is not as large as the pioneers I pulled out of the civic but.. the sound is much more accurate, clear, precise. They do have a coated cloth surround, so they're not going to last forever, but for the price, that's fine with me! The old pioneers I took out of the civic were "muddy" sounding even when they were new, lacking midrange and treble clarity. They had bass but no presence or clarity. These JVC's are much more accurate and clear, they don't have a lot of bass, probably because the magnet is smaller. I've also noticed as the speakers have "broken-in" they've become louder with the same volume level. I've seen that happen before with speakers. However, if you're looking for a clean, crisp sound from a shallow mount speaker this is the clear winner! There is mid bass from this speaker, just don't expect subwoofer type bass out of this shallow mount speaker. And the price is the best I've seen out there online. I had a friend who ordered from Sonic, and he liked them so I tried them. It was packed well with packing popcorn all around, packed well!

239

found this helpful.

Marg's Hubby

January 25, 2015

Excellent Door Speakers, Excellent Price, Fast Shipping!

These sound really good, way, way better than the muddy old dry rotted OEM Honda speakers that came out of my Civic that never really sounded all too good in the first place and now sound like a pack of angry frogs in a lawnmower due to age!
The highs are clean, clear and crisp, mids are very full, warm and clear. Vocals, keyboards and guitars all sound really good, these also give a decent amount of low-end bass that fill the sound spectrum quite well, which is unheard of from most door speakers I've tested or owned, Especially for a pair that unbelievably cost me less than $25!
These can also handle a good amount of volume without distorting!
I was a bit concerned about how these would sound in the highs and midrange since these are 2-way and not 3-way units and were dirt cheap, I thought, sure I'll get what I paid for-junk, but man, I am very impressed and real glad that I chose these JVC's based mostly upon their stated freq. response range, dB output and RMS capability
They sound much better than I ever anticipated and work really well with the new BOSS head unit and new Boss rear 4-way 6x9's that I've also installed. (I didn't get a pair of Boss door speakers to match the rest of the Boss brand setup because Boss doesn't tell you their Freq. Resp. on most of their 6-1/2" speakers and I wanted a pair that could give out some low end bass below 60hz!)
These go down much lower than 60hz and sound a lot better than a far more expensive pair of Kicker brand door speakers I recently installed in my Mrs Buick! I might take the Kickers out and get a second pair of these for her ride!
These are also NOT an ugly designed pair of speakers by themselves, unlike some other pairs that I looked at first that made me think "what were they thinking when they designed these?"
I don't really like the look of the plastic grilles that came with these, and thankfully I don't have to use them, they aren't mesh style "Grilles" and are just the open faced plastic "spider" style rings/covers, Although, the speakers themselves will never be visible behind the OEM door panels built-in mesh grilles in my Civic anyway, but I just thought I would mention it.
FYI!, I do NOT work for these folks at Sonic nor do I personally know anyone here, so with that said;
The price on these was a bit lower here than anywhere else that I could find that sells these online and the shipping fee here was also much cheaper than everyone else online too! And the good folks at SonicElectronix really ARE pros with very fast, hassle-free order processing, handling and shipping out items! These got to me in less than a week (3 or 4 days) and they were packed really well, which is awesome in MY book, and why I have made a few purchases from here over the years for all of my vehicles and for some friends and family members vehicles as well, and why I will continue to buy whatever I need or want for my vehicles to sound great from here!
If you bought your stuff from anywhere else you most likely got ripped off!. I learned the hard way to look here first after getting the shaft from some "scummy" online sellers out there! Always check prices here at Sonic first, I do! :)
And another great thing with shopping HERE is that whenever you look at any product page, say head-units for example, if there is anything else that you would need or should have to either hook it up or install it properly they will show you exactly what you might need on the page of the item your looking at, and it is always a real related item and not just some unrelated junk they want to get rid of like most sites do! I don't know about you, but hat really grinds MY gears when a site shows some totally unrelated items under a "related items" banner!!

90

found this helpful.

JT

June 18, 2015

Awesome sound!

These sound great and for the money I'd buy them again!

39

found this helpful.

Greg

July 25, 2015

Pleased consumer

I recently purchased the JVC CS-J620 speakers & I could not be more pleased with them also the service on your end was perfect no hassles at any part of my dealings with your Co. Kudos to all of your staff involved in my purchase. I would recommend SONICELECTRONICS to any body that that I know & to anybody I don't know job well done. A Happy Consumer

35

found this helpful.

cra2006

September 20, 2015

Replacement speakers

I bought these speakers to replace the rear speakers that are blown in my 2001 honda cr-v. I have the speakers running off the factor radio. The speakers are very clear but not much bass, that's to be expected when your're running after market speakers on a factory radio that's only putting out 4 or 5 watts. Overall for the price these speakers are good they would sound better with an small amp on them. I would definitely recommend these speakers as replacements.

13

found this helpful.

Mike

May 6, 2020

Clean sound

Not wanting to spend a ton of money to replace the speakers in my old truck these were a perfect choice. I chose to replace all 4 speakers to restore OEM quality sound. They produce clear crisp sound at a reasonable volume which is all that I was looking for.

9

found this helpful.

Anonymous

March 8, 2019

They sound amazing in my Honda

I replaced my doors with these because they were cheap so I didn’t think they would sound good but it surprised me how good they were

7

found this helpful.

Jason

October 27, 2015

Great value

Love the bass and sound of them thinking about getting more

11

found this helpful.

Sean

June 4, 2020

Great value

Good entry-level speakers that won't break the bank very pleased.

6

found this helpful.

Cierra

May 9, 2017

Excellent quality!

Nice speakers at a great price and good sound. Would buy again!!

6

found this helpful.

Craig

January 28, 2017

Okay

I purchased to upgrade factory speakers. Was very clear but havent changed headunit for max performance. Factory unit cant push the 300w. So far so good but already looking for bigger clearer sound.

6

found this helpful.

Kyle

November 12, 2016

Less bass than factory, but still good for rear speakers

The good: its a pair of name brand speakers for dirt cheap. The bad: they sound like dirt cheap speakers. Installed these in the rear cab of a 2005 Chevrolet Silverado without much issue, just needed tin snips to cut a longer slot into the 6-3/4" mounting ears. These don't handle bass as well as the stock speakers did, which I expected due to the shallow mounting depth and tiny magnet. However, the tweeter made a nice improvement, and seeing how these aren't made of paper and foam like the factory speakers, they should hopefully last longer.

6

found this helpful.

Charles

December 31, 2015

Great for the Price

I would recommend this product as it is a very good replacement for the OEM speakers that are crap. For the money these work very well sound better than the OEM. they come with enough parts to replace the OEM in the original placement with little effort and sound great.

6

found this helpful.

Tangaya

December 14, 2015

Decent price

I love the sound is clear I installed two sets of this speakers great price and exceed my expectations thank you so much highly recommended

7

found this helpful.

Joseph Collins

March 17, 2018

Great product

Would recommend sounds great easy to install I have them in my truck

5

found this helpful.
