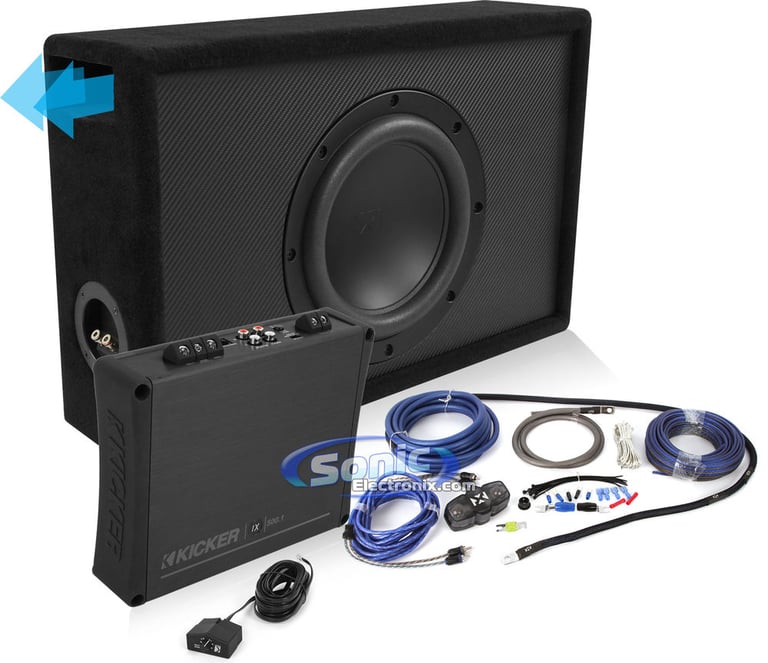

NVX 2 Ohm Truck Style Bass Package

General Features:

• Preloaded 10" Dual 4 Ohm X-Series Series Shallow Mount Subwoofer
• Power Handling:
• RMS: 500 watts
• Final Impedance: 2 ohm
• Preloaded in a shallow ported truck box
• Mounting Depth: 5"
• Custom blend of finely milled pulp and Egyptian papyrus fiber cone with smooth matte finish
• Multi-Radius Elliptical edge foam surround
• Includes oSd surround technology (U.S. Patent #7,031,487) allowing for an extra 8-12% more surface area than competing subwoofers
• Innovative aluminum shorting ring system with several positive impacts on the subwoofer:
• Improved power delivery to the voice coil
• Decreased inductive distortion
• Improved cone linearity
• Improved high-end extension
• Decreased risk of overheating
• 3" High temperature voice coil designed with an oxygen-free copper coil
• 123 oz double stacked ferrite magnet
• Optimal ported enclosure tuning frequency: 36 Hz
• Frequency response: 20-200 Hz
• Resonance Frequency (Fs): 33 Hz
• Top-mount depth: 4-7/8"
• Sensitivity: 87 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

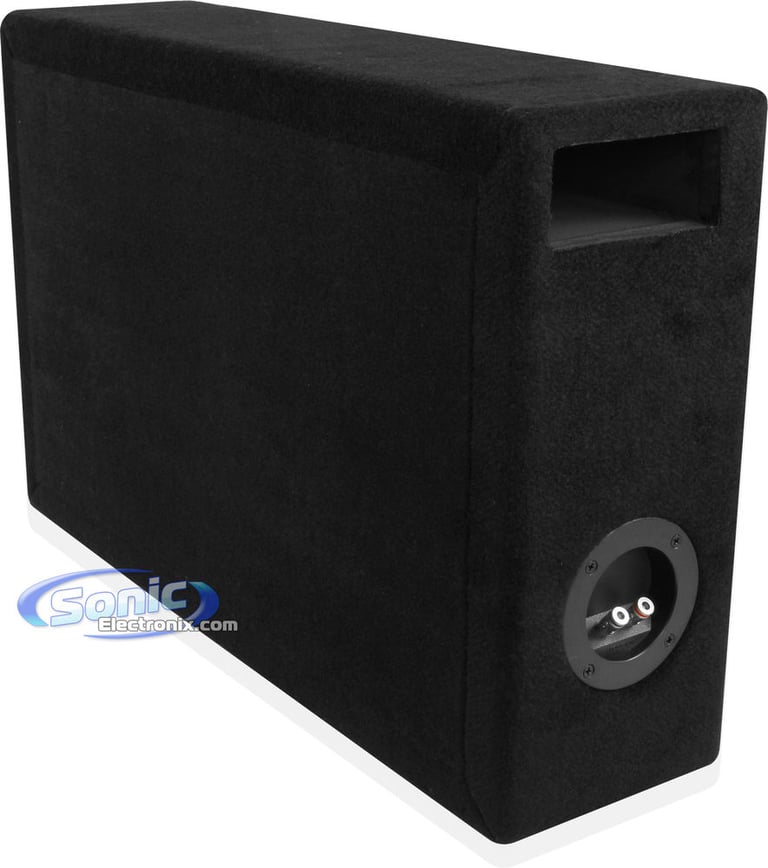

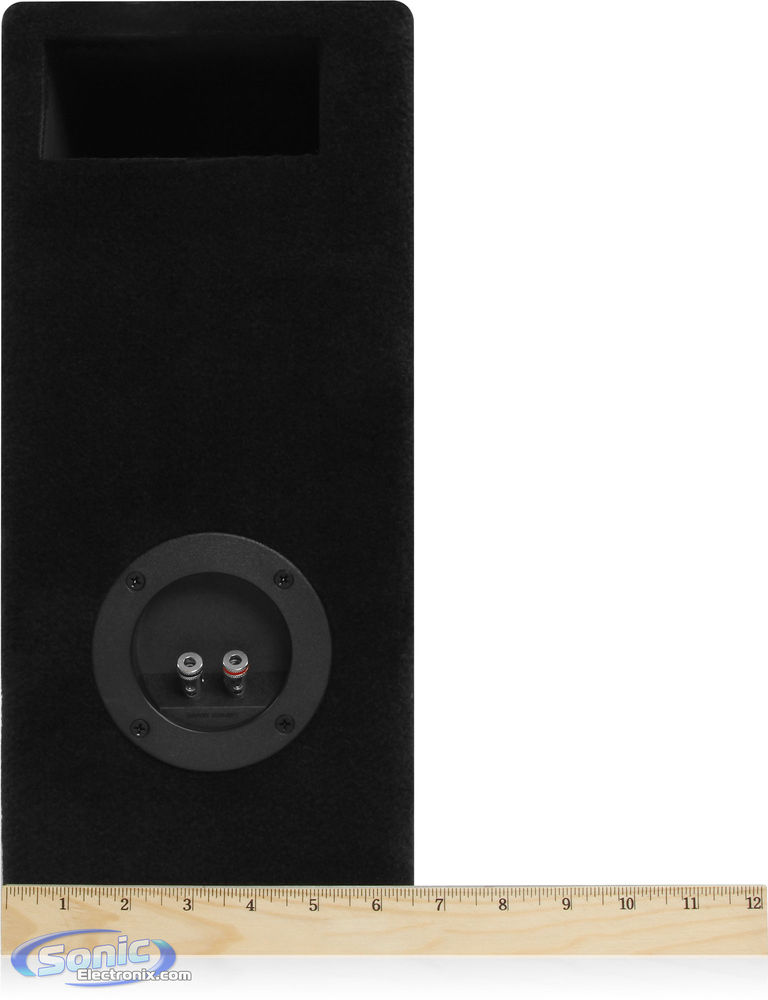

General Features:

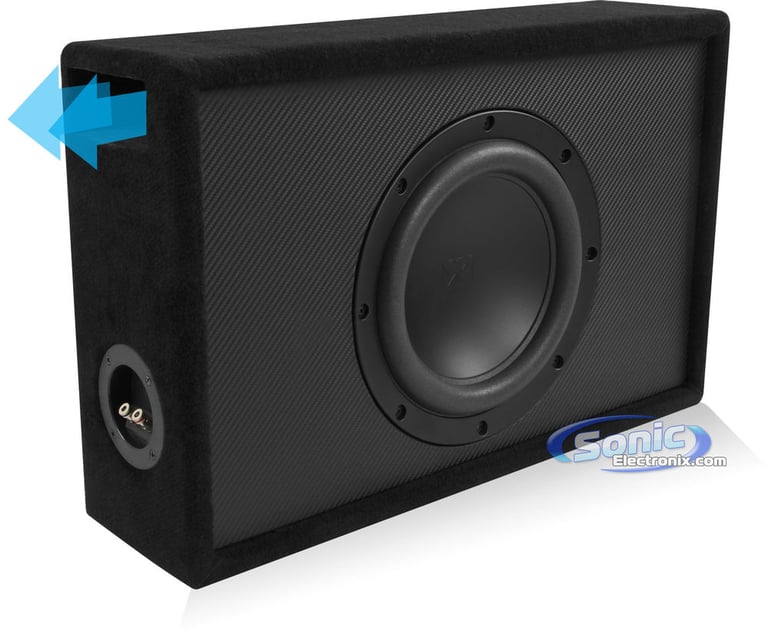

• 10" Ported Subwoofer Enclosure
• Ideal for trucks and other shallow locations
• Carbon-fiber front face board

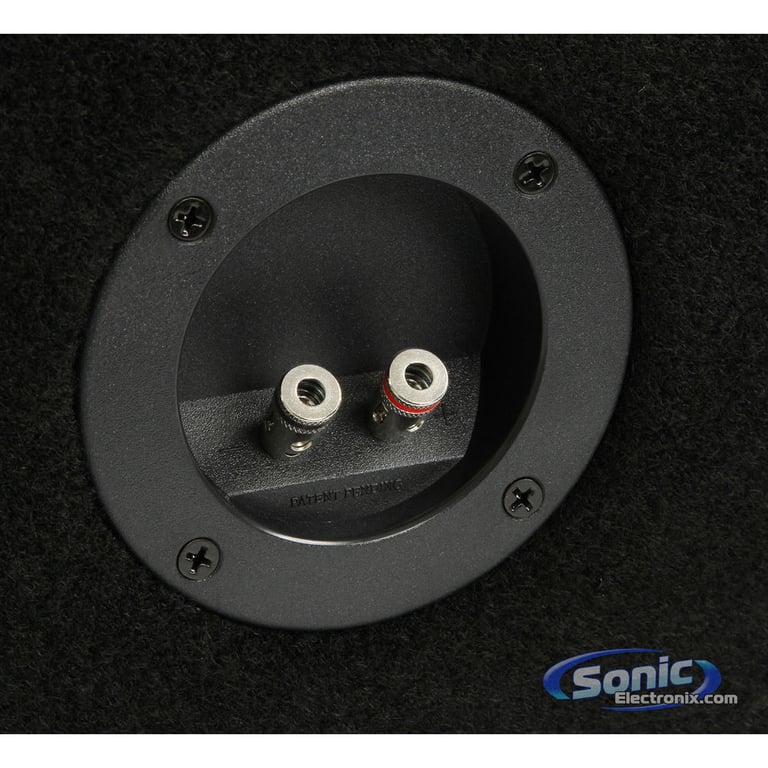

• Spring-loaded push terminals also accept banana plugs
• Covered in high-quality black carpet
• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Subwoofer mounting depth: 5"
• Subwoofer cutout diameter: 9-3/4"
• Box volume: 0.55 cubic feet
• Tuning Frequency: 34Hz
• Dimensions: 6-5/8"D x 24-1/2"W x 15-1/2"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Port Specifications:

• Rectangular Slot Port
• Number of ports: 1

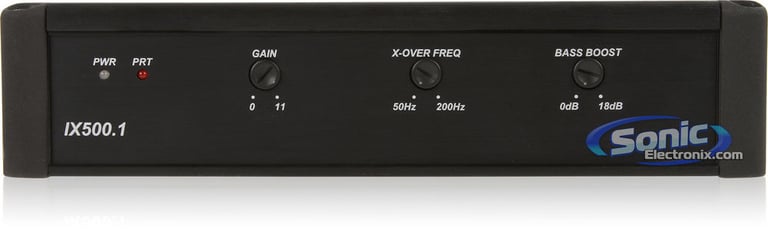

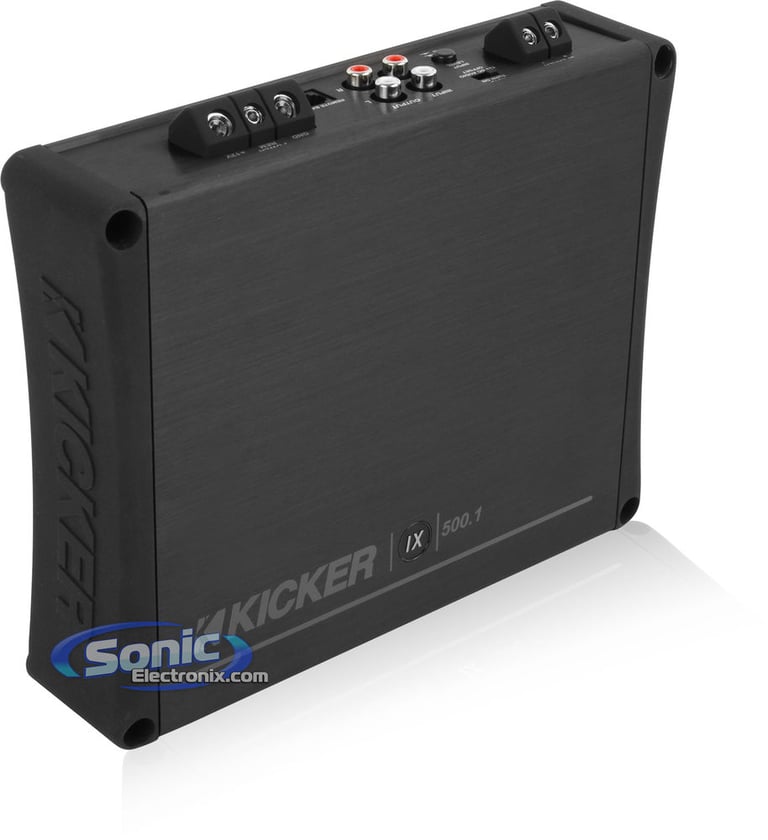

• IX Series Monoblock Class D Car Amplifier
• RMS Power Rating:
  • 4 ohm: 275 watts x 1 chan.
  • 2 ohm: 500 watts x 1 chan.
• Max power output: 1000 watts x 1 chan.
• High-efficiency regulated MOSFET power supply

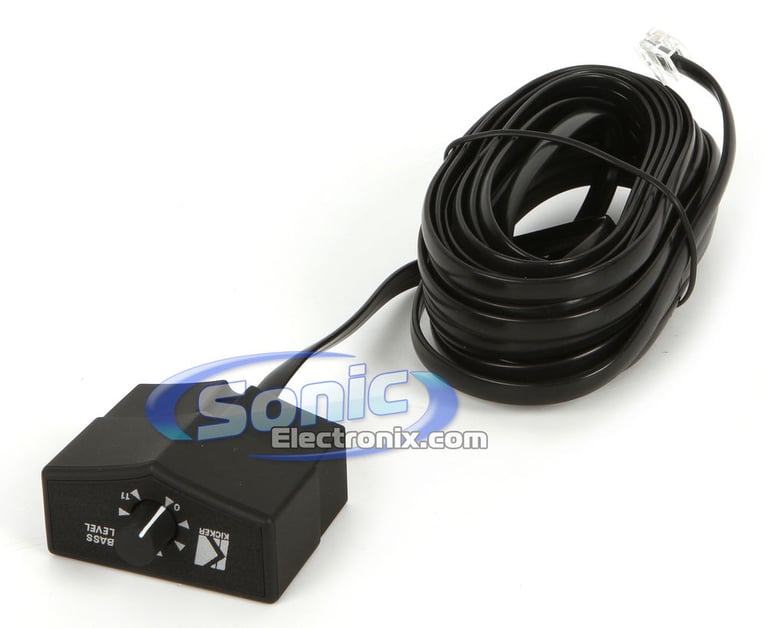

• Remote bass level knob included
• LED power (blue) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
• FIT (Fail-Safe Integration Technology) utilizes differential inputs to reject noise and electrical interference for the quietest operation possible and ultimate audio clarity
• Optional Kicker 10IXSM stacking mounts available for a clean install
• Optional vinyl skins for personalizing heat sinks available
• Super-small footprint for easy mounting, decreased weight, and increased cargo space

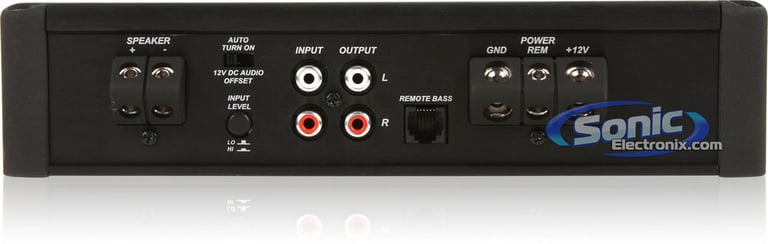

• Mono channel operation
• Preamp RCA outputs
• 5-Way System Protection circuitry (thermal, overload, speaker short protection, undervoltage, and overvoltage)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input sensitivity:
  • Low level: 125mV-5V
  • High level: 250mV-10V
• Variable low-pass filter (50-200 Hz, 24 dB/octave)
• Fixed subsonic filter (24 dB at 25 Hz)
• CEA-2006 compliant amplifier
• Frequency response: 25-200 Hz

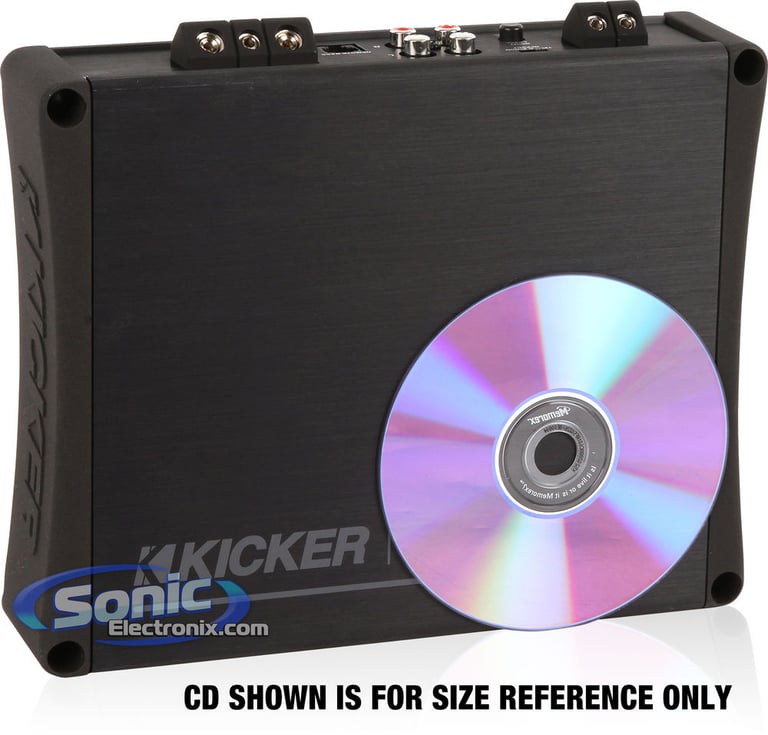

• Dimensions: 9-3/8"L x 7-7/8"W x 2-3/16"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Item is a part of Kicker ProFit Group
• Authorized Internet Dealer
• 2-year Manufacturer's warranty

Extend your Kicker warranty to 3 Years when you install your new Kicker amplifier with a compatible Kicker power kit! For a limited time, you can register your Kicker amplifier and power kit to qualify for an additional year of coverage. This offer is only available through official Kicker dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: Kicker 09PK4, Kicker 05CK4, Kicker 09ZCK4. and Kicker 09PKD1.

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance

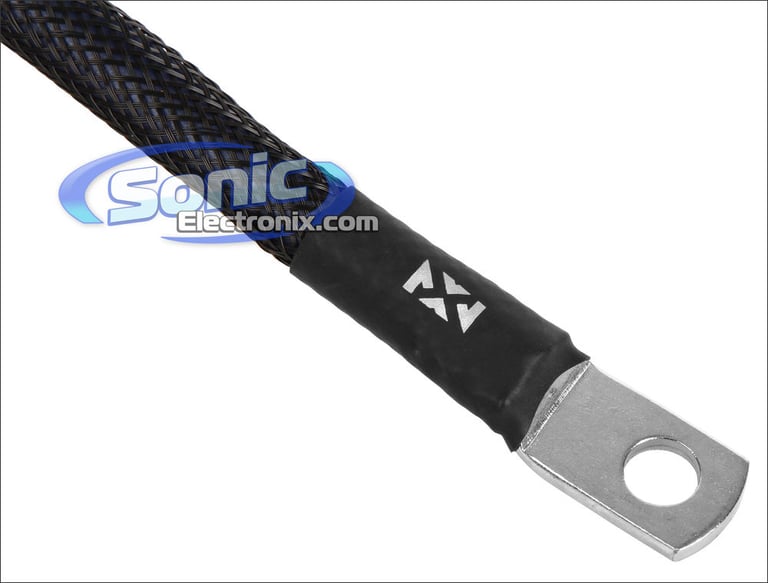

• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems

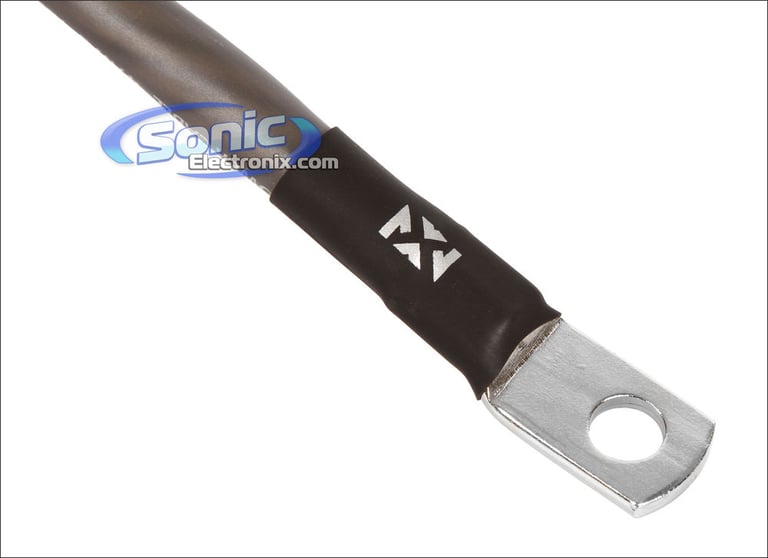

• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant

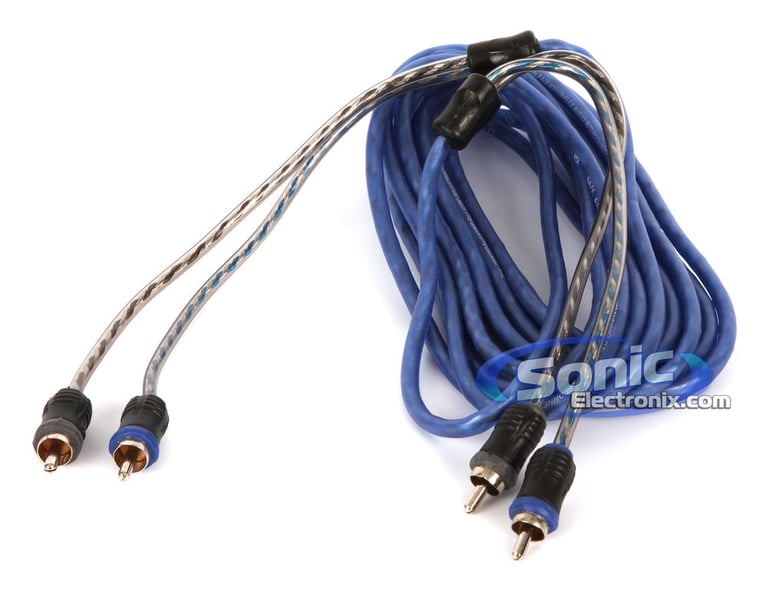

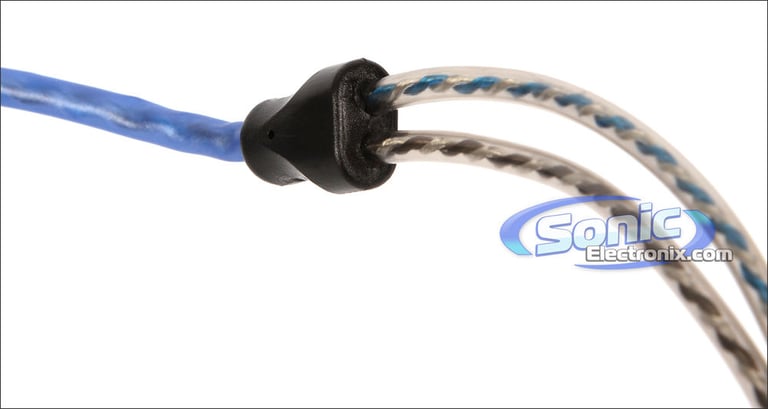

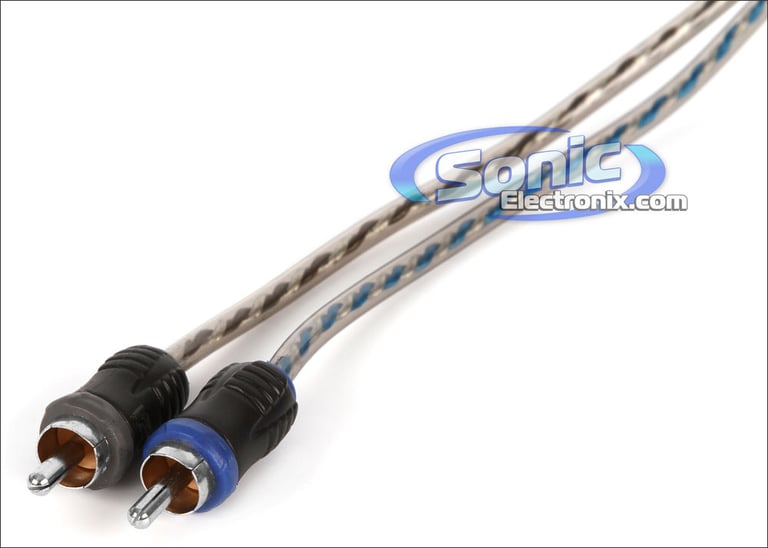

• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

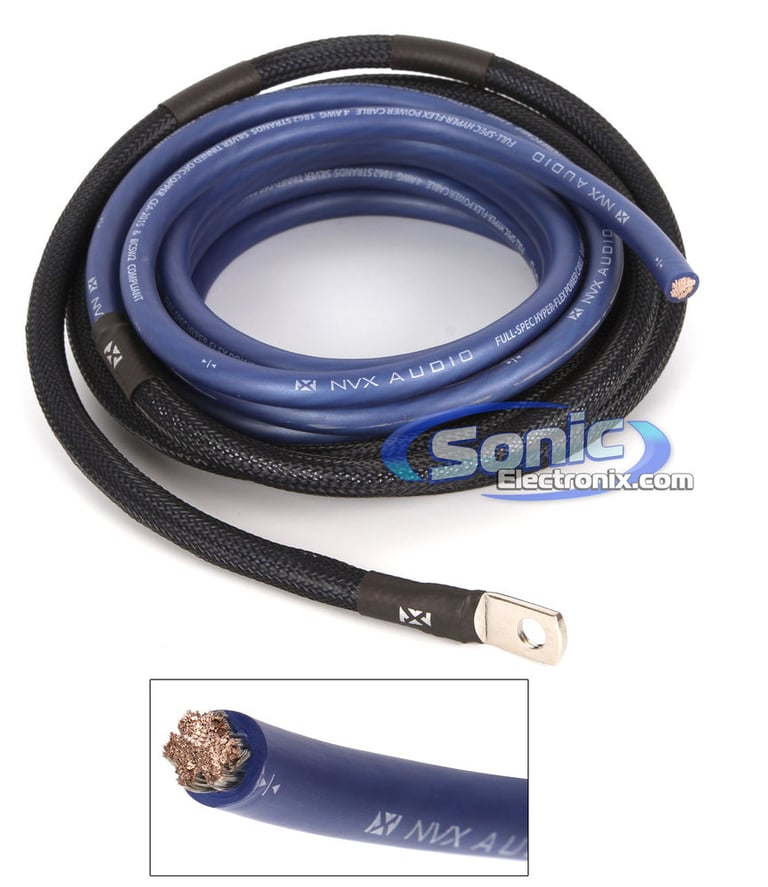

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

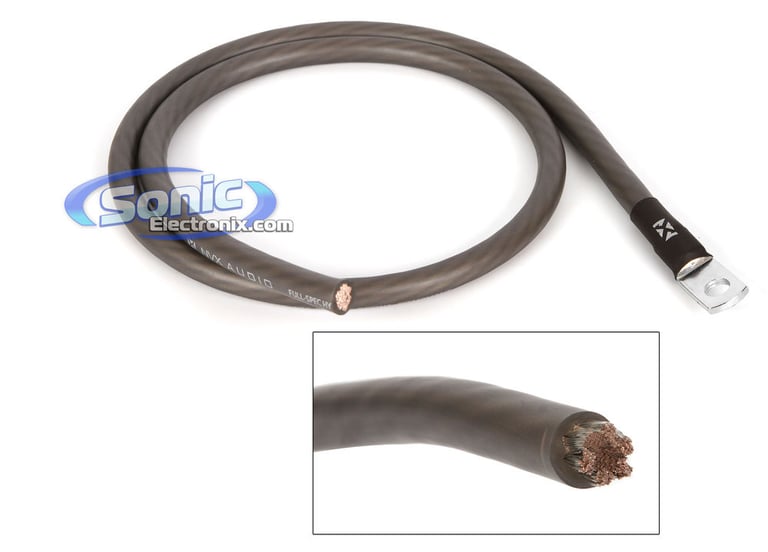

2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

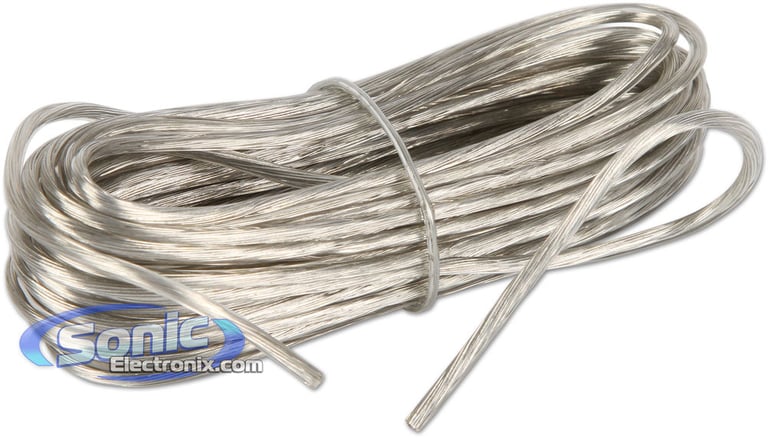

3. 17 ft. Clear 18 gauge remote lead wire

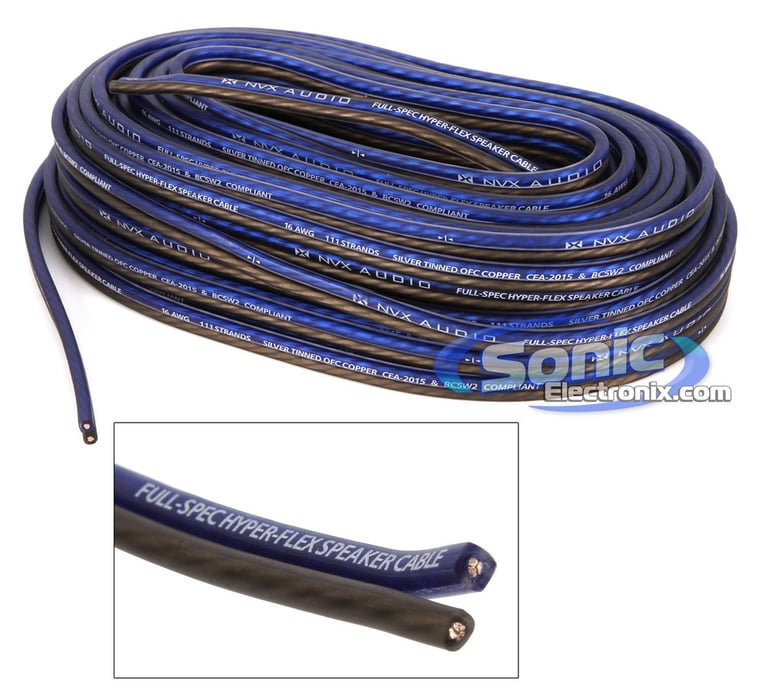

4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

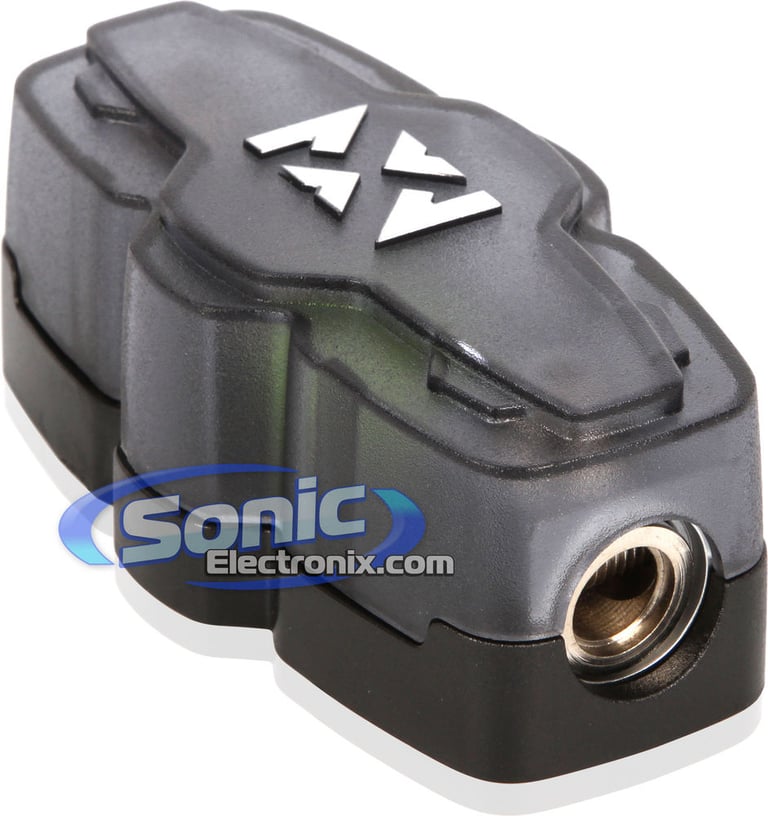

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse

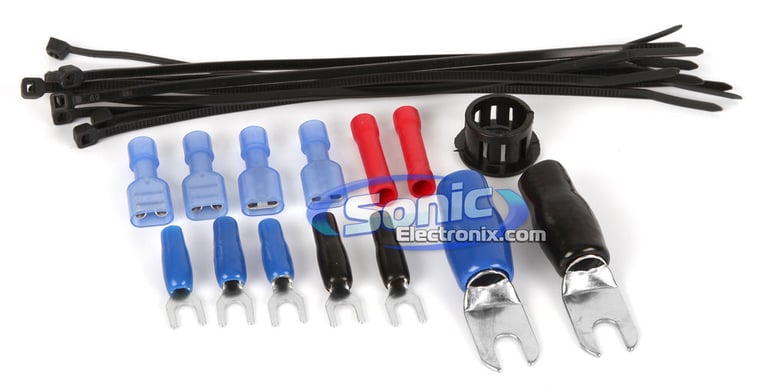

7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
