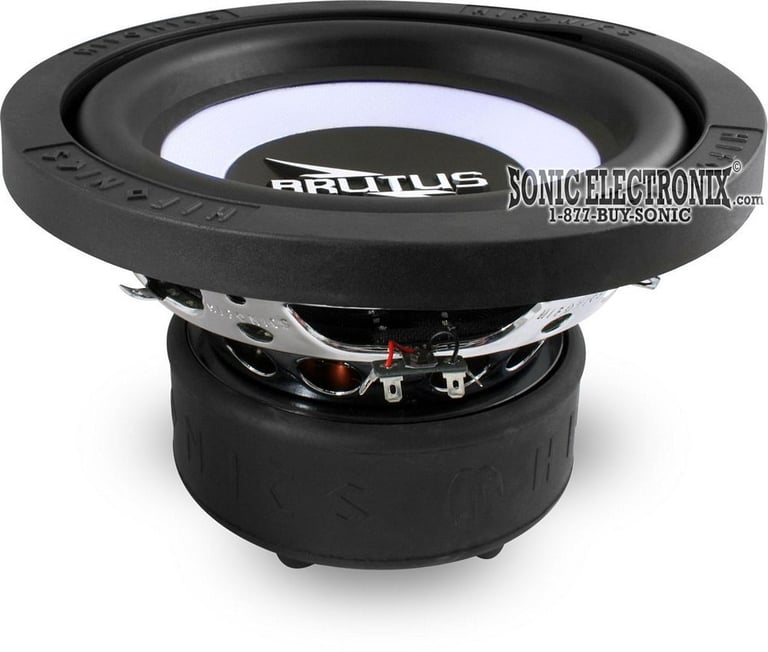

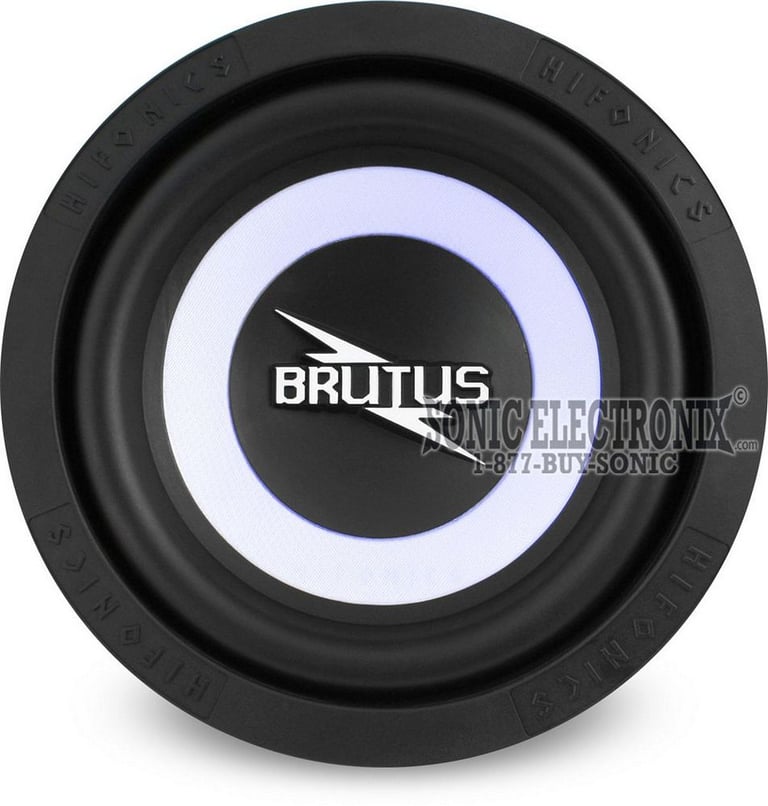

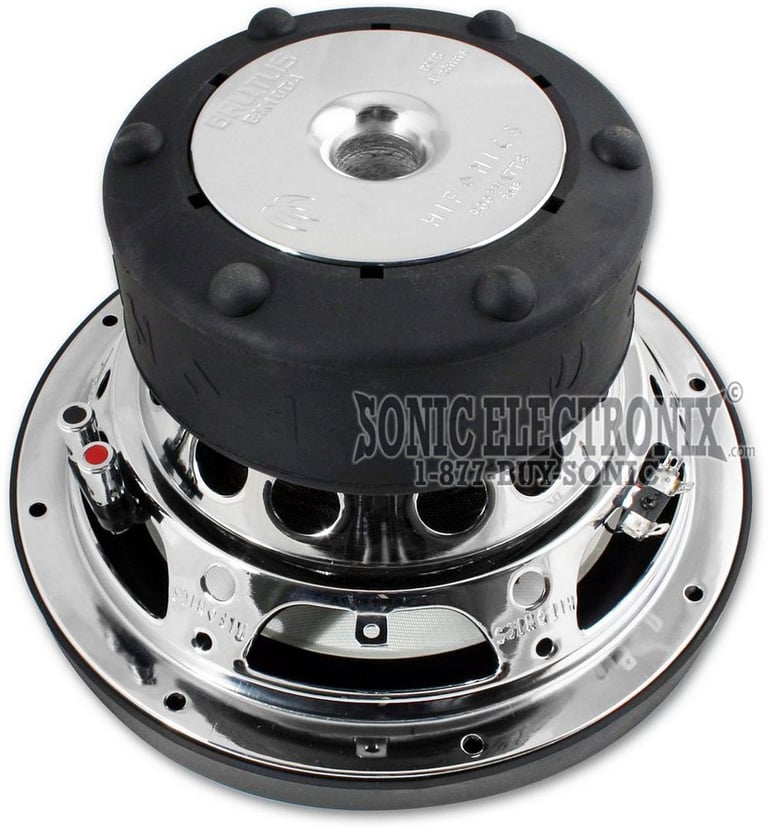

Hifonics BX10D4

Brutus Series Dual 4 ohms 10" Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

500-Watts RMS / 1000-Watts Max • Dual 4 ohm 10" Subwoofer • 100z. Double-Stack Magnet • Woven Glass-Fiber Layered Composite Cone • 1" Tall NBR Reinforced Rubber Surround • Sensitivity 91.37dB

Learn more about the bx10d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

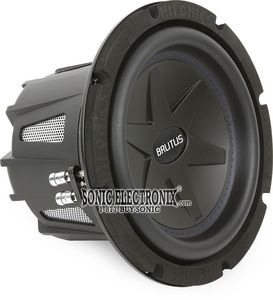

b10d4 thumbnail

Hifonics Brutus B10D4

OUR PRICE: $69.99

View item

Loading...
BE423 main

Boss Elite BE423

450W Peak 4" Rage Series 3-Way Coaxial 4-ohm Car Speakers with Blue LED Light

-17.91%

$54.99

List price $66.99

Product Highlights


500-Watts RMS / 1000-Watts Max • Dual 4 ohm 10" Subwoofer • 100z. Double-Stack Magnet • Woven Glass-Fiber Layered Composite Cone • 1" Tall NBR Reinforced Rubber Surround • Sensitivity 91.37dB

Description


Hifonics brand icon

Authorized dealer

  • 500-Watts RMS / 1000-Watts Max
  • Dual 4 ohm 10" Subwoofer
  • Illuminated Brutus Speaker Cone
  • Huge 100z. Double-Stack Magnet Assembly
  • 2.5-inch 4-Layer Hi-Temp Aluminum Voice-Coils
  • Woven Glass-Fiber Layered Composite Cone
  • Integrated One-Piece Spider- Tinsel Lead Design
  • White Chrome Steel Speaker Frame with Rubber Front Gasket
  • 1" Tall NBR Reinforced Rubber Surround
  • Rubber Magnet Boot
  • Ported Nickel Plated Back-Plate for Heat Dispersion
  • Nickel Plated Push & Insert Terminals
  • Nomex Spider-Assembly
  • For Vented And Sealed Enclosure Designs
  • Sensitivity 91.37dB
  • 1-year SonicElectronix.com warranty

Product history:

Hifonics B10D4 thumbnail
(newest, current model)
Hifonics BX10D4 thumbnail
(previous model, replaced by Hifonics Brutus B10D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics BX10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics BX10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics BX10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics BX10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
91.37 dB
Xmax (millimeters)
15 mm
Woofer Composition
Woven Glass-Fiber
Woofer Surround
NBR Reinforced Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5.5"

Item Details


Manufacturer:

Model Number:

BX10D4

Weight:

20.00lbs

Internal SKU:

bx10d4

Internal Product ID:

7977
