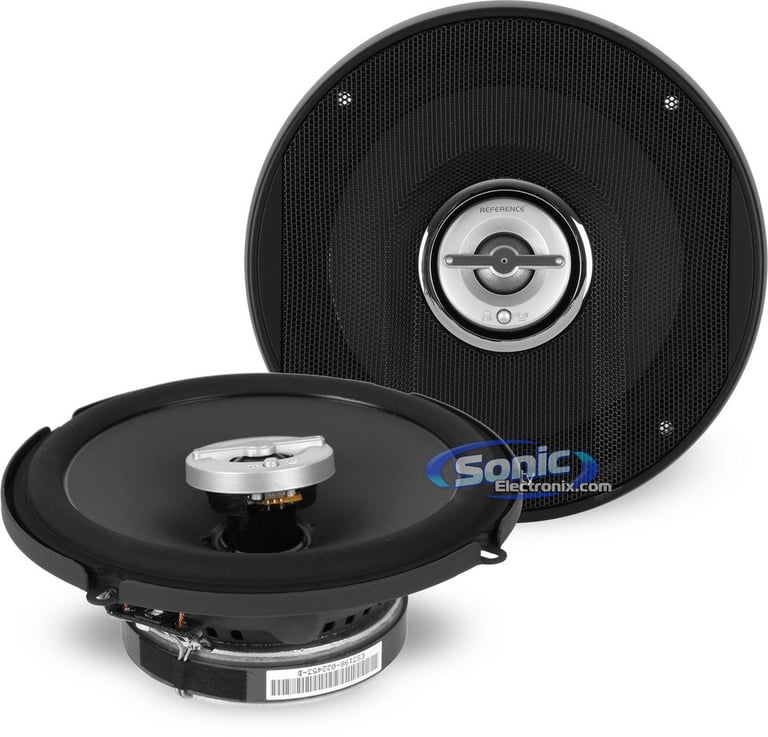

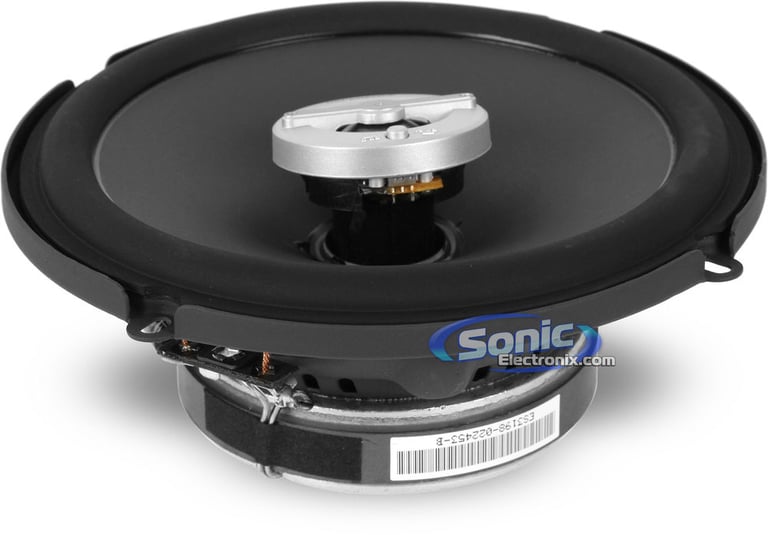

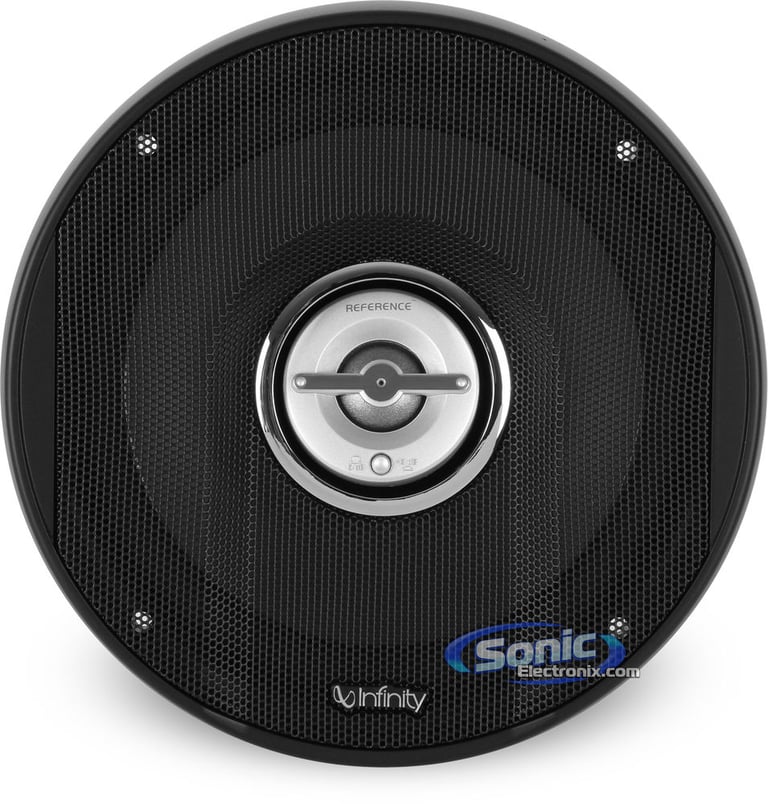

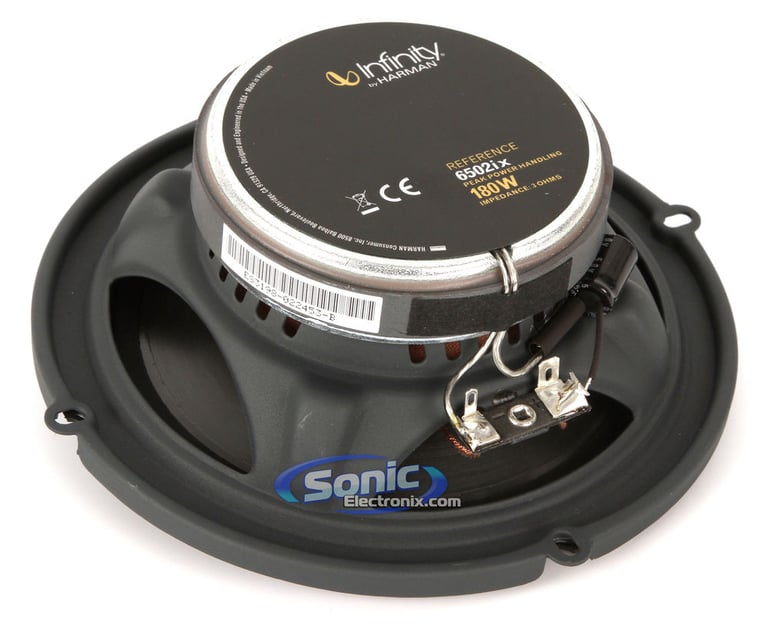

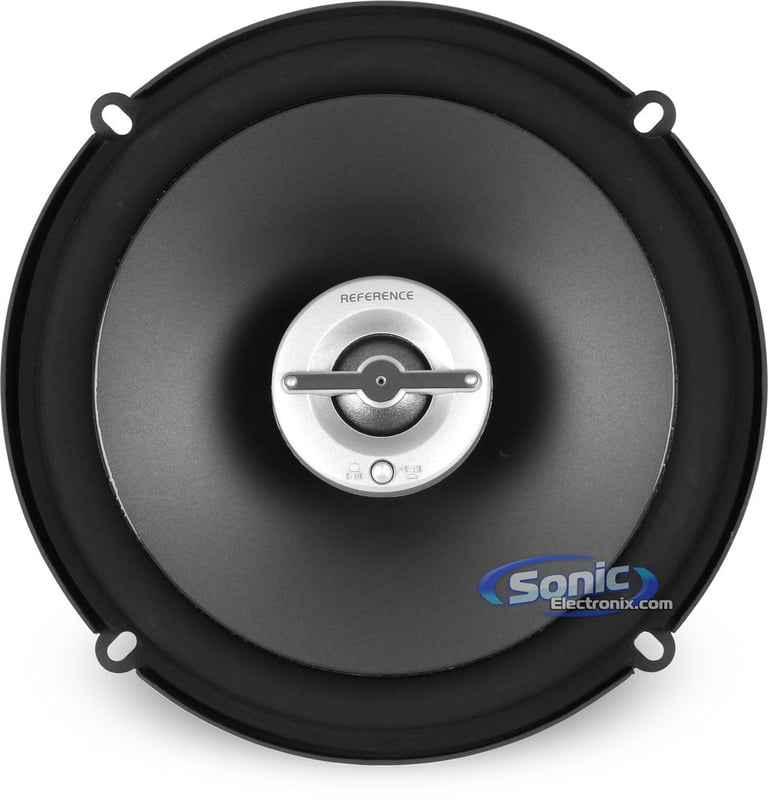

Infinity REF-6502ix (Open Box)

120W 6.5" 2-Way Reference-X Series Coaxial Speakers w/ Edge Driven Tweeters

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• Peak Power: 360W
• RMS Power: 120W
• 1" Edge-Driven Textile Dome Tweeter
• Mounting Depth: 2-1/16"
• Silver Alpha-Cellulose Cone
• 3 Ohm Impedance
• Sensitivity: 93dB

Learn more about the ls-ref-6502ix-ob

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• Peak Power: 360W
• RMS Power: 120W
• 1" Edge-Driven Textile Dome Tweeter
• Mounting Depth: 2-1/16"
• Silver Alpha-Cellulose Cone
• 3 Ohm Impedance
• Sensitivity: 93dB

Description


Infinity brand icon

Authorized dealer

True 4 Ohm Impedance

These speakers are specially designed with true 4ohm technology. The impedance of these speakers are 3ohms, but when you pair them with thin factory wiring, the impedance will naturally rise up to a true 4ohms resulting in a maximum amount of power draw from your 4ohm rated factory receiver, aftermarket deck, or external amplifier. What it comes down to is efficiency. If you need a speaker that will get the most out of your current sound system, the Reference X series is for you.

Plus One Cone Technology

Each of the Reference X speakers features plus one woofer cone technology. This means the cone has been designed to be slightly larger than comparable speakers, giving you even more output on the same amount of power. This drastically increases the efficiency of the speaker, and also extends the frequency response even lower to give you that nice thump you’ve been looking for.

The Reference of Audio

Want an easy upgrade for your factory speakers without going over your budget? The Infinity Reference X Series is for you. Its engineered to bring your factory audio system to life, or to add clarity and depth to an aftermarket system. With innovative, patented technologies, and the kind of premium quality and construction that you would expect from the worlds top-selling premium car speaker brand, Infinity Reference X speakers will transform your listening experience into something amazing.


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 6-1/2" Reference X Series 2-Way Car Speakers
  • Power Handling:
    • Peak: 360 watts per pair / 180 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Polypropylene cone material
  • Plus One woofer cone technology maximizes cone surface area
  • Butyl Rubber speaker surround
  • 1" edge-driven Textile Dome tweeter
  • Adjustable tweeter level attenuation

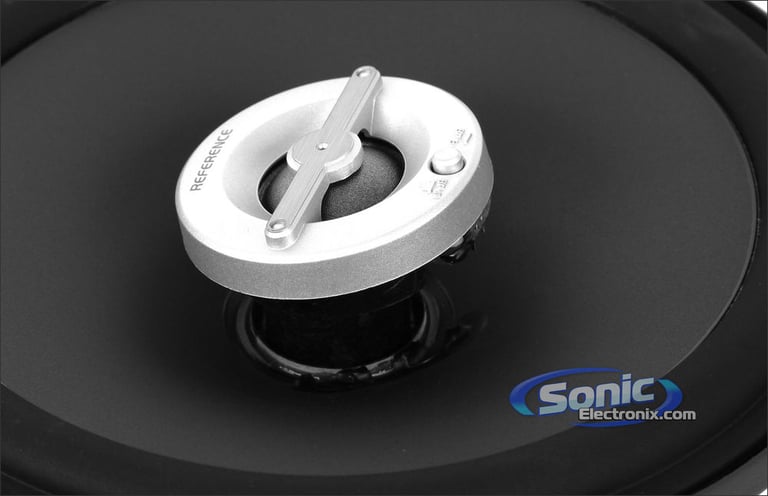

  • UniPivot tweeters allow you to direct the sound
  • High-temperature voice coil design
  • Ferrite magnet motor structure is vented for fast cooling
  • 3 ohm impedance works with all amps rated for 4-ohm operation
  • True 4 ohm technology incorporates speaker impedance with factory speaker wire impedance for maximum power
  • Protective speaker grilles included
  • Frequency response: 53-21,000 Hz
  • Top-mount depth: 2-1/16"
  • Sensitivity: 93dB
  • Authorized Internet Dealer
  • 3-year Manufacturer's Warranty

Priced Per Pair


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(122)

$79.96

List price $119.99

Club 622 small

JBL Club 622

• 180 watts Peak Each, 60 watts RMS Each
• Silk Edge Driven Dome tweeters with 0dB or -3dB adjustable output levels
• UV-Resistant Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 93 dB

(5)

$99.95

List price $139.95

43DSC6504 small

Kicker DSC650 (43DSC6504)

• 240 watts Peak Each, 60 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome zero-protrusion tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(28)

$84.99

List price $94.99

Specifications & Details


Speaker Specifications
Series
Reference-X Series
Priced Per
Pair
Speaker Size
6-1/2"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Size
1"
Tweeter Composition
Textile
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
180 watts
RMS Power Handling
60 watts
Sensitivity
93 dB
Frequency Response
53 - 21000 Hz
Impedance (Per Voice Coil)
3 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/16"
Cutout Dimensions
5-1/16" x 5-1/16"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LS-REF-6502ix-OB

Weight:

5.51lbs

Internal SKU:

ls-ref-6502ix-ob

Internal Product ID:

81260
