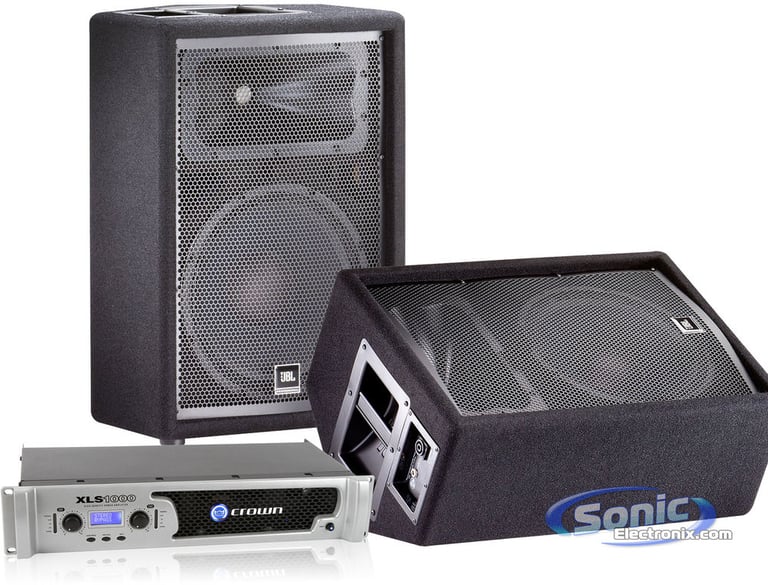

JBL JRX212 + XLS1000

A pair of 1000W 12" 2-Way Passive Stage Monitor Speakers and Stereo Power Amplifier

JBL
Shop all JBL
Product videos
highlight-star-icon

• World-class JBL Loudspeakers
• Legendary Crown Amplification
• For Live Performance Stage Monitoring Use
• Increases Efficiency And Power Handling

Learn more about the jrx212_xls1000

We apologize

This item has been discontinued


Loading...
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Limited time!
Club 422F main

JBL Club 422F (SPKCB422FAM)

210W Peak (70W RMS) 4" Club Series 2 Way Coaxial 3-ohm Speakers

-46.14%

$69.99

List price $129.95

H40 main

Cerwin-Vega H40

300W Peak (100W RMS) 4" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
Limited time!
46CSC44 main

Kicker CSC4 (46CSC44)

300W Peak (100W RMS) 4” CS Series 2 Way Coaxial 4-ohm Speakers

1
-29.45%

$59.96

List price $84.99

Club 44F main

JBL Club 44F (JBLSPKCB44F)

210W Peak (70W RMS) 4" Club Series 2 Way Coaxial 3-ohms Speakers

-23.09%

$99.95

List price $129.95

Product Highlights


• World-class JBL Loudspeakers
• Legendary Crown Amplification
• For Live Performance Stage Monitoring Use
• Increases Efficiency And Power Handling

Description


JBL brand icon

Authorized dealer

General Features:

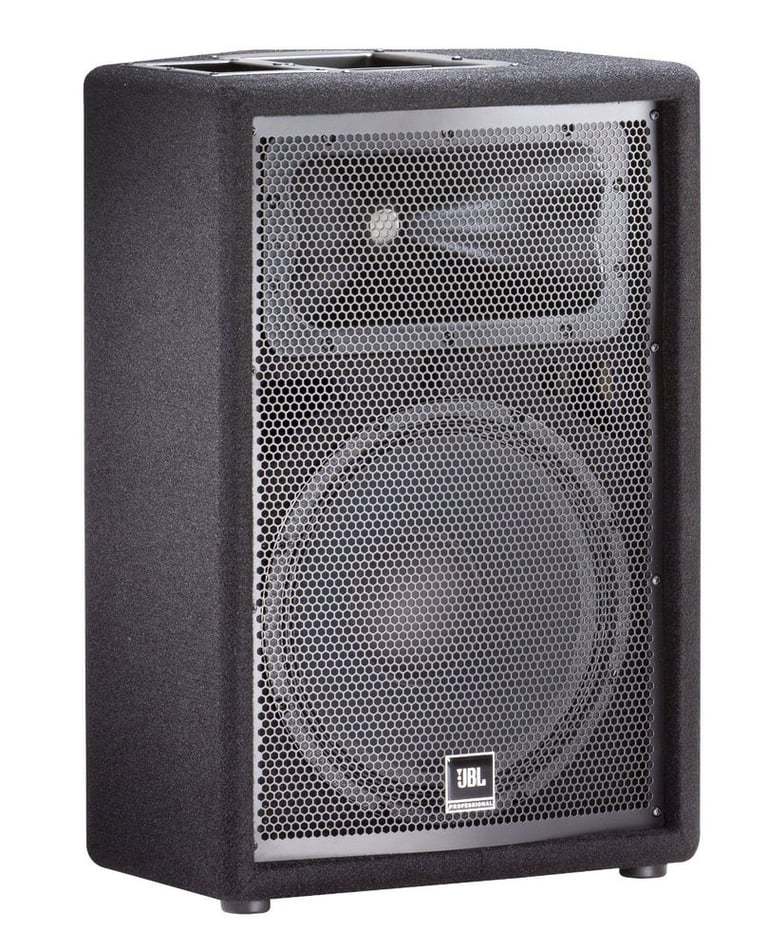

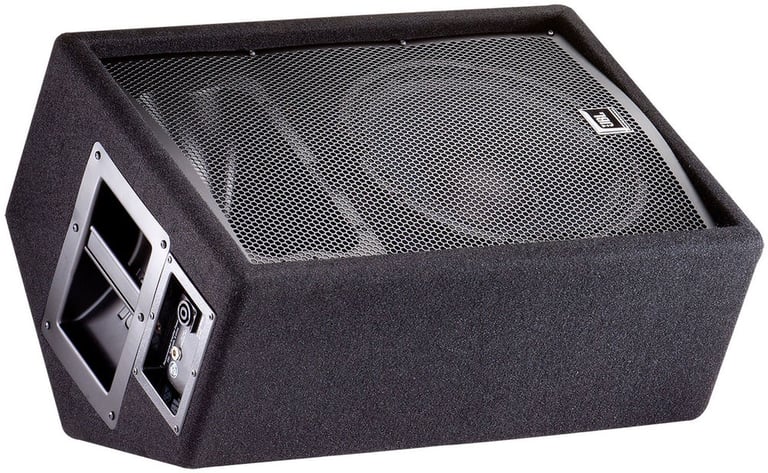

  • Portable 12" 2-way stage monitor loudspeaker system
  • Intended for live performance stage monitoring applications
  • Low frequency driver with a 2.5" edgewound ribbon voice coil
    • Provides additional cross sectional wire area
    • Increases efficiency and power handling
  • 25mm polymer diaphragm compression driver
    • Improves high frequency performance and overall reliability
  • Advanced network topology crossover design
    • Shapes frequency response
    • Delivers coherent summation in the crossover region
  • High voltage capacitors and inductors
    • Massive cores and heavy gauge wire
    • Enable the crossover network to handle high power without saturating

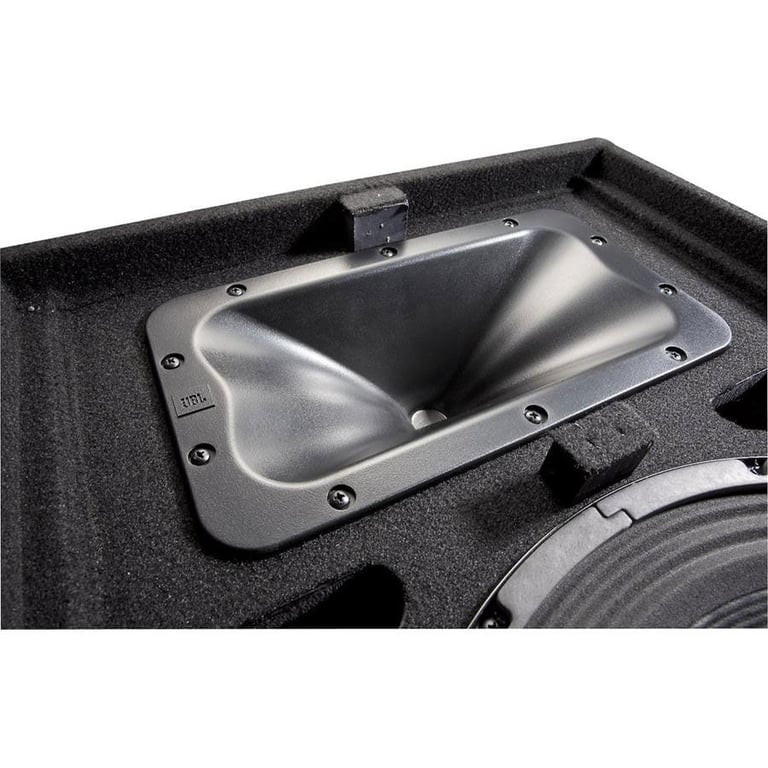

  • Progressive Transition™ high frequency waveguide provides
    • Superior coverage control
    • Reduced distortion
    • Smoother frequency response
  • SonicGuard™ protects the driver from excess power

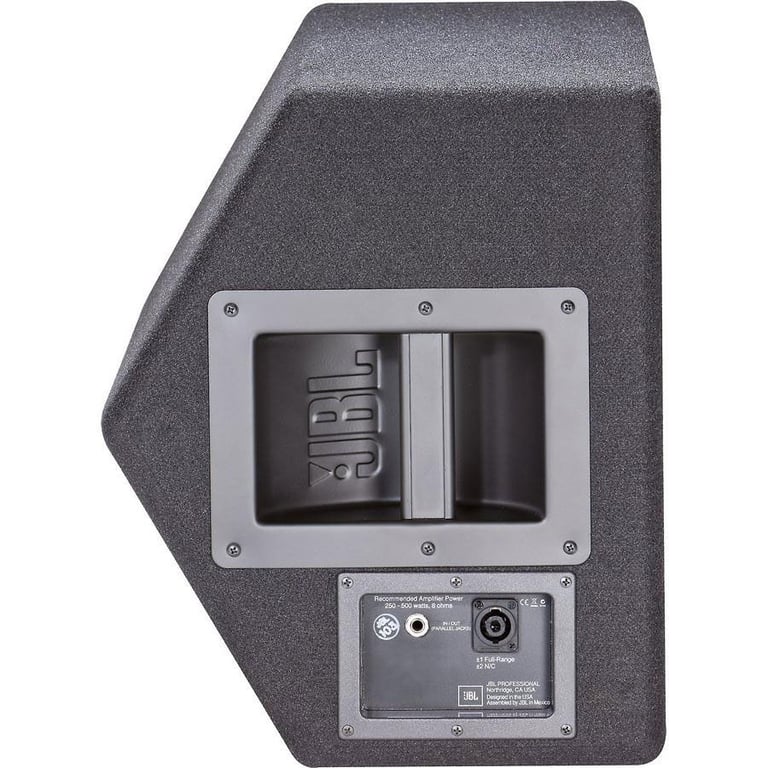

  • Input connectors:
    • Neutrik Speakon NL-4
    • 1/4" TS phone jack
  • Non-resonant steel handles for easy portability
  • Rugged acoustically superior enclosure
    • Constructed from 19mm (3/4") MDF
  • Dimensions: 12.8"W x 15.7"D x 23"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications

  • Peak Power Handling: 1000W
  • RMS: 250W
  • Frequency Response: 70-19,000 Hz
  • Sensitivity: 99dB
  • Impedance: 8 ohm
  • Maximum SPL: 129dB

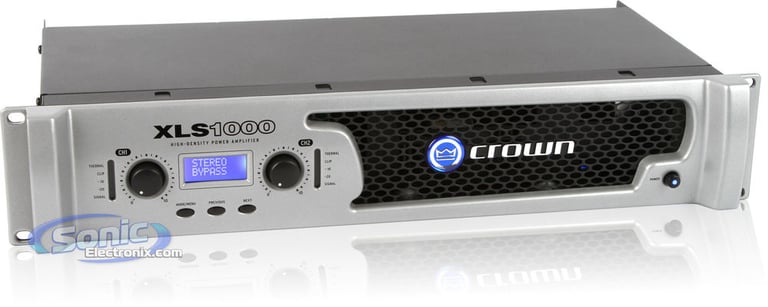

Crown Audio XLS 1000

1100W, 2 Channel DriveCore Stereo Power Amplifier
Quantity: 1

General Features:
  • XLS High Performance, Lightweight Class D Amplifier
  • RMS Power Rating:
    • 8 ohm: 215 watts x 2 chan.
    • 4 ohm: 350 watts x 2 chan.
    • 2 ohm: 550 watts x 2 chan.
    • Bridged, 8 ohm: 700 watts x 1 chan.
    • Bridged, 4 ohm: 1100 watts x 1 chan.
  • Integrated PureBand™ Crossover System for better performance and control
  • Peakx Limiters provide maximum output while protecting your speakers
  • XLR, 1/4", RCA inputs provide outstanding flexibility
  • Efficient forced-air fans prevent excessive thermal buildup
  • Electronically balanced XLR inputs; touchproof binding post and Speakon® outputs
  • Precision detented level controls, power switch, power LED, and six LEDs which indicate signal, clip and fault for each channel
  • 1-year Manufacturer's warranty
Specifications:
  • Sensitivity (for full rated power at 4 ohm): 1.4 Vrms
  • Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, –1 dB
  • Signal-to-Noise Ratio Rated as dBr to full rated 8Ω power output (A-Weighted):
    • XLS1000: > 97 dB
    • XLS1500, XLS2000, XLS2500: > 103 dB
  • Damping Factor (8 ohm) - 10 Hz to 400 Hz: > 200
  • Crosstalk (below rated 8Ω power):
    • At 1kHz: > 85dB
    • At 20kHz: >55dB
  • Input Impedance (nominal): 20 kΩ balanced, 10 kΩ unbalanced
  • Load Impedance:
    • 2 to 8 Ω per channel in Stereo
    • 4 to 8 Ω in Bridge Mono
  • AC Line Voltage and Frequency Configuration: 120 VAC 60 Hz
  • Ventilation: Flow-through ventilation from front to back
  • Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
  • Air Volume Requirements (per minute per unit): 80.15 ft³ (2.27 m³)
  • Integrated Processing:
    • PureBand™ Crossover System
    • Crossover Filter: Linkwitz-Riley 24dB per Octave
    • Crossover Frequency Range: 50 HZ - 3 kHz
    • Crossover Mode: Crossover (CH1=LPF, CH2=HPF), LowPass (both channels LPF), HighPass (both channels HPF), Bridge (LPF or HPF)
    • Peakx™ limiters: Channel independent clip limiter designed to provide maximum output while protecting your loudspeakers

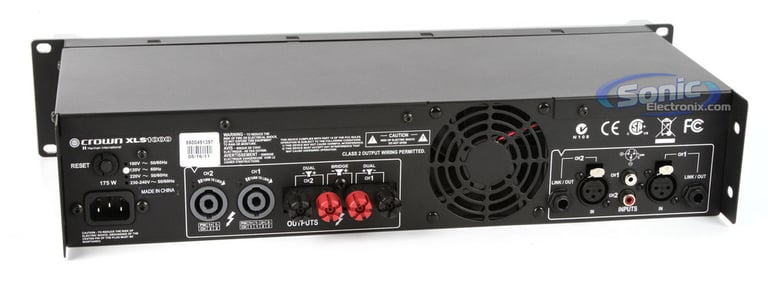

  • Input/Output:
    • Input Connectors: XLR (one per channel), 1/4-Inch (one per channel), and RCA (one per channel). 1/4-Inch connectors can be used as loop-thrus to distribute signal to additional amplifiers
    • Output Connectors: Two 4-Pole Speakon® Output Connectors accept 2-pole or 4-pole Speakon® connectors. The top Speakon connector is wired for both channels so it can be used for bridgemono wiring or for stereo wiring of two speakers to a single Speakon connector
    • One pair of back-panel binding posts per channel; accepts banana plugs or bare wire. (European models do not accept banana plugs.)
  • Construction:
    • XLS1000/XLS1500: 8.12-Inch (20.62cm) depth
    • XLS2000/XLS2500: 10.35-Inch (26.29cm) depth
  • Dimensions:
    • EIA Standard 19-inch (48.3-cm) rack mount width (EIA RS-310-B), 3.5-inch (8.9-cm) height.
    • XLS 1000/1500: 7.7-inch (19.6-cm) depth.
    • XLS 2000/2500: 10.7-inch (27.2-cm) depth.
  • Net Weight, Shipping Weight:
    • XLS1000: 8.6 lb (3.9kg), 13.6 lb (6.2 kg)
    • XLS1500: 8.6 lb (3.9kg), 13.6 lb (6.2 kg)
    • XLS2000: 10.75 lb (4.9kg), 15.8 lb (7.1 kg)
    • XLS2500: 10.75 lb (4.9kg), 15.8 lb (7.1 kg)

Item Details


Manufacturer:

JBL

Model Number:

JRX212 + XLS1000

Weight:

105.70lbs

Internal SKU:

jrx212_xls1000

Internal Product ID:

81297

Product and How-to Videos


Customer Ratings & Reviews


JBL JRX212 + XLS1000 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

great all around amp

The following review is for XLS1000, which is a part of the bundle you are viewing.

I am powering a hifonics brutus 12 inch sub i bought here with this amp, I like how it has the internal cross over so it works well with subwoofers. I also use the amp to power my mains in my dj sett up, the mids and highs are also great sounding when using this amp. the amp stays really cool, i have used it for hours and it is never even warm, i have used it for outdoor gigs too, and it still stays cool. The amp is also really light weight so it made my amp rack way lighter(my old amp weighed almost 40 lbs).

By dj Andrew on August 22, 2011

8 found this helpful


Highly reccomend

The following review is for XLS1000, which is a part of the bundle you are viewing.

Great value for the money. Very easy to use.

By Soundguy on September 16, 2014

4 found this helpful


Crown XLS 1000

The following review is for XLS1000, which is a part of the bundle you are viewing.

I am using the XLS 1000 for mid and high range in my workshop. I am a speaker building hobbyist and the Crown XLS line of products offers the input/output flexibility I need. Unlike a lot of pro audio amplifiers, the XLS line (I am currently using 2 XLS1000, 1 XLS2000 and 1 XLS2500) is hiss free even with the gains set high. I have read past reviews that mention fan noise, but I have not been able to hear the fans of my amps even after a long period of use at or near their limits. You will not find a more reliable amp with this kind of performance and feature set in their price range.

By JD on December 15, 2012

4 found this helpful
