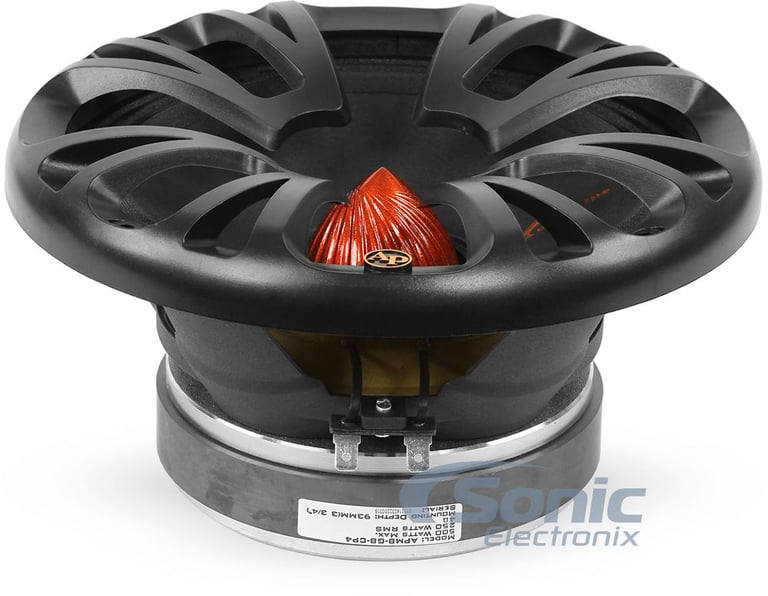

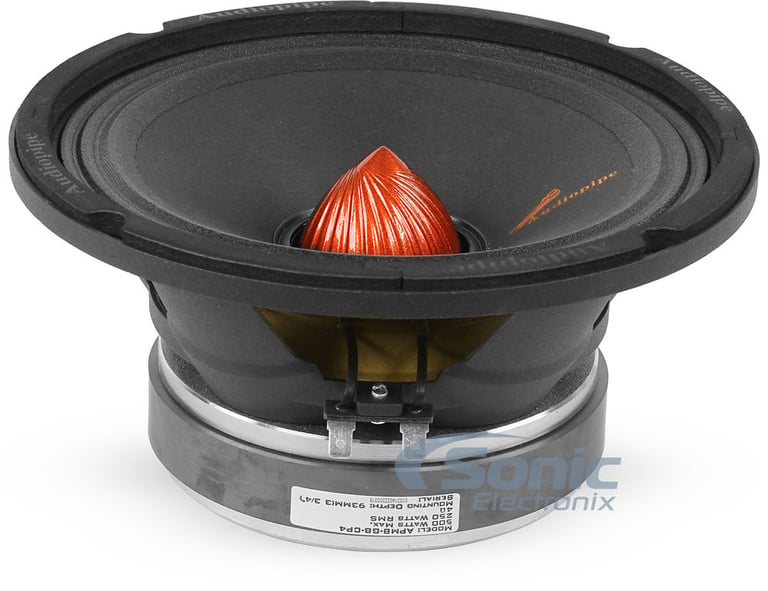

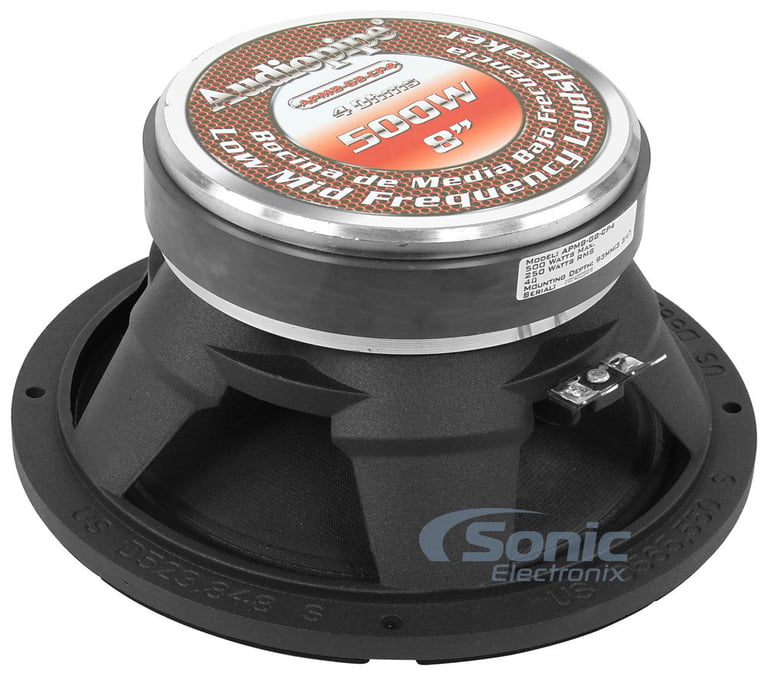

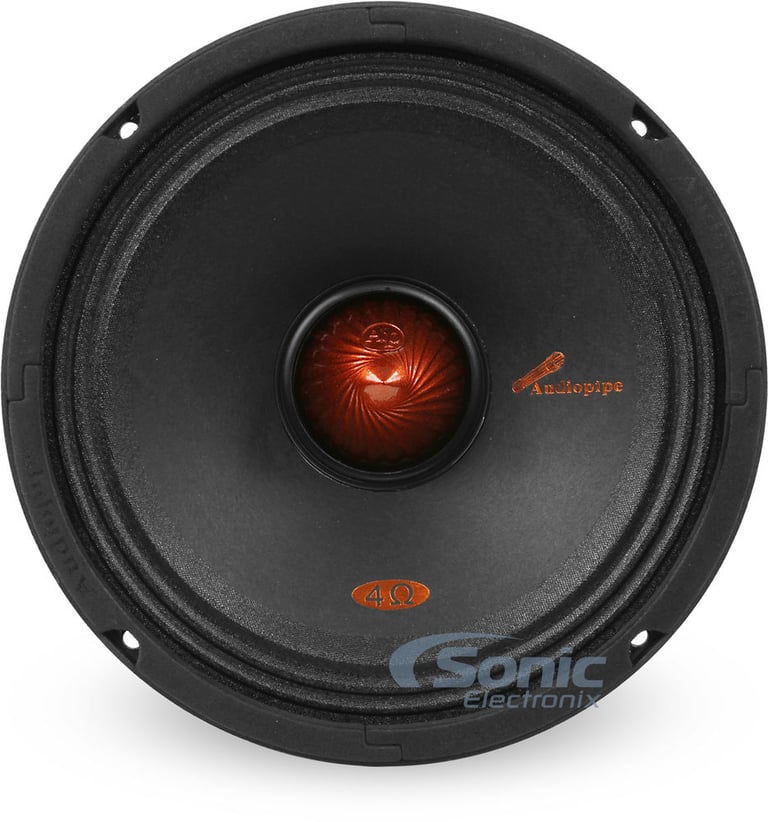

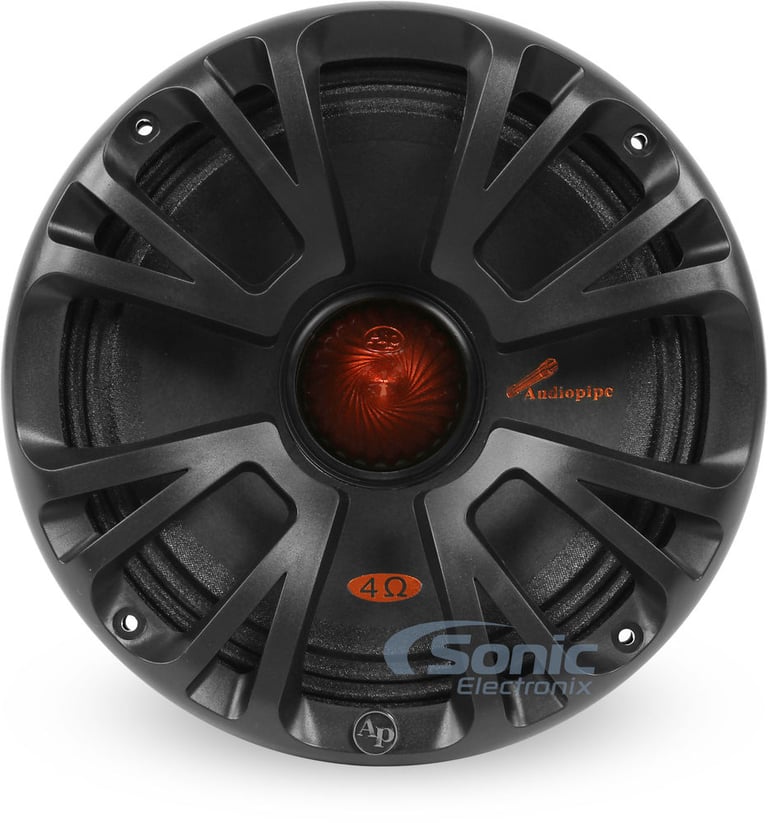

Audiopipe APMB-G8-CP4

500W 8" APMB Series Midrange Driver

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 500W • RMS Power: 250W
• Low Mid Frequency
• Mounting Depth: 3-3/4"
• 35 Oz. Magnet
• Includes Speaker Grills
• Sensitivity: 96dB
• Bullet Dust Cap

Learn more about the apmbg8cp4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

70-7552 main

Metra 70-7552 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Nissan, Subaru, Suzuki

35
-15.40%

$10.99

List price $12.99

40-SB10 main

Metra 40-SB10

Antenna Adapter for select 2005-2025 vehicles from Subaru

7
-26.68%

$10.99

List price $14.99

SBK927 main

American International SBK927

Single DIN or Double DIN Stereo Dash Kit for select 2012-2015 vehicles from Subaru

2
-70.39%

$15.99

List price $54.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-25.50%

$298.00

List price $399.99

Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Product Highlights


• Peak Power: 500W • RMS Power: 250W
• Low Mid Frequency
• Mounting Depth: 3-3/4"
• 35 Oz. Magnet
• Includes Speaker Grills
• Sensitivity: 96dB
• Bullet Dust Cap

Description


Audiopipe brand icon

Authorized dealer

Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the G8-CP4 speaker with an incorporated phase plug to provide quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's G8-CP4 speaker features a light weight yet incredibly stiff paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.


General Features:

  • 8" APMB Series Midrange Driver
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • High quality paper cone
  • Corrugated surround
  • Includes speaker grills to protect the speaker
  • Heavy duty 35 oz. magnet
  • Durable 2" TIL voice coil
  • 4 ohm impedance
  • Frequency Response: 65-6,000 Hz
  • Top-mount Depth: 3-3/4"
  • Mounting Diameter: 7-1/4"
  • Sensitivity: 95dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • FS (Free Air Resonance): 85 Hz
  • RE (DC Resistance): 3.6 ohm
  • Le (Voice Coil Inductance): 0.36 mH
  • QMS (Mechanical Q Value): 6.5
  • QES (Electrical Q Value): 0.38
  • QTS (Total Speaker Q Value): 0.36
  • VAS (Equivalent Compliance): 9.3 L (0.32 cu ft.)
  • Xmax (One-Way Linear Excursion): 1mm (0.04")
  • F3 (for Sealed Enclosure):
    • 0.3 cu ft.: 96 Hz
    • 0.61 cu ft.: 90 Hz
  • F3 (for Vented Enclosure):
    • 0.39 cu ft.: 79 Hz

Priced Per Speaker


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00


Best selling similar products

PH654 small

Cerwin-Vega PH654

• 300 watts Peak Each, 150 watts RMS Each
• Polymide Horn Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101 dB

(2)

$189.99

List price $227.99

CVP8 small

Cerwin-Vega CVP8 (Sold Individually)

• 350 watts Peak, 170 watts RMS
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$49.99

List price $59.99

AP-M61SE Pro small

Deaf Bonce Apocalypse AP-M61SE Pro

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102.80 dB

$119.90

List price $143.99

PRO-X12MBASS small

DS18 PRO-X12MBASS (Sold individually)

• 1000 watts Peak Each, 500 watts RMS Each
• Paper cone material
• Impedance: 8 ohm
• Sensitivity: 96 dB

$131.95

List price $131.95

10MB800FT small

PRV Audio 10MB800FT

• 1600 watts Peak Each, 800 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 8 ohm
• Sensitivity: 99 dB

$129.91

List price $162.39

EPICPRO8X small

AudioControl EPICPRO8X

• 350 watts Peak Each, 250 watts RMS Each
• Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99.2 dB

$129.00

List price $129.00

PRO-X6.4BMPK small

DS18 PRO-X6.4BMPK

• 500 watts Peak Each, 250 watts RMS Each
• 1" Aluminum Bullet super tweeters with ferrite magnets
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(4)

$139.95

List price $139.95

HCCA64N small

Orion HCCA64N

• 1400 watts Peak Each, 350 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99 dB

$219.95

List price $263.99

VPRO65 small

NVX VPRO65 (Sold Individually)

• 450 watts Peak Each, 225 watts RMS Each
• 1" Aluminum Bullet tweeter
• Competition Grade Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

(4)

$74.99

List price $82.99

CVMPCL8.0 small

Cerwin Vega CVMPCL8.0 (Sold Individually)

• 400 watts Peak Each, 200 watts RMS Each
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$139.99

List price $167.99

Specifications & Details


Speaker Specifications
Series
APMB Series
Priced Per
Each Speaker
Speaker Size
8"
Design
Mid-range
Woofer Composition
Paper
Woofer Surround
Corrugated
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Sensitivity
95 dB
Frequency Response
65 - 6000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
3-3/4"
Cutout Dimensions
7-1/4"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMB-G8-CP4

Weight:

8.60lbs

Internal SKU:

apmbg8cp4

Internal Product ID:

81713
