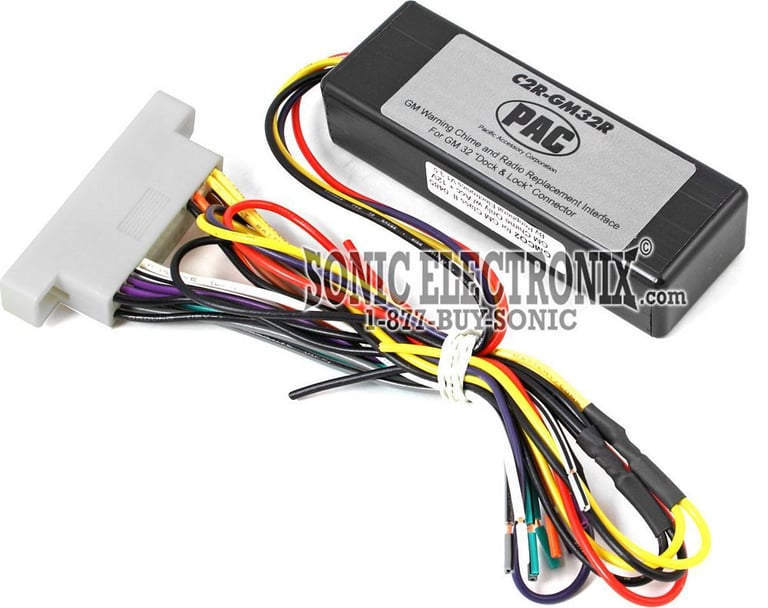

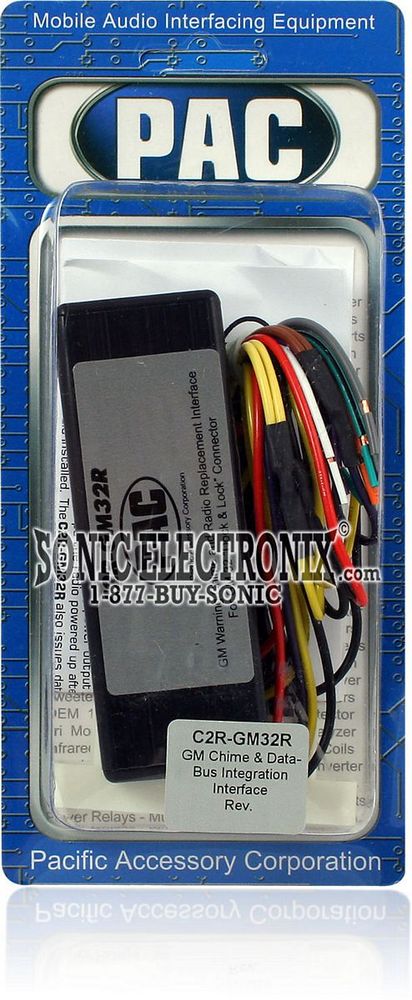

PAC C2R-GM32R

GM Warning Chime and Radio Replacement Interface for Select GM 32 "Door and Lock" Connector

PAC
Shop all PAC
highlight-star-icon

• C2R-GM32R Enables Aftermarket Radio Installation Without Retention Of Factory Radio

Learn more about the c2rgm32r

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

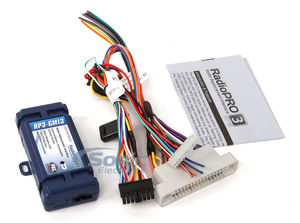

rp3gm13 thumbnail

PAC RP3-GM13 Wiring Interface

OUR PRICE: $89.99

View item

Description


PAC brand icon

Authorized dealer

C2R-GM32R enables aftermarket radio installation without retention of the factory radio, replicates factory warning chime, provides a data-bus generated 12-volt accessory power output that is fully compatible with GM's Retained Accessory Power(RAP) system. RAP keeps the radio powered after key-off, just like the factory system. The C2R-GM32R also issues data commands that maintain a "Healthy" system status to other vehicle systems. Works with Bose® or non-Bose® vehicles. Applications: 2000-2005 Buick LeSabre; 2000-2005 Pontiac Bonneville; 2001-2003 Oldsmobile Aurora

General Features:

  • Retains all the warning chimes for the vehcle (back-up chimes, memory seats, low fuel, door/hatch ajar, etc)
  • Includes the 12V accessory wire
  • Retains the retained accessory power (R.A.P)
  • Supplies the wire harness to connect to an aftermarket factory speakers

Compatibility List:

  • Buick:
    • 2000-2005 LeSabre
  • Pontiac:
    • 2000-2005 Bonneville
  • Oldsmobile:
    • 2001-2003 Aurora

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)

Product history:

PAC RP3-GM13 thumbnail
(newest, current model)
PAC C2R-GM32R thumbnail
(previous model, replaced by PAC RP3-GM13 Wiring Interface)

Specifications & Details


Harness Features
Main Harness Function
Connect/Install an Aftermarket Car Stereo
Additional Harness Features
Chime Retention
Provides Parking Brake & Reverse Signals
Provides Vehicle Speed Sense
Retained Accessory Power (RAP) Retention
Premium Harness Features
Chime Retention
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

PAC

Model Number:

C2R-GM32R

Weight:

0.39lbs

Internal SKU:

c2rgm32r

Internal Product ID:

8331

Customer Ratings & Reviews



5 star
60%
4 star
0%
3 star
20%
2 star
0%
1 star
20%



Durability
3.6
Value
3
Features
3
Design
3.4
Usability
3.6

Customer Reviews

Sort by:

Loading...

worked as advertised

installation was very simple, just match the colors of the wires its as simple as that, installed on a 2000 bonneville and worked perfectly the first time.

By sterks on June 11, 2010

27

found this helpful.

Works Great!

Installed in 2004 Pontiac Bonneville. Works Great! The Chime can be loud or quiet, depending which way the box is facing, it has an awkward ding, kind of has an echo to it. I didnt like the noise, so i covered the hole with some electrical tape, and it is much quieter.

By Anonymous on January 14, 2012

25

found this helpful.

Chime box

Works great except it is really loud and sounds like someone is strangling a cat. I am going to wrap it in electrical tape to try to muffle it just a bit.

By Sevedog on May 5, 2011

24

found this helpful.

No problems

I've been using this in a 2003 Pontiac Bonneville with an Alpine head unit. I tried another unit first, but it didn't work for me. One consideration is that the chime isn't very loud, but I consider that a good thing.

By Brent on January 2, 2011

24

found this helpful.

Mine was defective and has been returned

I would not recommend this product based solely upon my own experience. The device worked as advertised at first. It tested well before the finished installation. However, within a week it began to shutdown the head unit for no reason. At first, I suspected a connection issue so I pulled everything part and verified the wiring. I tightened all the connections and reassembled my dash only to have it quit repeatedly. I replaced the unit with a similar device available at Sonic.

By Barry on May 11, 2012

21

found this helpful.
