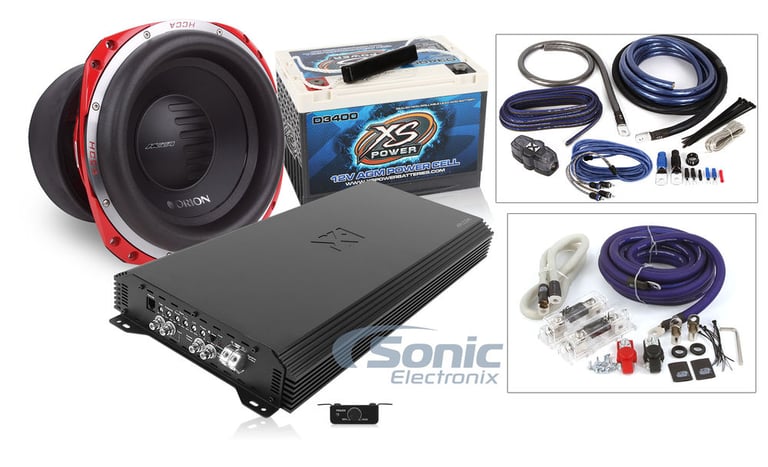

2000 Watt HCCA Bass Package

Product Details:

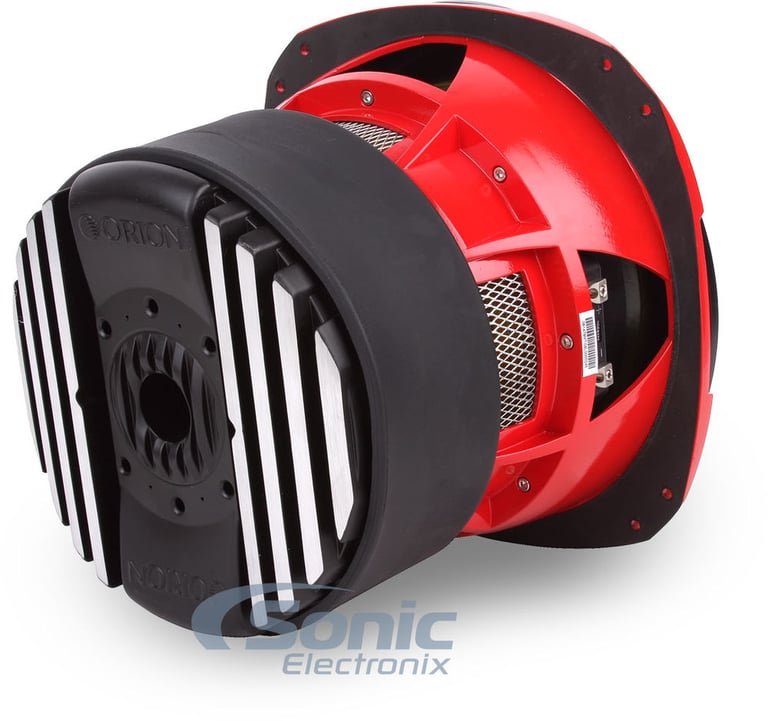

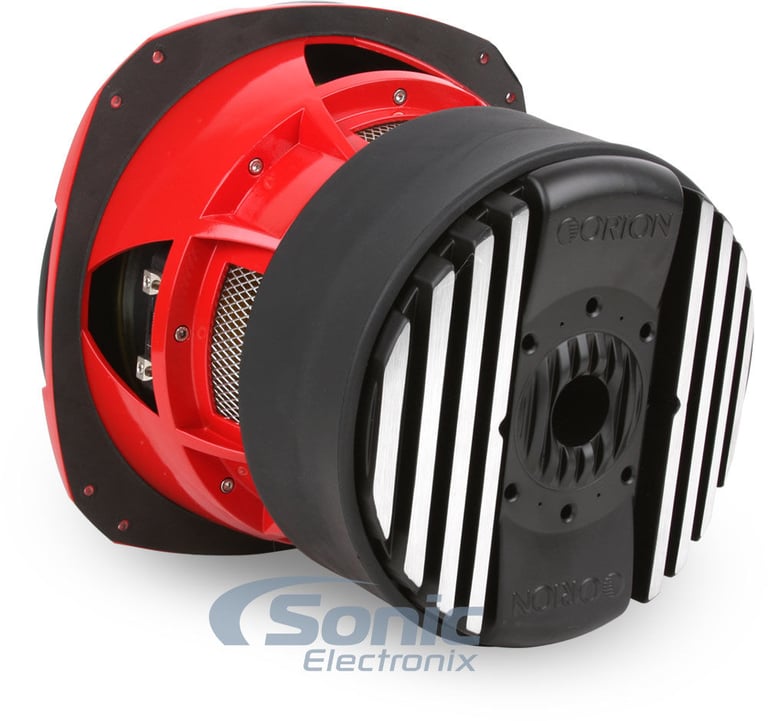

• 12" Dual 2 ohm HCCA Series Subwoofer
• Power Handling:
• Peak: 10000 watts
• RMS: 2500 watts
• Moisture and UV-resistant Paper cone
• Nitrile Butadiene Rubber (NBR)-Foam surround
• Moisture and UV-resistant Polypropylene dust cap
• Tri-radius symmetrical edge design optimized on non-linear FEA
• Custom cast Aluminum frame
• 4" high-temperature Copper-Clad Aluminum voice coil
• Enhanced voice coil cooling system with gap vents
• Screen meshed areas to allow venting below spider
• Cast aluminum top pole piece heat sink with fins and vent hole
• Top flat interlaced Conex spider
• Bottom flat interlaced Conex spider with stitched and looped tinsel leads attached
• 30.1875 mm Xmax
• 445 oz. Triple Stacked Ceramic magnet motor structure
• One pair (each side) of custom Allen head screw terminals
• Frequency Response: 24 - 100 Hz
• Resonance Frequency (Fs): 32.3 Hz
• Sensitivity: 84.22 dB
• Recommended sealed box volume: 2.2 cubic feet
• Recommended ported box volume: 2.5 cubic feet
• Top-mount depth: 10.28"
• Cutout diameter: 11.5"
• Orion HCCA122RK recone kit sold separately
• Authorized Internet Dealer
•


  Priced Individually

General Features:

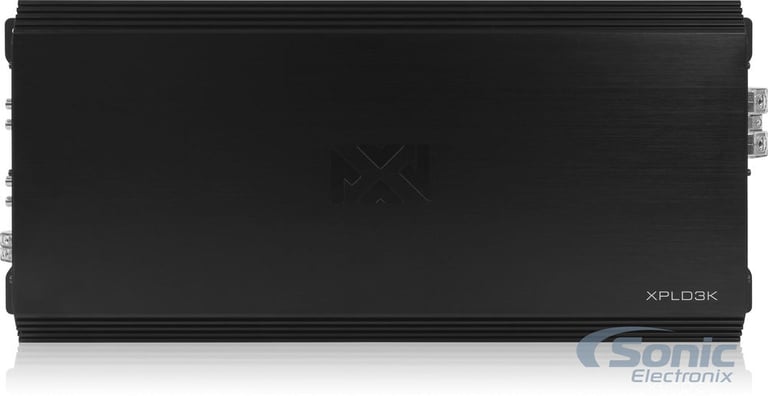

• Class D Monoblock Amplifier with Bass Remote
• RMS Power Rating:
• 4 ohm: 1020 watts x 1 chan.
• 2 ohm: 1900 watts x 1 chan.
• 1 ohm: 3000 watts x 1 chan.
• Sonic Electronix Certified Power Rating*:
• 4 ohm: 1024 watts x 1 chan.
• 2 ohm: 1857 watts x 1 chan.
• 1 ohm: 2837 watts x 1 chan.
• Dual Pulse Width Modulated (PWM) MOSFET power supply
• Wired remote bass level control included
• Mono channel operation
• Master and slave input to combine multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Variable subsonic filter (10-30 Hz, 24 dB/octave)
• Variable low-pass filter (30-250 Hz, 24 dB/octave)
• Input Sensitivity: 200mV-6V
• Frequency response: 10-350 Hz
• Heavy duty aluminum alloy heat-sink
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• LED power (green) and protect (red) indicators
• Heavy duty copper layer double sided epoxy PCB
• 0/1 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
• Dimensions: 10"W x 20.5"L x 2.5"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK0, NVX XAPK1D, or NVX XKIT02

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Product Details:

• 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 3000 watts RMS

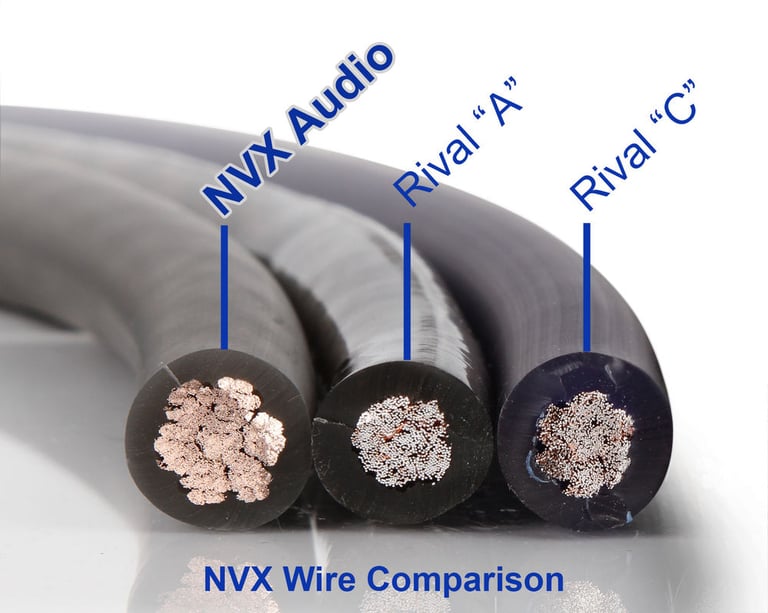

• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant

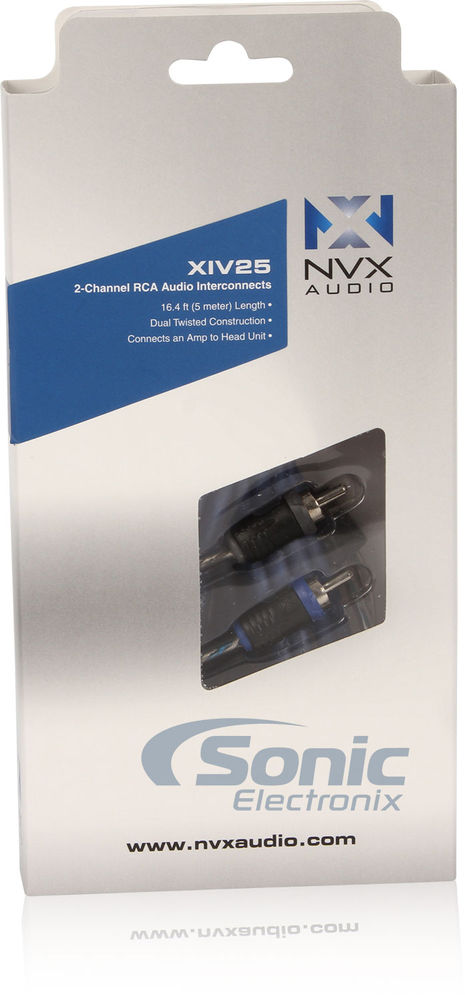

• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 1/0 Gauge Nickel Plated ring terminals
9. Four 12 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Two Heat Shrink tubes with the NVX logo
12. Ten 6" Black zip ties

Battery Features:

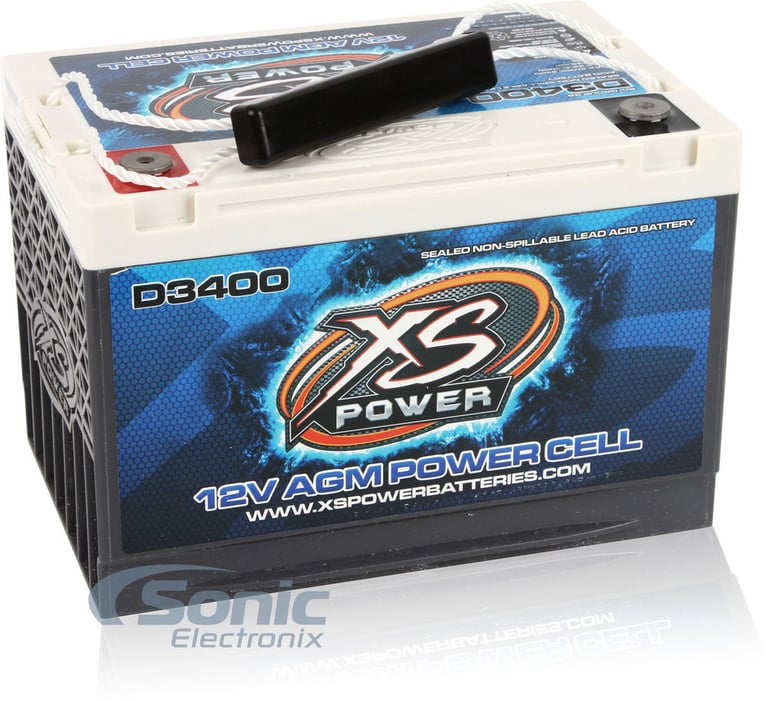

• 12-Volt AGM Car Battery
• Compatible with many domestic, Japanese and European car models
• Designed for various makes such as Jeep, Chrysler, Bentley, Nissan, and more
• Perfect for 2500W car audio stereo systems
• Also works as a secondary battery with a 4000-watt capacity
• Sealed Absorbent Glass Mat (AGM) design
• Reinforced ABS plastic case
• Leak-proof, non-hazardous design
• Stores energy so you don't need a capacitor for your system
• Resists extreme vibrations for ultimate performance
• Fits in almost any factory battery location
• Enough power to crank the highest performance engines
• Extreme heat resistance
• 100% Sealed and maintenance free
• M6 Terminal hardware included
• Dimensions: 10.24""W x 6.89""D x 7.16""H
• Authorized Internet Dealer
• 3 Year Manufacturer's Warranty

Battery Specifications:

• BCI Group: 34
• Battery Type: Absorbent Glass Mat (AGM)
• Nominal Wattage (Primary Battery): 2500 watts
• Nominal Wattage (Secondary Battery): 4000 watts
• Nominal Voltage: 12 volts
• Cranking Amps: 1150
• Cold Cranking Amps: 1012
• Maximum Output: 3300 amps
• Amp Hours: 80 Ah
• Reserve Capacity: 160 minutes
• Weight: 49.97 lbs.

General Features:

• Secondary Battery Installation Kit
• Designed for up to 4000 watt audio systems
• 1/0 gauge Pre Ring terminated power and ground wire with protective heat shrink wrap
• Thick but flexible 100% Oxygen-Free Copper wiring
• CCA (Copper-Clad Version) also available
• XP FLEX Frosted Black ground wire
• XP FLEX Frosted Blue ground wire
• Fuse Holder Dimensions: 4-3/4"W x 1-1/2"D x 1-1/2"H
• Also found as: xsp-ak3500, AK 3500
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Recommended Accessories:

• A Battery Isolator is STRONGLY recommended when installing a second battery:
• Prevents secondary battery from draining the starting battery
• Big 3 Upgrade Kits:
  • To get the most out of your new power system check out our Big Three Upgrade Kits
