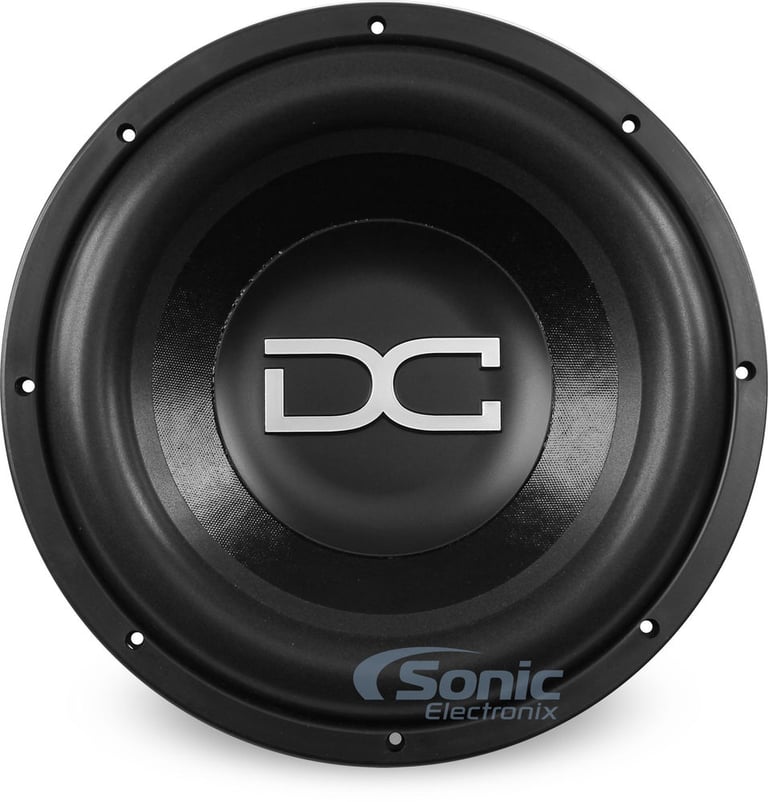

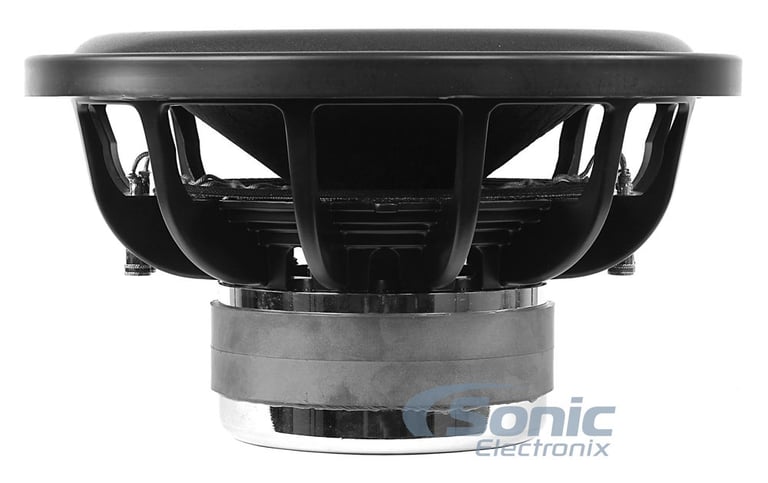

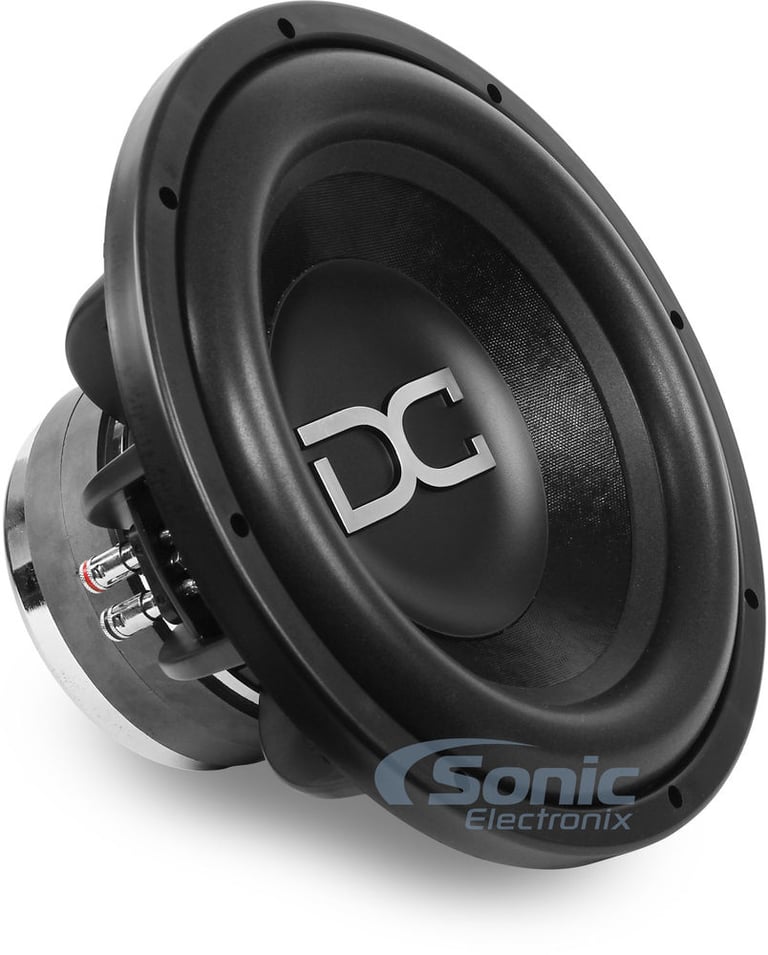

DC Audio Level 2 12 m2 D4

1200W Peak 12" Level 2 Series m2 Version Dual 4-Ohm Car Subwoofer - M2LV212D4

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 600W
• Dual 4 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv212d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Product Highlights


• Peak Power: 1200W
• RMS Power: 600W
• Dual 4 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 12" Dual 4 ohm Level 2 Series m2 Version Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended power range: 200 - 600 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 2.5" high temperature copper voice coil
  • Rubber mounting gasket

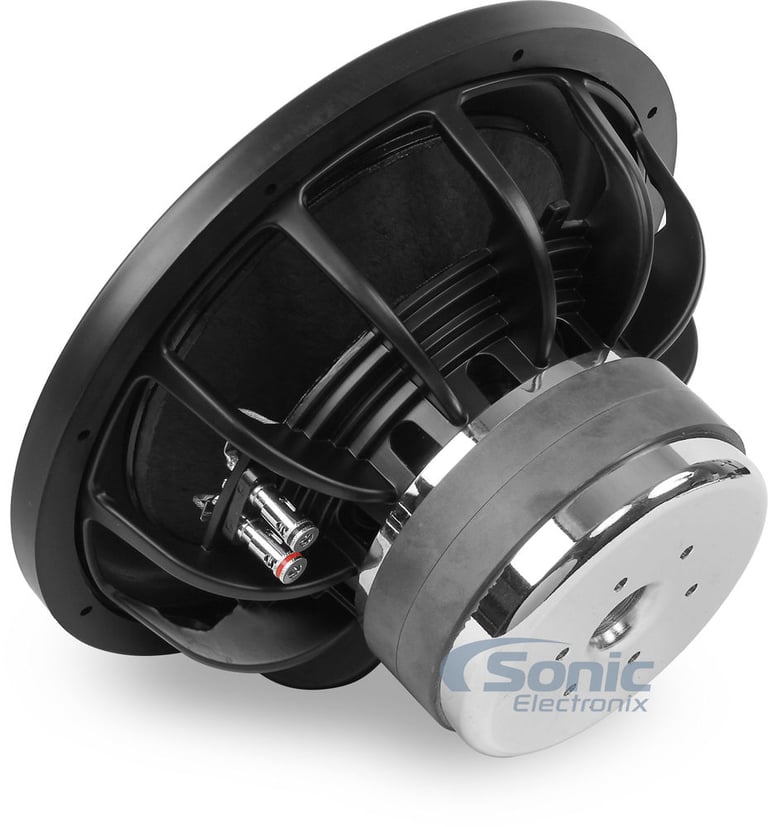

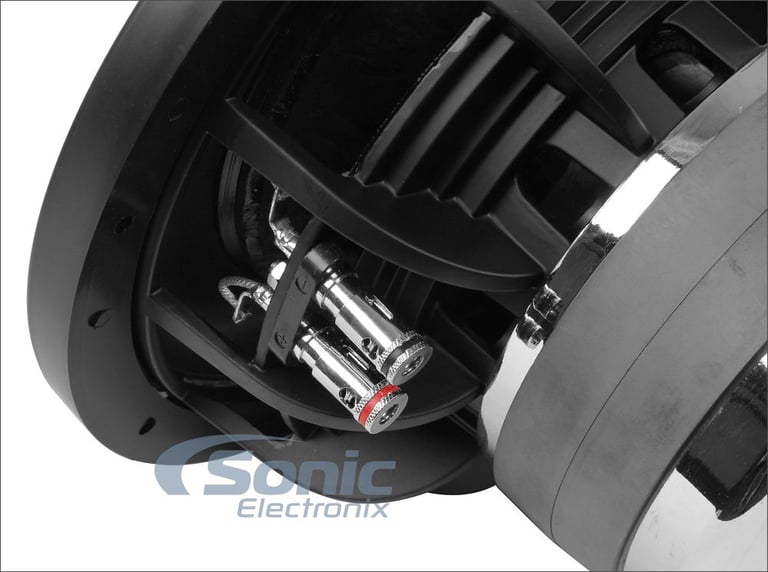

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6"
  • Mounting Hole Diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 2 12" T/S Parameters:

  • Electrical Q Value (Qes): 0.639
  • Mechanical Q Value (Qms): 8.46
  • Total Speaker Q Value (Qts): .594
  • Free Air Resonance (Fs): 33 Hz
  • Equivalent Compliance (Vas): 30.6 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (Ref SPL @ 1W): 84.2 dB (84.7dB @ 2.83V)
  • Effective Piston Area (Sd): 481 cm²
  • DC Resistance (Re): 7.20 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Force Factor (Bl): 24
  • Mechanical Compliance (Cms): .095 mm/N
  • Mechanical Mass (Mms): 245 g
  • Voice Coil Inductance (Le): 7 mH
  • Suggested Sealed Enclosure: .75³ ft
  • Suggested Ported Enclose: 1.25³ ft

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 2 12 m2 D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 2 12 m2 D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 2 12 m2 D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 2 12 m2 D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Level 2 Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
84.2 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Double Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
30.6 liters
Total Speaker Q Value (Qts)
.594
Electrical Q Value (Qes)
.639
Electrical Resistance of Voice Coil (Re)
7.20 ohm
Mechanical Q Value (Qms)
8.46
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV212D4

Weight:

21.80lbs

Internal SKU:

m2lv212d4

Internal Product ID:

88146

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 2 12 m2 D4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.8
Features
4.9
Design
5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Decent

I bought these subs about 6 months ago while DC audio was having a sale. Let me tell you that i would still buy them even if they were not on sale. the subs sound great and are LOUD! I dont think im even giving them 600 watts and my arm rests in my car are shaking.

I was always looking for a sub made in the USA and these fit that category.

they seem extremely well built and stylish.

By Adam on July 3, 2014

17 found this helpful


nice product

Attractive user friendly system perfectly looks great exactly what I wanted

By Chris on August 15, 2014

11 found this helpful


Amazing!

I just started getting into bass and started with a cheap low level from a brand starting K. Wasn't enoug so I looked around for the best $200 sub. I had it between Sundown's SA-12 and DC's level 2 (12"). Heard great things about both but I love Sonic's services and they don't carry Sundown so I went for the DC and am glad I did. Have heard they are underrated and some run at 900-1,000RMS daily. I'm currently running about 450w to it for awhile, gonna let it break in for a week or so just to be safe. Haven't broken anything in my jeep with it yet but everything is shaking and stuff is falling off hangers for sure. Everybody either hates it because they hate bass in general or they love it and want one. It's puts down all the kids at high school's two 10 / two 12 set up ;) I have it in a 1.83 cubic foot ported box since I already had it laying around. Thats more volume than reccomended but it handles it at 400-450w like a champ. Powered by a RF R500X1D that came dyno'd at 620w. For box, sub, and amp you can't beat this $400 system. Highly recommend it to anybody looking for one 12 that can hit hard for around $200.

By TruthFatality on February 5, 2016

2 found this helpful


L2

inline with a massive n4 and clarion 6 channel xover (MY ISH BANG!!)

By Ray on August 14, 2015

3 found this helpful


Clean heavy bass that won’t drown out the song, while shaking everything

This is really the first decent system I’ve put together, not realizing that till I got everything hooked up. Waiting on my second one. This paired extremely well with a hifonics 1000.1d amplifier(if your on a budget). I would say subsonic filter is a must now that I have it, these will try to reproduce extremely low frequency’s and it’ll muddy up your really heavy bass lines.

By Roger on January 3, 2018 Checkmark Icon Verified purchase

1 found this helpful


Nice sub but its POWER hungry

this sub is well built and sounds clean and clear! I have it in a 1.45 cu foot ported at 35hz (before sub displacement) and its running on about 500 rms. sounds very nice and clear like a JL w6 does. It just is not loud - it looks like its barely moving on those watts - I know it needs break in time but I feel this rated at 600 rms it very conservative. I am returning it only because I fell in love with an IDQ12 and am going that route or else I would fire 800-1000 watts at this baby and enjoy

By erik on April 4, 2016 Checkmark Icon Verified purchase


Level 2 12

Nice sub and it is loud. I put it in my single cab ranger and it slams and the optimum ported box vol is 1.25 so it is perfect for cars or trucks with with very little space for a box. You get what you pay for and then some with this sub. If you want decent spl and don't want to pay 500 for a comp sub this is for you.

By Seth funk on July 5, 2016


Flat out, an amazing subwoofer

DC Audio just knows how to make a great sub. For $200 you get a hand built sub with amazing quality materials. I have this on 640 watts and it takes it like a champ. If you want a loud sub get this one.

By Cody on January 18, 2016




VIVE14S1 small

Memphis VIVE14S1

4400W Peak (2200W RMS) 14" VIV-Series Single 1-Ohm Subwoofer Enclosure

$1249.95

List price $1549.95

MGR420R small

Boss MGR420R

Weatherproof Bluetooth Wired Remote Control for MGR450B

$85.99

List price $134.98

10WXv2-4 small

JL Audio 10WXv2-4

200W RMS 10" WXv2 Series Single 4-Ohm Subwoofer

(16)

$89.99

List price $99.99

MJME6D1T small

Memphis MJME6D1T

2800W Peak (1400W RMS) 6.5" Mojo Mini Series Dual Subwoofer Enclosure

(1)

$449.95

List price $669.95

R-XV38D4 small

Sundown Audio XV38D4 (Refurbished)

800W RMS 8" X Series Dual 4-ohm Car Subwoofer

$329.99

List price $479.99

No picture

Power Acoustik HD-7BG (Beige)

2 Universal BEIGE Headrests Loaded with 7" TFT-LCD Monitors with Remote

$179.99

List price $399.99

FH-P4200MP small

Pioneer FH-P4200MP

Double DIN CD, MP3, WMA, Cassette Receiver with Remote

(1)

$289.99

List price $419.99

No picture

SoundStream Reference 700 Watt 10 Inch Dual 2 Ohm Car Audio Subwoofer (2 Pack)

SoundStream Reference 700 Watt 10 Inch Dual 2 Ohm Car Audio Subwoofer (2 Pack)

(11)

$157.90

List price $339.90

CPKK 2 15-BLACK small

Ground Shaker CPKK 2 15-BLACK

15" Dual Sealed Compact Subwoofer Enclosure for Kicker Solo Baric L3/L5/L7 (Oversize UPS)

$129.95

List price $209.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1992 Dodge Colt

2014 Scion iQ

1978 Ford Courier

2003 Hummer H2

1997 Ford Ranger

2009 GMC Canyon

1986 BMW 635CSi

2000 Pontiac Sunfire

2024 Buick Envision

2004 Cadillac CTS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
