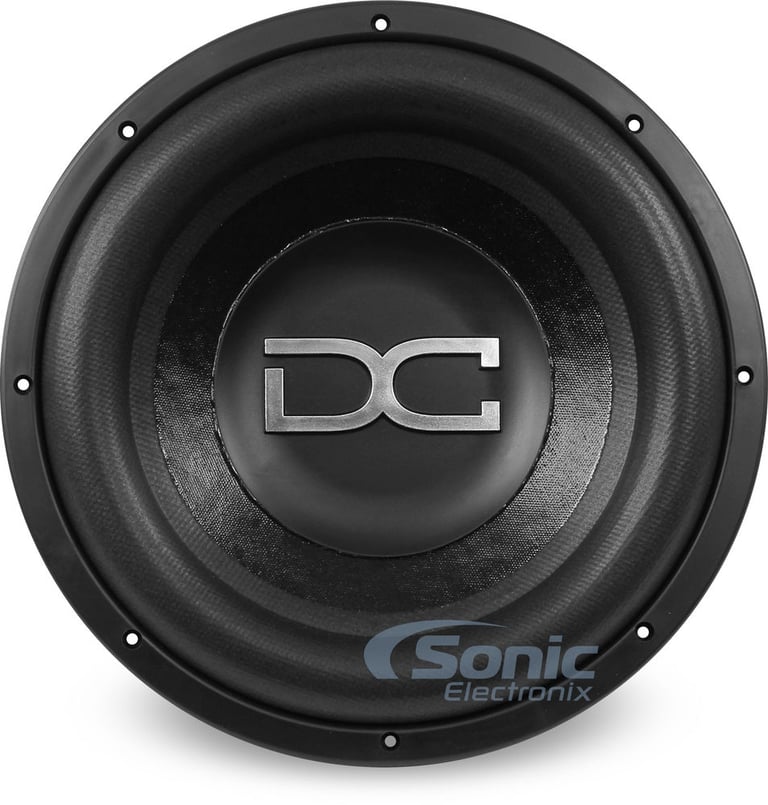

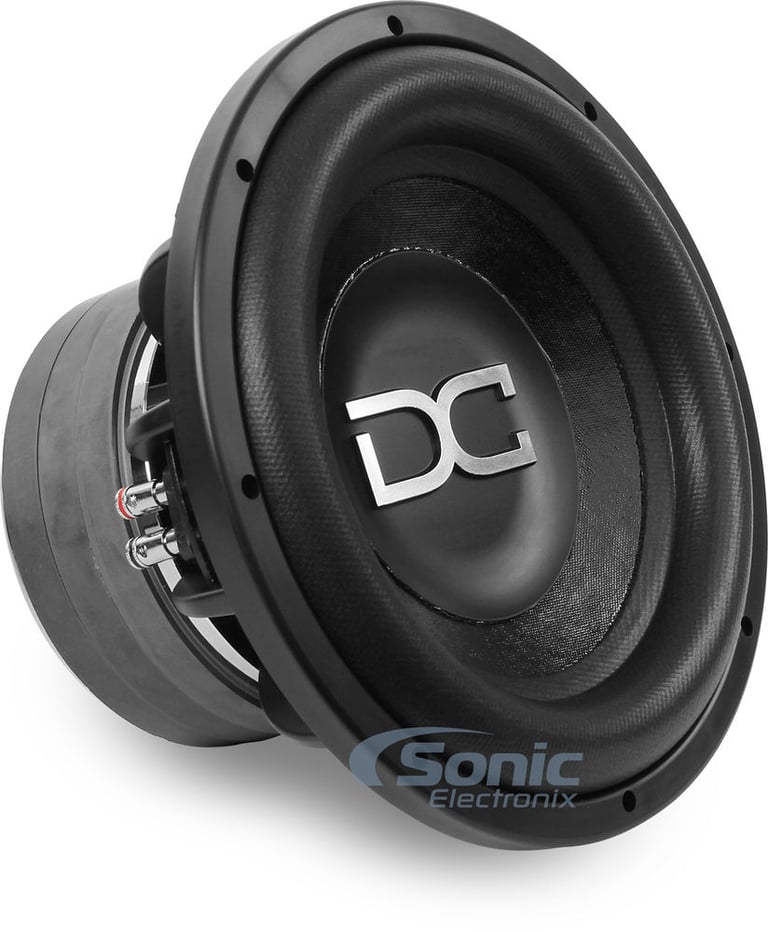

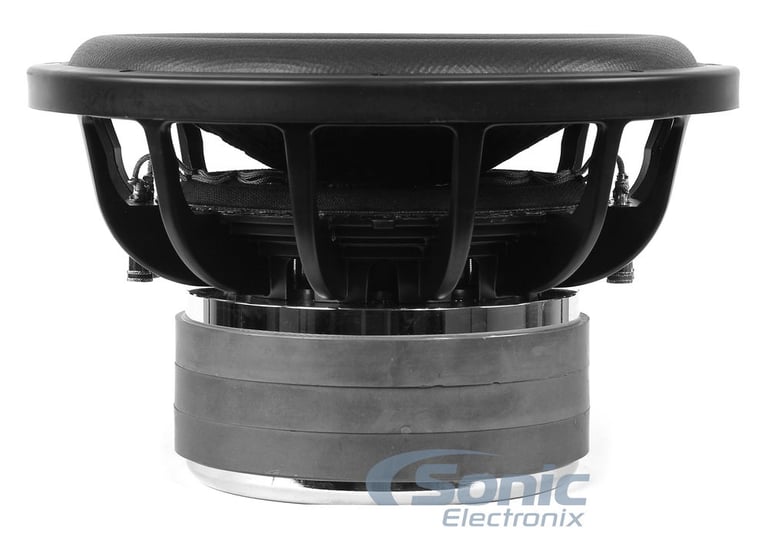

DC Audio Level 4 12 m2.1 D2

2800W Peak 12" Level 4 Series m2.1 Version Dual 2-Ohm Car Subwoofer - M2LV412D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 2800W
• RMS Power: 1400W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv412d2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• Peak Power: 2800W
• RMS Power: 1400W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 12" Dual 2 ohm Level 4 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 2800 watts
    • RMS: 1400 watts
  • Recommended power range: 1000 - 1400 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Triple 8" OD flat linear roll spider
  • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature Edge wound aluminum voice coil
  • Rubber mounting gasket

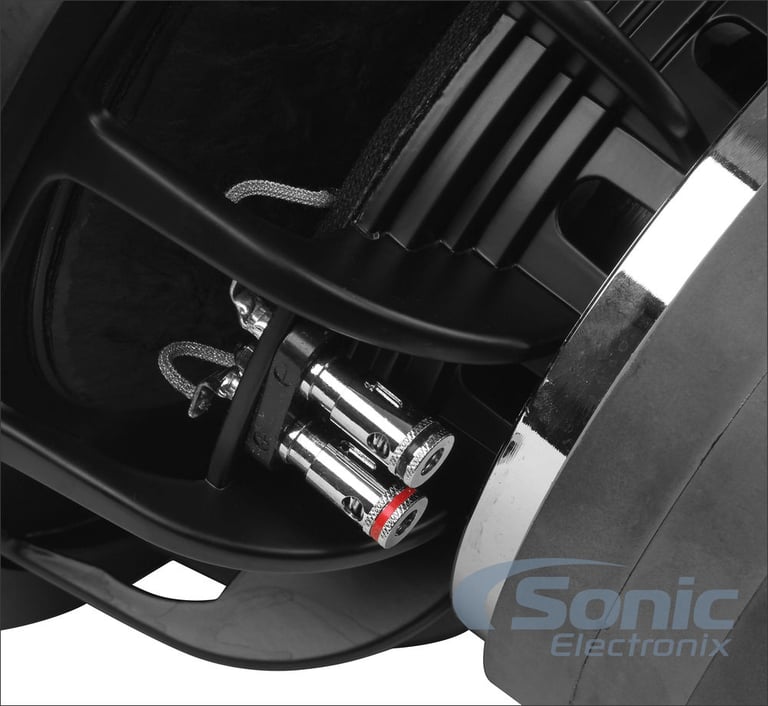

  • Chrome spring loaded push terminals

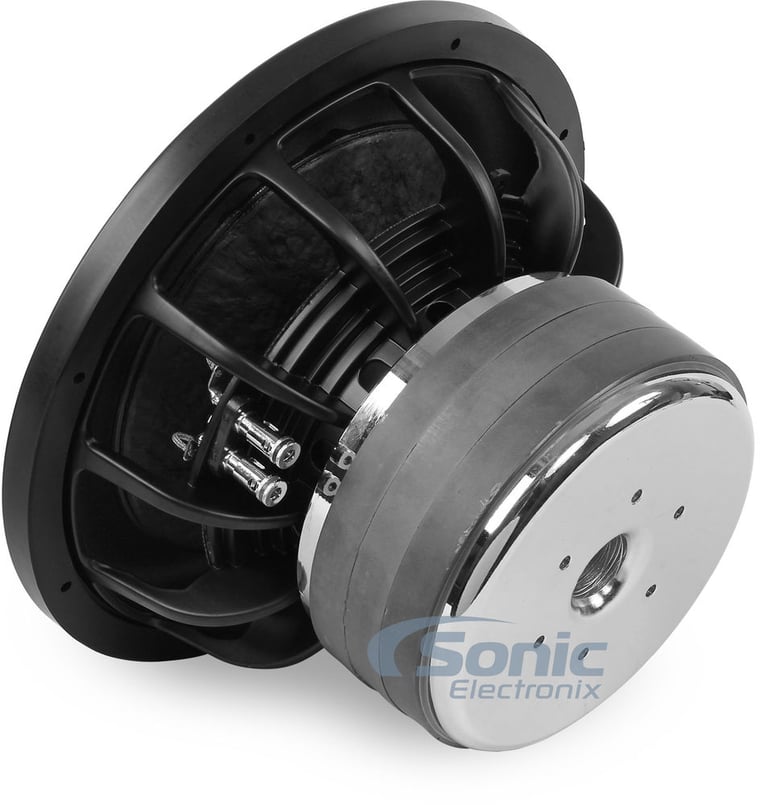

  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.75"
  • Mounting Hole Diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 4 12" T/S Parameters:

  • Electrical Q Value (Qes): 0.52
  • Mechanical Q Value (Qms): 8.24
  • Total Speaker Q Value (Qts): .489
  • Free Air Resonance (Fs): 37.9 Hz
  • Equivalent Compliance (Vas): 27.38 liters
  • One-Way, Linear Excursion (Xmax): 23.5 mm
  • Efficiency (Ref SPL @ 1W): 86.4dB
  • Effective Piston Area (Sd): 481 cm²
  • DC Resistance (Re): 3.82 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 19.18
  • Mechanical Compliance (Cms): .085 mm/N
  • Mechanical Mass (Mms): 207.53 g
  • Voice Coil Inductance (Le): 3.78 mH
  • Suggested Sealed Enclosure: 1.00 ft³
  • Suggested Ported Enclose: 1.50 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 4 12 m2.1 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 4 12 m2.1 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 4 12 m2.1 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 4 12 m2.1 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Level 4 Series
Subwoofer Size
12"
Peak Power Handling
2800 watts
RMS Power Handling
1400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
86.4 dB
Xmax (millimeters)
23.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.00 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
6.75"
Cutout Diameter
11"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
37.9 Hz
Equivalent Compliance (Vas)
27.38 liters
Total Speaker Q Value (Qts)
.489
Electrical Q Value (Qes)
.52
Electrical Resistance of Voice Coil (Re)
3.82 ohm
Mechanical Q Value (Qms)
8.24
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV412D2

Weight:

34.60lbs

Internal SKU:

m2lv412d2

Internal Product ID:

88164

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 4 12 m2.1 D2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome

DC doesn't fail when it comes to putting out a quality product have owned these bad boys for about a month now. Everyone that has heard my set up now wants it.

Pros: good clean hard hitting bass

Cons: Needs a 11 inch cut out in sub box. 12 inch cutout has a little play in it.

By Chris on December 21, 2014

13 found this helpful


nice productivity

Would recommend product to any one.hits more solid than the re sxx 12 i had.great bass

By vernon on August 5, 2014

13 found this helpful


2 dc audio level 4 12's

These subs are just little beast! Would recommend to anyone anyone who sees and hears them want them.! I wouldn't hesitate to buy them again. These get low and loud some of the lowest hitting subs iv heard!

By landon on April 28, 2015 Checkmark Icon Verified purchase

8 found this helpful


DC Audio Level 4 12 m2.1 D2

Unlike any sub I have heard before! Get this true power sub you won’t regret it.

By Anonymous on May 25, 2018

1 found this helpful


Dropppp LOOOOOWWWWW

these are some of the best subs i have personally owned, and ive owned alot! these things sound amazing and require such lil air space. i have them in a extended cab truck under the back seat in 1.0 cu ft each.... and they still droppp!! everyone that hears them always comments on how clean they are and how low they go. not to mention these things LOVE power!!!!

By BiRd on October 27, 2015

1 found this helpful


Great Subwoofer for tha money

I had 2 DS18 12 in My truck a they gave me ok bass Put the DC audio in my truck under the same setup and got 5 times the bass. Super Satisfied

By Anonymous on March 19, 2019 Checkmark Icon Verified purchase


Awesome

Great sub hits hard,and good quality overall.I recommend this subwoofer to any bass head or anyone.I have one running it on 2ohms at 37 herts people think I have 2 subs when it's only one.Pros(hits hard long lasting quality sub.Cons(None

By Anonymous on July 15, 2018


Huge amount of bass !!!

I replaced my double M3 of DC AUDIO for this one to
save place in the trunk and reduce the load on the car.
And believe me i still can't believe this sub hitting harder than
the double M3... they was tuned to 32 hertz ported
and this one is in little sealed box and still much stronger !!!

Best regards

By Mityay on March 2, 2016




BVNV9384RC small

Boss BVNV9384RC with Backup Camera

6.2" Double-DIN Touchscreen DVD Multimedia Receiver with Bluetooth and Built-in Navigation

(2)

$249.99

List price $399.99

MDAB small

Scosche MDAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

(21)

$6.99

List price $8.95

M2LV312D1 small

DC Audio Level 3 12 m2.1 D1

1800W Peak 12" Level 3 Series m2.1 Version Dual 1-Ohm Car Subwoofer - M2LV312D1

$296.00

List price $350.00

CBHVA small

Scosche voCALL CBHVA

Handsfree Bluetooth Speakerphone with Voice Announce Caller ID

$69.99

List price $79.99

SXV300V1,VRN-65HXB small

Soundstream VRN-65HXB + SiriusXM Tuner

Double DIN SiriusXM Ready Bluetooth In-Dash DVD/CD/AM/FM Car Stereo Receiver w/ 6.2" LCD Screen

(157)

$339.98

List price $359.98

CP8CK small

Rockford Fosgate CP8CK

8 Gauge Amp Install Kit

$34.99

List price $49.99

DOT0103 PINK small

Kogeto Dot Pink (LB4201)

360 Degree Panoramic Camera Lens for iPhone 4 & 4S

$17.99

List price $99.00

VX7022 small

Jensen VX7022 (Remanufactured)

Double DIN Multimedia Navigation Car Stereo w/ 6.2" TFT Touchscreen, SirusXM Radio Ready and Pandora Control

(11)

$229.95

List price $449.99

DQ-61 BLACK small

AudioControl DQ-61 (Espresso Black)

6 Channel Line Out Converter with Signal Delay, AccuBass, and EQ, with 5-year warranty*!

(2)

$299.99

List price $479.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1978 Triumph TR8

2002 Lexus IS300

1999 Dodge Stratus

1978 Dodge B Series

2002 GMC Sonoma

2000 Jaguar S-Type

2017 Ford C-Max

2000 Saturn SL

2011 Mazda CX-7

2006 Ford E Series

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
