DC Audio XL15 m2.1 D2

4400W Peak 15" XL Series m2.1 Version Dual 2-Ohm High SPL Car Subwoofer with 3.0" Voice Coils - M2XL15D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 4400W
• RMS Power: 2200W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2xl15d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m4xl15d2 thumbnail

DC Audio XL15 M4 D2 (M4XL15D2)

OUR PRICE: $699.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

40-VW53 main

Metra 40-VW53 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

3
-27.79%

$12.99

List price $17.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

95-5806 main

Metra 95-5806 Dash Kit

Install a new Double-DIN car stereo in select 1999-2004 Focus and Cougar

13
-11.54%

$22.99

List price $25.99

99-5806 main

Metra 99-5806 Dash Kit

Install a new Single-DIN car stereo in select 1999-2004 Focus and Cougar

3
-10.00%

$26.99

List price $29.99

FMK566 main

American International FMK566

Double DIN Stereo Dash Kit for select 1999-2004 vehicles from Ford, Mercury

-70.87%

$6.99

List price $24.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• Peak Power: 4400W
• RMS Power: 2200W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 15" Dual 2 ohm XL Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 4400 watts
    • RMS: 2200 watts
  • Recommended power range: 1600 - 2200 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround

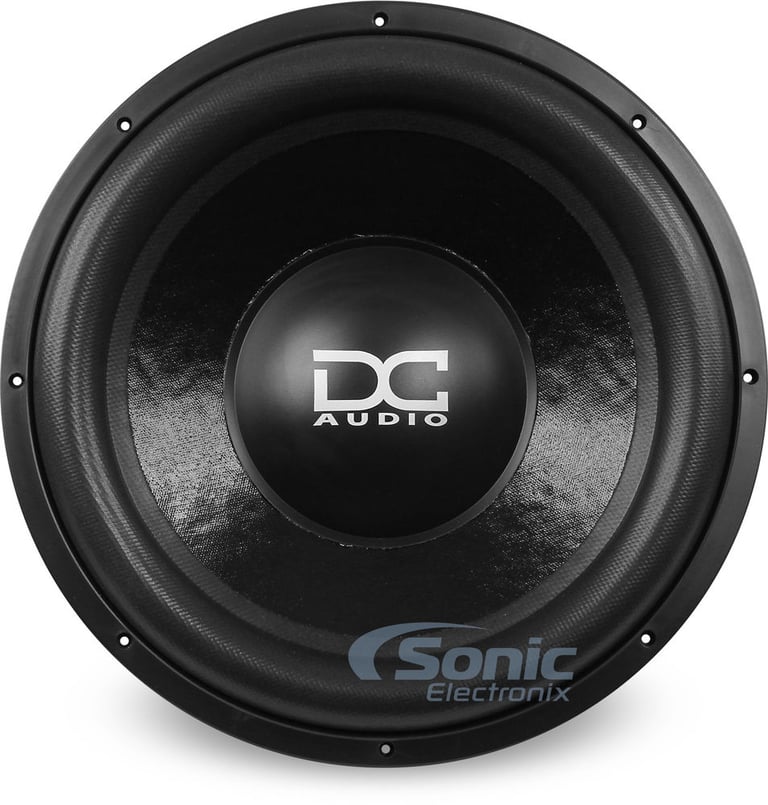

  • Polypropylene dust cover with embossed DC logo
  • Quad 8" OD semi cup progressive roll spiders
  • Dual extra heavy duty interweaved tinsel lead wire
  • Rubber mounting gasket

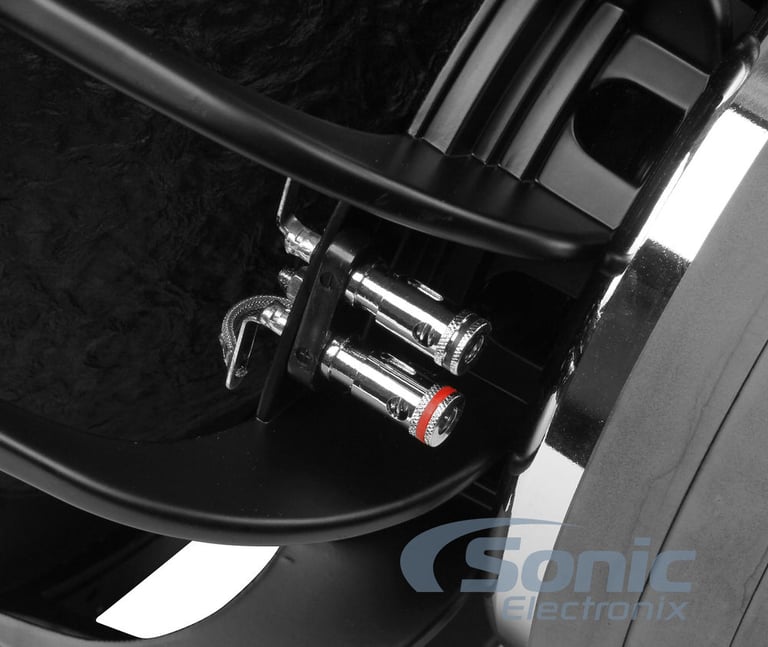

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 8.25"
  • Sensitivity: 89dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 XL 15" T/S Parameters:

  • Electrical Q Value (Qes): .516
  • Mechanical Q Value (Qms): 16.55
  • Total Speaker Q Value (Qts): .5
  • Free Air Resonance (Fs): 34.3
  • Equivalent Compliance (Vas): 66.02 liters
  • One-Way, Linear Excursion (Xmax): 26mm
  • Efficiency (Ref SPL @ 1W): 89dB
  • Effective Piston Area (Sd): 791 cm²
  • DC Resistance (Re): 3.98
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 22.73
  • Mechanical Compliance (Cms): .07 mm/N
  • Mechanical Mass (Mms): 306.7g
  • Voice Coil Inductance (Le): 5.2 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: 3.0 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M4XL15D2 thumbnail
(newest, current model)
DC Audio M2XL15D2 thumbnail
(previous model, replaced by DC Audio XL15 M4 D2 (M4XL15D2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio XL15 m2.1 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio XL15 m2.1 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio XL15 m2.1 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio XL15 m2.1 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(17)

$309.99

List price $339.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

Specifications & Details


Subwoofer Specifications
Series
XL Series
Subwoofer Size
15"
Peak Power Handling
4400 watts
RMS Power Handling
2200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
89 dB
Xmax (millimeters)
26 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
3.00 cubic feet
Top-Mount Depth (Mounting Depth)
8.25"
Cutout Diameter
14.00"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.3 Hz
Equivalent Compliance (Vas)
66.02 liters
Total Speaker Q Value (Qts)
.5
Electrical Q Value (Qes)
.516
Electrical Resistance of Voice Coil (Re)
3.98 ohm
Mechanical Q Value (Qms)
16.55
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2XL15D2

Weight:

56.60lbs

Internal SKU:

m2xl15d2

Internal Product ID:

88174

Product and How-to Videos


Customer Ratings & Reviews


DC Audio XL15 m2.1 D2 thumbnail image

5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

DC Audio XL 15D2

Just recently got this sub and build quality is very good. I had an RE MX15 that for some reason one of the coils blew and I wasn't even putting max power from the Hifonics BRX 1100.1D. I replaced it with this and the box is 4.0 Cu Ft and it hit the lows really well. Will be turning it up soon. I plan on getting another one of these but finding a box that fits in a 13 civic is hard, so may have to go the custom route. Currently have 0 guage stinger wire and an XS Power battery in the back.. Only thing that made me mad was originally it said I would get it Friday, but it ended up coming on a Monday so I didn't get the weekend to play with it and really tune it. Overall I love the pounding this sub is taking

By Justin on December 9, 2014

21 found this helpful


great deal and product

Communication was great and the product is awesome. would definitely do business here again

By Rickey on March 29, 2015

15 found this helpful


Great subwoofer

I would recommend this woofer. Worth the money. I have it wired to 1 ohm on a Rockford t2500. This thing gets low n loud.

By Cadillac on September 15, 2015

12 found this helpful


POWERFUL!!!

I definitely recommend dc audios xlm2d2 15inch subwoofer it sounds great it's great for spl systems and at a great price.it's worth it!Buy it!I love it!

By ron on November 5, 2015 Checkmark Icon Verified purchase

11 found this helpful


DC audio xl15 d2

Some of the best sounding subs I've owned and I've tried them all from Alpine to FI audio and these are up there with the best and at a great price at Sonic Electronics and not to mention they got here a day early thanks DC audio and Sonic keep up the good work

By Jmack805 on May 13, 2016

10 found this helpful


Powerful

I absolutely love this subwoofer.I have it hooked up to a dc amplifier .It sounds great and it's powerful.what else can i say it's perfect.Thank you SONIC ELECTRONICS and DC AUDIO.

By ron on November 1, 2015

10 found this helpful




FDP4.600, 150EGIFT small

Focal FDP4.600 + Free $150 Gift Card

Class-D 4-Channel Amplifier (150 W RMS x 4 @ 2 Ohms)

(2)

$849.99

List price $1150.00

MIBRBSG19 small

Install Bay MIBRBSG19

Universal 19mm Black Momentary Green LED Switch with Harness

$8.99

List price $13.48

82-3018 small

Metra 82-3018

6.5" to 6.75" Speaker Adapters for select 2020-2024 CT5

(3)

$24.99

List price $27.99

SPTE5134 small

Stinger SPTE5134

4 Ga Expert Speaker Terminal - Single Pack

$7.95

List price $26.98

F8Z287 small

Belkin F8Z287

Black Floral & Butterfly Leather Folio Case for iPod Nano 3rd Generation

$0.99

List price $34.99

40KX400.4 small

Kicker KX400.4 (40KX400.4)

400W KX Series 4-Channel Class D-IC Stereo Bridgeable Car Power Amplifier (KX4004)

(2)

$199.95

List price $349.95

DDX812 small

Kenwood eXcelon DDX812

Double DIN 6.95" TFT-LCD Monitor with DVD, DivX, CD, MP3 Receiver and Remote (DDX-812)

(3)

$699.99

List price $1199.99

X1200M small

Kenwood eXcelon X1200M

2400W Max, Class D Monoblock Digital Power Amplifier

(9)

$279.99

List price $499.99

15-PE2X10V2 small

Memphis 15-PE2X10V2

10" Dual Ported Empty Subwoofer Enclosure

$199.95

List price $279.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Ford Focus

2012 Ford Edge

2007 Dodge Nitro

2002 Saturn L100

2018 Ford Flex

2017 Dodge Durango

2022 Mazda 3

2001 Dodge Ram 2500 Van

2007 Ford Taurus

2011 Lexus RX350

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
