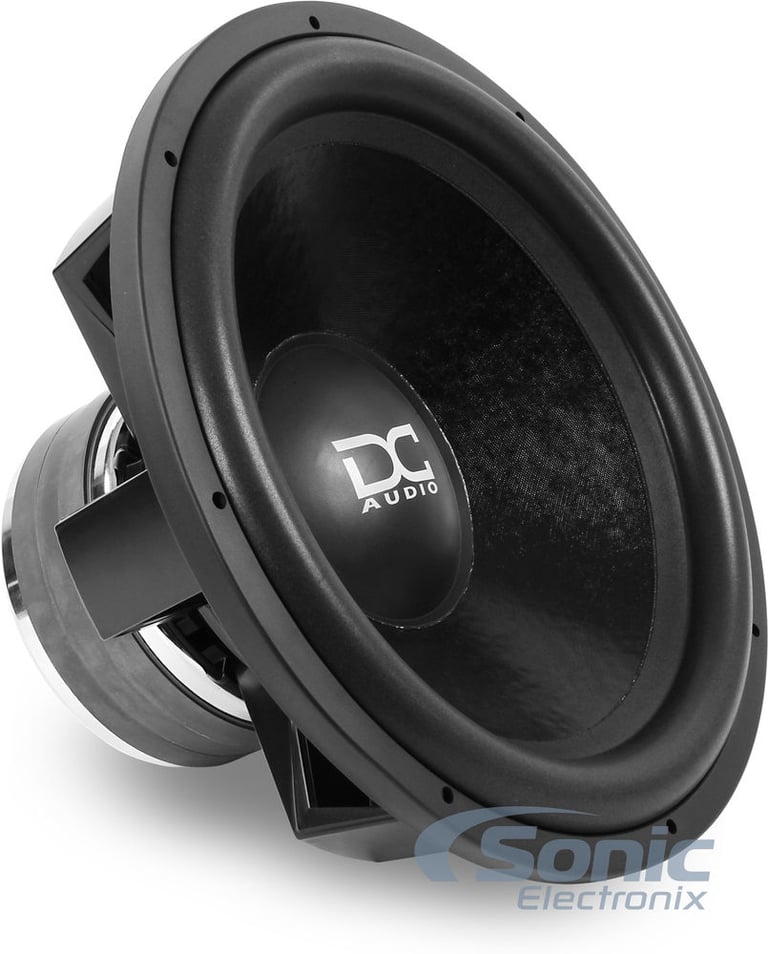

DC Audio XL18 m2 D1

4400W Peak 18" XL Series m2 Version Dual 1-Ohm High SPL Car Subwoofer with 3.0" Voice Coils - M2XL18D1

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 4400W
• RMS Power: 2200W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2xl18d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m4xl18d1 thumbnail

DC Audio XL18 M4 D1 (M4XL18D1)

OUR PRICE: $775.00

View item

Loading...
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• Peak Power: 4400W
• RMS Power: 2200W
• Dual 1 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 18" Dual 1 ohm XL Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 4400 watts
    • RMS: 2200 watts
  • Recommended power range: 1600 - 2200 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Quad 8" OD semi cup progressive roll spiders
  • Dual extra heavy duty interweaved tinsel lead wire
  • Rubber mounting gasket
  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 10.25"
  • Sensitivity: 91.3dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 XL 18" T/S Parameters:

  • Electrical Q Value (Qes): .548
  • Mechanical Q Value (Qms): 17.6
  • Total Speaker Q Value (Qts): .532
  • Free Air Resonance (Fs): 32.3
  • Equivalent Compliance (Vas): 144.36 liters
  • One-Way, Linear Excursion (Xmax): 26mm
  • Efficiency (Ref SPL @ 1W): 91.3dB
  • Effective Piston Area (Sd): 1159 cm²
  • DC Resistance (Re): 3.98
  • Nominal Impedance (Znom): Dual 1 ohm
  • Force Factor (Bl): 22.73
  • Mechanical Compliance (Cms): .07 mm/N
  • Mechanical Mass (Mms): 346.7g
  • Voice Coil Inductance (Le): 5.2 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: 5.5 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M4XL18D1 thumbnail
(newest, current model)
DC Audio M2XL18D1 thumbnail
(previous model, replaced by DC Audio XL18 M4 D1 (M4XL18D1))

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95


Best selling similar products

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T2S2-13 small

Rockford Fosgate Power T2 T2S2-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 87 dB

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Series
XL Series
Subwoofer Size
18"
Peak Power Handling
4400 watts
RMS Power Handling
2200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Sensitivity
91.3 dB
Xmax (millimeters)
26 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
5.50 cubic feet
Top-Mount Depth (Mounting Depth)
10.25"
Cutout Diameter
16.75"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.3 Hz
Equivalent Compliance (Vas)
144.36 liters
Total Speaker Q Value (Qts)
.532
Electrical Q Value (Qes)
.548
Electrical Resistance of Voice Coil (Re)
3.98 ohm
Mechanical Q Value (Qms)
17.6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2XL18D1

Weight:

57.00lbs

Internal SKU:

m2xl18d1

Internal Product ID:

88175

Product and How-to Videos


Customer Ratings & Reviews


DC Audio XL18 m2 D1 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

great

It took a while to get but worth the wait

By Christoper on March 30, 2015

33 found this helpful


Awesome Subwoofer

I used to own the RE XX 18D4 which was a great sub.......but the XL18D1 sub has twice the power handling and hits twice as hard...... I own only one and it's like having two RE XX 18'S. THE XL18D1 have my tahoe flexing hard. Best sub I've ever own!

By BIGANDSEXY on December 7, 2015
