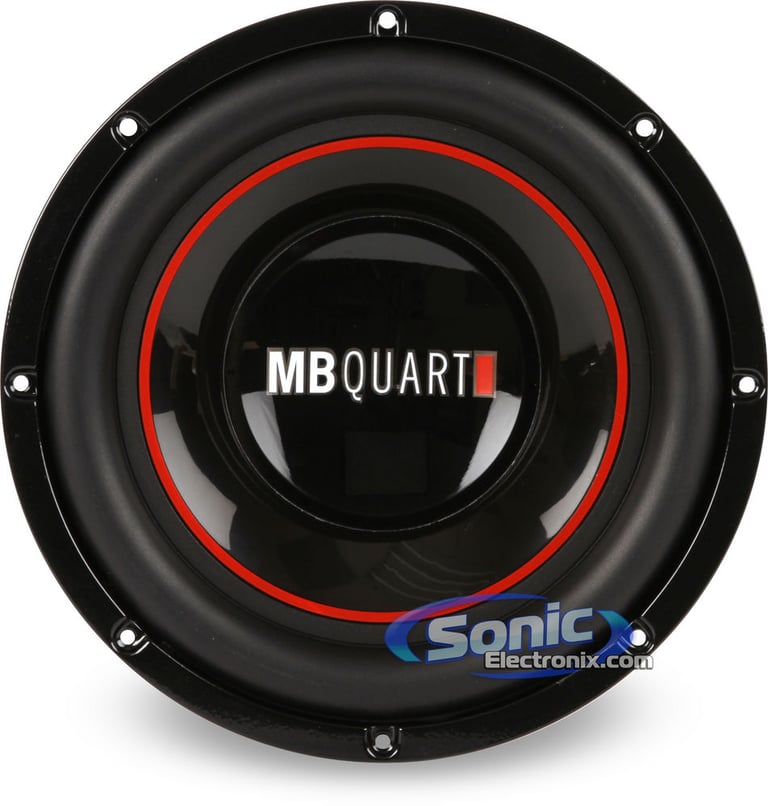

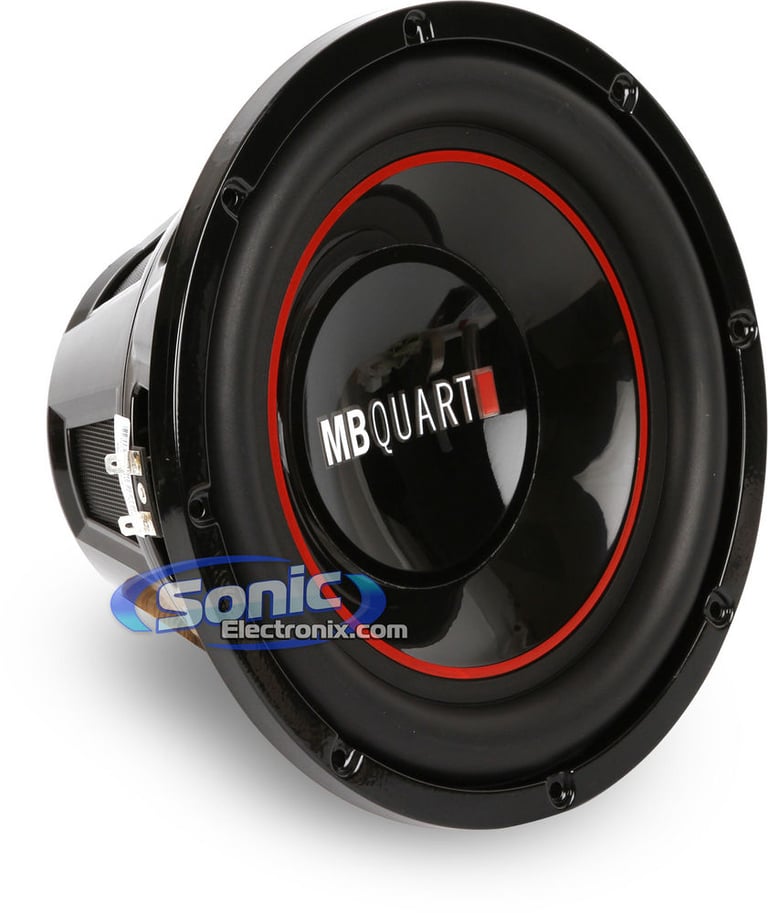

MB Quart ONX254

10" Dual 4 ohm ONYX Series Car Subwoofer

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

10" ONYX Series Subwoofer • Dual 4 ohm • 800W Max • 400W RMS • Gloss Black Polypropylene Cone • NBR Surround • Spider Woven Tinsel Leads • Illuminated Dust Cap

Learn more about the onx254

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

owc254 thumbnail

MB Quart OWC254

OUR PRICE: $34.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

AXLOC-TY3 main

Axxess AXLOC-TY3

2-Channel 110W Line Output Converter with Gain Controller for select 2018-2025 vehicles from Toyota with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

SWRTY-61C main

Crux SWRTY-61C

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2016-2025 vehicles from Toyota with Factory Amplified Systems

2
-35.71%

$112.05

List price $174.30

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
TOYK952GB main

American International TOYK952GB Dash Kit

Single DIN or Double DIN Stereo Dash Kit for select 2017-2025 vehicles from Toyota (Gloss Black)

1
-50.86%

$28.99

List price $59.00

99-8270HG main

Metra 99-8270HG Dash Kit

Install a New Single DIN 2" or L Shaped Double DIN 4" Car Stereo in select 2020-2023 Corolla

-43.30%

$54.99

List price $96.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Product Highlights


10" ONYX Series Subwoofer • Dual 4 ohm • 800W Max • 400W RMS • Gloss Black Polypropylene Cone • NBR Surround • Spider Woven Tinsel Leads • Illuminated Dust Cap

Description


MB Quart brand icon

Authorized dealer

The Key to a Complete Onyx Audio System

New for 2011, the ONYX series of subwoofers are now available! These subwoofers are the perfect compliment to a set of MB Quart ONYX speakers and now allow for the installation of a complete ONYX audio system. With a variety of different configurations and sizes, you will be able to find the subwoofer that is right for you. Each feature a high gloss piano black finish and an optional illuminated dust cap. The MB Quart logo on the cone can be illuminated once the optional power/ground wires are connected near the speaker terminals. The finish of the woofers was designed to match that of the speakers and the amplifiers within the ONYX line. Get more bang for your buck with the MB Quart ONYX subwoofers.

  • 10" Dual 4 ohm ONYX Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 4 ohm

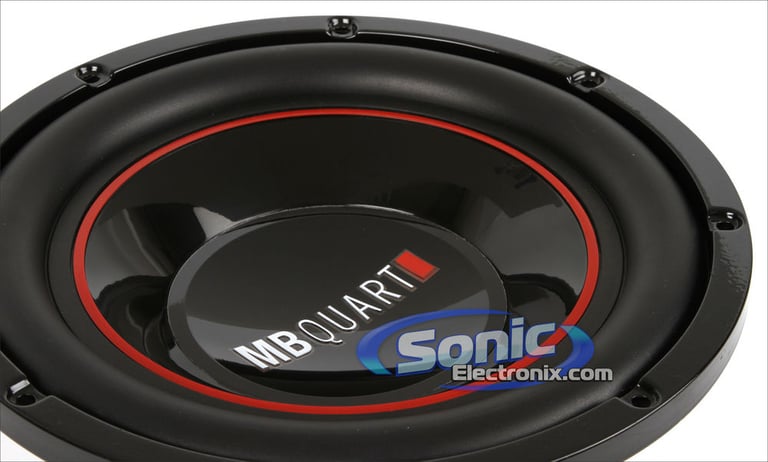

  • Gloss black polypropylene cone
  • NBR surround
  • Red NOMEX spider woven tinsel leads

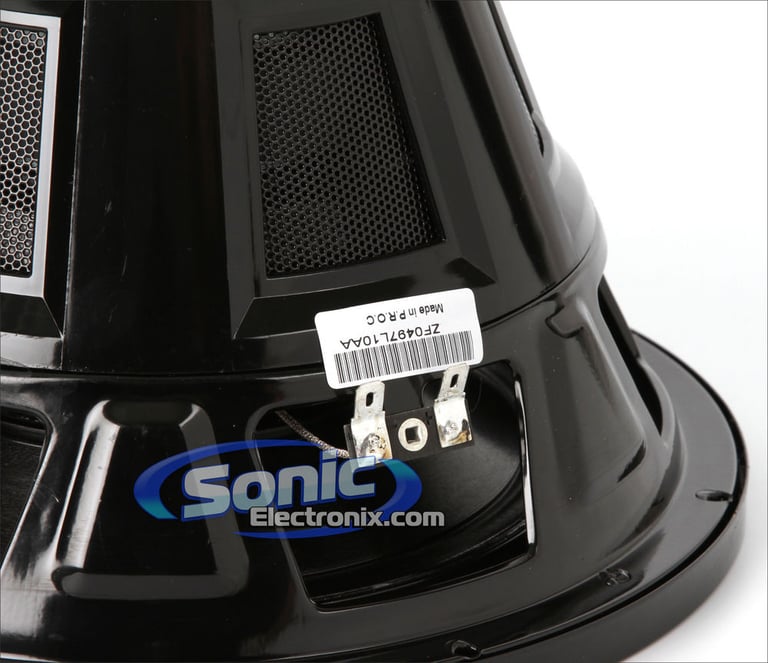

  • Spade style speaker terminals

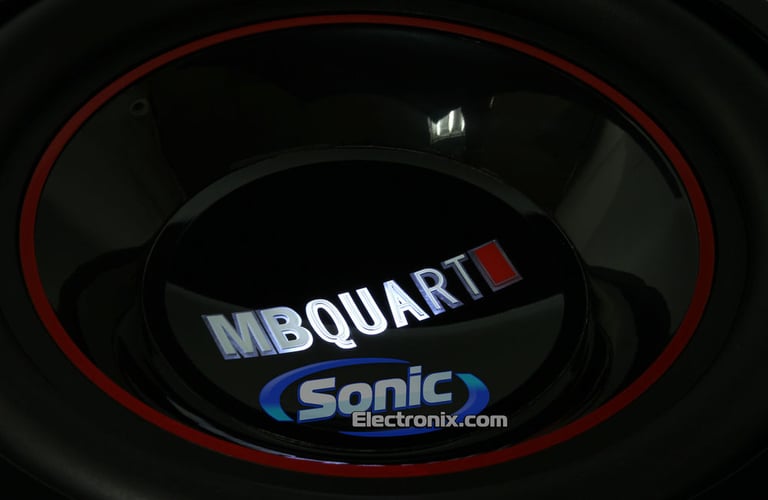

  • Illuminated dust cap

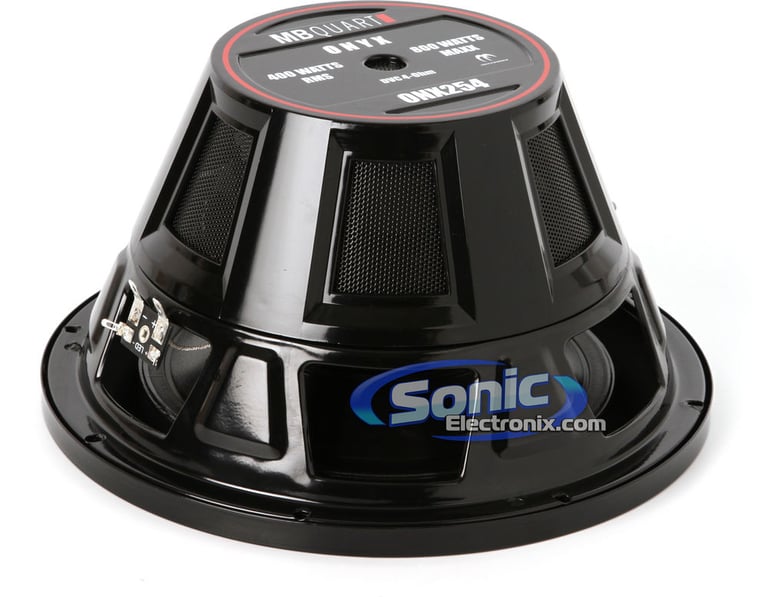

  • Anti-resonant ABS magnet cover
  • High energy magnet
  • Heat-dispersing vented pole plate
  • Black steel frame
  • 2-1/2" Voice coil
  • Frequency response: 35-150 Hz
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

MB Quart OWC254 thumbnail
(newest, current model)
MB Quart ONX254 thumbnail
(previous model, replaced by MB Quart OWC254)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MB Quart ONX254 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MB Quart ONX254 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MB Quart ONX254 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MB Quart ONX254 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
ONYX Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
35 - 150 Hz
Sensitivity
88 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1 cubic feet
Minimum Ported Box Volume
1 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ONX254

Weight:

7.16lbs

Internal SKU:

onx254

Internal Product ID:

33011

Product and How-to Videos


Customer Ratings & Reviews


MB Quart ONX254 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

great sub

i have one of these subs hooked up to 400rms and it thumps hard

By Zurinis on April 11, 2013

5 found this helpful




010-00782-00 small

Garmin nüvi 1370T

4.3” Touchscreen GPS Navigation with HotFix and Worldwide Basemap (010-00782-00)

(1)

$204.99

List price $299.99

010-00858-20 small

Garmin nüvi 3790T

4.3" Multi-touch Glass Display, Voice-Activated Travel Assistant with nüRoute & BluetoothTechnology (010-00858-20)

$449.99

List price $449.99

TABG-2 small

Xscorpion TABG-2

Turbo Venturi Pistol Grip Blow Gun

$16.99

List price $39.95

XSBN1834 small

Xscorpion XSBN1834

Galvanized Brad Nails 5/8" Length 18 ga. 5,000 pcs

$8.32

List price $9.95

010-00783-10 small

Garmin nüvi 1260T

3.5" Touchscreen GPS Navigation Receiver with Bluetooth Technology and Text-to-Speech Feature (010-00783-10)

$119.99

List price $314.98

KMFC8, MVPA4, XKIT84, 41KMLC small

Kicker 46KMFC8W Marine Bundle

Includes: 150W RMS 8” Tower Speaker Systems, 4-Channel Compact Marine Amp, 8 Gauge Amp Wiring Kit, and LED Light Controller

(113)

$1499.95

List price $1921.95

PLCD15MR small

Pyle PLCD15MR Marine CD Player

$129.99

List price $319.99

MOFO-124X small

Power Acoustik MOFO-124X

2700W 12" MOFO Series Dual 4 ohm Subwoofer

(58)

$169.99

List price $249.95

IH-09AB small

Bravo View IH-09AB

Kid Friendly Automotive IR Wireless Headphones (Blue/Yellow)

$18.47

List price $59.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2021 Toyota Corolla

2012 Subaru Forester

2022 Tesla Model 3

2015 Mazda 5

1995 Cadillac DeVille

1991 Eagle Premier

1994 Isuzu Trooper

2007 Mitsubishi Lancer

2011 BMW M3

2016 BMW M3

Vehicle
Store
Delete

1950 Harley Davidson E

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
