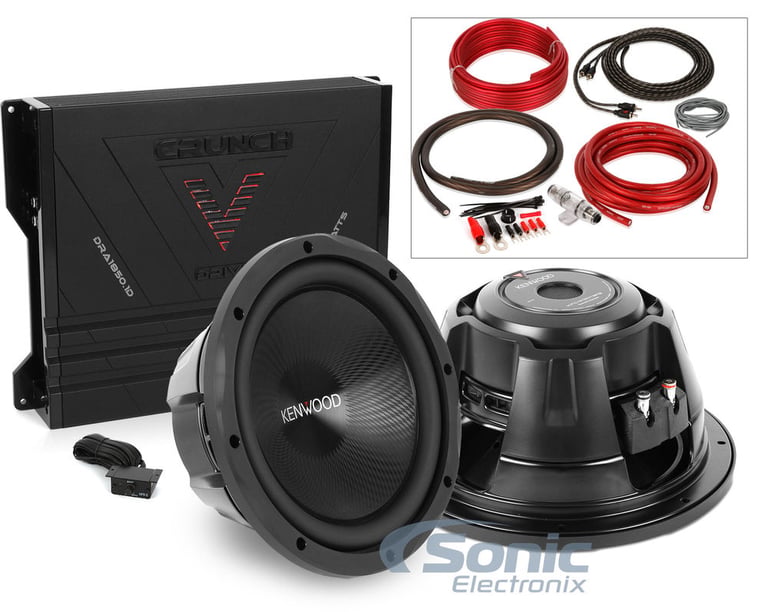

1800W Kenwood + Crunch Bass Package

Pair of Kenwood KFC-W3013PS 12" KFC Series Subs + Crunch DRA1850.1D Mono Amp + Amplifier Kit

Kenwood
Shop all Kenwood
EXCLUSIVE
highlight-star-icon

• Pair of 12" Single 4-Ohm KFC Series Subwoofers
• 2400W Max
• Frequency Response: 34-300 Hz
• Peak: 450W x 1 @ 4 ohm, 900W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total Peak Power: 1800W
• Wired Bass Level Remote
• Complete 8 Gauge 2-Channel Amplifier Installation Kit

Learn more about the 2_kfcw3013ps_dra18501d_bak42

We apologize

This item has been discontinued


Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
P1V2-675 main

Rockford Fosgate Punch P1V2-675

300W Peak (150W RMS) 6.75" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.00%

$179.99

List price $239.99

DMDX675 main

Diamond Audio DMDX675

300W Peak (100W RMS) 6.75" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

H672 main

Cerwin-Vega H672

540W Peak (180W RMS) 6.75" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$159.99

List price $191.99

Lowest price in 30 days
VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-16.67%

$99.99

List price $119.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
Limited time!
HDZ-653 main

Alpine HDZ-653

600W Peak (200W RMS) 6.5” Status Series Hi-Res 3-Way Component 4-ohm Speaker System

-33.34%

$959.95

List price $1440.00

Limited time!
46CSS674 main

Kicker CSS67 (46CSS674)

600W Peak (200W RMS) 6.75" CS Series 2 Way Component 4-ohm Speaker System

2
-28.02%

$143.96

List price $199.99

Description


Kenwood brand icon

Authorized dealer

Product Features:

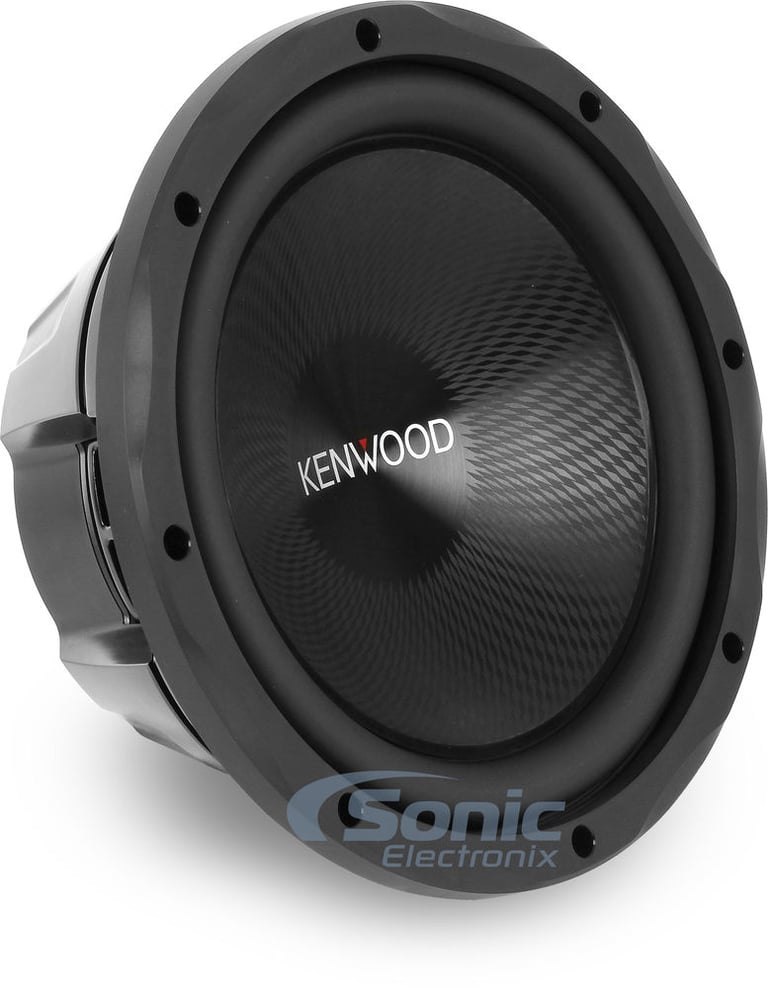

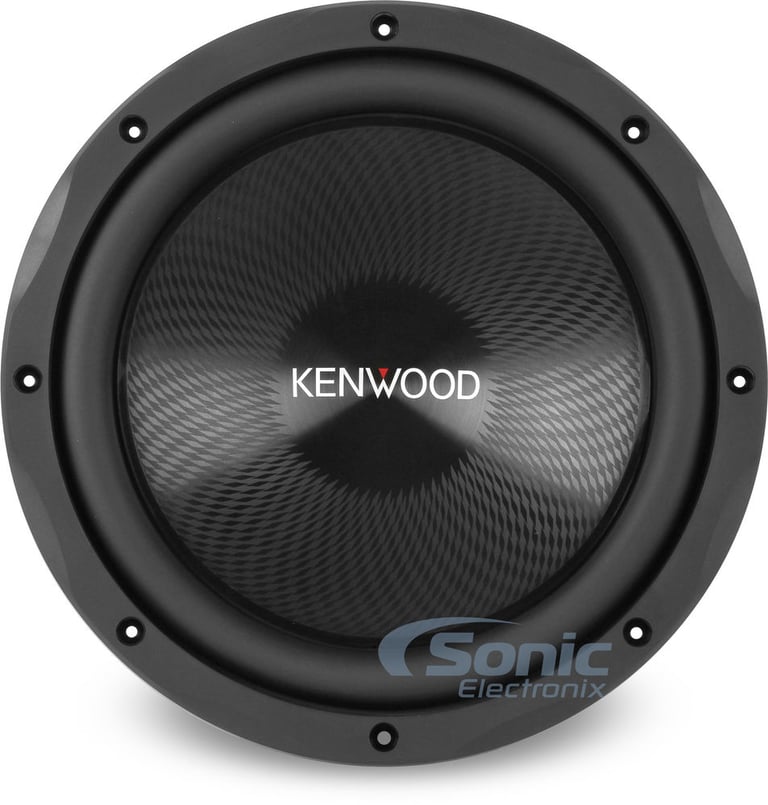

  • Kenwood KFC-W3013PS 12" Performance Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 400 watts

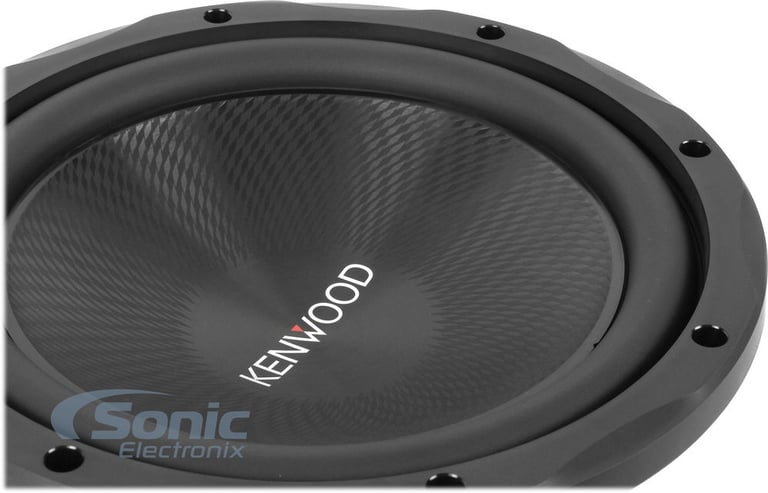

  • Polypropylene cone woofer
  • Urethane foam surround
  • Voice Coil: Single 4 ohm
  • Linear spider design for increased excursion

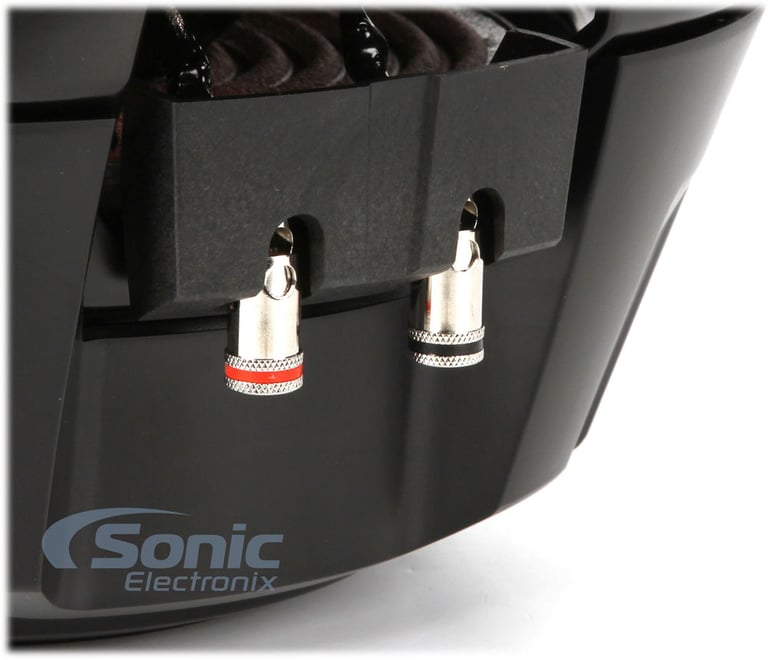

  • Spring post terminals

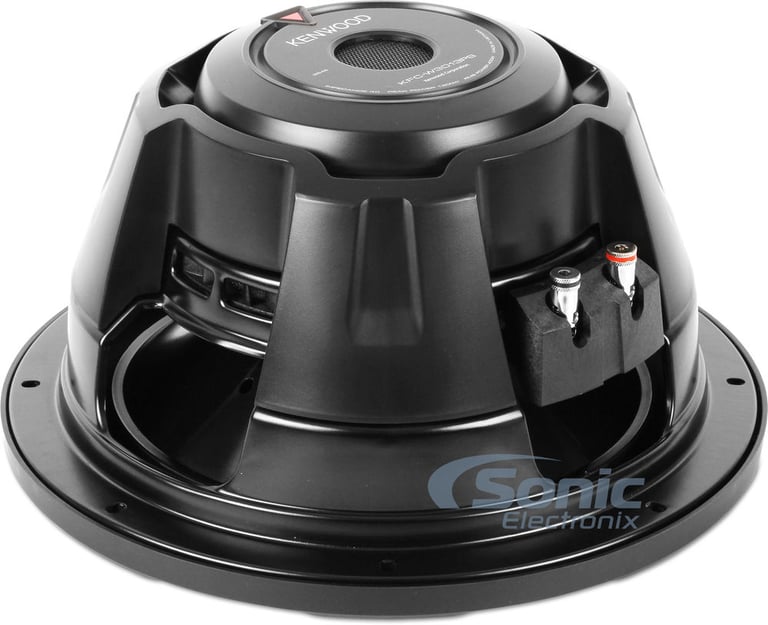

  • Double stacked magnet
  • Dual ventilation system
  • Frequency response: 34-300 Hz
  • Sensitivity: 85 dB
  • 1-year Sonic Electronix Warranty

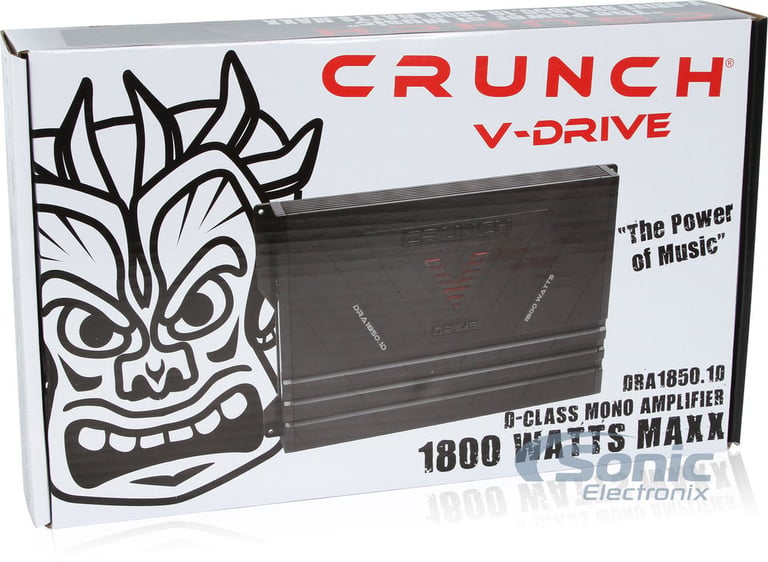

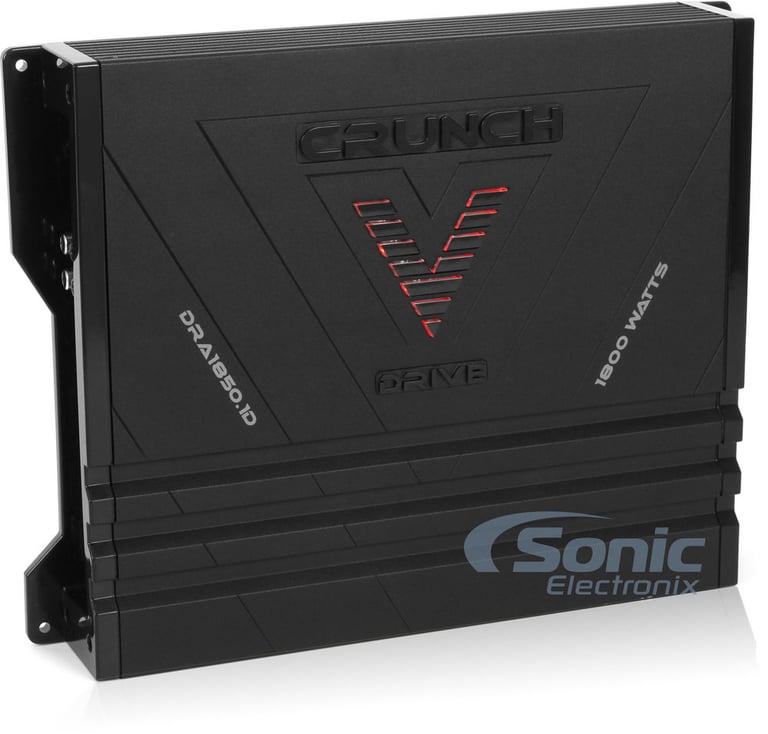

  • V-Drive Series Single Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 450 watts x 1 chan.
    • 2 ohm: 900 watts x 1 chan.
  • Peak Power at 1 ohm: 1800 watts x 1 chan.

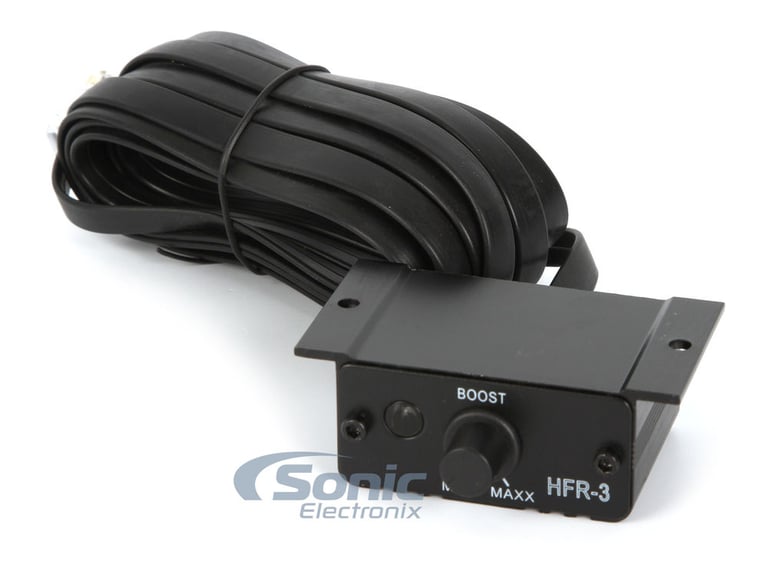

  • Wired bass level remote included
  • SPEED-FETS, High Speed Pulse Width Modulated MOSFET power supply
  • V-Drive 3P Power supply with Twin-Coil Isolation Design (TCID) power supplies for maximum efficiency in converting 12volt power into huge watts through the amplifiers
  • Exponential variable-power supply (EXVP) for efficient DC to AC conversion
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 1 channel operation
  • Illuminated badge and heatsink
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals

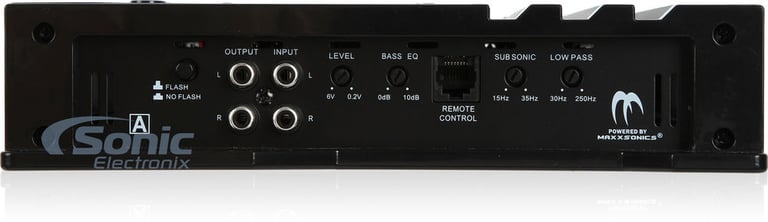

  • Input sensitivity:
    • Level: 200mV-6V
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Variable subsonic filter (15-30 Hz)
  • Damping factor: >200
  • Frequency response: 15-250 Hz
  • Dimensions: 12-3/16"L x 9-1/2"W x 2-1/8"H

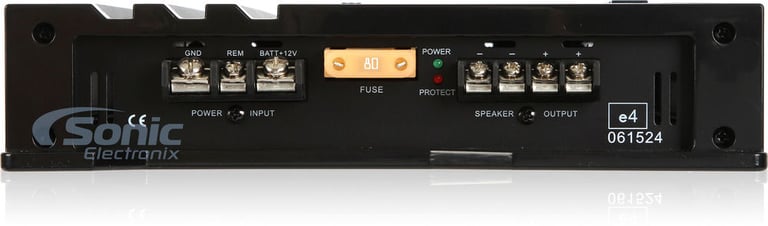

  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
  • General Features:

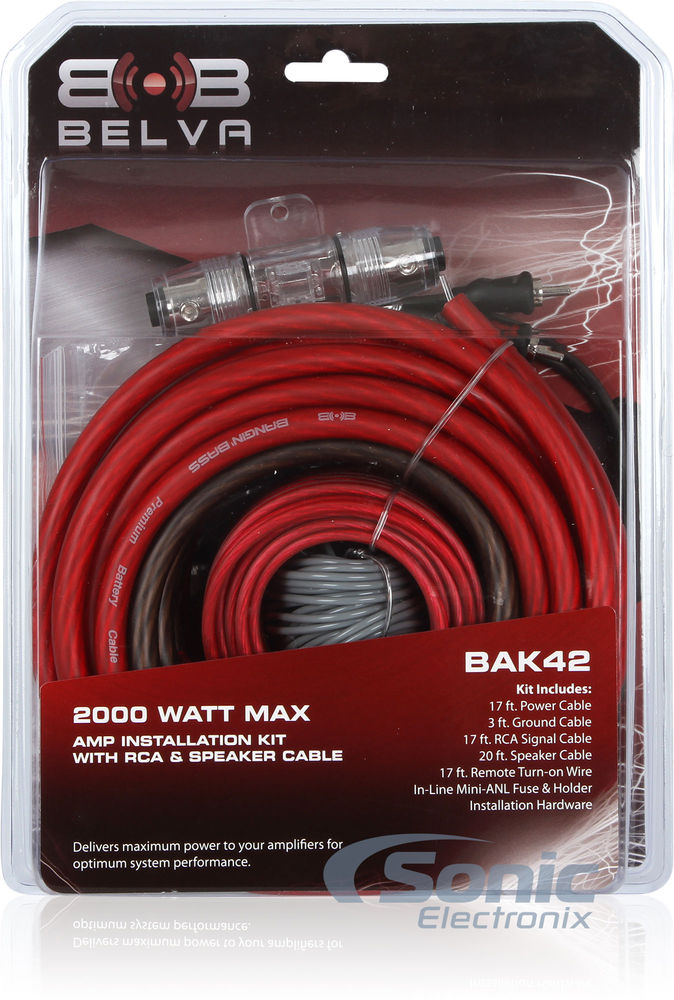

    • Complete 4 Gauge 2-Channel Amplifier Installation Kit
    • Designed specifically for car audio systems up to 1000 watts RMS
    • Premium Powerflex power and ground wire provides optimal power transfer
    • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
    • In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
    • Also available as 4-Channel Kit
    • Authorized Internet Dealer
    • 1-year Manufacturer's Warranty

    Kit includes:

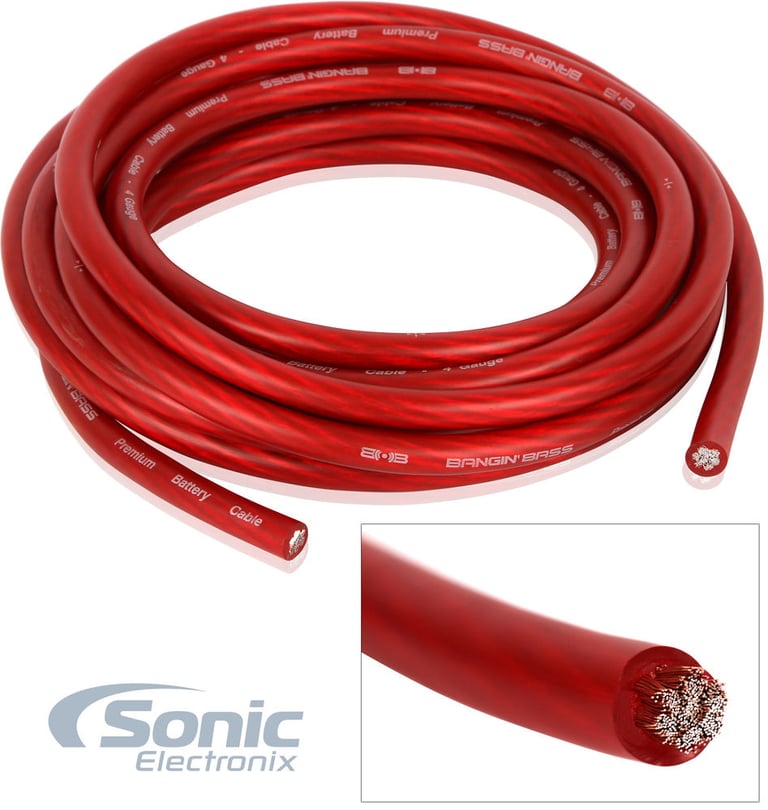

    1. 17 ft. (5.2 meters) Red 4 gauge power wire

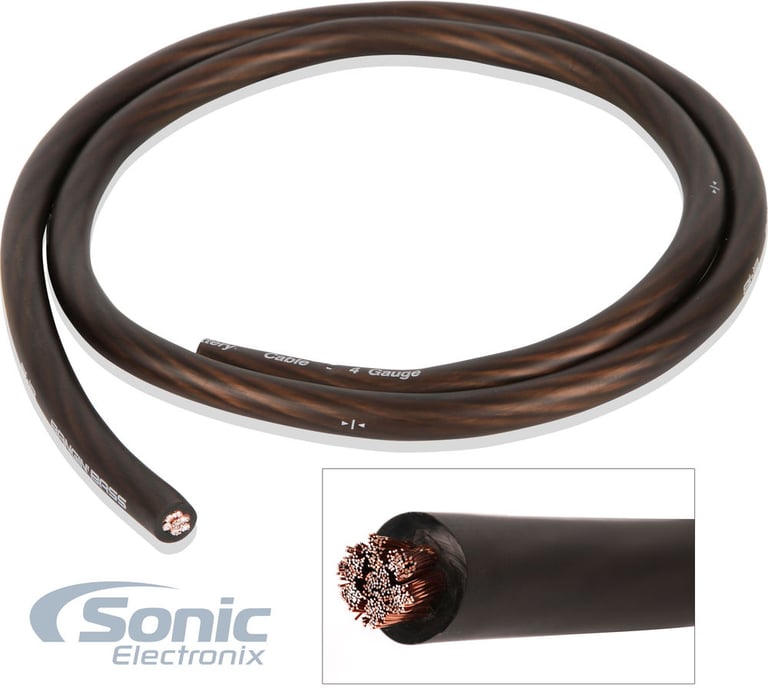

    2. 3 ft. (.91 meters) Black 4 gauge ground wire

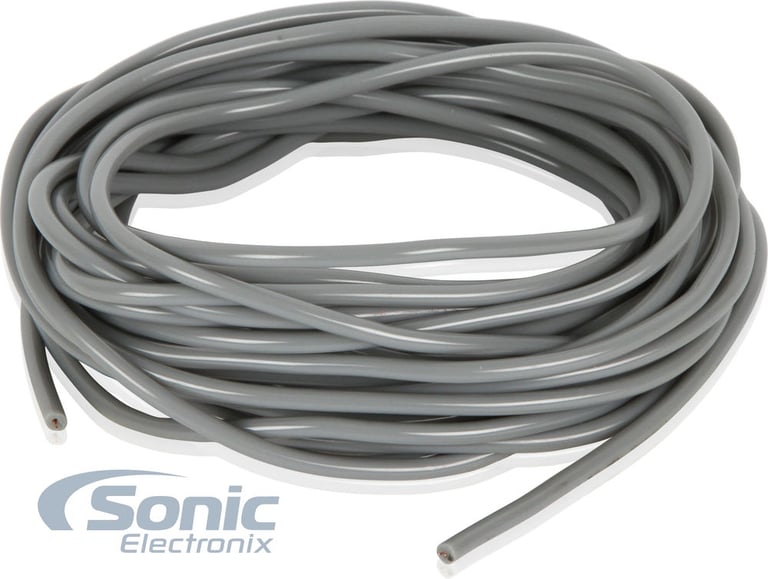

    3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

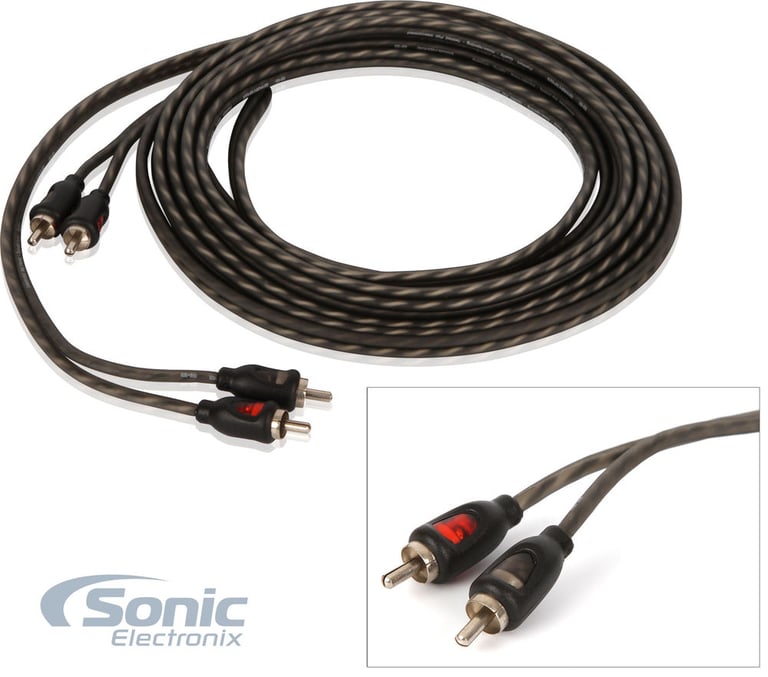

    4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

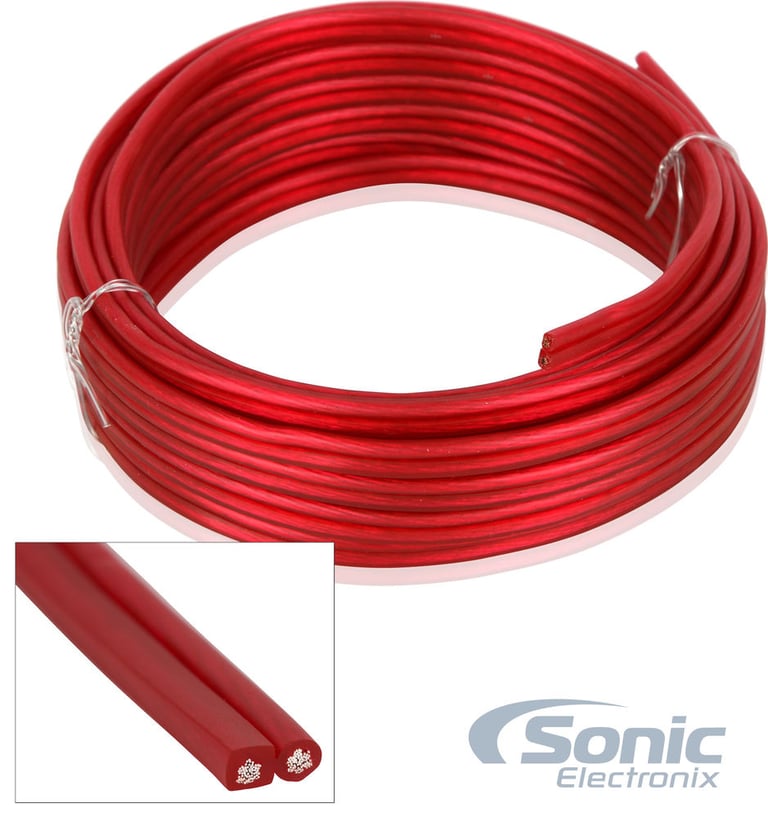

    5. 20 ft. (6.1 meters) Speaker cable

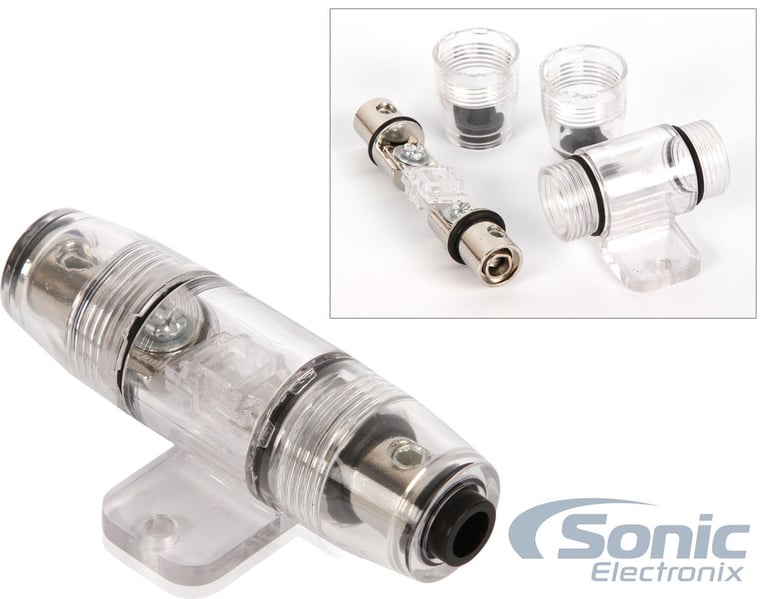

    6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

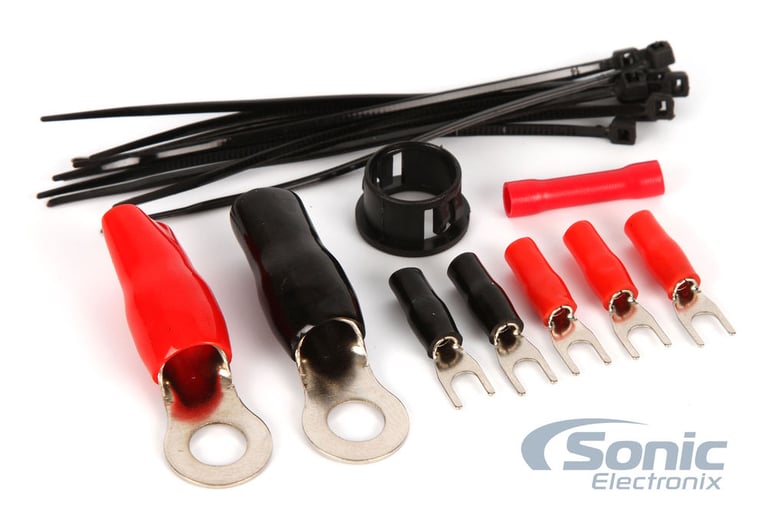

    7. One Black rubber firewall grommet
    8. One 4 Gauge red chrome plated ring terminals
    9. One 4 Gauge black chrome plated ring terminal
    10. Three 18 Gauge red Spade terminal
    11. Two 18 Gauge black Spade terminal
    12. One 18 Gauge red butt connector
    13. Ten 4" Black zip ties

    Best selling similar products

    NPKG212 small

    NVX NPKG212 Dual 12" Bass Package

    • 12" Loaded Dual Subwoofer Enclosure with Amplifier
    • 500 watts RMS
    • Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control

    (11)

    $374.99

    List price $419.99

    MB210SP small

    MTX Audio Magnum MB210SP

    • 10" Amplified Loaded Subwoofer System
    • 400 watts RMS
    • Built-In Class D amplifier
    • Variable bass boost
    • Speaker-level inputs

    (65)

    $269.95

    List price $299.95

    F-150EX-09A small

    MTX F-150EX-09A

    • 10" Amplified Loaded Subwoofer System
    • 250 watts RMS
    • Built-In Class D amplifier
    • Speaker-level inputs
    • External bass control

    $719.95

    List price $637.95

    JBLBassPro 12 small

    JBL BassPro 12

    • 12" Amplified Loaded Subwoofer System
    • 150 watts RMS
    • Built-In Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs

    (1)

    $364.95

    List price $419.95

    MBQBRO-302 small

    MB Quart MBQBRO-302

    • 12" Amplified Loaded Subwoofer System
    • 400 watts peak
    • Built-In class D amplifier
    • Variable bass boost
    • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

    $679.99

    List price $899.99

    W10S4_2, BXD3K, BAK42BK small

    (2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

    • 750W Max
    • 250W RMS
    • Polypropylene-Mica cone
    • High-excursion poly-foam surround
    • High-strength custom steel frame
    • Progressive Wavelit Ribs (P.W.R.) cone design

    (82)

    $364.88

    List price $489.98

    RTP8A small

    MTX Audio RTP8A

    • 8" Amplified Loaded Subwoofer System
    • 120 watts RMS (360 watts Peak)
    • Built-In amplifier
    • Variable bass boost
    • Speaker-Level Inputs
    • EBC wired remote bass level control

    (8)

    $199.95

    List price $219.95

    TNP212D2 small

    MTX Audio TNP212D2

    • 12" Amplified Loaded Subwoofer System
    • 400 watts RMS
    MTX TN250/1 amplifier included
    • Selectable bass boost
    • Speaker-level (high-level) inputs (adapter included)
    • Wired remote bass level control

    (156)

    $369.95

    List price $399.95

    BPKG212v2 small

    Belva BPKG212v2 Dual 12" Bass Package

    • Works with both Factory and Aftermarket Audio Systems
    • Dual 12" Belva Subwoofers
    • Monoblock Amp with Bass Knob
    • Ported Enclosure
    • Complete Amp Wiring Kit

    (82)

    $279.99

    List price $323.99

    QB10SPA_65_X2_STG1VKIT small

    NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

    • 10" Amplified Loaded Subwoofer System
    • 350 watts RMS
    • Built-In Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control
    • Includes 6.5(2) Co-axial Speaker and Damping Kits

    (246)

    $311.43

    List price $533.42

    Specifications & Details


    Amplifier Power Specifications
    RMS Power @ 4 ohms
    450 watts x 1 channel
    RMS Power @ 2 ohms
    900 watts x 1 channel
    Peak Power Output
    1800 watts x 1 channel
    Amplifier Specifications
    Amplifier Class
    D
    Number of Channels
    1 - Mono
    Total Peak Power Output
    1800 watts
    Total RMS Power Output
    900 watts
    Maximum Input Gauge Size
    4 AWG
    Minimum Impedance Unbridged
    1 ohm
    Minimum Impedance Bridged
    Not Bridgeable
    THD at Rated RMS Power
    0.10%
    Speaker Level Inputs
    No
    Preamp Outputs
    1 pair
    Built-in Crossover
    Low-Pass (LP)
    Low-Pass Crossover Frequency
    30 - 250 Hz
    Subsonic Filter
    15 - 30 Hz
    Signal-to-Noise Ratio
    95 dB
    Bass Boost
    0 - 10 dB
    Remote bass/level controller
    Yes
    Fan Cooled
    No
    Fuse Rating
    80A x 1
    CEA-2031 Compliant
    No
    Subwoofer Specifications
    Series
    Performance Series
    Subwoofer Size
    12"
    Voice Coil(s)
    Single
    Impedance (Per Voice Coil)
    4 ohm
    RMS Power Handling
    400 watts
    Peak Power Handling
    1200 watts
    Woofer Surround
    Urethane
    Woofer Composition
    Polypropylene
    Minimum Sealed Box Volume
    1.25 cubic feet
    Maximum Sealed Box Volume
    1.75 cubic feet
    Minimum Ported Box Volume
    2.0 cubic feet
    Maximum Ported Box Volume
    2.5 cubic feet
    Sensitivity
    85 dB
    Frequency Response
    34 - 300 Hz
    Xmax (millimeters)
    15.1 mm
    Top-Mount Depth (Mounting Depth)
    6-1/4"
    Cutout Diameter
    11"
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Sonic Electronix

    Item Details


    Manufacturer:

    Model Number:

    DRA1850.1D_KFC-W3013P_BAK42

    Weight:

    43.50lbs

    Internal SKU:

    2_kfcw3013ps_dra18501d_bak42

    Internal Product ID:

    88338

    Customer Ratings & Reviews


    1800W Kenwood + Crunch Bass Package thumbnail image

    5 star
    0%
    4 star
    0%
    3 star
    0%
    2 star
    0%
    1 star
    0%



    Durability
    0
    Value
    0
    Features
    0
    Design
    0
    Usability
    0

    Customer Reviews

    Sort by:

    Loading...
    Sorry, no reviews found


    No picture

    Pioneer AVH-220EX (Open Box, Complete)

    Double DIN Bluetooth In-Dash DVD/CD Digital Media Car Stereo Receiver w/ 6.2" WVGA Touchscreen Display

    $200.00

    List price $259.99

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2005 Toyota Prius

    2010 Land Rover LR4

    2020 Buick Enclave

    2005 Mitsubishi Lancer

    1986 Isuzu Pickup

    2013 Audi A3

    2014 Audi TT

    1978 Dodge D/W Series

    1984 Cadillac Cimarron

    1991 Dodge Daytona

    Vehicle
    Store
    Delete

    2021 Harley Davidson FLRT Freewheeler

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
