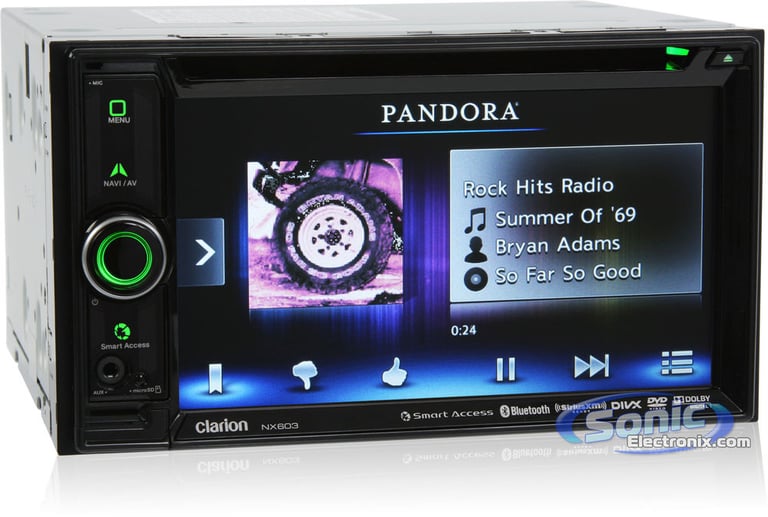

Clarion NX603 (Factory Refurbished)

Double-Din In-Dash DVD Receiver w/ GPS, Bluetooth and 6.2" LCD Touchscreen

Clarion
Shop all Clarion
Product videos
highlight-star-icon

• Built-in GPS Navigation
• Built-in Bluetooth
• 6.2" LCD Touchscreen Display
• 3 Sets of 4V Preamp Outputs
• 3-Band Parametric Equalizer
• Magna Bass EX Dynamic Enhancement
• Dual Zone Playback • 50W x 4 Chan. Max, 18W x 4 Chan. RMS

Learn more about the LS-nx603-RB

We apologize

This item has been discontinued

Product Highlights


• Built-in GPS Navigation
• Built-in Bluetooth
• 6.2" LCD Touchscreen Display
• 3 Sets of 4V Preamp Outputs
• 3-Band Parametric Equalizer
• Magna Bass EX Dynamic Enhancement
• Dual Zone Playback • 50W x 4 Chan. Max, 18W x 4 Chan. RMS

Description


Clarion brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.
























NX603 Features:

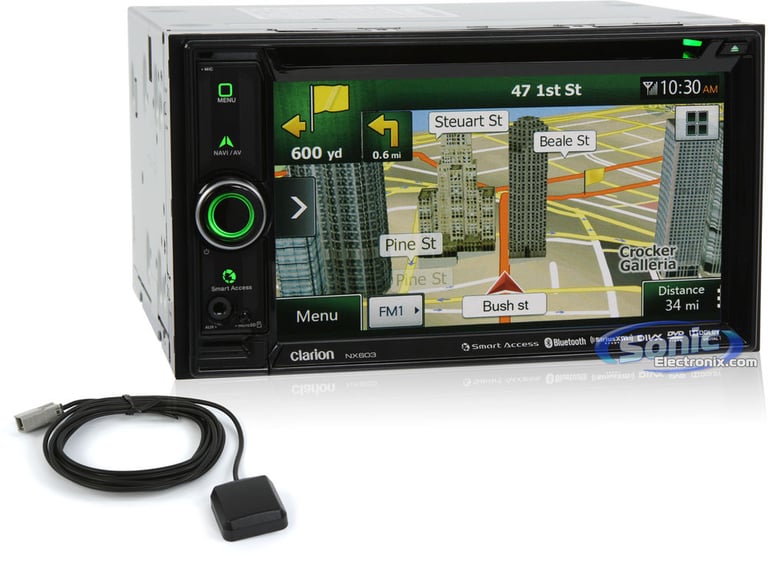

  • Clarion NX603 In-Dash Receiver
  • Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • Pandora Link integrates your car stereo with your iPhone and Pandora Internet Radio

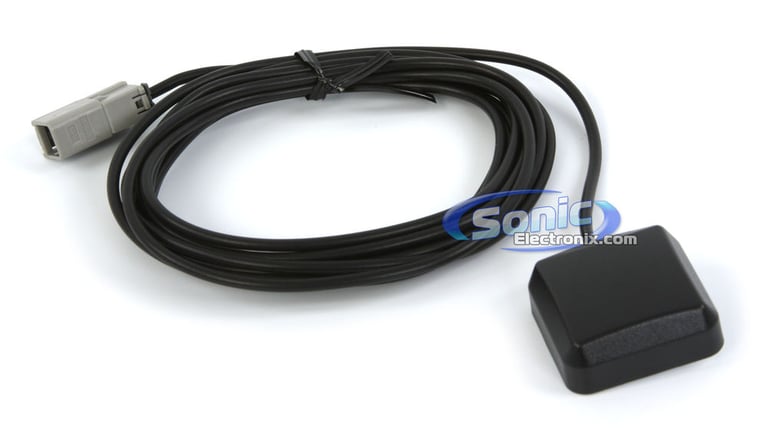

  • GPS Navigation gives you turn by turn direction with 15 million points of interest

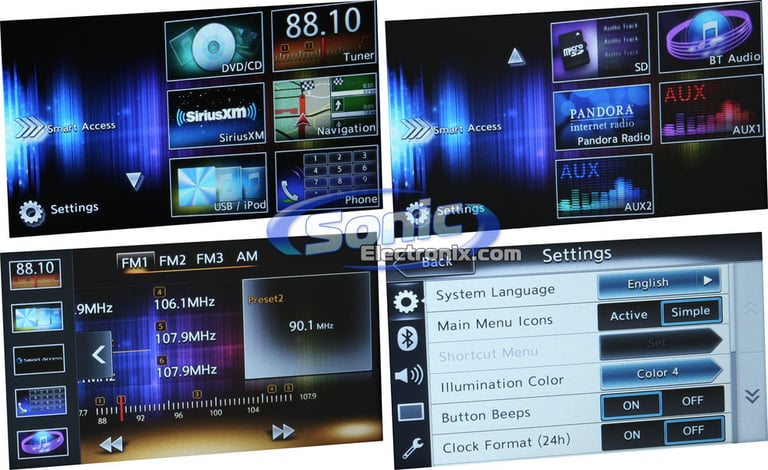

  • Full-color 6.2" LCD touchscreen display
  • Variable Color Illumination button lighting with 728 colors
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 18 watts x 4 channels
  • Remote control (optional)
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Sonic Electronix Warranty

Playback and Audio Features:

  • DVD/DVD-R/RW, CD/CD-R/RW, MP3/MP4/WMA Playback
  • Playback of region #1 DVD discs
  • AM/FM tuner with 18FM/12AM presets
  • Beat EQ 3-band parametric equalizer with 4 selectable tone curves (3 Preset, 1 User)
  • 24bit DAC enhances MP3/WMA playback
  • 8GB MicroSD Card reader for audio and video playback
  • Dual Zone audio and video playback compatible
  • High Pass and Low Pass crossover filters
  • Magna Bass EX Dynamic Bass Enhancement control

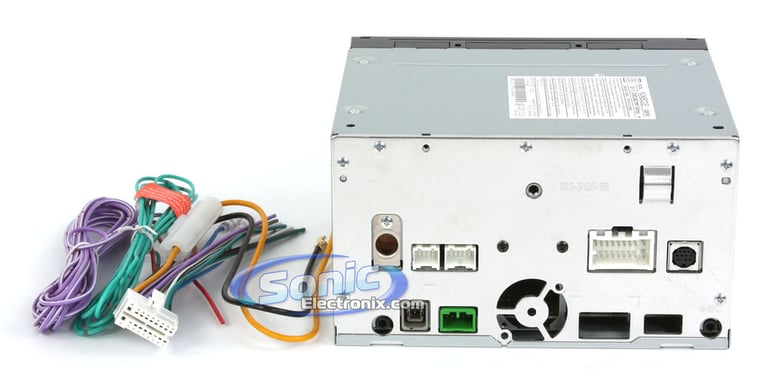

Inputs and Outputs:

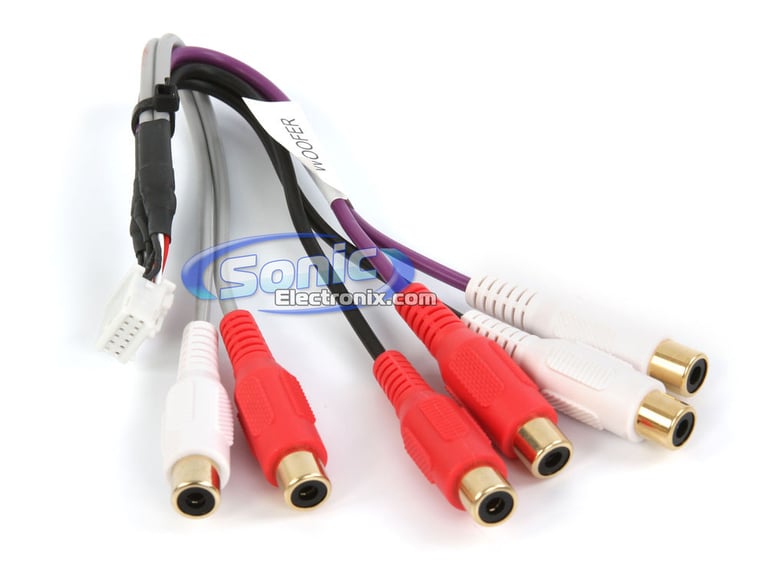

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)
  • 3.5mm Front Auxiliary Input

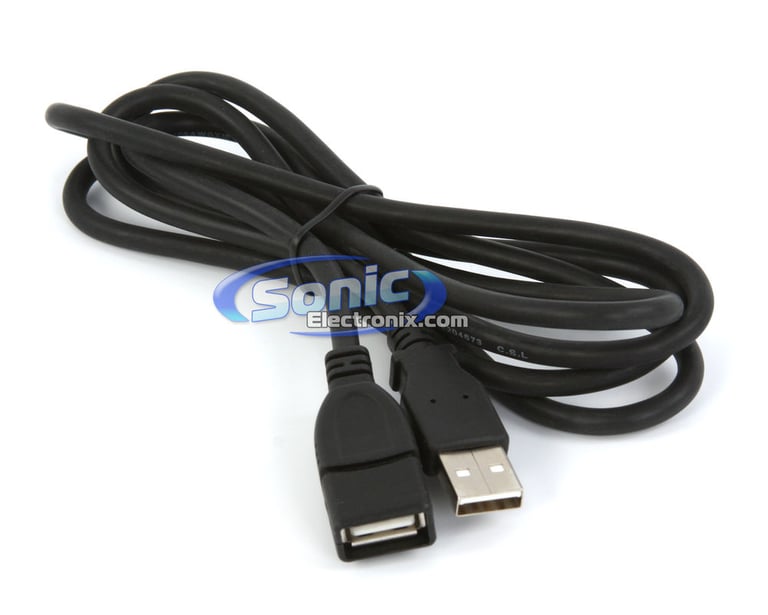

  • Rear USB Input
  • Backup Camera Input: Used for universal rear view cameras ( Clarion CCA644 cable required) with an RCA composite input . The Clarion CC4001U is recommended and sold separately

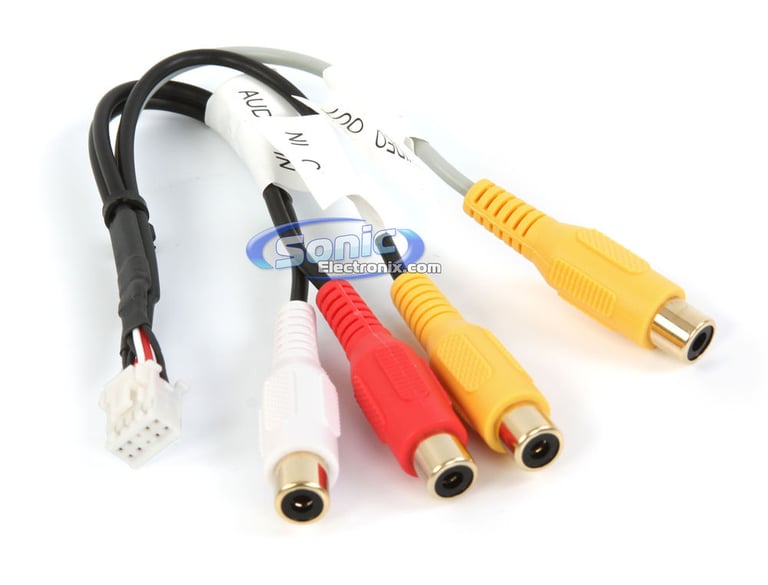

  • Rear RCA Audio/Video Outputs
  • Rear RCA Audio/Video Inputs

Navigation Features:

  • iGo Primo® mapping on Preloaded microSD Card
  • Simple Destination Input
  • Turn-by-turn voice prompts
  • Selectable route guidance
  • 15 Million points-of-interest including national parks and gas stations
  • Text to speech
  • 2D or 3D map display w/ landmarks
  • Preview of next rout event
  • Traffic lane information
  • Audible alerts and notification
  • Speed limit sensor provides audible warning
  • Select the type of vehicle you are in

Bluetooth Features:

  • Bluetooth version 2.0 +EDR certified
  • Supports A2DP audio streaming
  • Phone Book Access Profile (PBAP) displays the name of the incoming caller, as well as access the contact list of the mobile phone
  • Dial-Up Networking Profile can access the Internet and other dial-up services over Bluetooth
  • Works with most Bluetooth enabled cell phones

Expandability Options:


Note: The map data for this unit is stored on a MicroSD card. To update the unit, use the MicroSD slot as pictured below

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Security Code
Wireless Remote
Optional (Accessory and sold separately)
Peak Power Output
50 watts x 4 channel
RMS Power Output
18 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
Beat EQ 3-band parametric equalizer
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
6.2"
Display Adjustment
Brightness
Expandability Features
Inputs
Audio/Video (Rear)
Auxiliary (Front)
Auxiliary (Rear)
Backup Camera
Outputs
Audio/Video (RCA)
Memory Card Slot
microSD
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Navigation Features
Map Database
iGo Primo
Maps
Complete 50 USA
Canada
Puerto Rico
Map Dimensional Display
2D
3D
Points of Interest
15 Million
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

LS-NX603-RB

Weight:

6.50lbs

Internal SKU:

LS-nx603-RB

Internal Product ID:

88991
