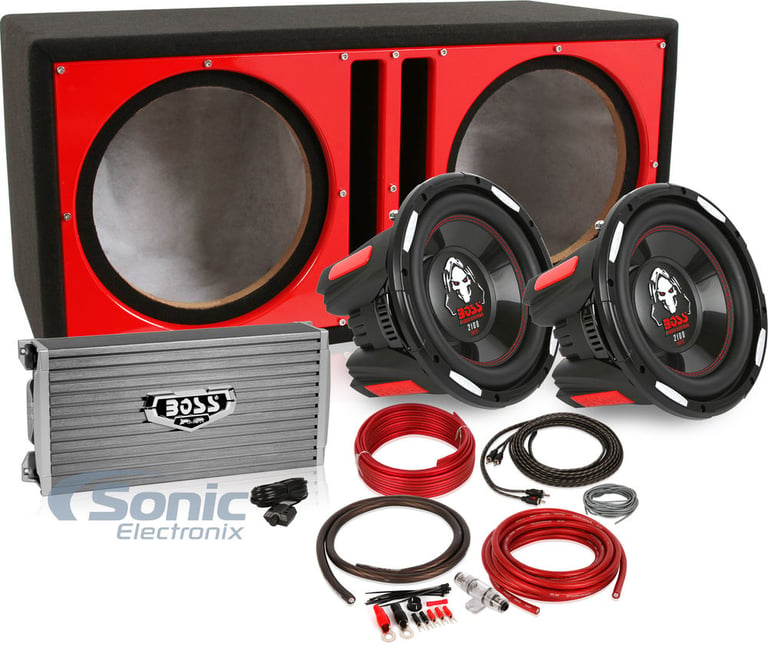

Amplified Boss Bass Package (Red)

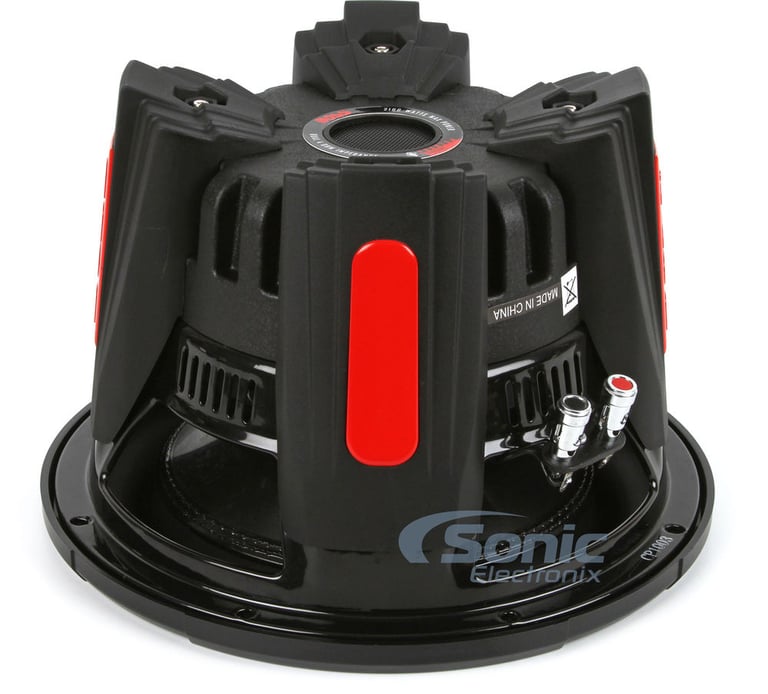

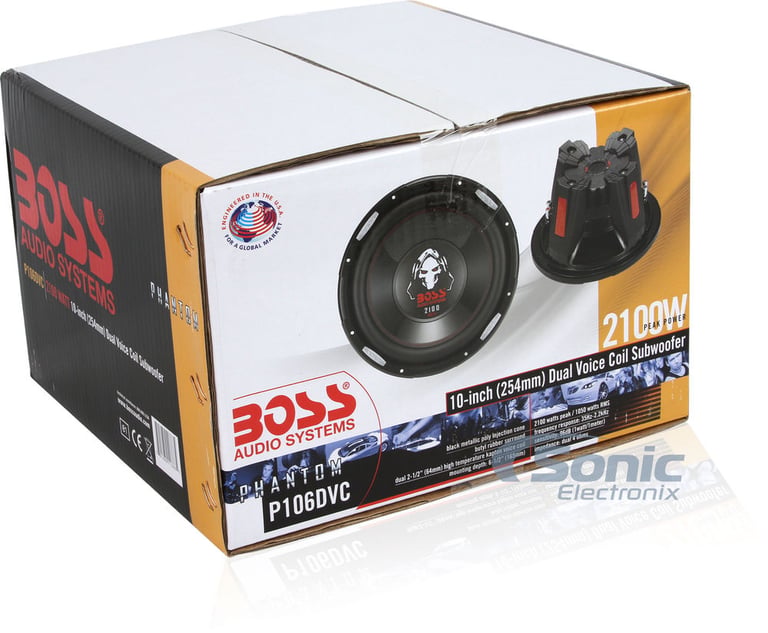

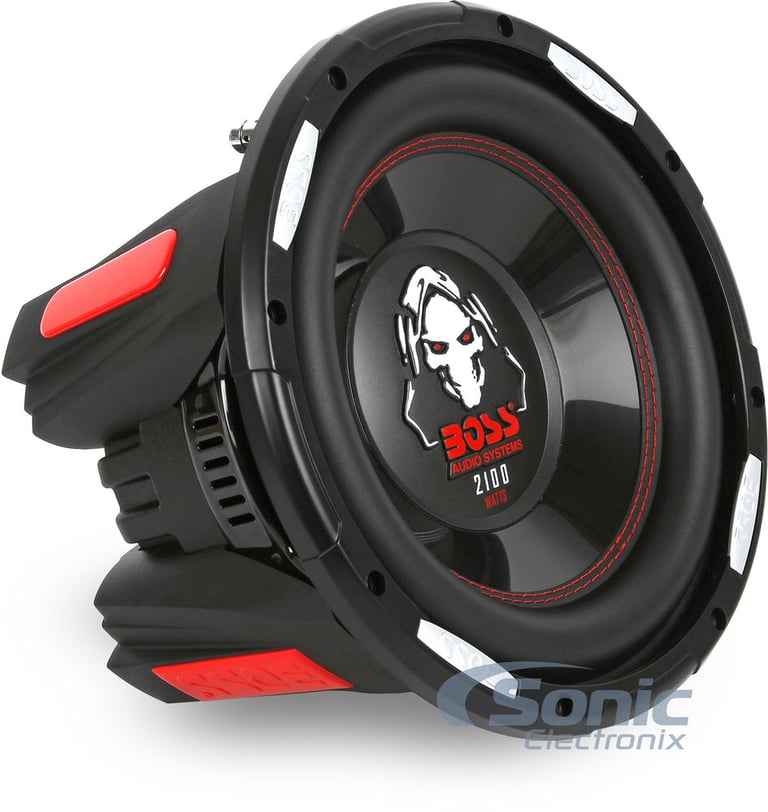

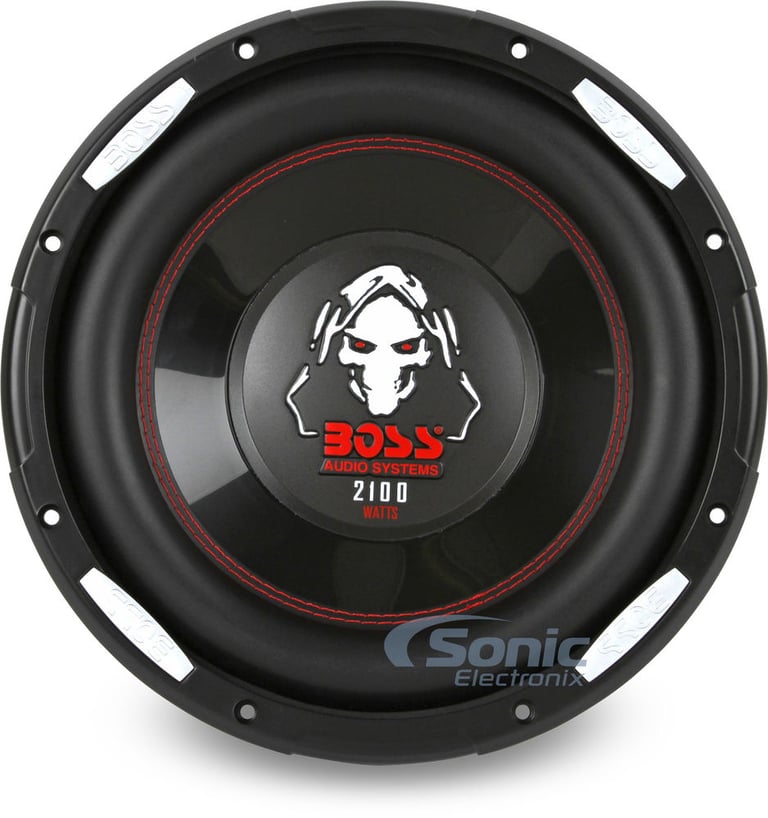

• 10" Dual 4 ohm Phantom Series Subwoofer
• Power Handling:
  • Peak: 4200 watts Total (2100W each)
  • RMS: 2100 watts Total (1050W each)
• Impedance: Dual 4 ohm
• Black metallic injection molded polypropylene cone
• Butyl rubber surround
• Designed for use in sealed and ported enclosures
• 2-1/2" High temperature Kapton voice coil
• Large magnet with protective cover
• Mounting Depth: 6-1/2"
• Frequency response: 35-2,200 Hz
• Sensitivity: 96 dB
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features:

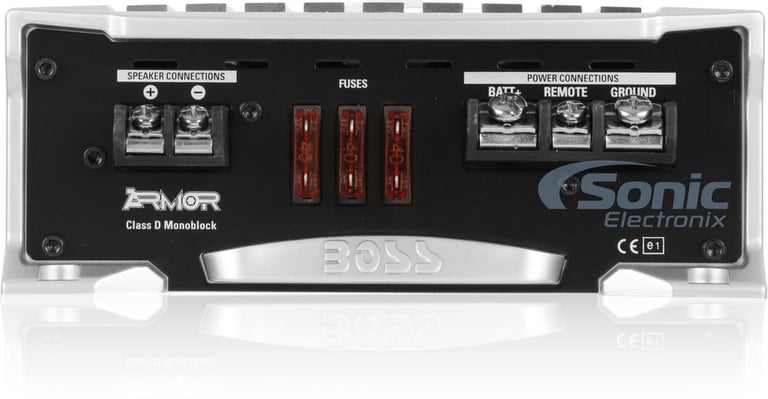

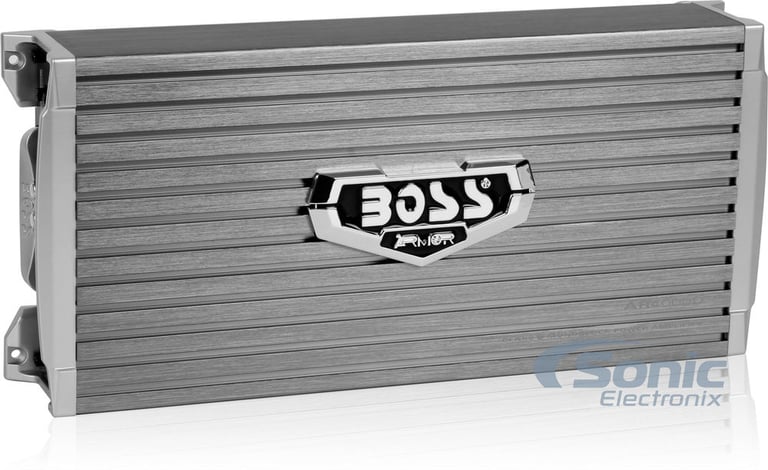

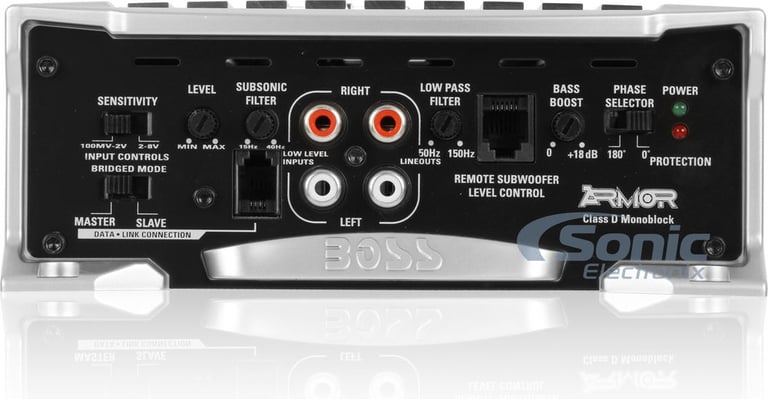

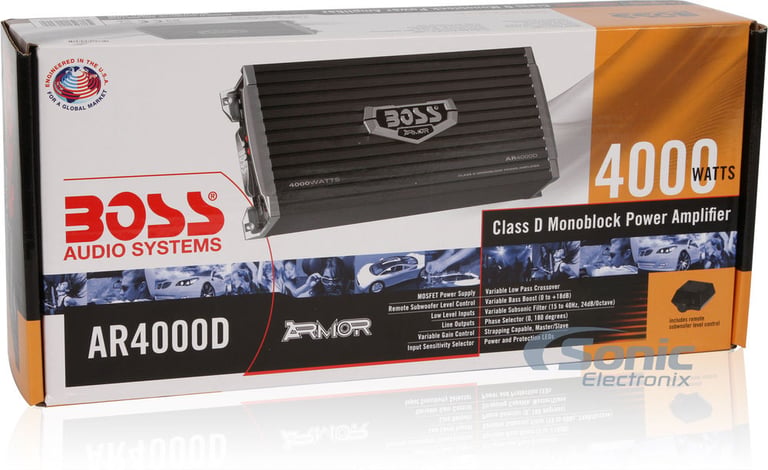

• Monoblock ARMOR Series Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 1600 watts x 1 chan.
• Max Power Rating
• 2 ohm: 3000 watts x 1 chan.
• 1 ohm: 4000 watts x 1 chan.
• Strapped, 2 ohm: 8000 watts
• Pulse Width Modulated MOSFET power supply

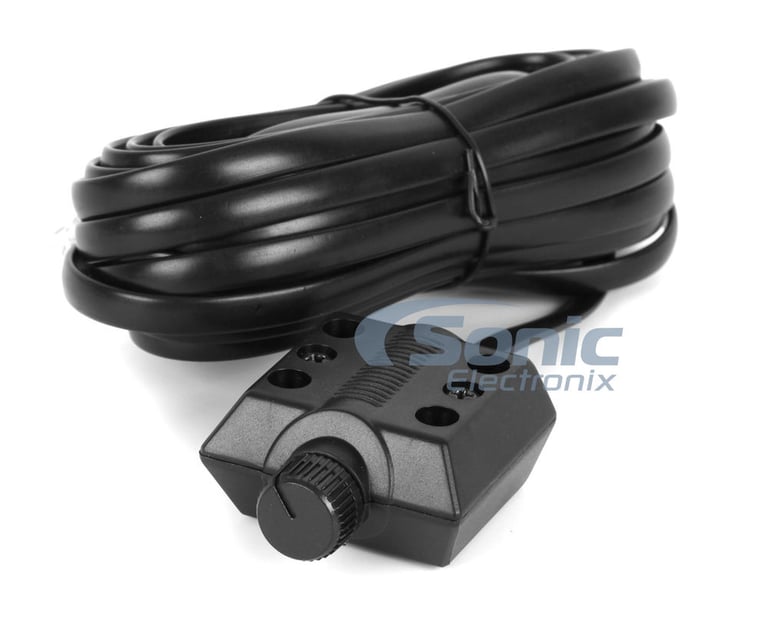

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
• Soft start turn-on
• Mono channel operation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Variable low-pass filter (50-150 Hz, 24 dB/octave)
• Variable subsonic filter (15-40 Hz, 24 dB/octave)
• Damping factor: 125
• Frequency response: 9-50000 Hz
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Dimensions: 14-1/3"W x 5"D x 2-8/10"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

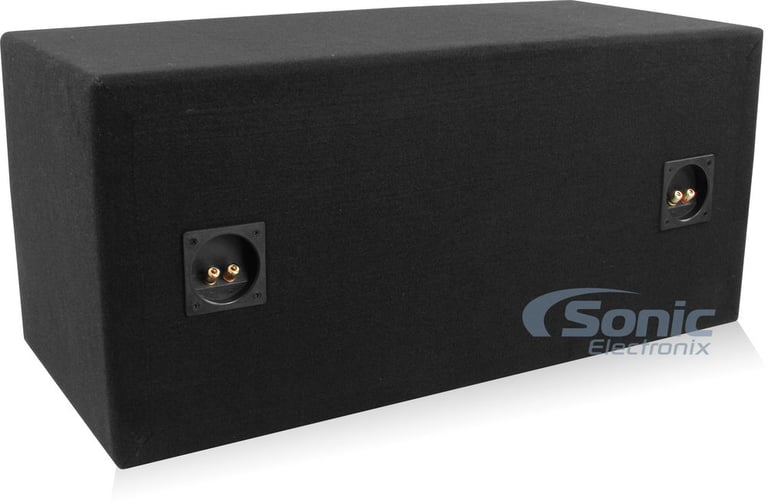

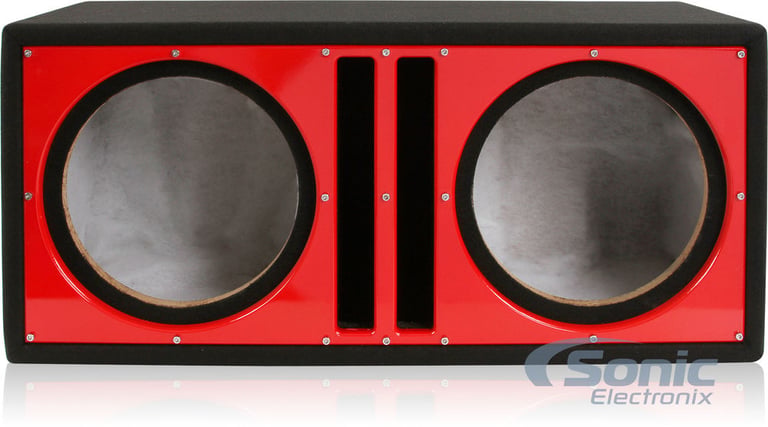

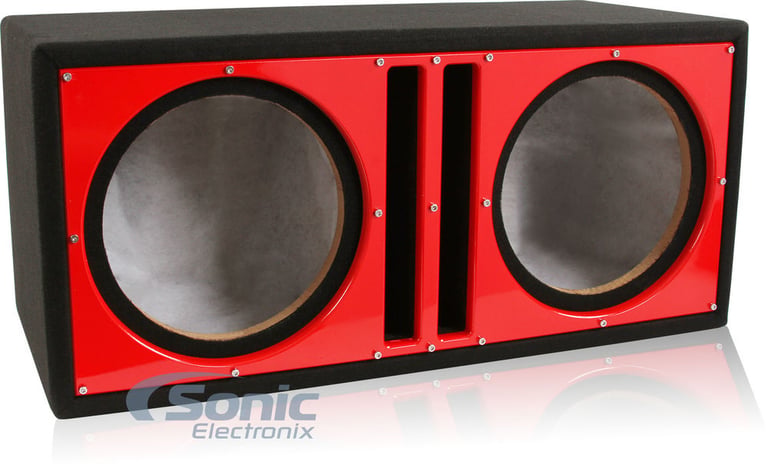

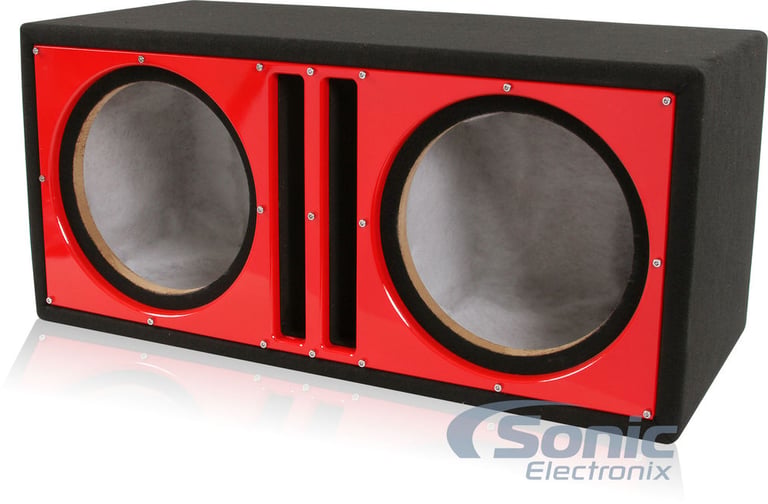

• 10" Dual Ported Subwoofer Enclosure
• Red high gloss front face board
• Covered in black carpet
• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Subwoofer mounting depth: 10"
• Subwoofer cutout diameter: 9.5"
• Mounting Ring Width: .75"
• Box volume: 0.71 cubic feet (per chamber)
• Total box volume: 1.42 cubic feet
• Dimensions: 14"D x 30.5"L x 14"H
• Also available in Blue and Black
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Port Specifications:

• Rectangular Slot Port
• Number of ports: 2
• Estimated port tuned frequency (fb): 40 Hz
• Port dimensions: 11.675"Length 11.5"Depth

General Features:

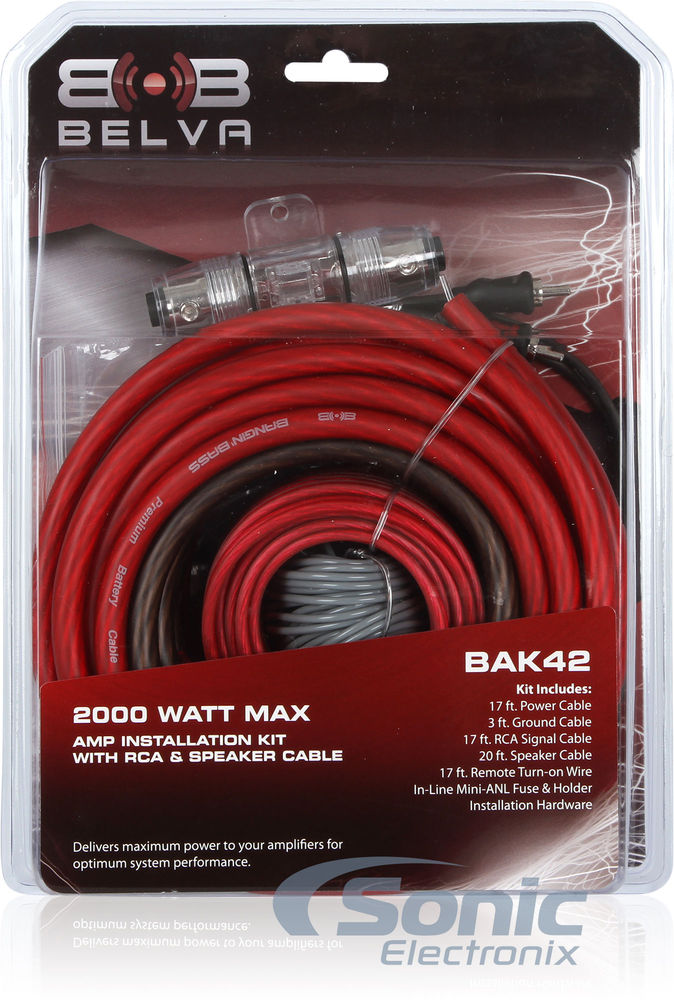

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

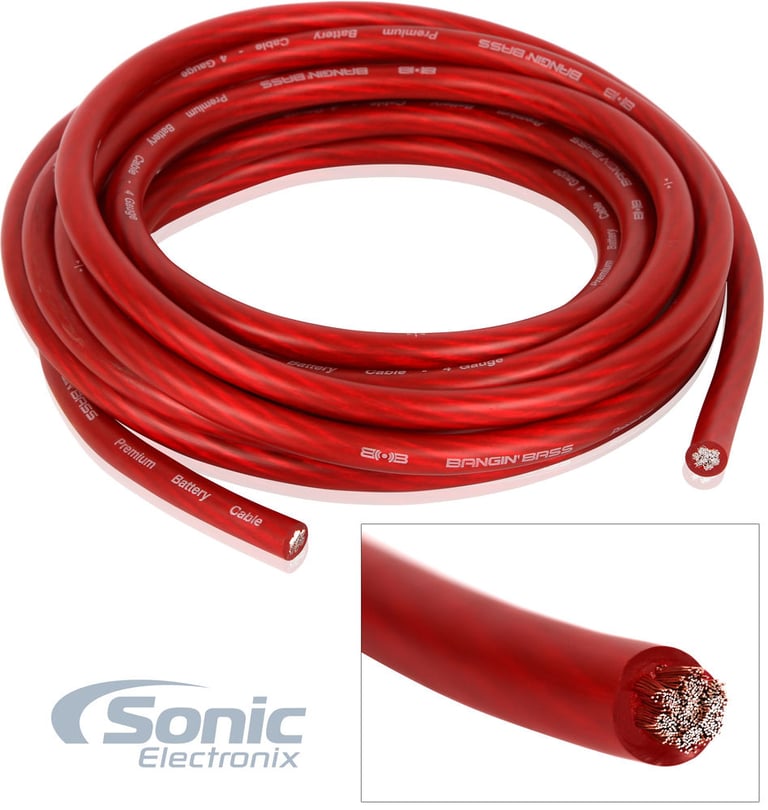

1. 17 ft. (5.2 meters) Red 4 gauge power wire

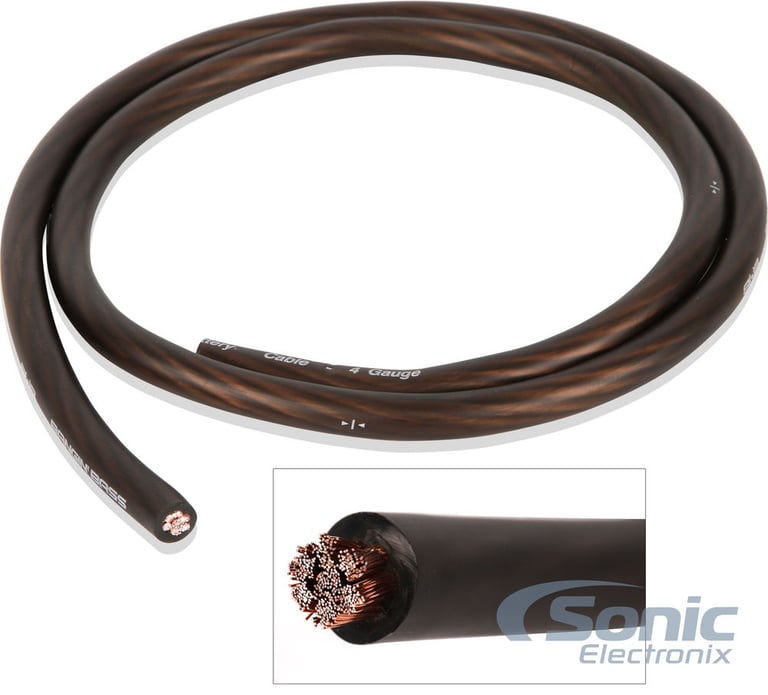

2. 3 ft. (.91 meters) Black 4 gauge ground wire

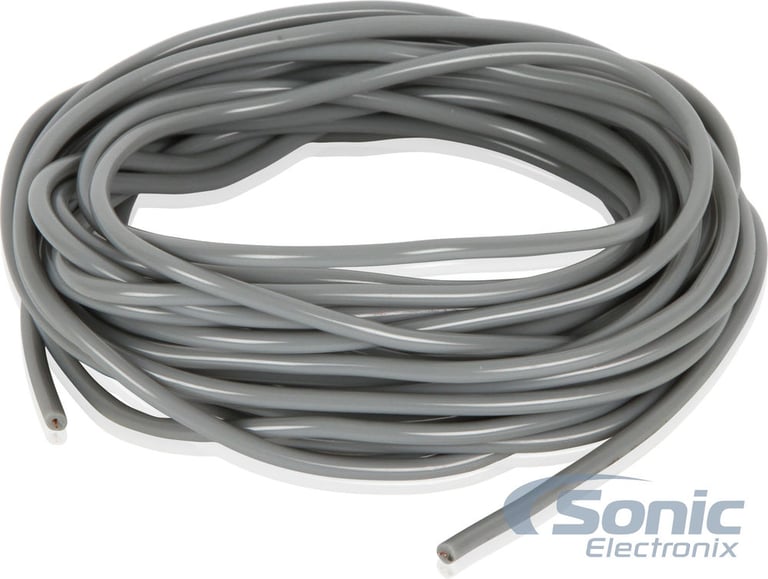

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

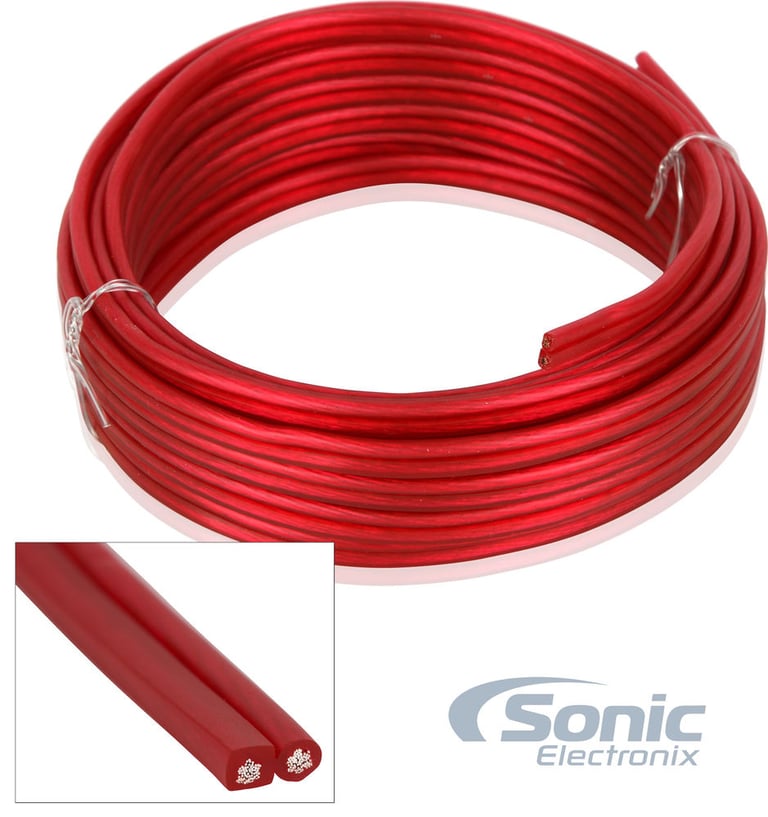

5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

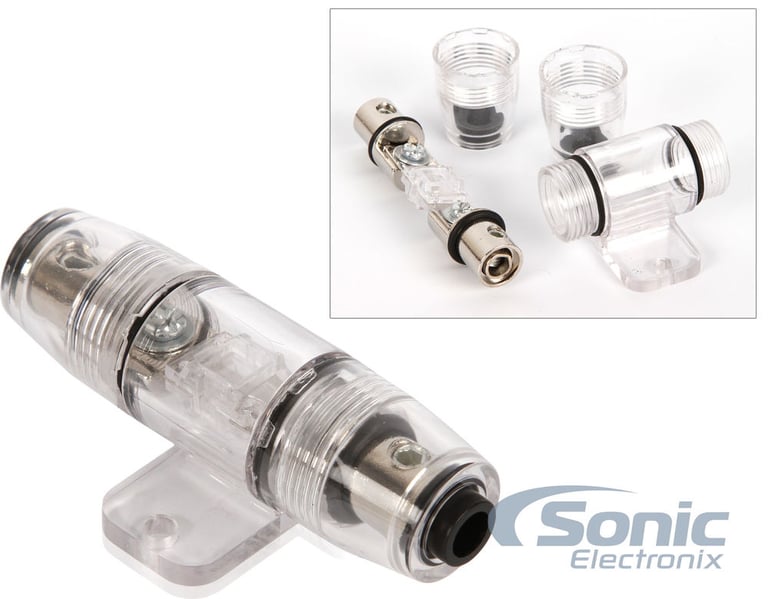

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

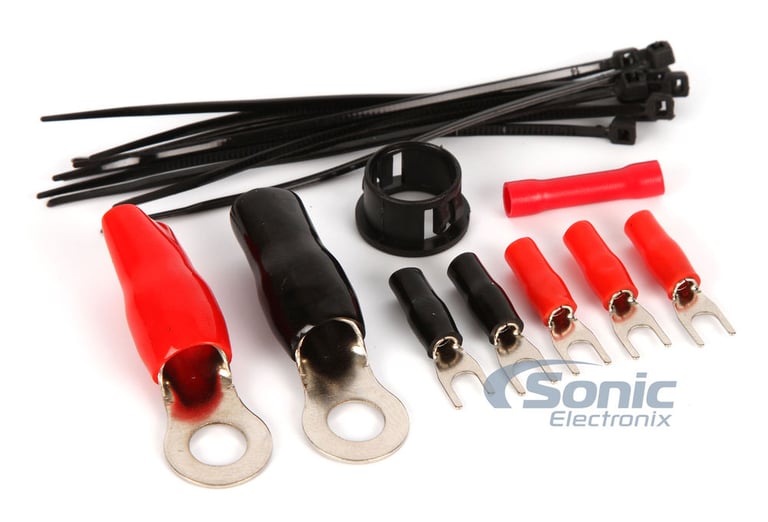

7. One Black rubber firewall grommet
8. One 4 Gauge red chrome plated ring terminals
9. One 4 Gauge black chrome plated ring terminal
10. Three 18 Gauge red Spade terminal
11. Two 18 Gauge black Spade terminal
12. One 18 Gauge red butt connector
13. Ten 4" Black zip ties
