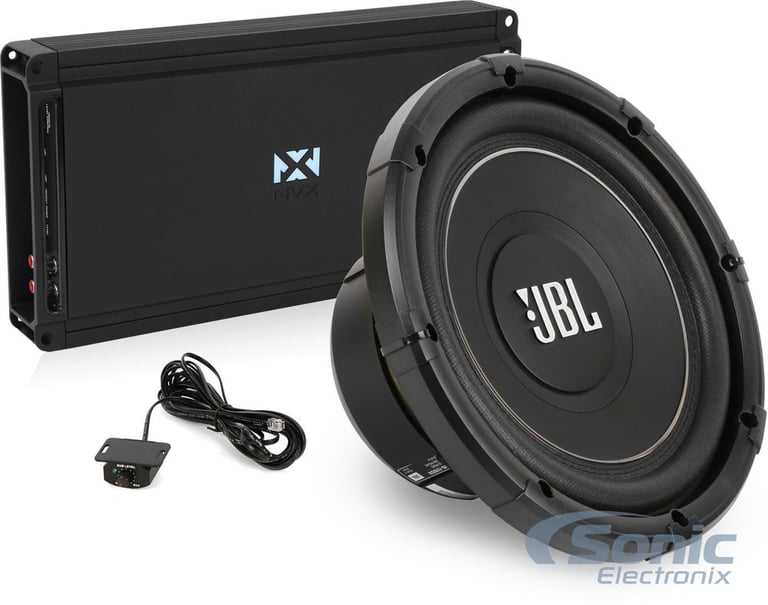

1800W JBL and NVX Bass Package

12" MS Series Dual 2 ohm Subwoofer w/ Class D Monoblock Amplifier

JBL
Shop all JBL
Product videos
highlight-star-icon

• JBL MS-12SD2 12" Subwoofer
• 1800W Peak
• 900W RMS
• NVX JAD1200.1 Monoblock Amplifier
• RMS: 500W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Ultra Efficient Class D Design
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H

Learn more about the ms12sd2_jad12001

We apologize

This item has been discontinued


Loading...
HON1B3 main

GROM Audio HON1B3 Bluetooth Streaming Kit (GROM-BT3-HON1)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2001 - 2015 Acura and Honda Factory Radios

5
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

82-7500 main

Metra 82-7500

5-1/4" - 6-1/2" Universal Speaker Adapter Brackets for select 1990-2013 vehicles from Honda, Acura, Mazda

9
-10.53%

$16.99

List price $18.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Product Highlights


• JBL MS-12SD2 12" Subwoofer
• 1800W Peak
• 900W RMS
• NVX JAD1200.1 Monoblock Amplifier
• RMS: 500W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Ultra Efficient Class D Design
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H

Description


JBL brand icon

Authorized dealer

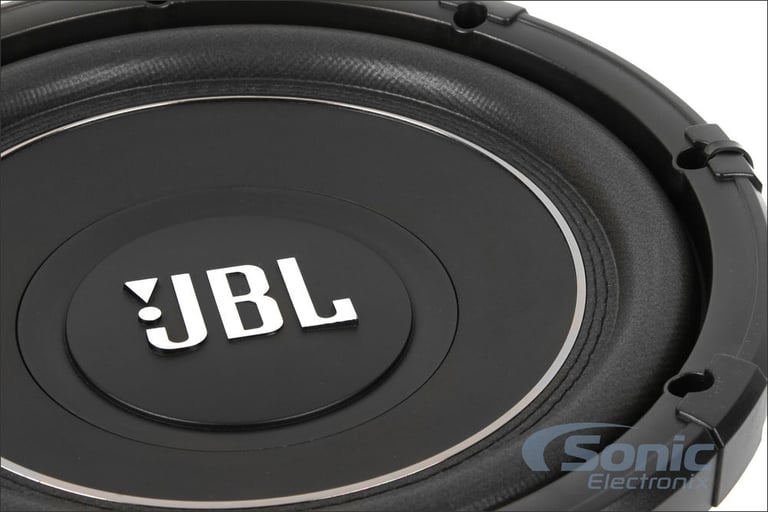

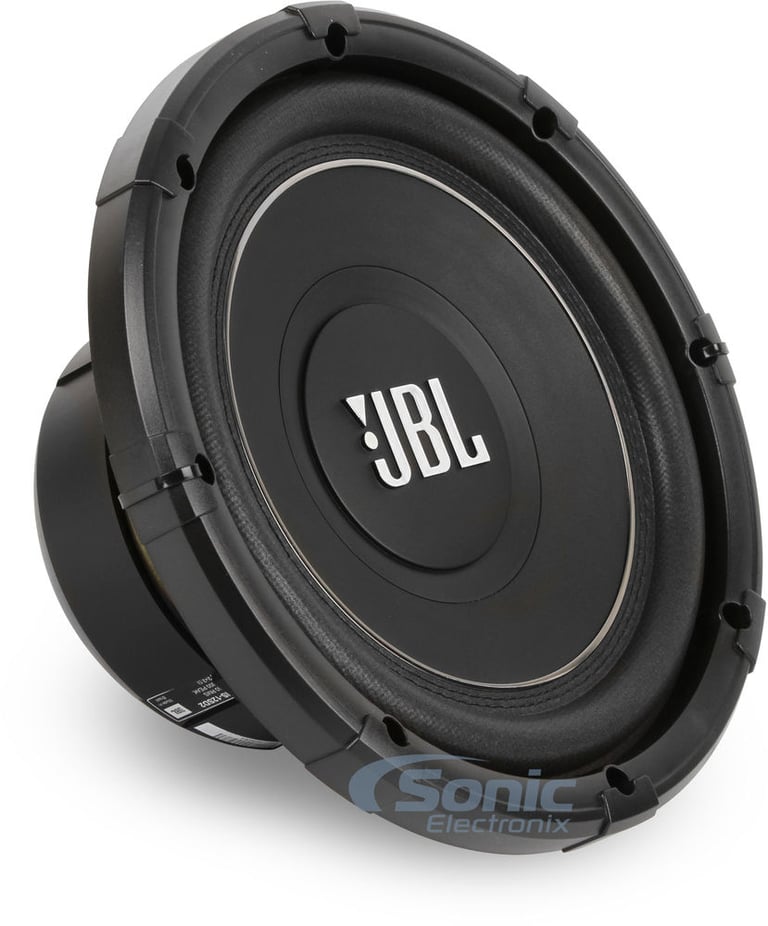

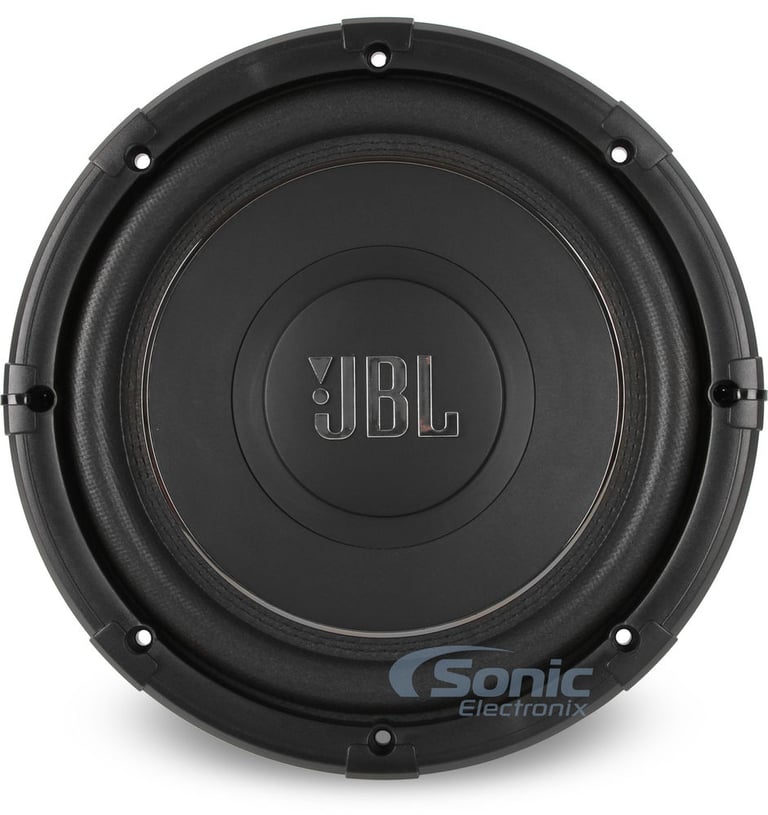

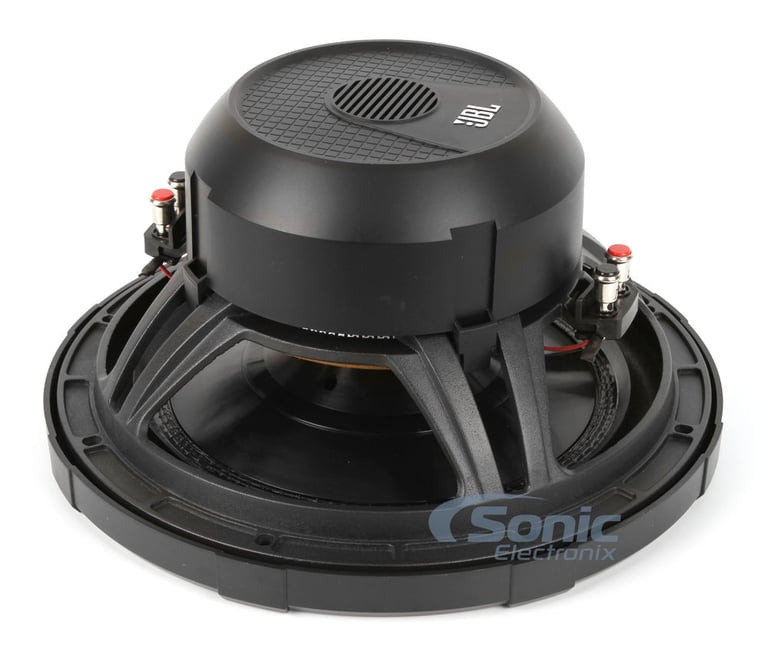

JBL MS-12SD2

450W RMS 12" MS Series Dual 2 ohm Subwoofer
Quantity: 1

General Features

  • 12" Dual 2 ohm MS Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 450 watts
  • Impedance: Dual 2 ohm
  • Polypropylene cone material
  • Laminated polyurethane and fabric surround
  • Vented pole piece
  • Designed for both sealed and vented enclosures
  • Aluminum frame with black epoxy coating
  • 2-1/2" Copper voice coil with Kapton former
  • 56 oz. Barium ferrit magnet structure

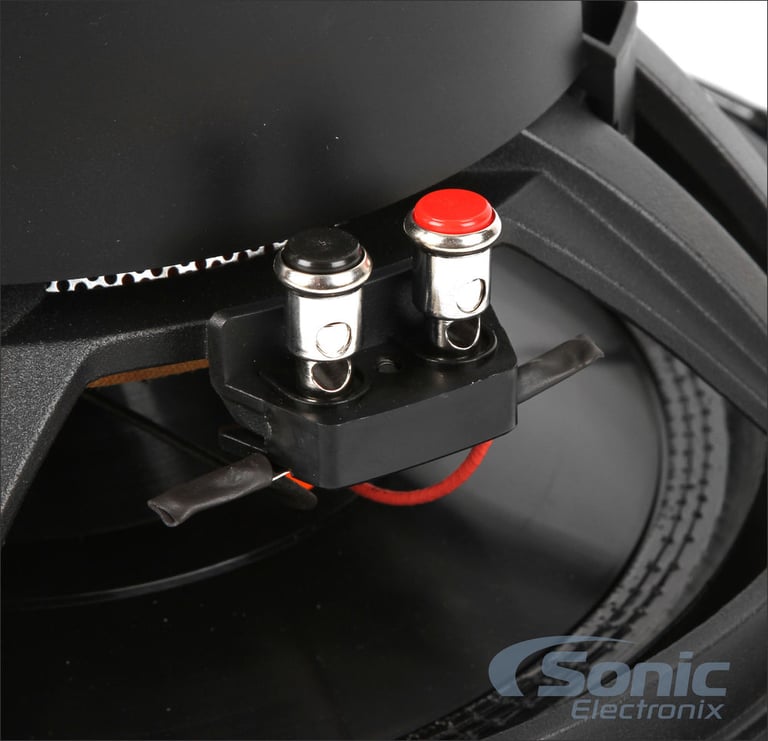

  • Silver-plated push terminals
  • Frequency response: 30-400 Hz
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

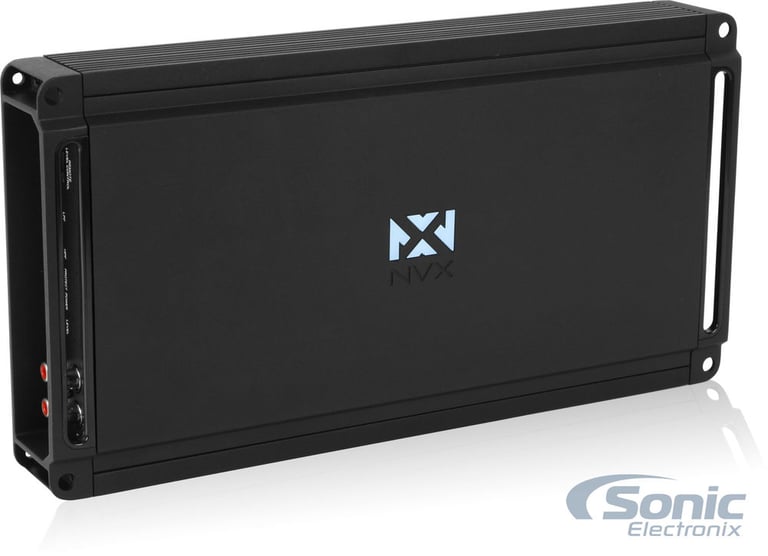

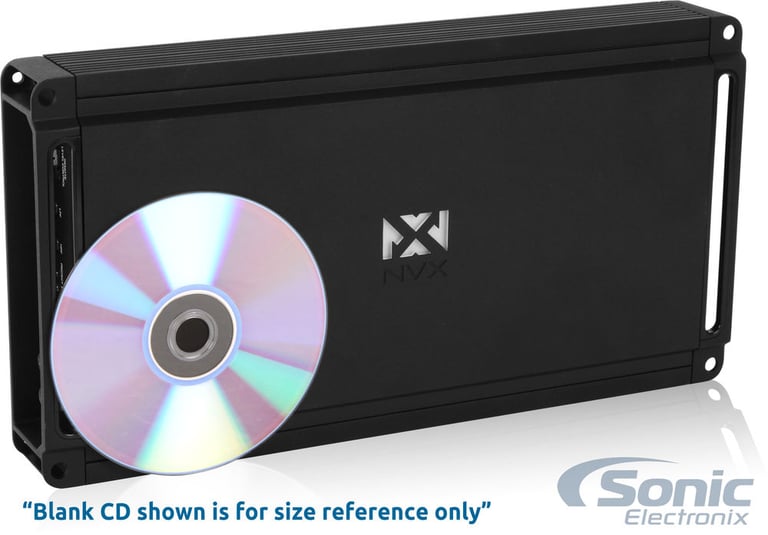

NVX JAD1200.1

True 1200W RMS, Class D Monoblock Amplifier with Bass Remote
Quantity: 1

General Features:

  • Class D Monoblock Amplifier with Bass Remote
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 662 watts x 1 chan.
    • 2 ohm: 1037 watts x 1 chan.
    • 1 ohm: 1384 watts x 1 chan.

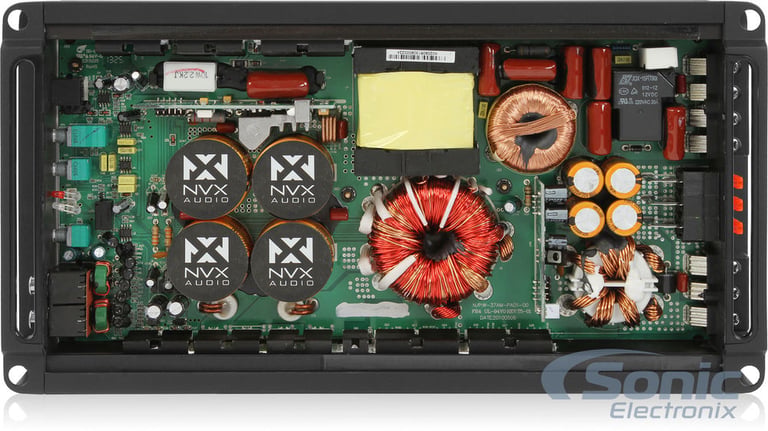

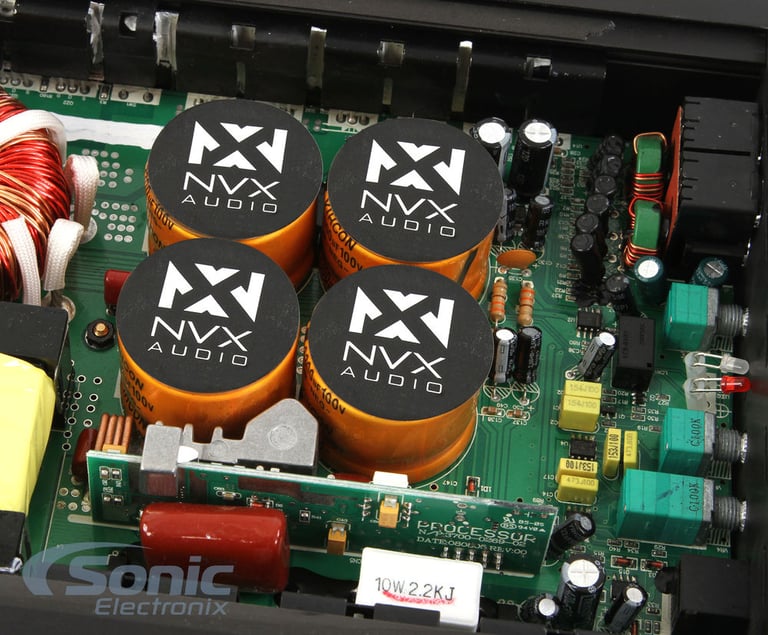

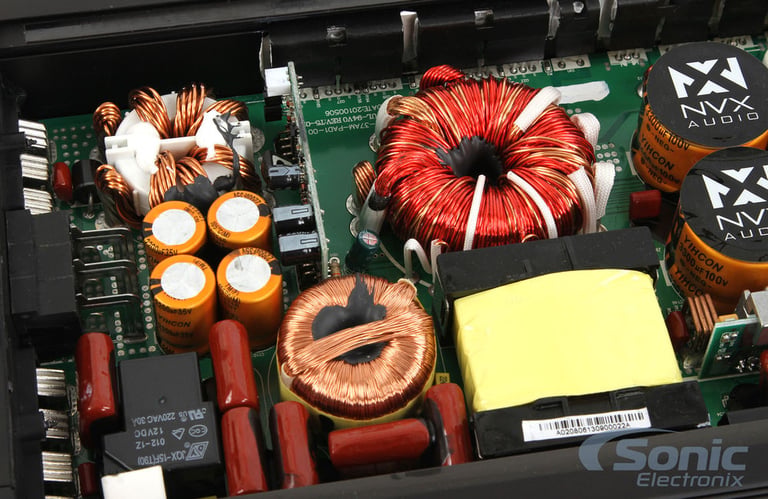

  • Non-regulated efficient S.M.P.S power supply design
  • Pulse Width Modulated MOSFET power supply

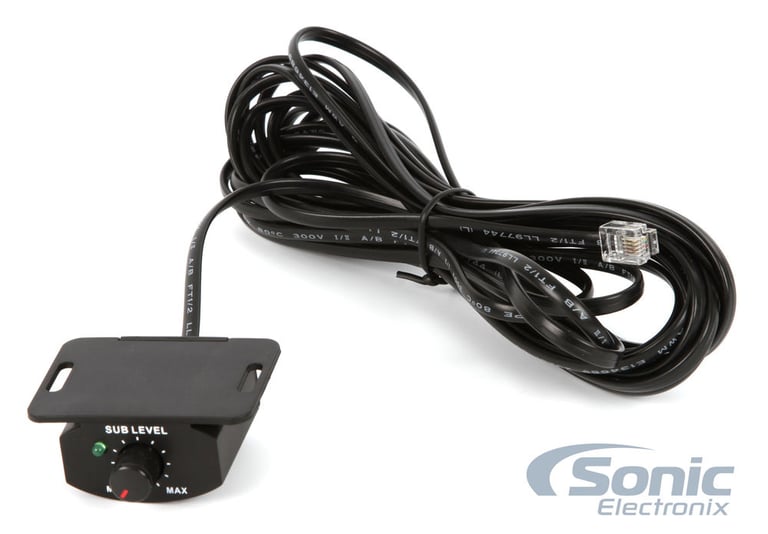

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators

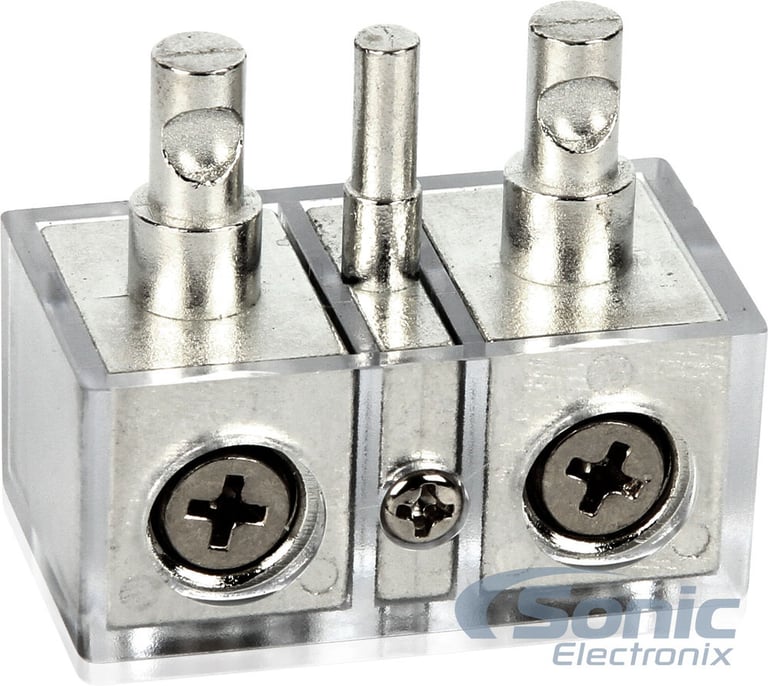

  • Power and ground Gauge adapter included (Up to 0 gauge)
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

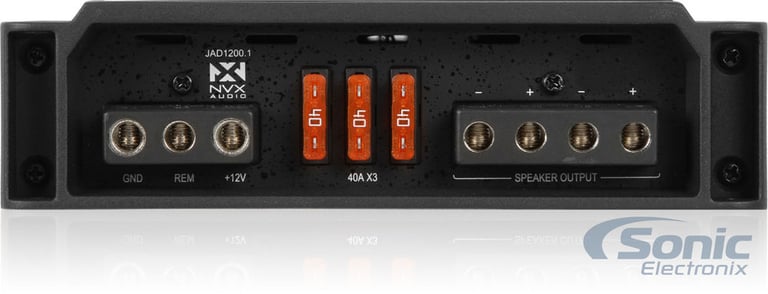

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals

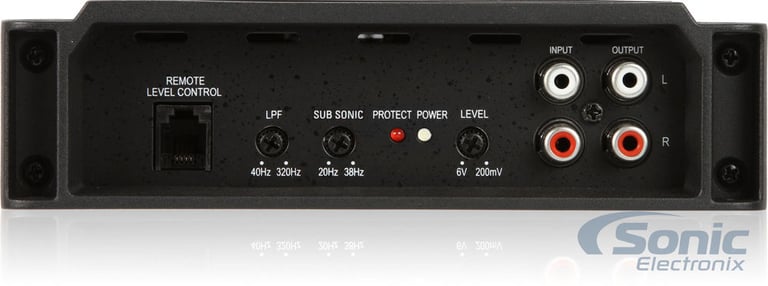

  • Variable subsonic filter (20-38 Hz, 24 dB/octave)
  • Variable low-pass filter (40-320 Hz, 24 dB/octave)
  • Damping factor: 200
  • Input Sensitivity: 200mV-6V
  • Frequency response: 20-200 Hz
  • Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter
  • Also found as: JAD12001, JAD-12001, JAD1200
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT42, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

C1500C-07A small

MTX C1500C-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 320 Hz
Subsonic Filter
20 - 38 Hz
Signal-to-Noise Ratio
111 dB
Remote bass/level controller
Yes
Fan Cooled
No

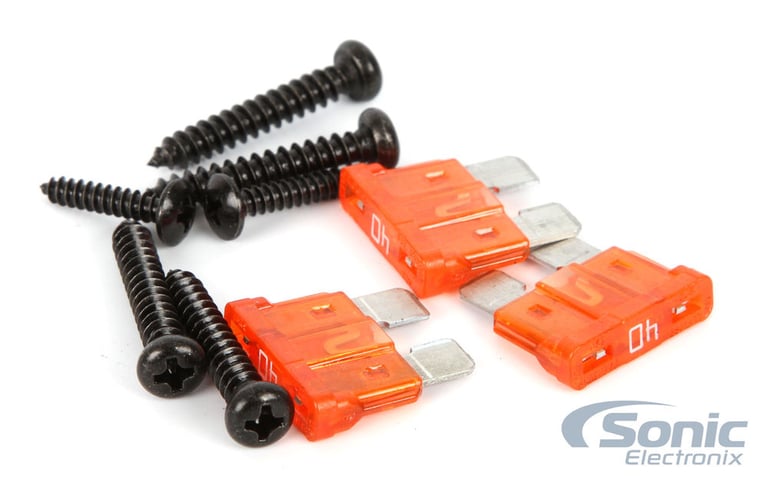

Fuse Rating
40A x 3
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
MS Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
900 watts
Peak Power Handling
1800 watts
Woofer Surround
Poly Coated Cloth
Woofer Composition
Polypropylene
Sensitivity
87 dB
Frequency Response
30 - 400 Hz
Xmax (millimeters)
29.3 mm
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
10-15/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

MS-12SD2_JAD1200.1

Weight:

22.50lbs

Internal SKU:

ms12sd2_jad12001

Internal Product ID:

90455

Product and How-to Videos


Customer Ratings & Reviews


1800W JBL and NVX Bass Package thumbnail image

5 star
80%
4 star
14%
3 star
4%
2 star
3%
1 star
0%



Durability
4.8
Value
4.8
Features
4.5
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Big Bang in a small package

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

This amp does all of 1200 watts plus. Very clear and very powerful. Love it

By timothy on December 27, 2014

99 found this helpful


Powerful, Affordable, High Quality Amplifier

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

Great amp.. Small footprint. I have it pushing two NVX VSW104s and it is more than enough. TONS of power. I actually have the gain at less than 50%. The bass knob doesn't function like it should, so I installed a LC-1 and it's perfect! No complaints here. Tons of power and never runs hot. Actually pushes around 1500 watts if turned all the way up.

By Marc on October 14, 2014

96 found this helpful


Small amp...huge power!

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

This amp is tiny, has big power wire terminals, and one ohm mono stable, producing well over 1200 rms all the time.
Doesn't even get hot. NVX is clean and a great value, very low price for big power. Amp is all metal, that speaks for itself regarding quality.
Ask for Wes at sonic electronix for any car audio needs, he's amazing

By Alex on August 31, 2014

93 found this helpful


My new amp

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

i would highly recommend this amp to anybody! very small amp high quality and its true 1200rms!

By Devan on August 4, 2014

93 found this helpful


Very Happy so Far

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

I purchased the JAD800.4 along with a JAD1200.1 to power my Infinity Kappa speakers and MB Quart subs. My first choice was the Infinity Kappa Five amp, but I had problems with two of them and was given a store credit. Second time around I decided to go with two amps (4/1channel) hoping for better performance / reliability.
I read a lot of mixed reviews on Class D amplifiers. Many people think that A/B has better sound quality, while others prefer the small footprint, high power / low heat output of Class D. Being an engineer I reviewed the specs and was very impressed with the signal to noise as well as the THD compared to Class A/B.
NVX is a relatively new brand so I turned to Google and found several good reviews. I was looking at the Polk amps and NVX seems to be very similar, with the controls panels and specs being almost identical (and NVX was in stock).
Out of the box the amps had a solid feel and clean look. They have a soft-start feature that powers them up a few seconds after they get power. This gives you time to start your engine without drawing any current. Very nice.
The sound quality is excellent - better than other A/B amps I had in the past. More than enough power - I haven't even cranked them all the way up yet and don't think I'll ever have to.
I have a second MB Quart 10 RLP on back order because with one sub I was getting distortion before I could feel the bass. It turns out that the Infinity Kappa Five amp was the weak link. The JAD 1200.1 pushes one sub very well.
The only negative I have to say about these amps is that the adjustment dials take a philips screwdriver, and they do not have an arrow or line showing you what it is set to. This made it a little inconvenient to tweak the crossover points.

By Califlub on April 18, 2013

91 found this helpful


Good clean amp, solid deal for the price.

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

I have had car audio as a hobby for 15 years now and am thoroughly satisfied with these amps and everything else I've acquired from NVX

Pros: Small size (seriously 1/4 the size of a lot of amps,) doesn't get very hot running @ 1 ohm pushing hard, it's quite efficient and not power hungry, good clean power!!!

Cons: The X-over and gain controls are meant to be turned about 2 full revolutions instead of 1/2 revolution. This wasn't a real problem but did catch me quite off guard. The power mounts are standard at 8 ga with an adapter for up to 1/0 ga. I happen to us 1/0 ga and found this to be a little troublesome and silly. Finally, the screw holes and all the speaker and power mounts adjustments must be made through holes in their handle design requiring you to use a rather slender screwdriver, which you may just not have handy at all.

I feel that for the price the pro's of this unit certainly outweigh it's slight drawbacks. I have 2 NVX VCW 12's being pushed by 2 of these amps. I am very pleased with this set as the speakers can hit a wide frequency range while, be pretty loud, and be very clean at the same time. I definitely recommend this amp. The quality isn't far from Sundown or Memphis but the price sure is!

By Jeff on May 19, 2014

91 found this helpful


awesome amp

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

This amp is amazing...POWERFUL.
I would recommend this amp to any one...i have it running 2 JL audio 15's and it hits so hard it blurs my vision while driving. ..its a bad ass amp, and sonic electronic is awesome

By kitchen on December 10, 2013

88 found this helpful


Great buy

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

The NVX 1200.1 does rated or above I have it running 2 sundown SA 8 d4 at 1ohm and it gives them all they want with plenty of head space. The amp gets warm but haven't had it shut down yet and I play it hard. I also have a NVX 800.4 running my highs and it also has very clean sound and so much more power than I'm using I would suggest these amps to anyone not wanting to spend alot but have good clean power.

By Aholland on September 17, 2013

86 found this helpful


Very good amp for the money

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

I have had this amp now for 6 months and it is an extremely clean and powerful amp. I have owned amps that I've paid double the price for, that were no where near the quality of this amp. Does not get very hot and hits my 12" Cerwin Vega Hard and Clean. Only issue is the connectors to the speaker are a little difficult to access.

By Lloyd on July 5, 2013

86 found this helpful


great amp!

The following review is for JAD1200.1, which is a part of the bundle you are viewing.

great thing about this amp is the 0 gauge adapter made my install alot easier!

By devin on March 13, 2013

81 found this helpful




12TW1-2 small

JL Audio 12TW1-2 - New (Damaged Packaging, Product A+)

300W 12" TW1 (Thin-Line) Series Single 2-ohm Subwoofer

(1)

$446.49

List price $469.99

MDR-XB21EX small

Sony MDR-XB21EX (MDRXB21EX) Extra Bass Earbuds

Specially Designed to Reproduce Powerful Bass with 9mm Dynamic Neodymium Drivers

(5)

$32.99

List price $39.99

NSW124V2,NSW124V2 small

(BOGO 10% OFF) 2 NVX NSW124v2 12" Car Subwoofers

(2) NVX 12" Car Subwoofers 700W RMS (1400W Peak) (Regularly $119.98)

(33)

$189.98

List price $239.98

M2000.4 small

Autotek Mean Machine M2000.4

2000W Mean Machine Series 4-Channel Class AB Car Amplifier

(19)

$119.95

List price $239.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2018 Kia Soul

2006 Acura RL

2005 Lamborghini Murcielago

1996 Eagle Summit

2002 Land Rover Range Rover

2010 Jeep Wrangler

2001 Saturn LW300

2011 Ford Crown Victoria

Vehicle
Store
Delete

2016 Can-Am Commander 1000 XT-P

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
