700W RMS JBL + Planet Audio Bass Bundle

Two JBL GTO1014D 10" Subwoofers + Planet Audio AC1500.1M Anarchy Monoblock Amp & Installation Kit

JBL
Shop all JBL
Product videos
highlight-star-icon

• 700W JBL + Planet Audio Bass Bundle
• Dual JBL GTO1014D GTO Series Subwoofers
• 1400W Peak, 350W RMS (Each)
• Planet Audio AC1500.1M Anarchy Monoblock Amp
• RMS: 700W x 1 @ 4 ohm, 1100W x 1 @ 2 ohm

Learn more about the 2_gto1014d_ac15001m_bak42bl

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


• 700W JBL + Planet Audio Bass Bundle
• Dual JBL GTO1014D GTO Series Subwoofers
• 1400W Peak, 350W RMS (Each)
• Planet Audio AC1500.1M Anarchy Monoblock Amp
• RMS: 700W x 1 @ 4 ohm, 1100W x 1 @ 2 ohm

Description


JBL brand icon

Authorized dealer

The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.

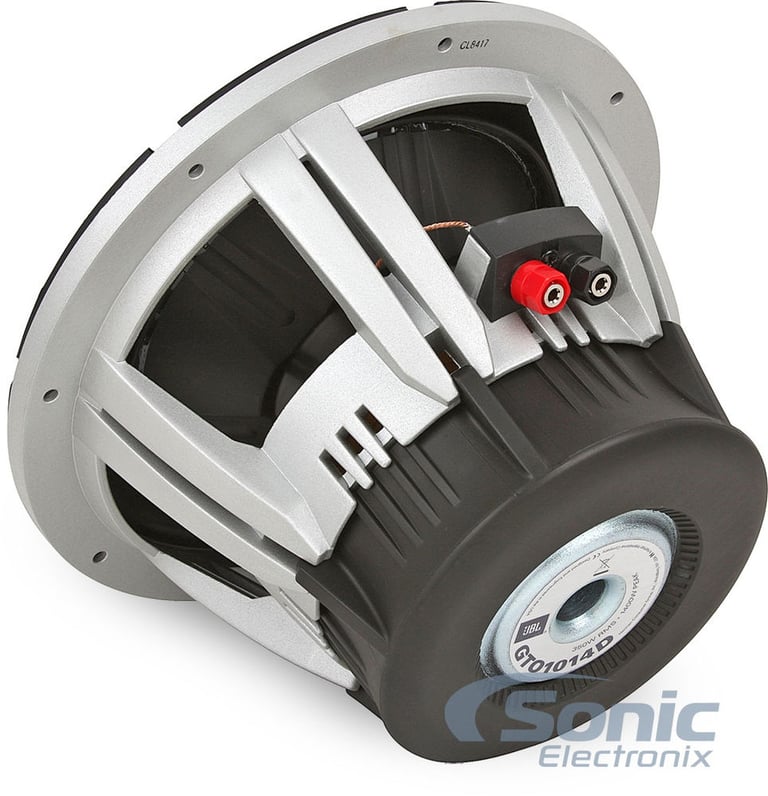

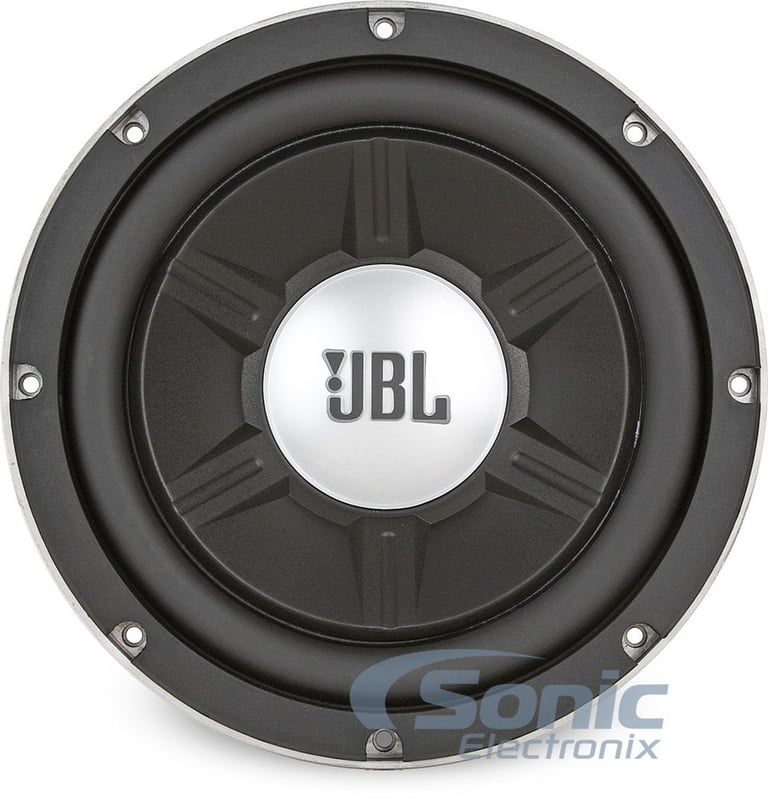

JBL GTO1014D

350W 10" GTO Series Dual 4 ohm Subwoofer
Quantity: 2 Subwoofers

General Features:

  • 10" Dual 4 ohm Grand Touring Die-Cast Series Subwoofer
  • Power Handling:
    • Peak: 2800 watts total / 1400 watts each
    • RMS: 700 watts total / 350 watts each
  • Impedance: Dual 4 ohm
  • Polypropylene cone woofer
  • Rubber surround
  • Tinsel wire protector
  • Die-cast aluminum basket
  • 2" Dual 4 ohm voice coil
  • Frequency response: 25-400 Hz
  • Sensitivity: 91 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Planet Audio AC1500.1M

1500W Max Anarchy Series Monoblock Power Amplifier
Quantity: 1

  • Anarchy Series Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 700 watts x 1 chan.
    • 2 ohm: 1100 watts x 1 chan.
  • Max power output:
    • 2 ohm: 1500 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Convenient remote subwoofer control
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +18 dB
  • Chrome-plated connections enhance durability
  • Variable low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Low level and high level inputs
  • Heavy-duty set-screw terminals
  • Nickel-plated contacts
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable low-pass filter (45-90 Hz, 24 dB/octave)
  • Signal-to-Noise Ratio: 102 dB
  • Dampening Factor: 125+
  • Frequency response: 20-20,000 Hz
  • Dimensions: 10"L x 10"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Belva BAK42BL (Blue)

Primary Color: Blue - Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Cable (CCA Wiring)
Quantity: 1

General Features:

  • Complete 4 Gauge 2-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1000 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while KnuKonceptz, XS Power and other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
  • Also available as 4-Channel Kit
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

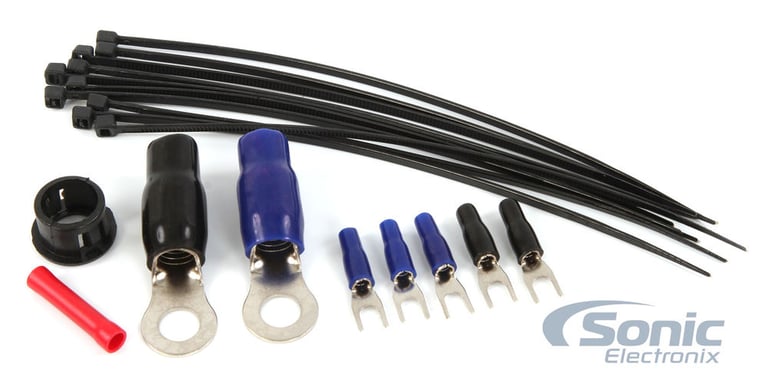

Kit includes:

  1. 17 ft. (5.2 meters) Blue 4 gauge power wire
  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) Speaker cable
  6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Blue chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

This kit is CCA (Copper Clad Aluminum)
For best performance, purchase a 100% OFC Kit!

Oxygen-Free Copper wiring can improve the performance of your system and save you money in the long run. Watch this video to learn why you should choose an OFC Amp Kit!

Click here for Premium OFC kits!


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
700 watts x 1 channel
RMS Power @ 2 ohms
1100 watts x 1 channel
Peak Power Output
1500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
1100 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
102 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Series
GTO Series
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
350 watts
Peak Power Handling
1400 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Sensitivity
91 dB
Frequency Response
25 - 400 Hz
Xmax (millimeters)
15 mm
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

2_GTO1014D_AC1500.1M_BAK42BL

Weight:

40.50lbs

Internal SKU:

2_gto1014d_ac15001m_bak42bl

Internal Product ID:

92365

Product and How-to Videos


Customer Ratings & Reviews


700W RMS JBL + Planet Audio Bass Bundle thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


NPC-319 Red small

Naxa NPC-319 - Red

Lightweight Portable Slim Personal CD / MP3 Compact Disc Player with Stereo Earbuds

$15.99

List price $19.99

P1-2000.1_SWR-1242D small

2000W Complete Crunch + Alpine Bass Package

Crunch P1 2000.1 Monoblock Amplifier + Alpine SWR1242D 12" Sub + 4 Gauge Amp Kit + 12" Sealed Box

$284.95

List price $709.92

V10BASS small

Visonik V10BASS

800W 10" Amplified Loaded Subwoofer Vented Enclosure System

(3)

$84.99

List price $249.99

2_GTO1014D_ASA 600.1DX_BAK42BK small

600W RMS JBL + Powerbass Bass Bundle

Two JBL GTO1014D 10" Subwoofers + Powerbass ASA 600.1DX Monoblock Amp & Installation Kit

(92)

$269.07

List price $689.88

SA110SPD small

Memphis SA110SPD

10" Nanoboxx Underseat Subwoofer Bass System

$399.95

List price $399.95

INT-BMW2 small

Fortin INT-BMW2

Slot Key Interface Module for Remote Start Installations, Select 2005 - 2015 BMW and Mini Vehicles

$69.99

List price $104.98

2000RS small

ScyTek 2000RS

Galaxy Remote Start and Keyless Entry System with Two 5-Button Remote Controls

$59.99

List price $299.99

SRV250 small

Clarion SRV250

75W 6.75" Subwoofer Loaded in a Powered Amplified Low Profile Enclosure

(7)

$149.99

List price $349.99

NAS-3035 Red small

Naxa NAS-3035 Red

Portable Speaker with FM Radio and USB & SD Inputs

$16.99

List price $34.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Dodge Durango

1963 Buick Electra

2005 Mazda MPV

1997 Ford Taurus

2019 Ford Flex

2011 Ram 2500

2004 Subaru Baja

2015 Audi S3

1998 Dodge Durango

2013 Infiniti M56

Vehicle
Store
Delete

1986 Honda VF500F Interceptor

2003 Harley Davidson FXST/I Softail Standard

Vehicle
Store
Delete

2019 Can-Am Defender HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
